| Prod Model: |
DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Diamond Tools Segment |
| Material: |
Diamond and Metal Powder |
| Making Method: |
Sintered Diamond Segment |
| Application: |
Cutting, Polishing, Drilling |
| Certification: |
SGS |
| Remarks: |
Other Specifications Can Be Made |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
| Saw Blade External Diameter: |
Diamond Tools Segment |

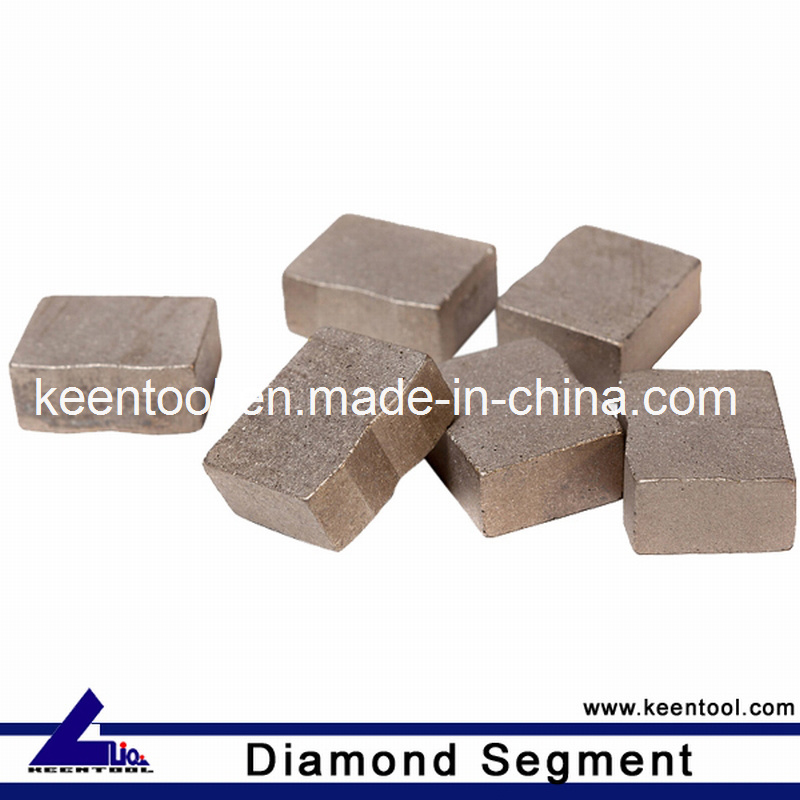

Product Description
Quanzhou Keen Diamond Tool Co., Ltd is a professinal manufacturer of kinds of diamond tools, especially in the field of diamond wire, diamond saw blade, diamond segments, diamond fickert abrasives and diamond core drill bits etc.
QUANZHOU KEEN DIAMOND TOOL CO offers diamond segments for large circular saw blades with most competitive quality and price in China. The cutting performance almost reach Europe customers' requirements especially in Germany, France, Poland, Ukraine, Russia, etc. This is the No. 1 quality products in China, also price is much less than Europe products.
From the construction of diamond segments, we have two types for choice. One is Chinese traditional Multi-layers Type, from the following photos No. 1 & No. 2 on the cutting side, you will find there are 4 lines, usually after cutting there will be four lines (Groove) on the cutting side. This type segments can reduce the diamond & powder cost, but the diamond and Cobalt Powder quality must be very good, otherwise the segments will not cut if the granite is very hard, or even the segments will be broken. Most Chinese manufacture they are producing this type segments and use cheap powders, though the price seems very cheap however the working efficiency is very low. We also produce this type segments to some special market like India or Russia, Ukraine, but we use over 50% Cobalt, also the diamond quality is very good.
Another is Sandwich Type, the following Photo No. 3, from the cutting surface you can not find the lines. The middle of this type segment the diamond powder quantity is a little less than the two sides, after cutting there will be a little Arc groove on the segments like "( ". This the main traditional construction in Europe and popular in the market. We have many years experiences in this field, the cutting efficiency & life is accepted by most countries in Europe. In China there are few companies have this technic.
When place order of diamond segments please inform:
1) Diameter (Inch or mm)
2) Segment No. (how many blades per machine)
3) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
4) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
5) Quantity NO. (How many PCS, or how many sets segments)
6) Machine Powder/RPM (If possible)
7) Feed Speed (M/Minute)
8) Expected Cutting Depth (how many mm per time, forward or backward)
9) Coolant System (Water or Oil, how many liters/Minute, etc. )
10) Expected Shipping Date
11) Special Requirements (If)
| Diamond tools segment |
| Diameter of blade | Length
(mm) | Width
(mm) | Height
(mm) |
| Inch | Metric(mm) |
| 12" | 300 | 40 | 3.0 | 10/12/15/20 |
| 14" | 350 | 40 | 3.2 | 10/12/15/20 |
| 16" | 400 | 40 | 3.4 | 10/12/15/20 |
| 18" | 450 | 40 | 3.6 | 10/12/15/20 |
| 20" | 500 | 40 | 4.0 | 10/12/15/20 |
| 24" | 600 | 40 | 4.5 | 10/12/15/20 |
| 28" | 700 | 40 | 5.0 | 10/12/15/20 |
| 32" | 800 | 40 | 6.0 | 10/12/15/20 |
| 36" | 900 | 24 | 6.5/7.5 | 13/15 |
| 40" | 1000 | 24 | 6.5/7.5 | 13/15 |
| 48" | 1200 | 24 | 7.0/8.0 | 13/15 |
| 64" | 1600 | 24 | 8.2/9.2 | 13/15 |
| 72" | 1800 | 24 | 9.0/10.0 | 13/15 |
| 80" | 2000 | 24 | 9.5/10.5 | 13/15 |
| 110" | 2500 | 24 | 11/12 | 15/20 |
| 120" | 3000 | 24 | 11/12 | 15/20 |
| 135" | 3500 | 24 | 12.5/13.5 | 15/20 |
| 155" | 4000 | 24 | 13.5/14.5 | 15/20 |
| 165" | 4200 | 24 | 13.5/14.5 | 15/20 |
|
|
|
|
|
Universal size for Gang Saw
Size: 20*5.2/4.6/8*10mm |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
