| Prod Model: |
GDW-KT-115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Diamond Wire for Marble |
| Diameters: |
11.5mm |
| Use: |
Wet Cutting |
| No. Of Beads: |
26 PCS |
| Beads: |
Sintered Beads |
| Coating: |
Spring |
| Length: |
50m/Roll |
| Weight: |
18.5kg |
| Applcation: |
Diamond Wire for Marble Quarrying |
Product Description

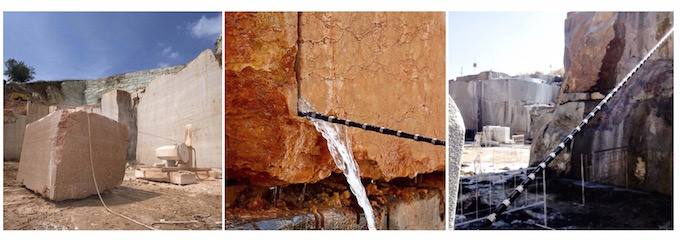

DescriptionDiamond Wire for Marble/Limestone and Travertine Quarrying:
Diamond wire used for marble quarry which can vastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.
To be able to used for great area marble quarries cutting;To greatly increase the recovery rate of marble quarry;High manufacture efficiency;Safety, low-noise, no-dust and friendly surroundings; Low cutting cost.
Technical DataFOR WET CUTTING:
| APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
| To be widely used for WET cutting of marble/travertine and limestone in quarries | ROC-MQ115S | ¢11.5×6.5/6.0 | 26/28 | Spring |
| ROC-MQ115R | ¢11.5×6.5/6.0 | 37 | Rubber |
| ROC-MQ110S | ¢11.0×6.5/6.0 | 26/28 | Spring |
| ROC-MQ110R | ¢11.0×6.5/6.0 | 37 | Rubber |
| ROC-MQ105S | ¢10.5×6.5/6.0 | 26/28 | Spring |
| ROC-MQ105R | ¢10.5×6.5/6.0 | 37 | Rubber |
| Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life
(M2/M) |
| Soft | 35-45 | 15-20 | 80-100 |
| Medium | 35-40 | 8-16 | 60-80 |
| Hard | 30-35 | 6-10 | 50-70 |

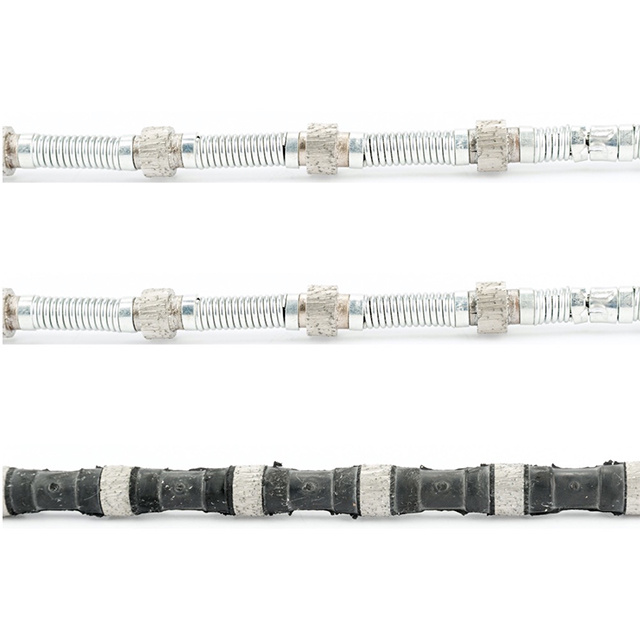

| SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
| ¢11.5 | 6.5/6.0 | 11 | Sintered |
| ¢11.0 | 6.5/6.0 | 11 | Sintered |
| ¢10.5 | 6.5/6.0 | 11 | Sintered |
FOR DRY CUTTING:
| APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
| To be widely used for DRY cutting of marble/travertine and limestone in quarries | ROC-MQ115D | ¢11.5×6.0 | 26/28 | Spring |
| ROC-MQ110D | ¢11.0×6.0 | 26/28 | Spring |
| ROC-MQ105D | ¢10.5×6.0 | 26/28 | Spring |
| Cutting Material | Linear Speed (M/S) | Cutting Speed (M2/H) | Cutting Life
(M2/M) |
| Soft | 35-45 | 9-14 | 70-90 |
| Medium | 35-40 | 7-12 | 50-70 |
| Hard | 30-35 | 5-9 | 40-60 |
| SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
| ¢11.5 | 6.0 | 11 | Sintered |
| ¢11.0 | 6.0 | 11 | Sintered |
| ¢10.5 | 6.0 | 11 | Sintered |

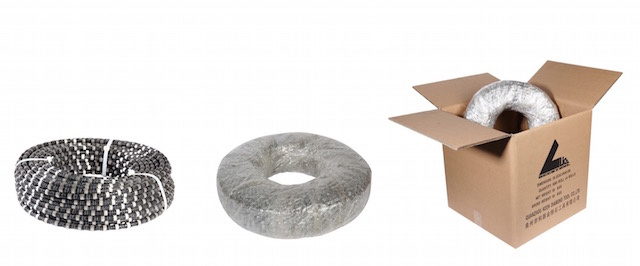

Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
