| Prod Model: |
BLD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue or as You Request |
| Function: |
New |
| Drive: |
Electric |
| Market: |
Global |
| Brand: |
Besltink |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Semi-automatic |
| Type: |
Electric |
Product Description
1. CE certificate availible.
2. The cutting process and the wire tension is automatically controlled by supercard and PLC.
3. It is accurate to control by the operation systeym.
4. We can design subject to our customers special requirement.

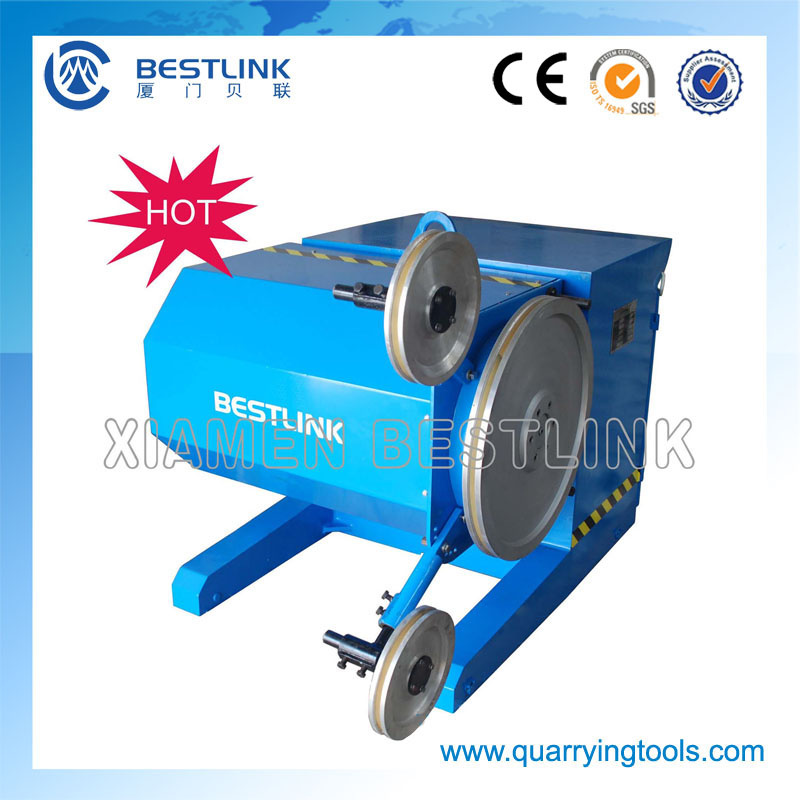

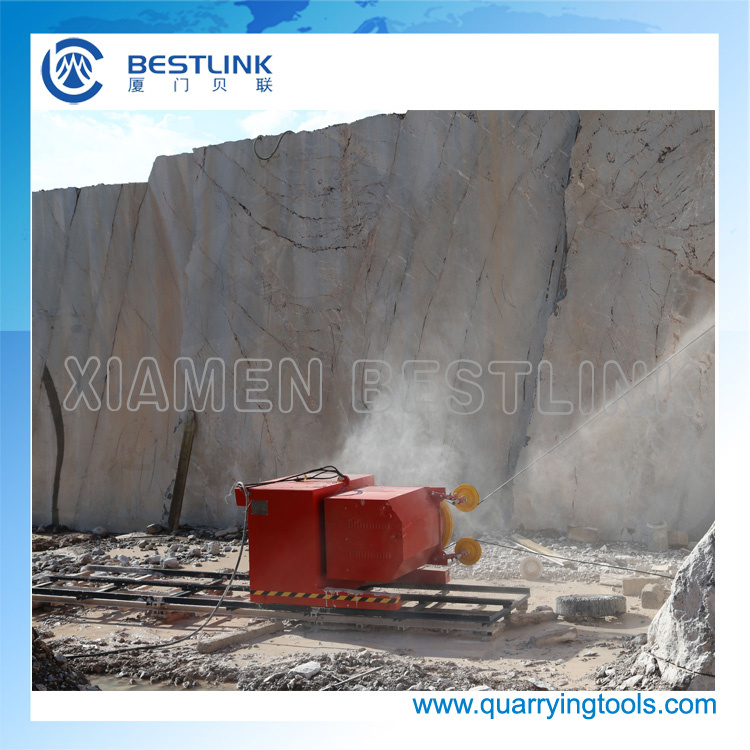

The wire saw can apply horizontal, vertical and acclivitous and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone which can save the resource of stone. During using the diamond wire saw, which is less dust, low noise, using automatical operation can improve the working condition, and increase the safety factor.
The Diamond wire saw can suit to all kinds of quarry, even the hardness or the crack of stone, the wire saw can be used in, marble, limestone, sandstone, baslt, and granite quarry.
| Application | Type | power | Dia. of Main
flywheel | Parallel-shift
distance | Rotation of flywheel
-holder head |
| For granite quarry | BLD-W55A-G | 55KW | 1000mm | 400mm | 360° |
| BLD-W45A-G | 45KW | 900mm | 400mm | 360° |
| BLD-W37A-G | 37KW | 800mm | 400mm | 360° |
| BLD-W55B-G | 55KW | 1000mm | 500mm | 360° |
| BLD-W45B-G | 45KW | 900mm | 450mm | 360° |
| BLD-W37B-G | 37KW | 800mm | 450mm | 360° |
| For marble quarry | BLD-W55M | 55KW | 1000mm | 500mm | 360° |
| BLD-W45M | 45KW | 900mm | 450mm | 360° |
| BLD-W37M | 37KW | 800mm | 450mm | 360° |
| BLD-W22M | 22KW | 800mm | 400mm | 360° |
| | Note: we can design according to the require of our customers. |
