| Prod Model: |
BL-37G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting: |
Vertical and Honrizontal |
| Drive: |
Electric |
| Brand Name: |
Bestlink |
| MOQ: |
1set |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Cutting |
| Kind: |
Stone Sawing Machine |
| Saw Blade External Diameter: |
500mm |
| Graininess: |
No |
| Thickness: |
No |
| Shape: |
No |
| Customized: |
No |
| Specification: |
No |
| Brand: |
Bestlink |
Product Description
1. CE certificate
2. Horizontal, vertical and acclivitou
3. Exploit large block
4. Smooth cutting face
5. Thin crack of the stone

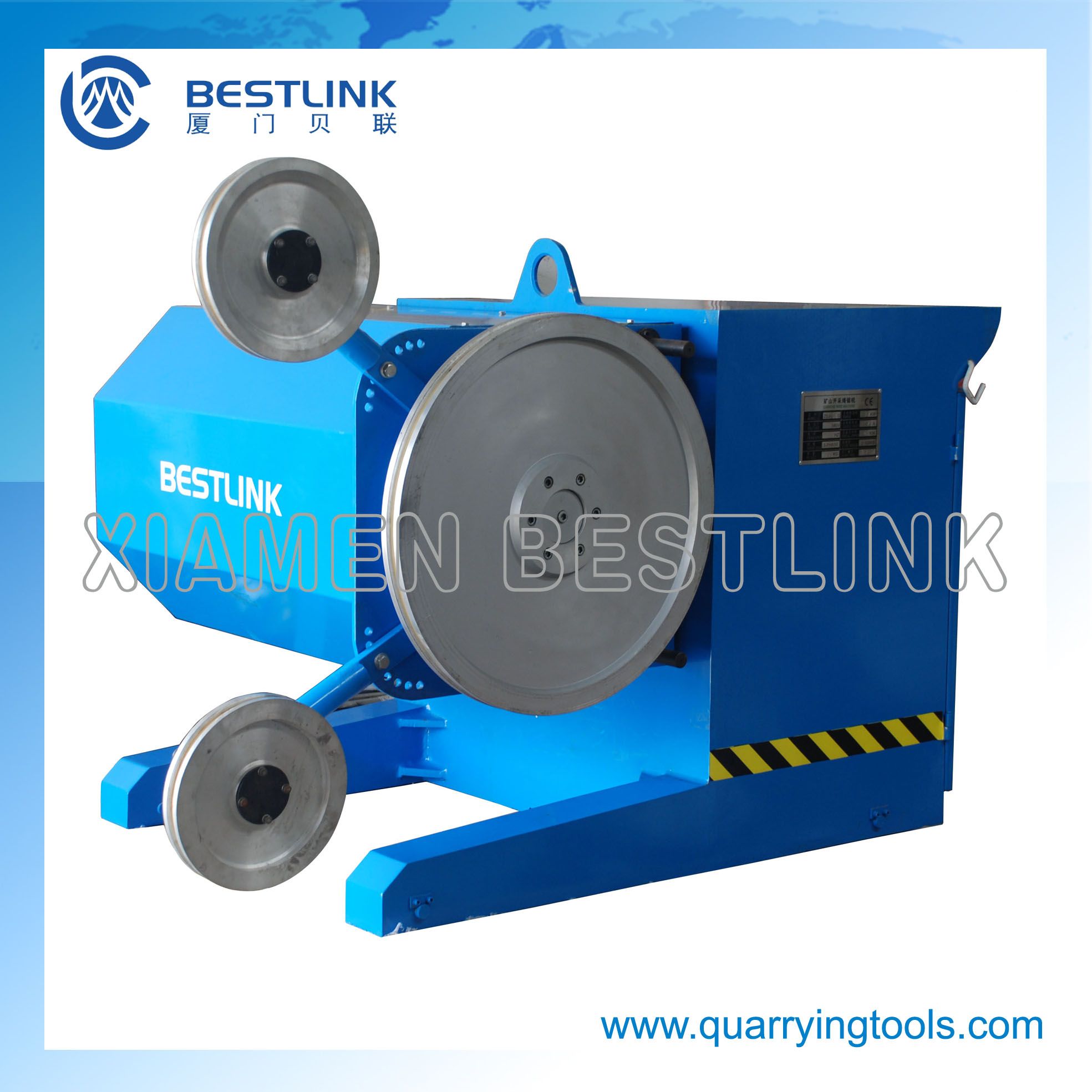

The wire saw can apply horizontal, vertical and acclivitous and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone which can save the resource of stone. During using the diamond wire saw, which is less dust, low noise, using automatical operation can improve the working condition, and increase the safety factor.
The Diamond wire saw can suit to all kinds of quarry, even the hardness or the crack of stone, the wire saw can be used in, marble, limestone, sandstone, baslt, and granite quarry.
| Application | Type | power | Dia. of Main
flywheel | Parallel-shift
distance | Rotation of flywheel
-holder head |
| For granite quarry | BLD-W55A-G | 55KW | 1000mm | 400mm | 360° |
| BLD-W45A-G | 45KW | 900mm | 400mm | 360° |
| BLD-W37A-G | 37KW | 800mm | 400mm | 360° |
| BLD-W55B-G | 55KW | 1000mm | 500mm | 360° |
| BLD-W45B-G | 45KW | 900mm | 450mm | 360° |
| BLD-W37B-G | 37KW | 800mm | 450mm | 360° |
| For marble quarry | BLD-W55M | 55KW | 1000mm | 500mm | 360° |
| BLD-W45M | 45KW | 900mm | 450mm | 360° |
| BLD-W37M | 37KW | 800mm | 450mm | 360° |
| BLD-W22M | 22KW | 800mm | 400mm | 360° |
| Note: we can design according to the require of our customers. |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
