Didtek ANSI CF3m BS1873 Cast Steel Rising Stem Shut off Industrial Globe Valve
| Price: |
US $ 100-1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DIDTEKCSGV |
| Sizes: |
2''-24" |
| Operation: |
Manual |
| Media: |
Steam,Chemistry,Oil,Gas etc. |
| Standards: |
BS1873 |
| Face To Face: |
ASME B16.10 |
| Certificates: |
API6d,Ce1521,ISO9001,Cu-Tr010/032,API 607,API 6fa |
| End Flanges: |
ASME B16.5/ASME B16.47 |
| Inspection And Test: |
API 598,API6d;100% Quantity Tested Before Delivery |
| Warranty Time: |
18 Months After Shipments/12 Months After Install |
| Delivery Detail: |
15 - 30 Days,Depends on The Order Quantity |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Heat Preservation Globe Valve |
| Standard: |
ANSI |
| Material: |
A351 CF3m |
Product Description

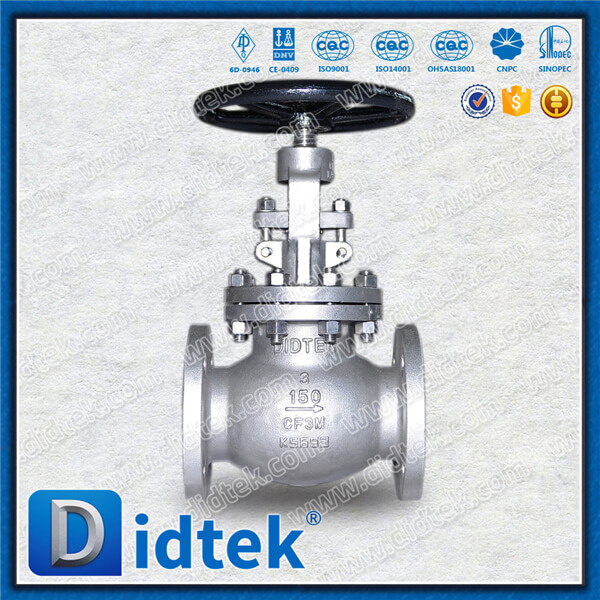

Didtek ANSI CF3M BS1873 Cast Steel Rising Stem Shut off Industrial Globe Valve
Didtek BS1873 Cast Steel Shut Off ValveApplication & Function:Didtek Cast steel Globe valves is used for throttling flow control. Shut off is accomplished by moving the disc against the flow stream rather than across it as in the case with a gate valve. The flow pattern through a globe valve involves changes in direction,resulting in greater resistance to flow,causing high pressure drop. Didtek cast steel globe valve is an excellent valve to use for on-off service,also is highly suited for frequent cycling and control of fluids anywhere in amount or volume between the open and closed positions.Technical SpecificationBrand: DIDTEK
Size Range: 3"
Pressure Rating: ASME CL150
Material: A351 CF3M
Temperature Range: -29°C~350°C
Applicable Standards:
Design: BS1873
Face to face: ASME B16.10
End Flanges: ASME B16.5/ASME B16.47
Butt welded ends: ASME B16.25
Inspection and test: API 598Other Information:
Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 15 - 30 days
Valve Sample: Sample Available by Didtek Valve
Valve Color: Customer request
Valve Packing: Plywood Case for Globe Valve
MOQ: 1 Set
Valve Certificate: API 6D,CE1521,PED Model H 2014/68/EU,ISO9001:2008,ISO14001,CU-TR 010/032 ,EAC
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union

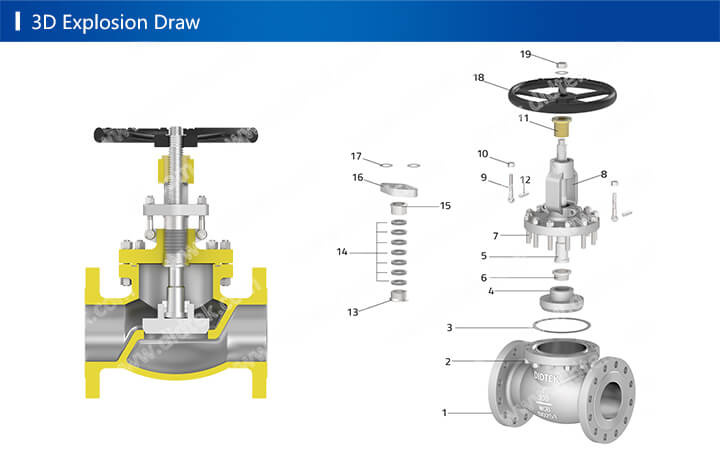

| Parts name | Part Name | Carbon Steel to ASTM | Alloy Steel to ASTM | Stainless Steel to ASTM |
| 1 | Body | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A351 CF8 | A351 CF8M |
| 2 | Nuts | A194 2H | A194 4 | A194 4 | A194 4 | A194 8 | A194 8M |
| 3 | Gasket | SS Spiral Wound W/graphite,or SS Spiral Wound W/PTFE,or Reinforced PTFE |
| 4 | Disc | WCB+13Cr | LCB+304 | WC1+STL | WC6+STL | A351 CF8 | A351 CF8M |
| 5 | Stem | A182 F6a | A182 F6a | A182 F6a | A182 F6a | F304 | F316 |
| 6 | Disc Nuts | ASTM A105 | ASTM A105 | ASTM A105 | ASTM A105 | F304 | F316 |
| 7 | Bolts | A193 B7 | A320 L7 | A193 B16 | A193 B16 | A193 B8 | A193 B8M |
| 8 | Bonnet | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A351 CF8 | A351 CF8M |
| 9 | Eyebolt | A193 B7 | A320 L7 | A193 B16 | A193 B16 | A193 B8 | A193 B8M |
| 10 | Nuts | A194 2H | A194 4 | A194 4 | A194 4 | A194 8 | A194 8M |
| 11 | Stem Nut | Copper Alloy or A439 D2 |
| 12 | Gland Eyebolt Pin | A29 1035 | A276 304 |
| 13 | Backseat Bushing | A182 F6a | A182 F6a | A182 F6a | A182 F6a | F304 | F316 |
| 14 | Packing | Braided graphite,or Die-formed graphite ring or PTFE |
| 15 | Gland | A182 F6a | A182 F6a | A182 F6a | A182 F6a | F304 | F316 |
| 16 | Gland Flange | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A351 CF8 | A351 CF8M |
| 17 | Yoke Cap | AISI 1045 | AISI 1045 | AISI 1045 | AISI 1045 | A351 CF8 | A351 CF8M |
| 18 | Handwheel | Ductile iron / Malleable Iron |
| 19 | Lock Nut | Carbon Steel | Stainless Steel |
Main Outline Dimensions| 150LB |
| Valve Size | 2" | 2-1/2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" |
| 50mm | 65mm | 80mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm |
| Face to Face | L1:RF | 203 | 216 | 241 | 292 | 406 | 495 | 622 | 698 | 787 | 914 | 978 |
| L2:RTJ | 216 | 229 | 254 | 305 | 419 | 508 | 635 | 711 | 800 | 927 | 991 |
| L3:BW | 203 | 216 | 241 | 292 | 406 | 495 | 622 | 698 | 787 | 914 | 978 |
| Valve Bore(d) | 51 | 64 | 76 | 102 | 152 | 203 | 254 | 305 | 337 | 387 | 438 |
| Valve Height(H) | 328 | 360 | 373 | 400 | 528 | 680 | 775 | 880 | - | - | - |
| Valve Height(H1) | - | - | - | - | 556 | 658 | 805 | 955 | 1100 | 1175 | 1345 |
| Lever Diameter(W) | 200 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | - | - | - |
| Handwheel Diameter(W1) | - | - | - | - | 310 | 310 | 460 | 460 | 460 | 460 | 460 |
| Weight(Kg) | Lever | 18 | 26 | 43 | 54 | 95 | 160 | 299 | 373 | - | - | - |
| Gear | - | - | - | - | 114 | 158 | 259 | 378 | 640 | 920 | 1450 |
Remark: More details from 300LB to 2500LB data please check our catalogs.
FAQ:1. Are you manufacturer or trading company?
Of course we are manufacturer, Didtek established since 1985 and professional production of industrial valves over 30 years.
2. What is your main products?
Our main products are Ball valve, Butterfly valve, Gate valve, Globe valve, Check, Strainer, other valve, and made by casting or forged material.
3. Is samples available?
Yes, sample order is available for quality check and market test. But it is not free.
4. Do you have any products in stock?
Depends on your request, we have standard models in stock. Some special products and big order will be newly casting according to your order.
5. How do you guarantee the quality of products?
Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.
6. Do you have attended the exhibitions at other countries?
Yes, we attend the Valve Word in Dusseldorf Germany 2 year per time since 2010, and we also attend the PCVexpo in Russia.
7. What advantages do Didtek have compared to other factories?
(1) We can give the quotation within 12 hours and give the technical drawing within 24 hours.
(2) We will take full responsibility for the quality problems of our products.
(3) We have a warehouse in Germany with some stock.
(4) We have agent in Germany, England, Spain and Costa Rica, and our quality is recognized by our customers.
(5) We have a full inspection reports after the products finish production, including the 3.1 Certificate, Dimensions checking, Pressure testing and order information.
(6) We can supply the full rang of the accessories.
Didtek is the word to trust.
Established in 1985, Didtek Valve is a preferred supplier of industrial valves for major Chinese manufacturers.
Through 30 years' development, Didtek valve has been recognized as a valve manufacturer with superior quality and capability of meeting all kinds of technical requirements of customers. It can produce customized products for a variety of intentions, being highly popular among customers.

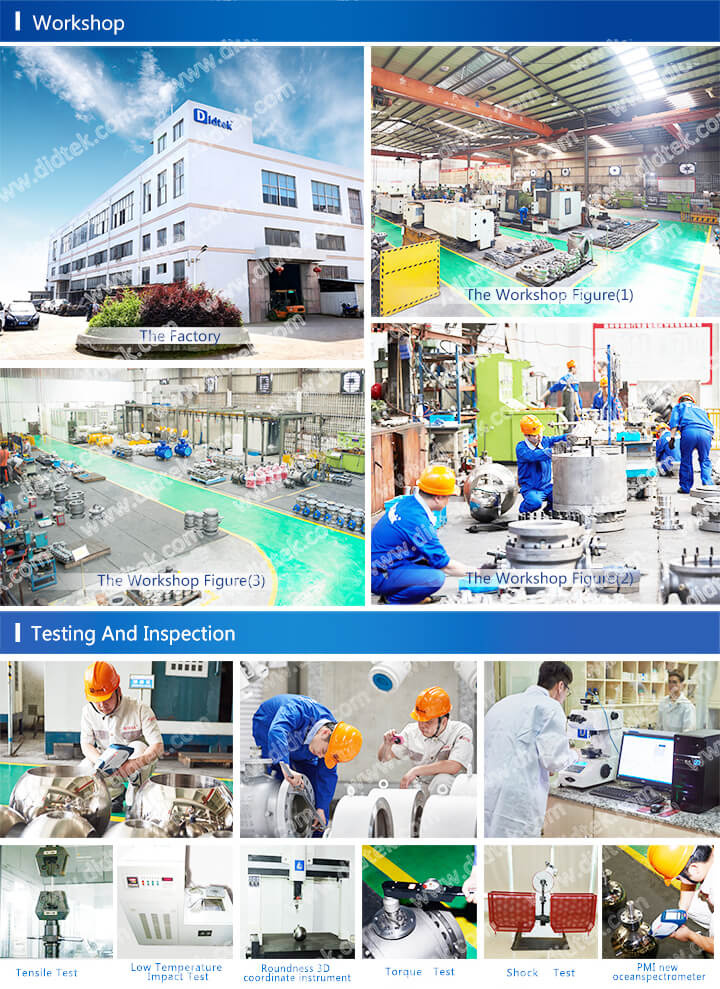

The factory of Didtek valve is located in Oubei (Zhejiang, China), covering an area of 25, 000m2, of which 1000m2 is for office work whereas 24, 000m2 is for production (including the assembly area, testing area and warehouse area). Moreover, the factory is only 9Km to Yongqiang Airport, greatly facilitating for the visitor of our international customers and partners.
