| Prod Model: |
DIDTEKDBGV |
| Sizes: |
Dn50 |
| Operation: |
Manual |
| Media: |
Water, Oil, Gas etc. |
| Standards: |
En 13709 |
| Face To Face: |
En 558-1 |
| Certificates: |
API6d,Ce1521,ISO9001,Cu-Tr010/032, API607,API6fa |
| End Flanges: |
En 1092-1 |
| Inspection And Test: |
En 12266-1;100% Quantity Tested Before Delivery |
| Warranty Time: |
18 Months After Shipments/12 Months After Install |
| Delivery Detail: |
15 - 30 Days, Depends on The Order Quantity |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Bellows Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Bellows Globe Valve |
| Standard: |
DIN |
| Material: |
1.0619 |
Product Description
Didtek Hot Oil Transmit Regulating Disc Bellow Globe ValveApplication & Function:Didtek DIN Bellows Globe Valve feature a formed multi-ply bellows welded to the stem and to the bottom of the bonnet,creating a hermetic seal or impermeable barrier. Bellows are available in many materials for virtually all corrosive chemical applications.
Heat tranfer media: hot oil is commonly used in industries such as synthetic fibres/ POY(Partially Oriented Yarn). However,there is always a risk of fire due to hot oil spillage on highly inflammable chemicals. Here,bellow seal valves can stop the leakage.Technical SpecificationBrand: DIDTEK
Size Range:DN50
Pressure Rating: ASME CL600
Material:1.0619
Temperature Range: -29°C~200°C
Applicable Standards:
Design: EN 13709
Face to face: EN 558-1
End Flanges: EN 1092-1
Butt welded ends: EN 12627
Inspection and test: EN 12266-1Other Information:Valve Test: 100% quality tested before delivery
Valve Guarantee: 18 months after shipments or 12 months after installed
Valve Delivery: 15 - 30 days
Valve Sample: Sample Available by Didtek Valve
Valve Color: Customer request
Valve Packing: Plywood Case for Bellow Globe Valve
MOQ: 1 Set
Valve Certificate: API 6D,CE1521,PED Model H 2014/68/EU,ISO9001:2008,ISO14001,CU-TR 010/032 ,EAC
Place of Origin: Zhejiang, China (Mainland)
Delivery Detail: Shipped in 15-30 days after payment
Port: Shanghai Or Ningbo
Payment Terms: L/C,D/A,D/P,T/T, Western Union

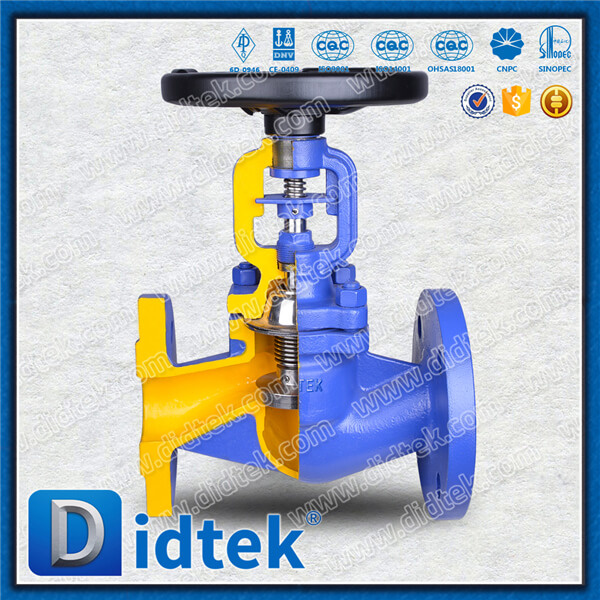

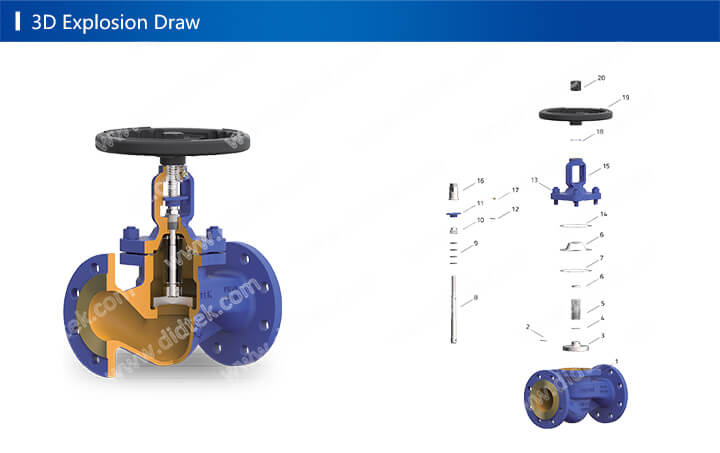

| Parts name | Part Name | Carbon Steel to DIN | Stainless Steel to DIN |
| 1 | Body | GS-C25/1.0619/GP240GH | 1.4308 | 1.4408 |
| 2 | Pin | Carbon Steel | Stainless Steel |
| 3 | Disc | C22.8+13Cr | F304 | F316 |
| 4 | Gasket | AISI 1025 | F304 | F316 |
| 5 | Bellow | F304 | F304 | F316 |
| 6 | Gasket | SS304+Graphite/PTFE |
| 7 | Split Ring | AISI 1025 | SS304 |
| 8 | Stem | X20Cr13 | F304 | F316 |
| 9 | Packing | graphite |
| 10 | Gland | GS-C25/1.0619/GP240GH | 1.4308 | 1.4408 |
| 11 | Guide Piece | Carbon Steel | Stainless Steel |
| 12 | Pin | Carbon Steel | Stainless Steel |
| 13 | Cover | GS-C25/1.0619/GP240GH | 1.4308 | 1.4408 |
| 14 | Bolts | A193 B7 | A193 B8 | A193 B8M |
| 15 | Nuts | A194 2H | A194 8 | A194 8M |
| 16 | Stem Nut | Copper alloy /A439 D2/GGG40.3 |
| 17 | Zurt Fitting | Copper alloy /A439 D2/GGG40.3 |
| 18 | Snap Ring | Carbon Steel | Stainless Steel |
| 19 | Handwheel | Ductile Iron/Carbon Steel |
| 20 | Handwheel Nut | Ductile Iron/Carbon Steel |
Main Outline Dimensions | PN16 |
| Valve Size | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 | DN125 | DN150 | DN200 | DN250 |
| Face to Face | L1:RF | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 |
| L3:BW | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 |
| Valve Height(H) | 205 | 210 | 226 | 228 | 245 | 265 | 340 | 380 | 430 | 572 | 740 |
| Lever Diameter(W) | 160 | 160 | 180 | 180 | 200 | 250 | 300 | 350 | 400 | 500 | 500 |
| Weight(Kg) | 5.6 | 7.5 | 9.5 | 11.9 | 17.4 | 23.3 | 36 | 56.2 | 78.8 | 154 | 238 |
Remark: More details from 300LB to 2500LB data please check our catalogs.
