| Prod Model: |
GDX343F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design Standard: |
API 599, API6d |
| Nominal Pressure: |
Class 150lb - 900lb |
| Nominal Diameter: |
Dn15 - Dn350, 1/2" - 14" |
| Working Medium: |
Water, Oil, Gas, etc. |
| Working Temperature: |
Below 120 Deg C / Below 200 Deg C |
| Operation: |
Wrench /Lever, Worm Gear, Pneumatic, Electric |
| Structure: |
Bolted Cover |
| Face To Face Standard: |
Asme B16.10 |
| Flange Standard: |
Asme B16.5 |
Product Description

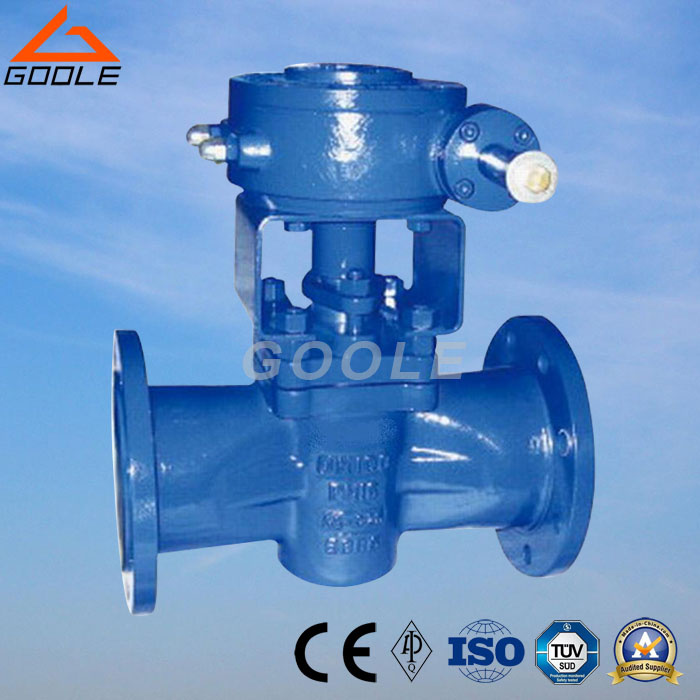

Structural features of Sleeve type soft PTFE sealing plug valve :
Sleeve type soft sealing plug valve is applicable to the cutting and connection of pipelines medium that areused in various industries such as petroleum,chemical industry pharmacy chemical fertilizer,power industry etc under nominal pressure of CLASS150-900LB,and working temperature of -29-180ºC.
Main structural features of Sleeve type soft sealing plug valve :
A. The product has reasonable structure,reliable sealing,excelient performance and beautiful appearance
B. Its sealing is realized by the sealing face around the sleeve,It has unique 360 degree metal edge for protection and fixing of the sleeve.
C. There is no cavity in the valve for accumulation of medium.
D. Metal edge provides the function of self-cleaning when the plug is rotated,applicable to the operation condition that is glutions and apto smudge.
E. Its characteristic double-dircction flow makes installaiton and use more convenient.
F. The materials of the parts and sizes of flanges can be reasonabnly configured according the actual operation aondition of the requirements of the customers,so as to meet the various needs of engineering.
No. |
Parts |
Material |
1 |
Body |
ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 |
Ferrule Sealing |
PTFE |
3 |
Plug |
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
4 |
Gasket |
Flexible Graphite + S.S. |
5 |
Adjusting Gasket |
ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316 |
6 |
Bonnet |
ASTM A216 WCB ASTM A217-WC1,WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
7 |
Adjusting Bolt |
ASTM A193-B7,A320-B8,A193-B8M |
8 |
Hex Nut |
ASTM A194-2H,A194-8,A194-8M |
9 |
Bolt |
ASTM A193-B7,A320-B8,A913-B8M |
10 |
Lever |
ASTM A105-WCB |
