| Prod Model: |
BKGVR-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Big Size: |
Dn1200 |
| Big Size Gate Valve: |
Dn350, Dn400, Dn500, Dn600, Dn700, Dn800, Dn900, Dn1000 |
| Wras Approved Gate Valve: |
Wras |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description

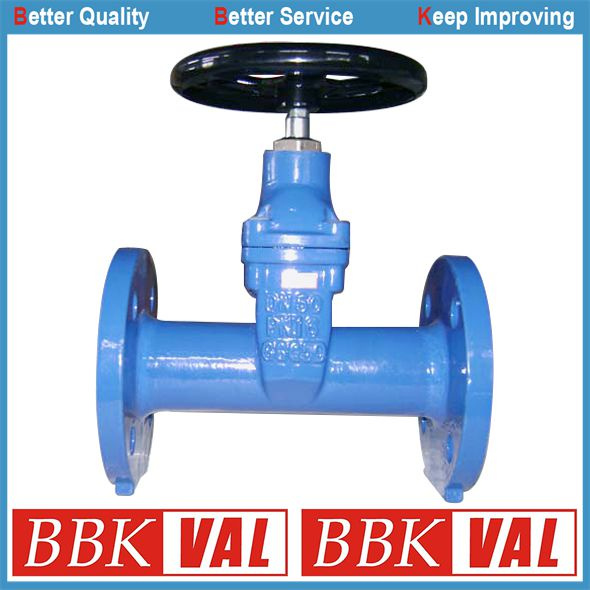

Type: Gate valve
Size: DN40-1000 or 1.5"-40" or above
Working Pressure: PN10/16
Suitable temperature: 0~100 Celsius
Standard:
(1)Design and manufacture: DIN3352, BS5163, BS5150, , EN593, GB/T12238
(2)End connection: DIN2543-2550, EN1092, AS2129, ISO 5211
(3)Wall thickness: APBS1868
(4)Face to face (end to end): EN 558, DIN3202, ISO5752, BS5155
(5)Inspection and test: EN12266-1, BS6755, ISO5208
Materialfor main parts:
(1)Body: Cast Iron or Ductile Iron
(2)Disc: Ductile Iron coated with EPDM
(3)Stem: SS416, SS410, SS304, SS431
(4)Seat: NR, Hypalon, EPDM, Neoprene, NBR, Wear-Resistant EPDM, Viton, Silicon, Heat-Resistant EPDM, WhiteNBR, WhiteEPDM, EPDM, PTFE
Coating: Fusion bonded epoxy coated
Connection type: Flanged type, Push-on type, Mechanical Joint type, Plain ends type
Sealing: Soft sealing or metal-to-metal seat, Flexible graphite
Operation: Manual, Pheunatic, Electric, Hydraulic and Pnewmatic-Hydraul
Appropriate medium: Air, water, sewage, steam, coal gas, oil
Packaging: Export polywood cases, or as per customers' requirements
Delivery Time: 25 days after order conformed
Payment: By T/T or L/C
Application: Fresh water, sewage, sea water
| Body | Ductile Iron |
| Disc | Ductile iron with NBR/EPDM |
| Bonnet | Ductile Iron |
| Stem | Stainless steel |
| O-ring | NBR |
| Gland | Ductile iron |
| Hand wheel | Cast iron or ductile iron |
