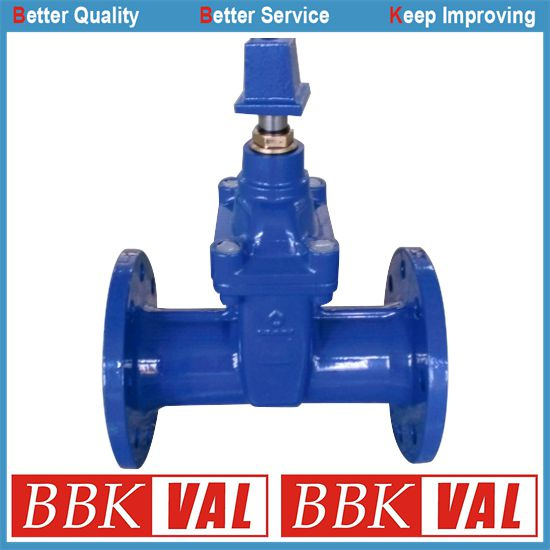

Wras Approved Gate Valve DIN3352 F4 F5 BS5163 with Bypass

Name: Wras Approved Gate Valve DIN3352 F4 F5 BS5163 with Bypass
Brand: tool-buy.com
SKU: 782756395
Availability: InStock
Rating: 4.7 (122 reviews)

Price:	US $ 15-500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

BBK VALVE GROUP CO., LTD.

Showroom Product Company Profile

Prod Model:	BKGVR-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Big Size Gate Valve:	Dn350, Dn400, Dn500, Dn600, Dn700, Dn800, Dn900, Dn1000
Material:	Cast Iron
Connection Form:	Flange
Seal Surface:	Wedge Gate Valve
Thread Position Of Valve Rod:	Inside Gate Valve
Application:	Household Usage

Product Description

Type: Gate valve

Fig No:BKGVR-01

Size: DN40-1200
Working Pressure: PN10,PN16
Suitable temperature: 0~100 Celsius
Standard:
(1)Design and manufacture: DIN3352 F4,F5, BS5163, BS5150, , EN593, GB/T12238
(2)End connection: DIN2543-2550, EN1092, AS2129, ISO 5211
(3)Wall thickness: APBS1868
(4)Face to face (end to end): EN 558, DIN3202, ISO5752, BS5155
(5)Inspection and test: EN12266-1, BS6755, ISO5208
Materialfor main parts:
(1)Body: Cast Iron or Ductile Iron
(2)Disc: Ductile Iron coated with EPDM Or NBR
(3)Stem: SS416, SS410, SS304, SS316,SS431
(4)Seat: NBR, Hypalon, EPDM, Neoprene, NBR, Wear-Resistant EPDM, Viton, Silicon, Heat-Resistant EPDM, White NBR, White EPDM, EPDM, PTFE
Coating: Fusion bonded epoxy power coated 250um Min
Connection type: Flanged type, Push-on type, Mechanical Joint type, Plain ends type
Sealing: Soft sealing or metal-to-metal seat, Flexible graphite
Operation: Manual, Pheunatic, Electric, Hydraulic and Pnewmatic-Hydraul
Appropriate medium: Air, water, sewage, steam, coal gas, oil
Packaging: Export polywood cases, or as per customers' requirements
Delivery Time: 20-45 days after order conformed
Payment: By T/T or L/C
Application: Fresh water, sewage, sea water

Body	Ductile Iron
Disc	Ductile iron with NBR/EPDM
Bonnet	Ductile Iron
Stem	Stainless steel
O-ring	NBR
Gland	Ductile iron
Hand wheel	Cast iron or ductile iron or Cabon Steel

BBK Valve is focus on industrial valves since 2002, specilized in design and manufacture of different valves fittings for water and waste water treatment projects.

BBK Valve, has it's own production factory and specilized sales/after sales office, just to offer stable products quality and specilized sales and after sales services to our valued customers.

BBK Valve, with total 13000 Sqm, and construction around 5000 Sqm. Has the Capability of manufacturing 10, 000PCS of different products, from size DN40-DN3000.

BBK Valve, is ISO9001 certified, CE PED Certified, and WRAS approved for our: Resilient Seated Gate Valves, All Kinds of Butterfly Valves, Dual Disc Check Valves, and YStrainers, from size DN50-600.

With the many years of stable quality, excellent sales services and competitive prices, we now have cooperate with many clients from Russia, Ukrain, United Kingdom, Italy, Spain, Romania, Mideast, South Amreican market.

BBK Valve is trying everyday to be the most reliable, responsible and competitive supplier in its industry.

We believe, with best services, reliable quality, competitive prices, instead of just a supplier, we will be your business partner from China.
