| Prod Model: |
Q649 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
900lb |
| Size: |
2 |
| Air Supply: |
4 Bar |
| Body Material: |
Wcb |
| Trim Material: |
F304 |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Tee Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Industrial Usage |
Product Description
Product Description
3-WAY BALL VALVE
A.USAGEThe three-way/four-way ball valve is used for switching, converging and diverging pipeline medium flow direction. It is widely applied in metallurgy, mine, petroleum, chemical industry, electric power, light industry, shipping industry and automation control systems, suitable for service conditions such as switching, mixing and diverging of fluid, gas and power.
B.STRUCTURAL CHARACTERISTICSThe three-way/four-way ball valve is provided with reliable sealing and smooth flow channel so as to ensure accuracy of opening and closing through small fluid pressure loss and stable flow channel. According to the forms of flow channel, the valve can be classified into "Y" pattern three-way ball valve, "L" pattern three-way ball valve, "T" pattern three-way ball valve and "LL" pattern four-way ball valve.
"Y" pattern Three-way Ball Valve(q42 Type)
The form of flow channel is "Y" pattern, which can effectively realize switching from service condition 1 to service condition 2. It is mainly used for switching "Y" pattern pipeline flow direction.
"L" Pattern Three-way Ball Valve(q44 Floating Type,Q49 Trunnion Type)
The "L" pattern therr-way ball valve is used for switching pipeline medium flow direction. It can connect two flow channels that are vertical with each other. The ordinary "L" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.
C.STRUCTURAL FEATURES"T" Pattern Three-way Ball Valve(q45 Floating Type,Q48 Trunnion Type)
The "T" pattern three-way ball valve is used for switching, converging and diverging medium flow direction. The "T" pattern ball channel can make three channels connect with each other or two of them connect with each other to realize two, three of found kinds of functions. Different valve designs are adopted to realize different functions. Therefore, users shall make detailed descriptions to the service requirements when selecting and ordering the "T" pattern three-way ball valve, so that our company can make designs and configurations correctly. The ordinary "T" pattern floating three-way ball valve may not be suitable for some service conditions, which shall be paid special attention to when users select it.
D."LL" Pattern Four-way Ball ValveThe "LL" pattern four-way ball valve is provided with four seats to realize switching from service condition 1 to service condition 2. It can simultaneously switch the flow direction of two media, which realizes the effect of multiple functions in one valve with convenience and swiftness.
E.The work form is shown as follows:1. When A(C) is the inlet, the two connections of A →B(C→D) or A→C(C→A) can be realized.
2. A cannot be realized.
3. A→D(C→B) or D→A(B→C) is impossible.

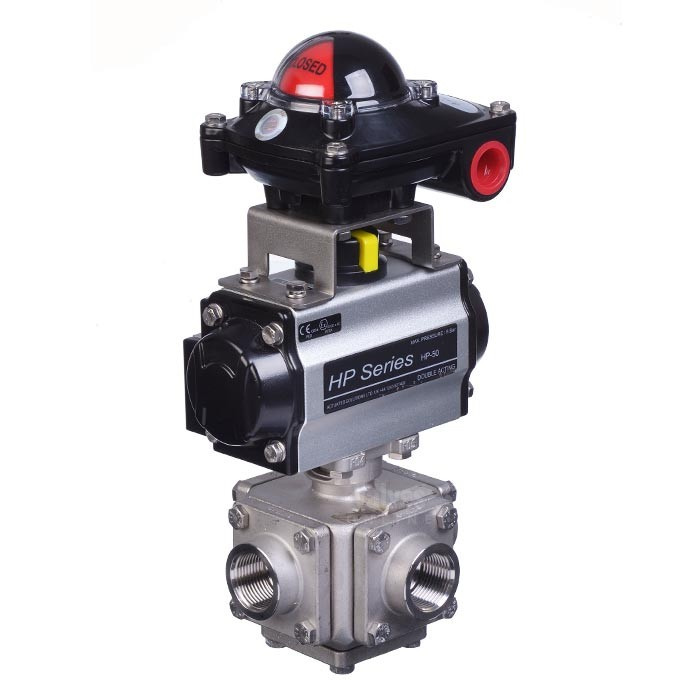

Name | T Type Hydraulic Three Way Ball Valve |
| 1.Size | 1/2"-16" |
| 2.Pressure | 150LB-900LB,1.6MPa-10MPa |
| 3.Material | WCB,LCB,304/CF8,316/CF8M,316L/CF3M,A105,etc |
| 4.Temperature | -20-350 |
| 5.Design Standard | API,JIS,DIN or manufacturing according to your requirements |
| 6.Operation | Pneumatic |

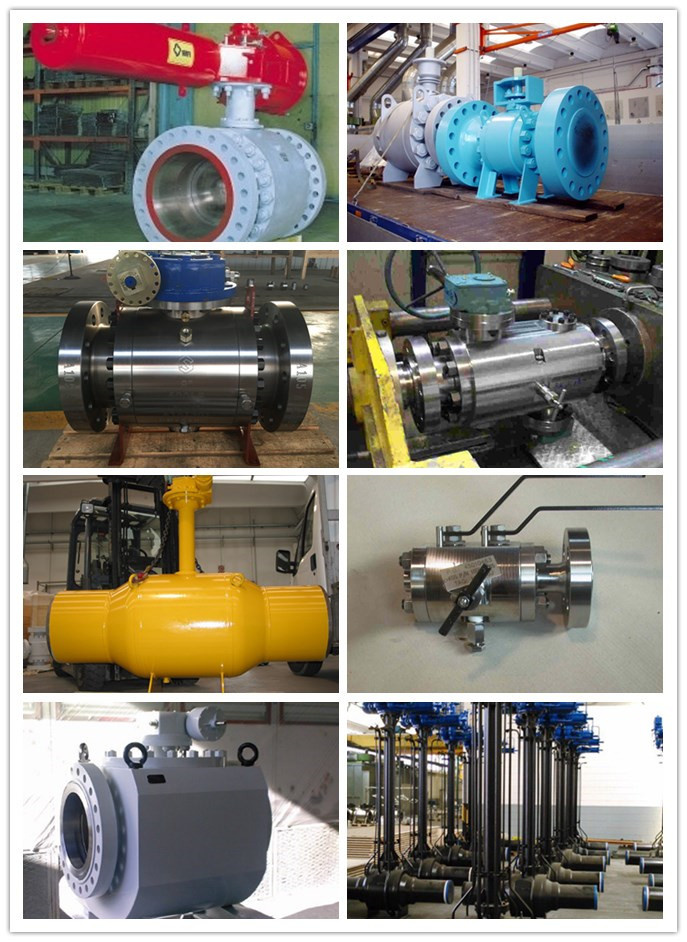

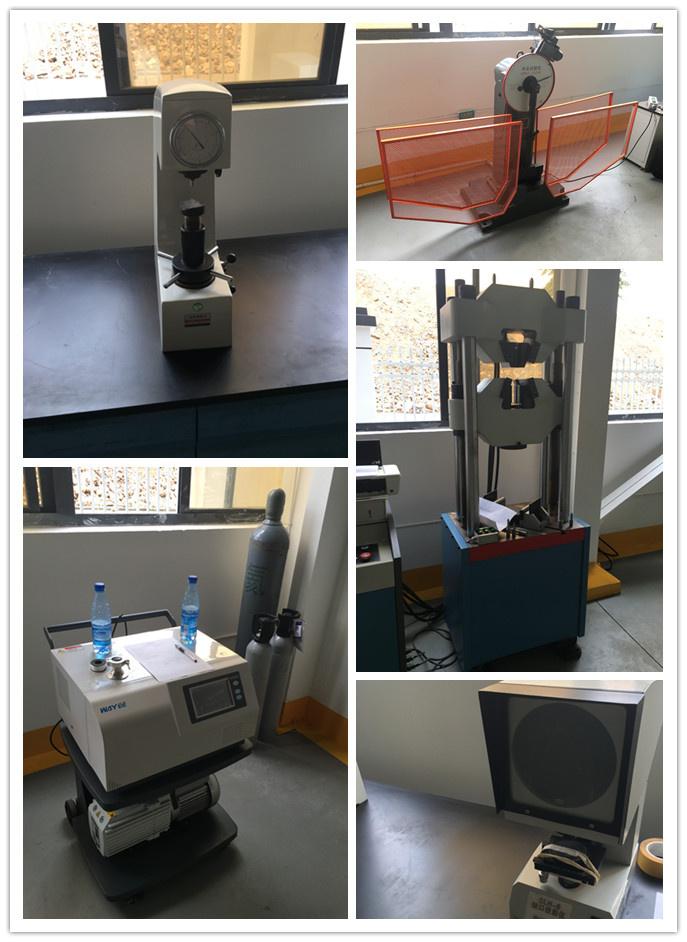

test equipment
product

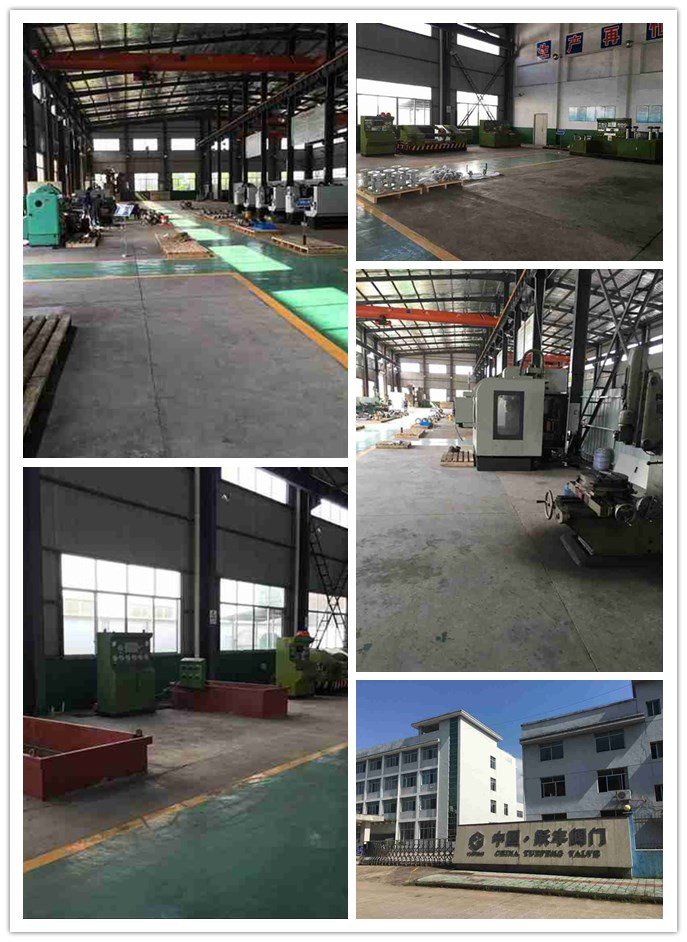

workshop
China YueFeng Valve Manufacturing Co., Ltd was established in 2003, located in Yangliuhe industrial zone, yunhe town, zhejiang province. Yuefeng is a comprehensiveness non-affiliated enterprises which specialized in ball valve production and sales. In recent years, Yuefeng is mainly engaged in the development and production of welded ball valve, all-welded ball valve, directly-buried ball valve, large didameter welding ball valve, forged steel ball valve, high class ball valve, pigging valve and other valves.
Yuefeng built CAD/CAM valve disign center and Three-dimensional simulation system for manufacturing testing and designing. We have a number of practical patents. And Yuefeng has the right of import and export, with ISO9001 national quality system certification, ISO14001 environment management system certification, OHSAS18001 Occupational health and safety management system certification, national pressure piping components manufacturing license TS authentication, the United States API 6D authentication, the European Union CE certification. All of these above provide us the technical support to enter the international market.
Yuefeng covers the total area of 13, 000 square meters, with the existing staff more than 100 people within 3 senior engineers, 12 specialized engineers. We also have our machine ceters, digital controlled lathe, the physics and chemistry centers, the spectral analysis facilty and other advanced facilities for production and testing. Yuefeng products are all designed by modernized CAD, CAM, UG, PRO/E three dimensional design system and produced strictly according to the ISO9001-2015 International quality system certification. Our main products all-welded ball valve, forged steel ball valve, high pressure ball valve and pigging valve hold advantages in domestic market share for years. And our products also exported to Europe, Amercia, Southeast Aisa and Ausralia and other counties and areas. Our products share a good reputation in both domestic and abroad market. Yuefeng owns customers' belief with the high quality products, professional technical supports and impeccable customer services.
Yuefeng are willing to cooperate with customers all around the world. Our policy is to continuously improve customer satisfaction by supplying high quality products when promised at a good value. Yuefeng are looking forward to creat a glorious tomorrow.
