| Prod Model: |
HP01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh Size: |
80*100mm |
| Wire Diameter: |
2.7mm |
| Selvedge Wire: |
3.0mm |
| Strand: |
3/5 |
| Surface Finish: |
Galvanized (Optional for PVC) |
| Diaphragm Numbers: |
1 |
| Material: |
Galvanized Steel Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Hexagonal |
| Usage: |
Military Applications |
| Technics: |
Woven |
| Surface Treatment: |
Galvanized |
| Size: |
2m x 1m x 1m |
| Aperture: |
80*100mm |
Product Description

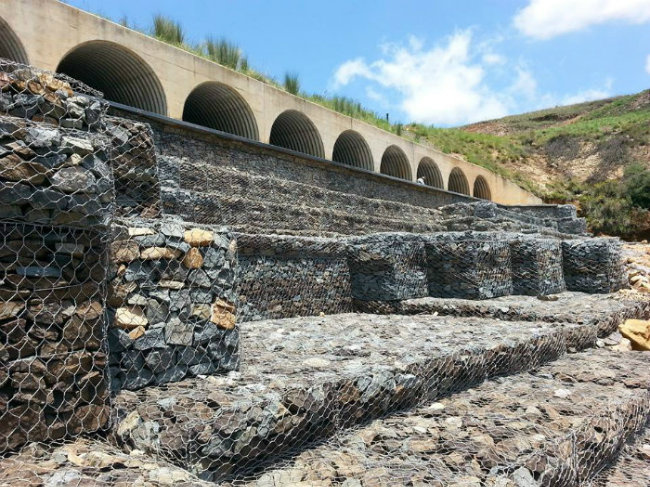

Product Description:Gabions are baskets made of double twisted steel woven wire mesh, as per EN 10223-3. Gabions are filled with stones at the project site to from flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects.
A gabion (from Italian gabbione meaning "big cage"; from Italian gabbia and Latin cavea meaning "cage") is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications. For erosion control, caged riprap is used. For dams or in foundation construction, cylindrical metal structures are used. In a military context, earth- or sand-filled gabions are used to protect artillery crews from enemy fire.
Other name: wire mesh gabion, gabion mattresses, hexagonal mesh gabion, galvanized hexagonal wire mesh gabion baskets, gabion cage, gabion wall, gabion duvar.

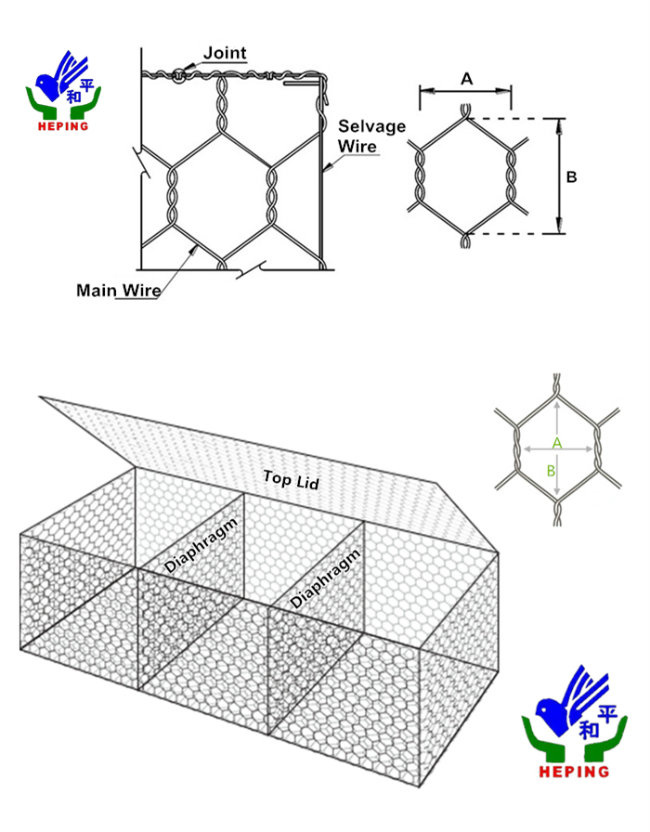

Normal Specifications:
| Mesh Opening (mm) | Wire Diameter(Metal Wire) (mm) | Strands |
| 60X80 | 2.0-2.8 | 3/5 |
| 80X100 | 2.0-3.2 | 3/5 |
| 80X120 | 2.0-3.2 | 3/5 |
| 100X120 | 2.0-3.4 | 3/5 |
| 100X150 | 2.0-3.4 | 3/5 |
| 120X150 | 2.0-4.0 | 3/5 |
| Dimensions (m) | Diaphragm Numbers | Surface Coating |
| 1 x 1 x 1 | 0 | Galvanized (optional for PVC coated) |
| 2 x 1 x 1 | 1 | Galvanized (optional for PVC coated) |
| 3 x 1 x 1 | 2 | Galvanized (optional for PVC coated) |
| 2 x 0.5 x 1 | 1 | Galvanized (optional for PVC coated) |
| 3 x 0.5 x 1 | 2 | Galvanized (optional for PVC coated) |

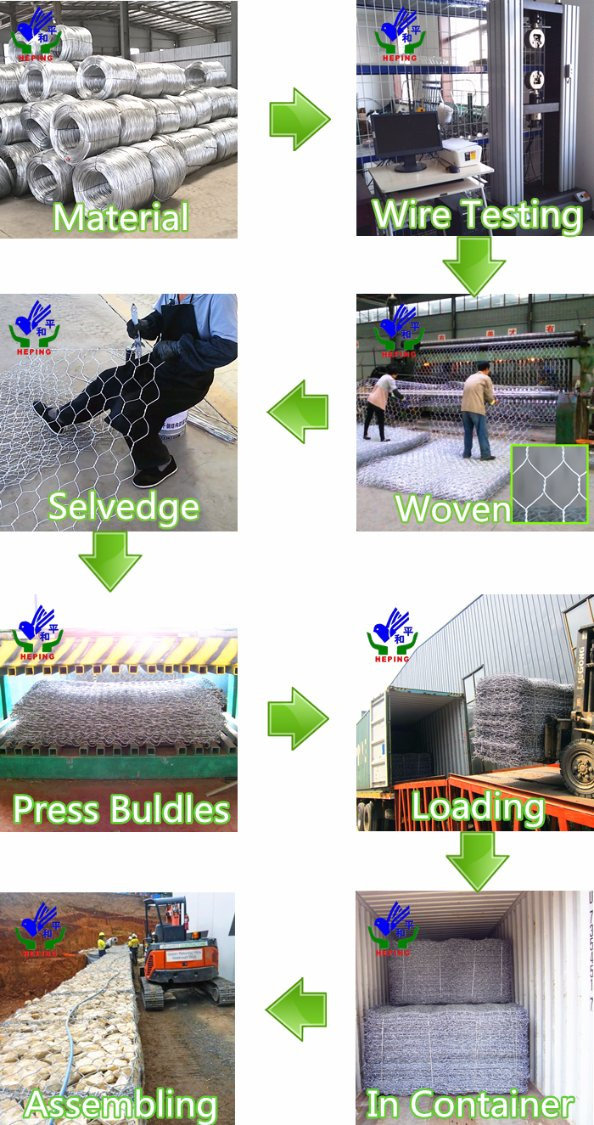

Manufacturing Process:Our Gabion product is made under high quality control system, so that it can get long use-life and excellent anti-erosion properties.
Based in Hebei, China, the nearest port is Tianjin port. We also can arrange truck to send Gabions to Qingdao , Shanghai , or other ports, if it's necessary.
Certifications:We are a 40,000 squre meters factory, which have been approved by ISO9001:2008 , SGS and CE.
Contact Information:Thomas Fan
sales manager
PEACEFUL HARDWARE & MESH CO.,LTD.
Add: NO.38 Zhenggang Road, Raoyang, Hengshui, Hebei, China 053900
Tel: +86-311-85290405
Fax: +86-311-85290405
Mobile: +86 18132110700
If there is any interested or need, please feel free to contact us. We shall do our best for you!
China Peaceful Hardware & Mesh Co., Ltd. is one of the main manufacturers of wire mesh and wire cloth products in China.
These are our ptoducts as the below list:
1. Wire mesh fence
2. Gabion and mattress
3. Concrete wire mesh
4. Temporary fence
5. Aluminium mesh
6. Expanded metal mesh
7. Screen mesh
If you are interested in our products, please let us know your detail requirements. We look forward to the opportunity to serving you. We adheres to the principle of credit and quality first, and provides high-quality products and services.
