Prod Model: |
GYQ-200 |
Application: |
Hydraulic Fed, The Drilling Rig Can Move Back Dire |
Product Description

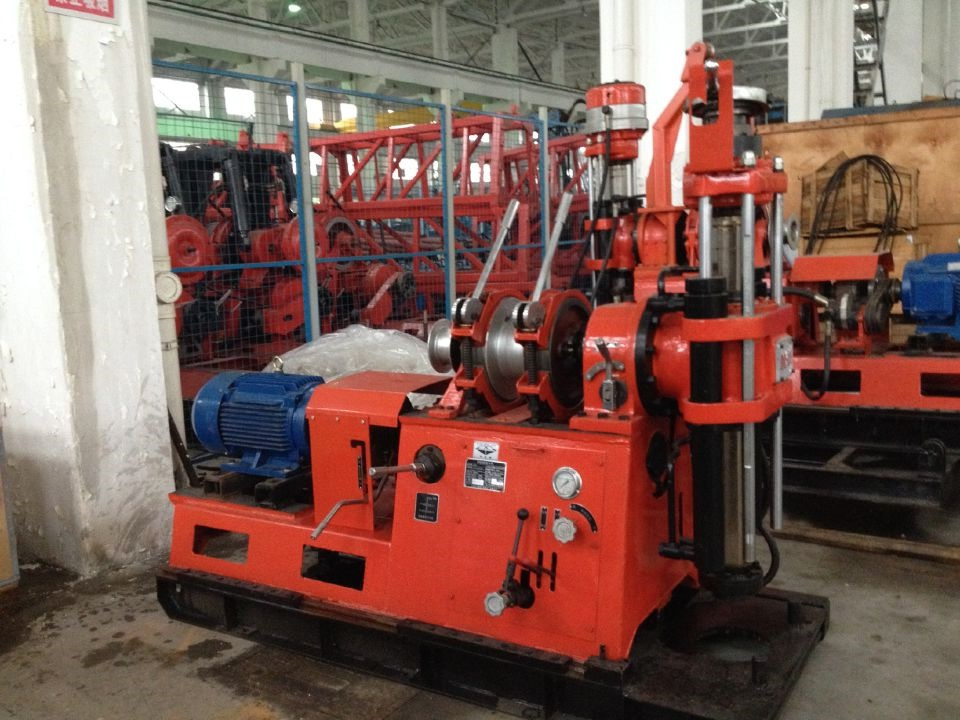

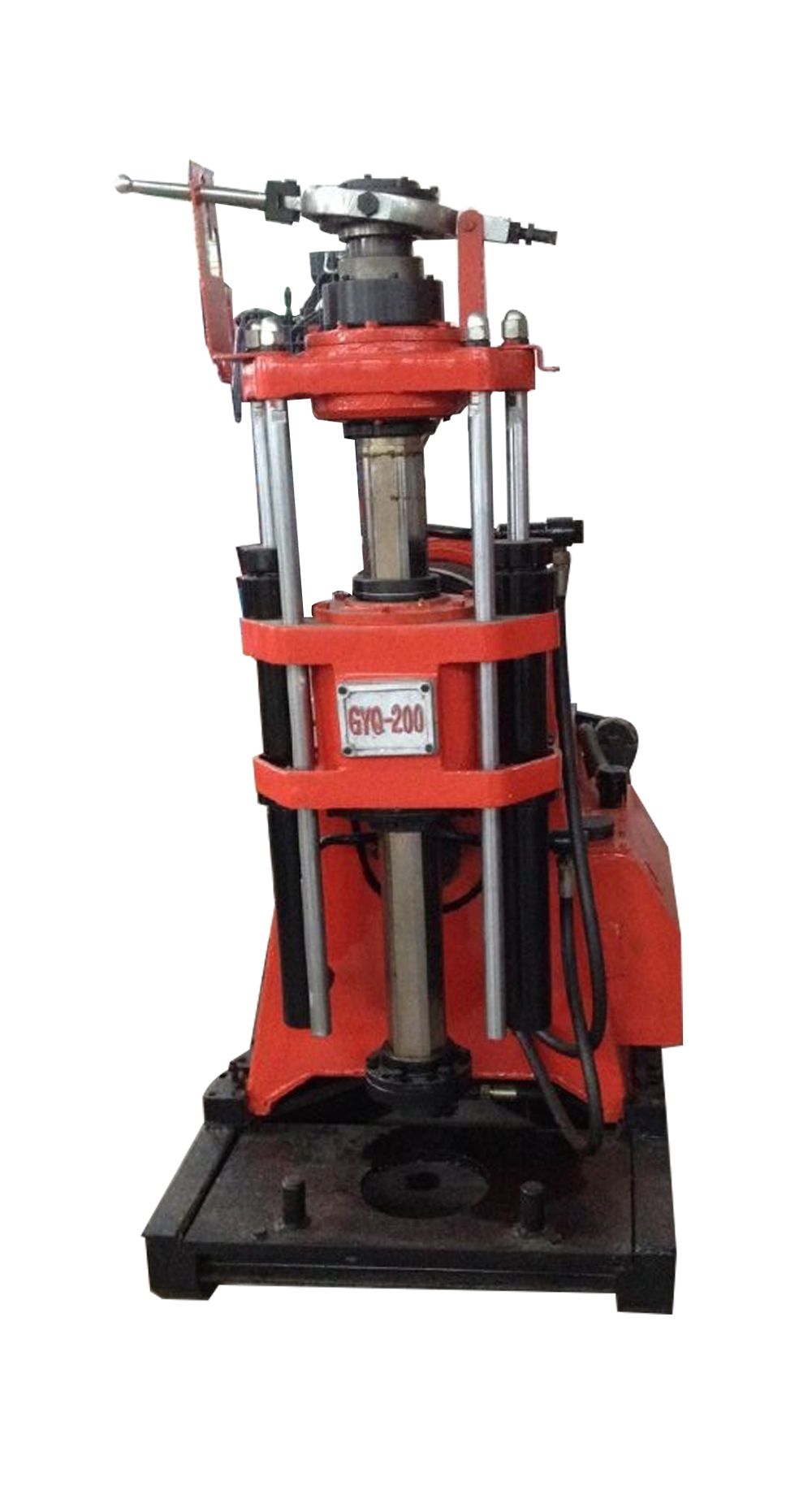

GYQ-200 SPINDLE CORE DRILLING RIG
Quick Detail:1. There are 8 speed grade , reasonable speed range and high torque while low speed. Max. torque up to 2500 N·m .2.GYQ-200 drilling rig can be uesed as the core drilling if the depth beyond 200m.3. By using the hydraulic fed, the drilling rig can move back directly. Description: 1. Model GYQ-200 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral's survey and exploration, water discharge tunnel,it is aso could for explore coal mine.2. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 800kg, it can be moved easily especially in mountain area.Specifications:Hole depth | 250m |
Rod dia | 53*Φ59 drive rod |
Hole angle(°) | 360° |
Spindle speed | Forward speed:55;96;152;210;262;455;718;990rpm |
Reverse speed:44/206rpm |
Stroke of spindle | 500mm |
Max .lifting capacity | 49KN |
Max .feeding capacity | 36KN |
Max .distance from the spindle lower to the earth surface | 600mm |
Hoist | Max .lifting capacity (single line): | 25KN |
Dum speed | 34,59,94,129rpm |
Lifting speed: | 0.38;0.66;1.05;1.44m/s |
Move back cylinder device | Cylinder stroke | 465mm |
Move back distance | 330mm |
Weight | 800kg (not including engine) |
Dimensions (L×W×H) | 1860*780*1460mm |
POWER | Y160L-4 electric motor | Power:15kw, 1470rpm |
2100 diesel | Power:17.6kw, 1800rpm |

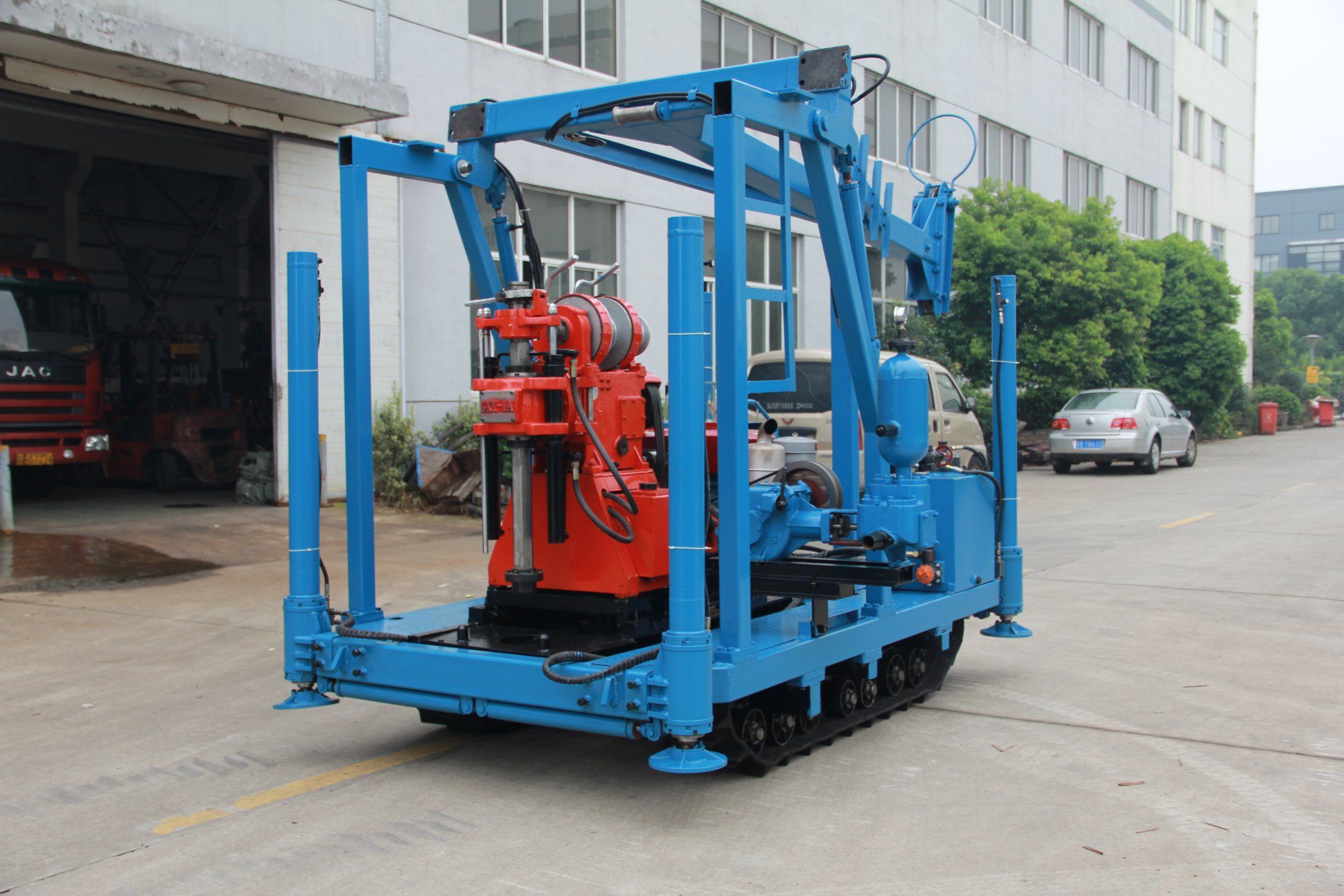

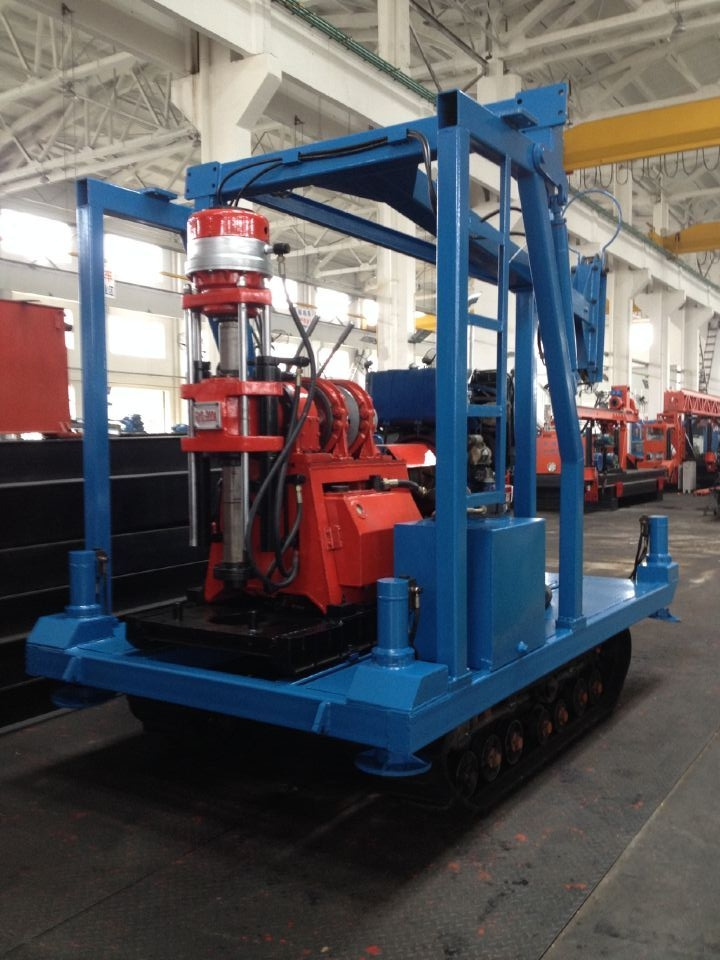

Truck chassis, Crawler chassis, skid chassis and tower are optional.
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.
Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
