Prod Model: |
YDL-300D |
Drilling Methods: |
DTH Hammer / Rotary Drill/ Odex Drilling |
Product Description

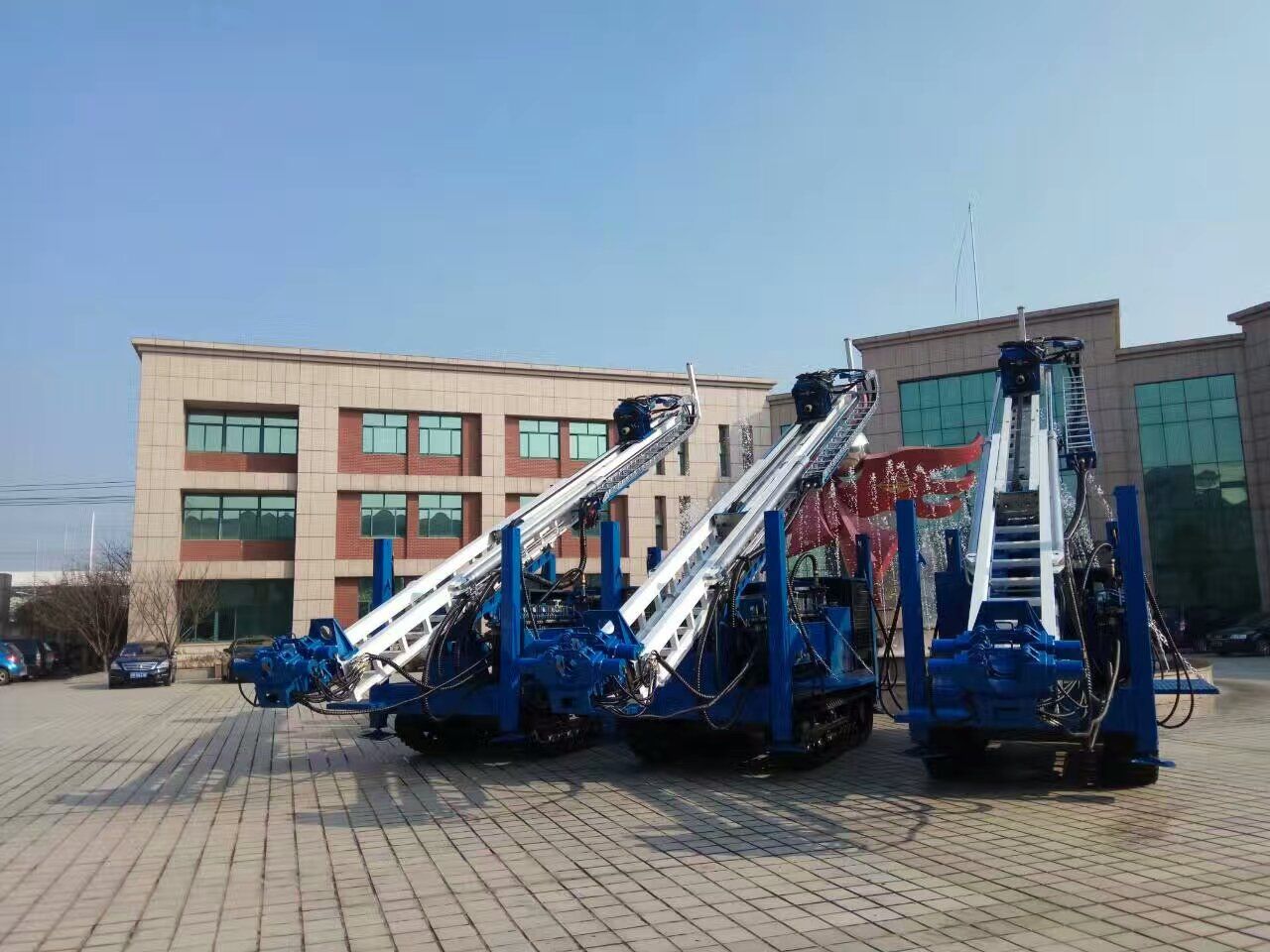

YDL-300 WATER WELL DRILLING RIG
QUICK:
YDL-300DT Hydraulic drilling rig is a new product of Wuxi Mineral Expolration Machinery Co,LTD which is aim to meet the demand of deep water well hole project and seize the new market.It'sanew,efficent,energy-savingandmultifunctionalfullhydraulicdrilling rig.
Application:
Δ WaterWellHoleandgeothermalhole.
Δ Micropile,subway,buildings,airport,andother deepfoundationpitforanchoring.
Δ Single,double,tripleJetgrouting
Δ Theblasthole,theanti-floatinganchoringhole.
Main features:
ΔStrong drill ability,Wide applicaiton, Fast drill speed,Easy accidence handling.
ΔRotate speed is adjustable which make the drill avaliable for variety of drill techniques.

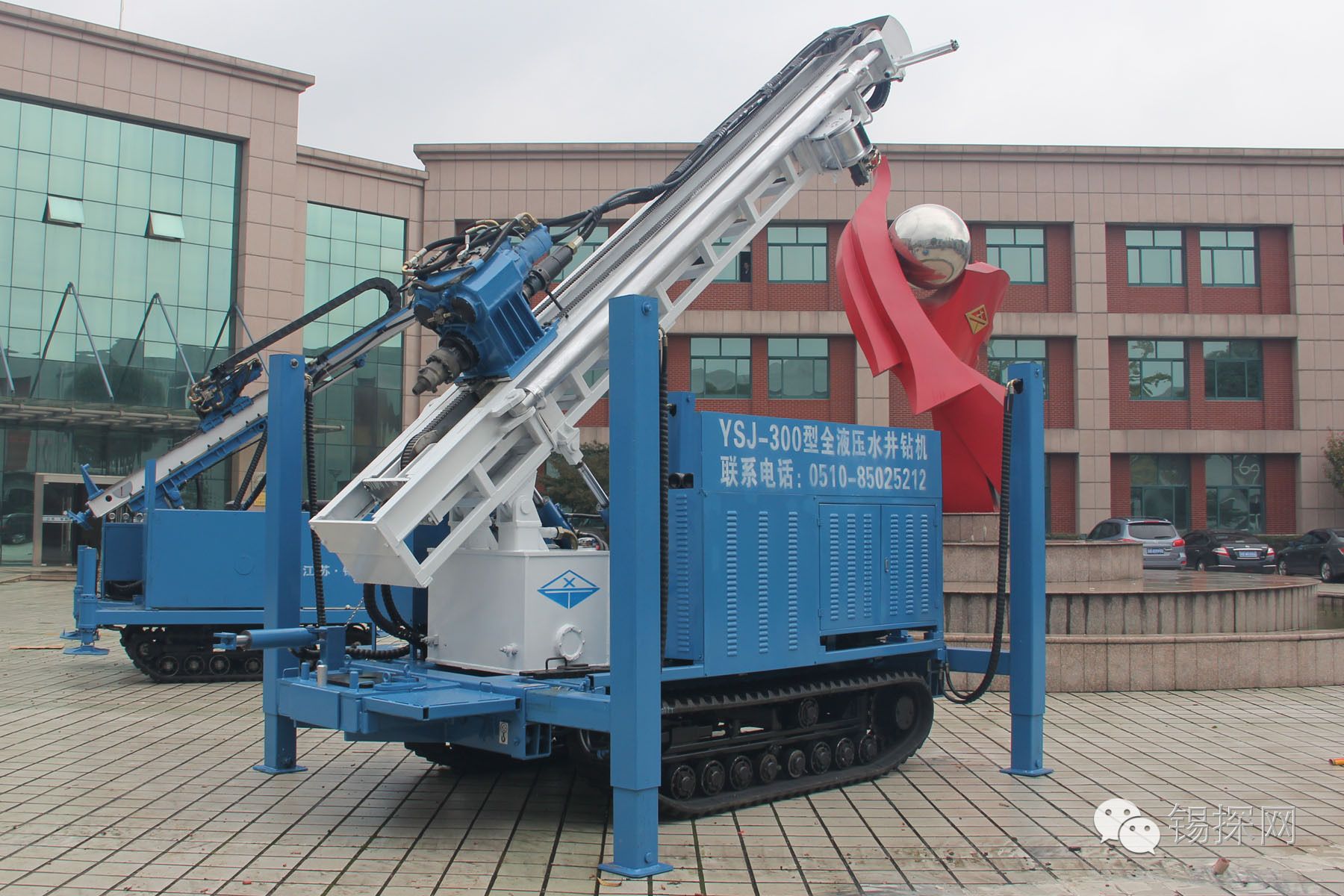

ΔThere are two pcs cylinder on the mast which make the pull up capacity to 25T.

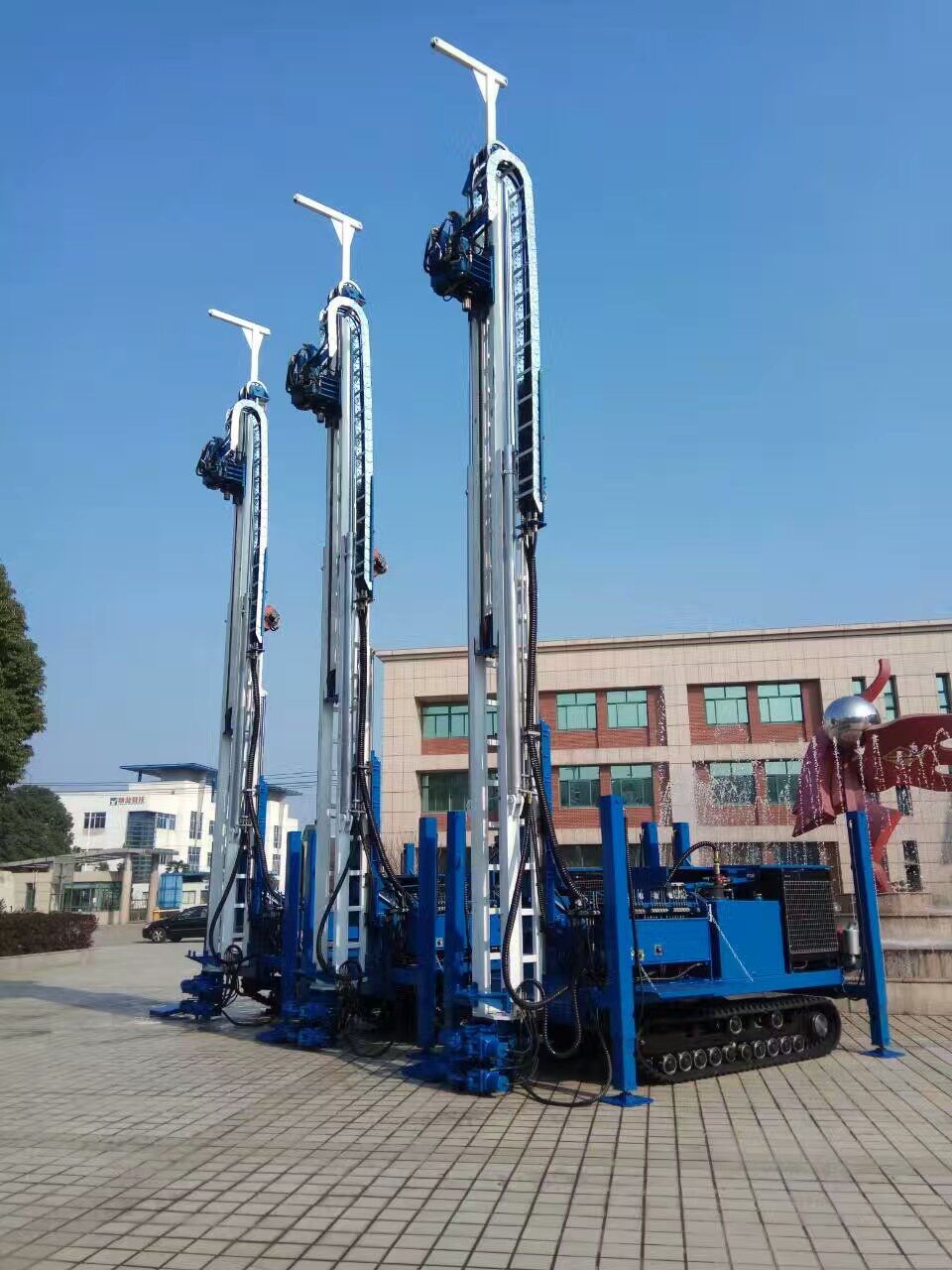

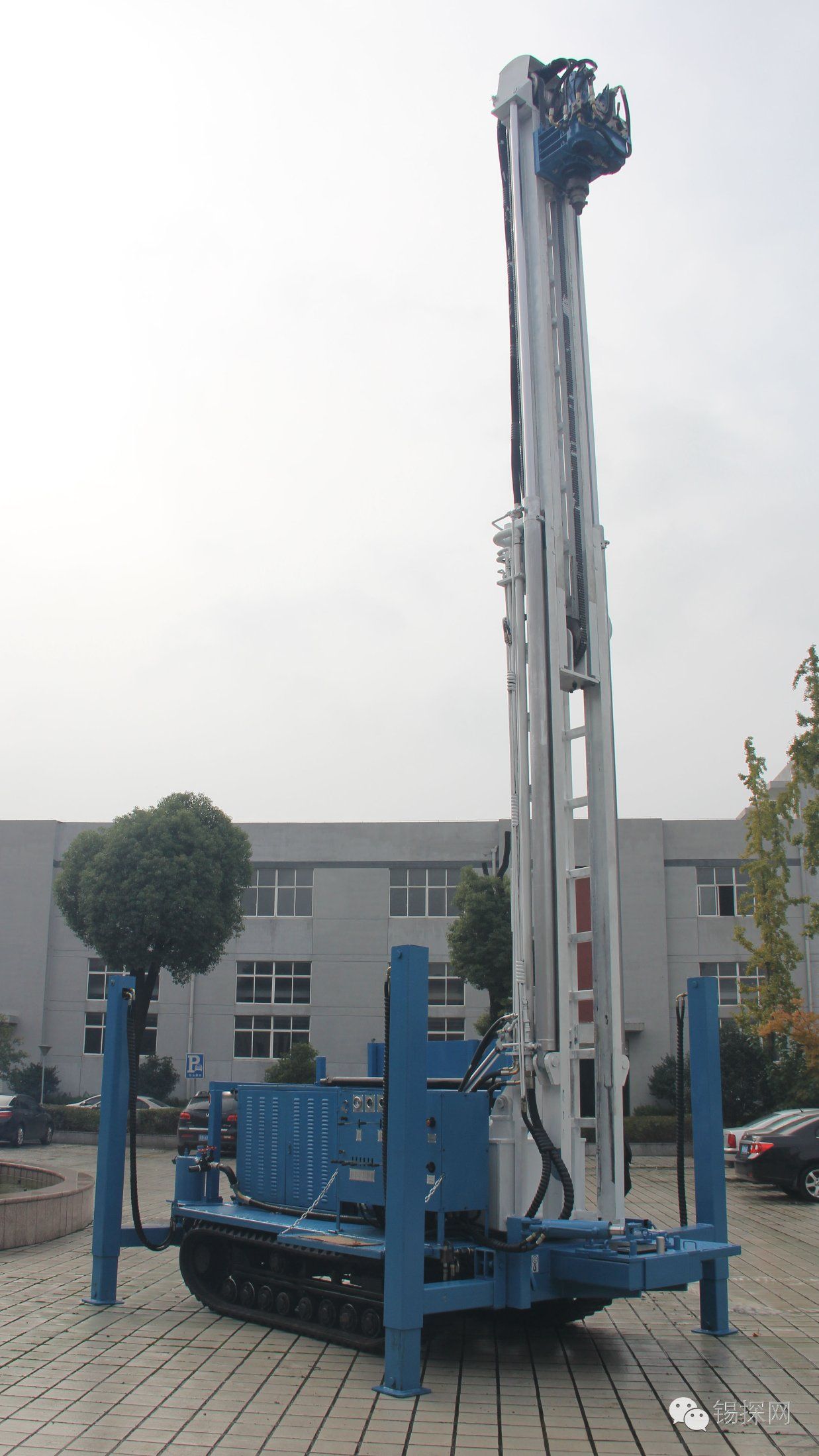

ΔThe drill rig adopt telescoping mast.Stroke is 7m which is avaliable to use 6m drill rod one time.
ΔPatent design of telescoping in output shaft will effectively protect the drilling tools.
ΔThe drill installed a hydraulic clamp&break out system in order to automatic wrench the drill pipes and tools.

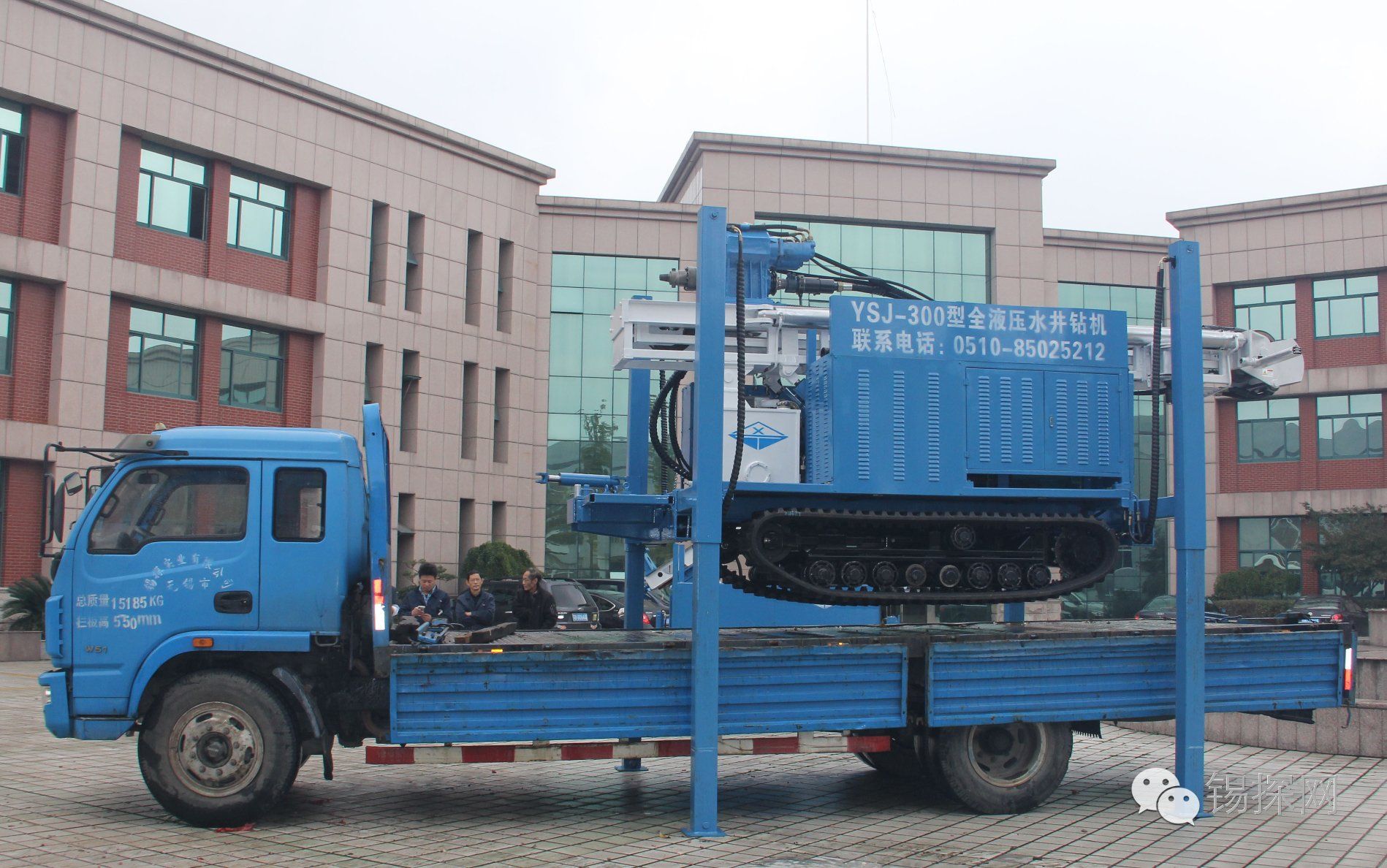

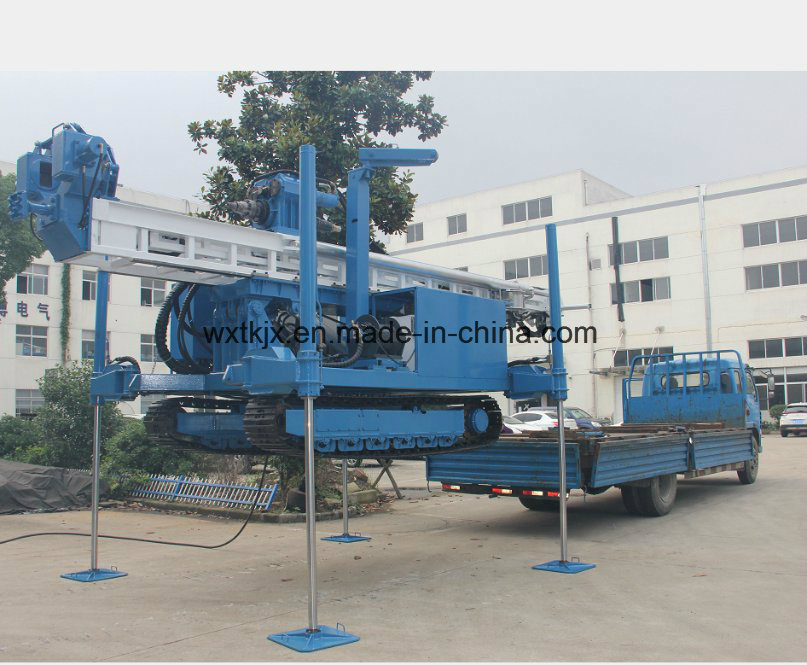

ΔDrill rig adopt 4pcs long jacks which is easy to load the truck with no crane.
ΔThe drill installed1.5 ton winch.
Avaliable for variety of drill techniques:
Dryauger----------------------------------drysoil
DTHhammer------------------------------rock area
Mud Casing Drill-------------------------sand or loose area
DTHODEXDrill------------------------gravel or broken rock area
Specification:
Hole diameter | Φ150-Φ400mm |
Hole depth | 300m |
Apply Rock hardness | f=6-20 |
Air compressor pressure | 1.2-4MPa |
Air compressor flow | 16-50m3/min |
Rotary speed | 0~25r/min,4,9,12,14,19,24,25, 28,38,48,50,63,76, 101,127r/min | 0~39r/min,6,14,18,22,30,37 ,39,44,59,75,78,99,119, 159,200r/min |
|
|
Torque N.M | 13900Nm(17MPa) | 10000Nm(17MPa) |
Max Pull up capacity | 25T |
Pull up speed | 0-3m/min;3,3.74,7.54,15.08,18.1,21.84m/min |
Feeding capacity | 12.8T |
Feeding speed | 0-5.9m/min;5.9,7.34,14.78,29.57,42.83m/min |
Feeding cyliner stroke | 3500mm |
Max rotary head stroke | 7000mm |
Mast sliding stroke | 1500mm |
Mast working angle | -5~90° |
Min height to the ground | 360mm |
Winch pull up capacity | 1.5T |
Winch pull up speed | 20m/min |
Winch wireline dia | ф10mm |
Winch wireline length | 50m |
Platform turning method | Manul (pin) |
Crawler move speed | 1.5km/h |
Climb ability | 25° |
Electric Motor | 55+18.5KW |
Diesel Type | 110kw,1500r/min |
Overall(L×W×H) mm | 6800×2100×2750(transportation) |
Weight | 10000k |
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

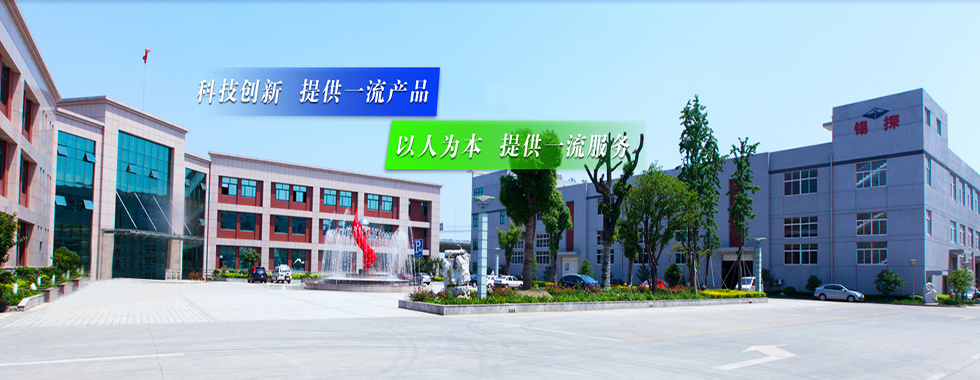

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
