Multi-Function Environmental Sampling and Protection Engineering Drilling Rig Drilling Machine

Name: Multi-Function Environmental Sampling and Protection Engineering Drilling Rig Drilling Machine
Brand: tool-buy.com
SKU: 834324305
Availability: InStock
Rating: 4.9 (108 reviews)

Price:	US $ 125000-159999/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd.

Showroom Product Company Profile

Prod Model:	MDL-801
Output Torque Of Driving Head:	14000

Product Description

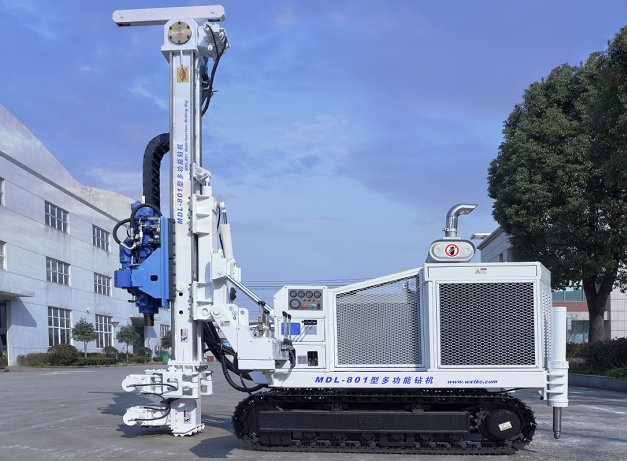

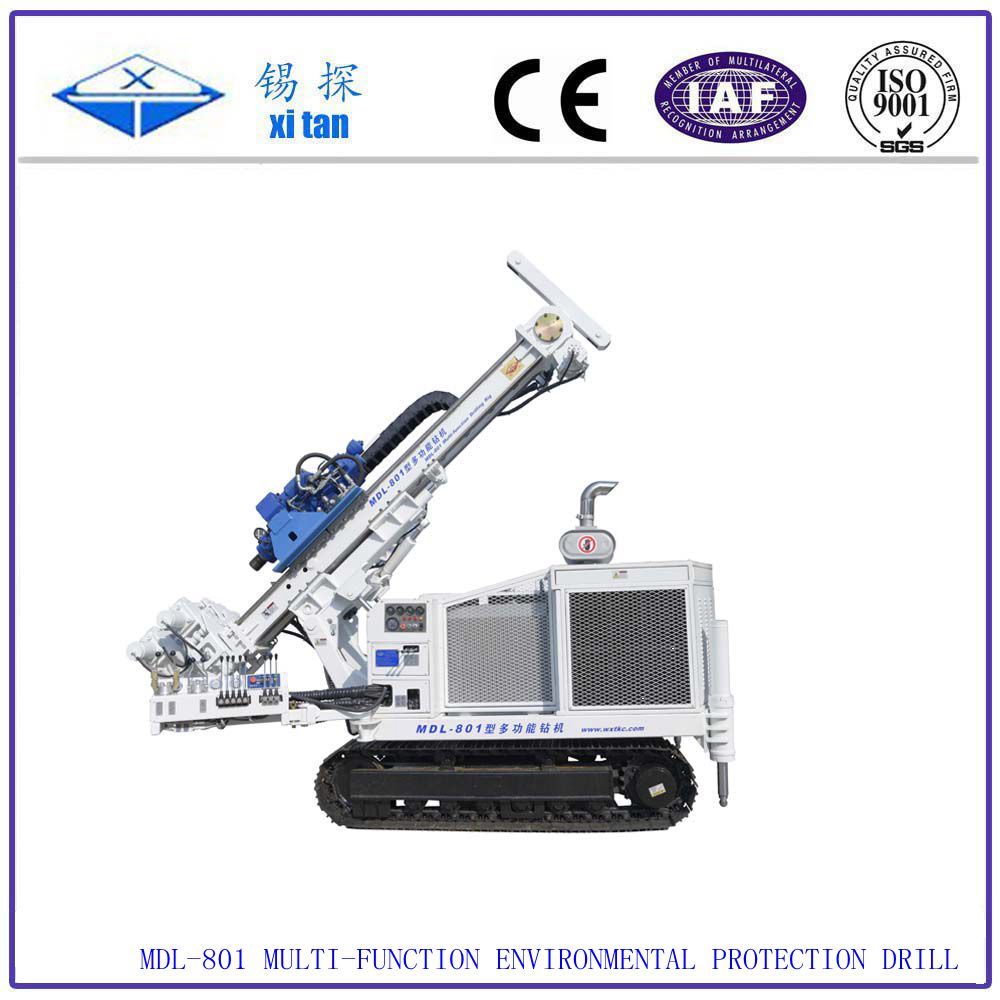

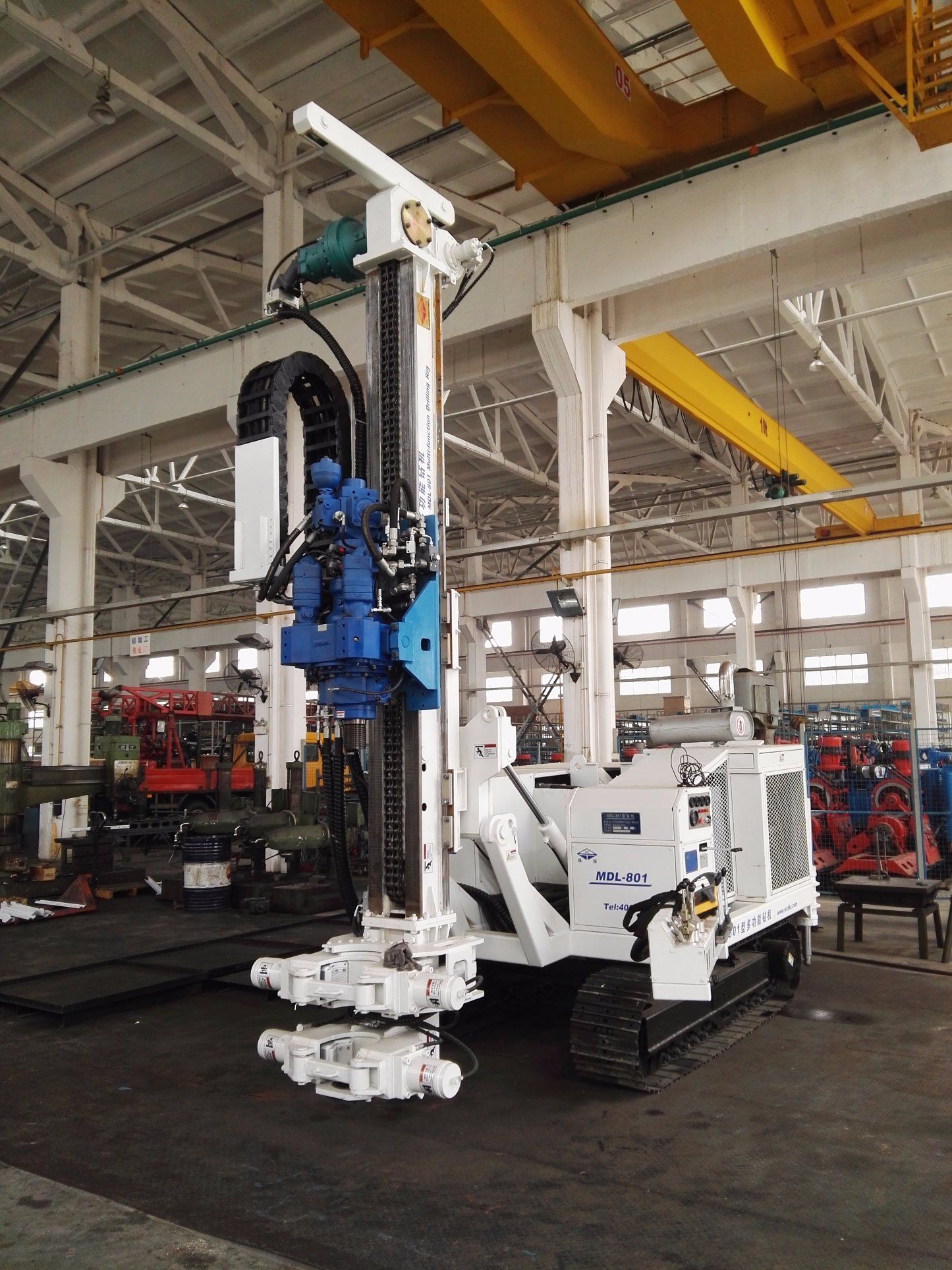

MDL-801 multi-function envirronmental protection drill

Features
1.The whole machine adopts a new lift structure,with slippage and offset function,the construction scope is wider.
2.The drilling-power head adopts the high end drive,high torque,high frequency,and the construction efficiency is higher.
3.The new type of propulsion frame is rigid,weights light,and configures the high and speed motor reducer,whitch makes the pressure and lifting force greater,and the effective juorney is longer.
4.The new type of folding control mesa can be reached into the hole to make it easier to abserve and avoit the wrong operationg.

Technical parameter
specification	MDL-801
output torque of driving head(Nm)	14000
output RPM of driving head(r/min)	120~140
impact work of driving head(Nm)	900
Impact frequency of driving head(bpm)	1200~2100
Trip of driving head(mm)	2800(According to the customers)
propelling force(kN)	62
lifting force(kN)	62
propelling speed(m/min)	36
lifting speed(m/min)	36
towering-up angle(°)	0°~100°
swing angle(°)	(-10°~25°)
slipping trip(mm)	1200
lifting forceof the auxiliary hoist(kN)	10
clamping range(mm)	φ76~φ250
travel speed(km/h)	0.8
mould type of diesel	6BTA5.9-C180
rated power of diesel	125
gross weight(kg)	6000
dimension for transport(mm)LWH	573520802510

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.

Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.

We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
