Dual 18 Inch Disco&Club Subwoofer Speaker

Dual 18 Inch Disco&Club Subwoofer Speaker
Price: US $ 500-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: S218B
Certificate: Ce, RoHS,SGS
Nominal Impedance: 4 Ohm
Maximum Spl: 135dB(Continuous)141dB (Peak)
Driver Number: 2X18 Inch(100mm Voice Coil) Subwoofer
Power Rating(AES): 2400W
Frequency Response: 32Hz~180Hz(+-3dB) 30Hz~250Hz(-10dB)
Nominal Coverage(-6dB): Omnidirectional
Weight: 76kg
Connectors: 2xnl4MP Neutrik Speakon Connectors
Matrials: 18mm,24mm Birch Plywood
Noise: <95dB
Hi-Fi: Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: Optional Combination
Speaker Material: Wood
Application: Club/Bar/Live Music Venus/Concert/Music Hall
Certification: SGS
THD: <0.005%
Monitor: None

Product Description

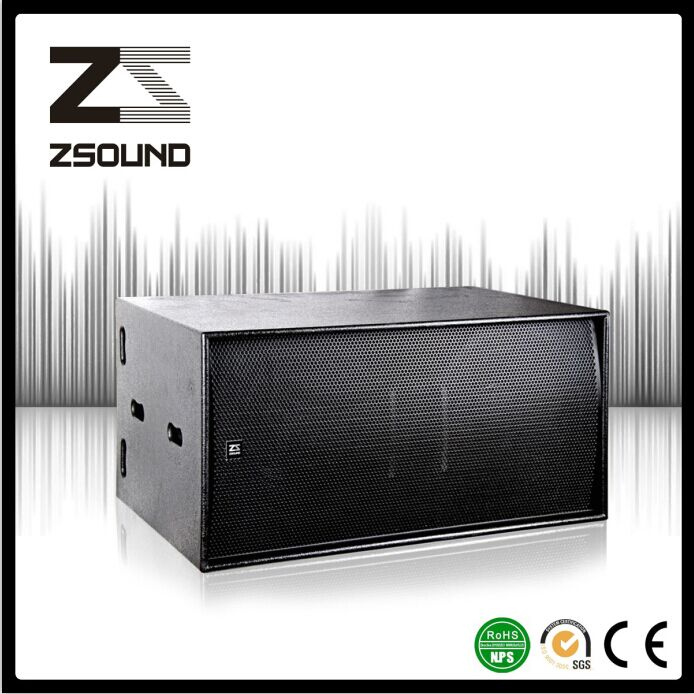

Zsound S218B Speaker Professional Audio DJ&Club system Sub Woofer


Zsound has been paying great attention to create ultra-low frequency loudspeaker, for the LF is the essence of music, and subwoofer is the natural extension for the system. Designing procedures in Zsound include: large numbers of the linearity and non-linearity surveys, constant AES power measurement, detailed computer modeling, complete prototyping, and exhaustive comparative analysis.  And then, the specifically designed OEM procedure can efficiently optimize the available resources of all bandwidth, as well as performance of the whole system. Therefore, S218B subwoofer is the optimal complement and extension for Zsound Loudspeakers.

S218B subwoofer can be used in conjunction with P15, P12, and P10, and it can make the sub-frequency extend to 32Hz.

S218B is a bass reflex regulating enclosure, comprising two 18" straight radiating LF drivers, which can supply excellent cone coverage and maintain thermo-compression even working under ultra high SPL. The design of the reflex enclosure provides more advantages for bass energy, which is more convenient for airflow circulating. Compared with previous products, configuration of S218B is more fashionable. Coupled with the latest riser vent, it has been effectively increased SPL output with 3 dB.




Features:

Vented subwoofer;
15 inch direct-radiation driver;
Heat resisting 4 inch (100mm) voice coil;
Large-scale vented design to reduce airflow noise.




Specification:

TECHNICAL SPECIFICATION
Frequency Response:32Hz-180Hz(+-3dB) 30Hz-250Hz(-10dB)
Nominal Coverage(-6dB):Omnidirectional
Sensitivity (@1w/1m):102 dB SPL
Power Rating (AES): 2400W
Nominal Impedance:4 Ohm
Maximum SPL:135 dB (continuous) 141 dB(peak)
Drivers:     2*18 inch (100mm voice coil)woofer;

PHYSICAL DATA
Dimension (H*W*D):561(H)x1170(W)x691(D)mm
Weights:76 kg
Connectors:2*NL4MP Neutrik Speakon connectors
Speaker Cables:1+1-
Materials:18mm,24mm birch multi-plywood
Finish:Black water paint
Grille:Black epoxy mesh grille with acoustically reticulated foam


Applications:

  1. Touring performance/Live Show;
  2. Theater/Cinema;
  3. Stadium/gymnasium/sport facilities;
  4. Auditorium/Church
  5. Club/Bar/pub/Disco/Live Music Venus;
  6. Concert/Music Hall;
  7. Airport/Square;
  8. Fixed Installation Architecture.


Zsound Advantage:

1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001.
4) Monthly Production Capacity: 2000pcs.
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers.
7) Convenient Transportation: 1 hour to Guangzhou Baiyun International Airport.
8) 24 hours on line service.



FAQ:

Q1: How long is the warranty for the speakers?
A1: 1year warranty.

Q2: How about the delivery time?
A2: 3-7days for stock. 10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accepted.

Q4: What's the MOQ?
A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.



Sunny Yan
Sale Representative
Website: www.prozs.com
Mobile: +86 15818739656
Address: No.33, Jiaoxin Road, Nanha District, Guangzhou, GD, China








Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
