Electric Hydraulic Pipe and Tube Bender for 27-108mm Pipe
| Price: |
US $ 1000-3100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DWG-108 |
| Output: |
300kn |
| Bending Range: |
27-108mm |
| Motor Power: |
2.2kw |
| Pressure: |
700bar |
| Stock: |
Yes |
| OEM: |
Yes |
| Payment: |
T/T |
| Certificate: |
Ce, ISO9001:2008 |
Product Description
Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes.
Size 1/2''- 2'' pipes can be bent to 90º at a time, size 2''- 6'' must move the pipe to bend.
Product Features

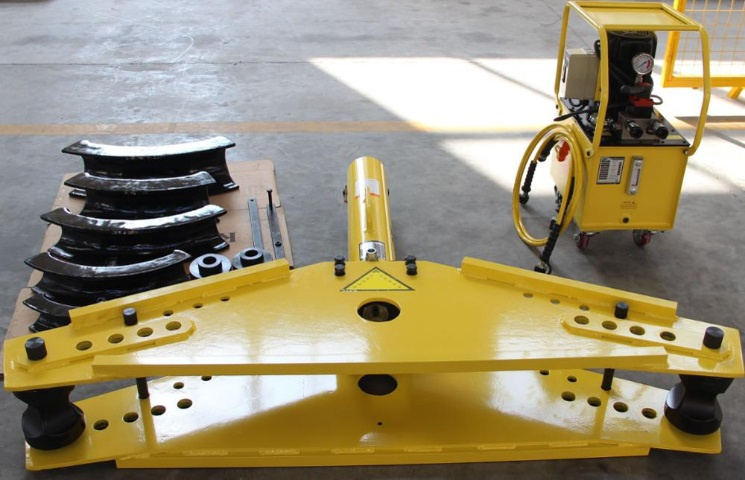

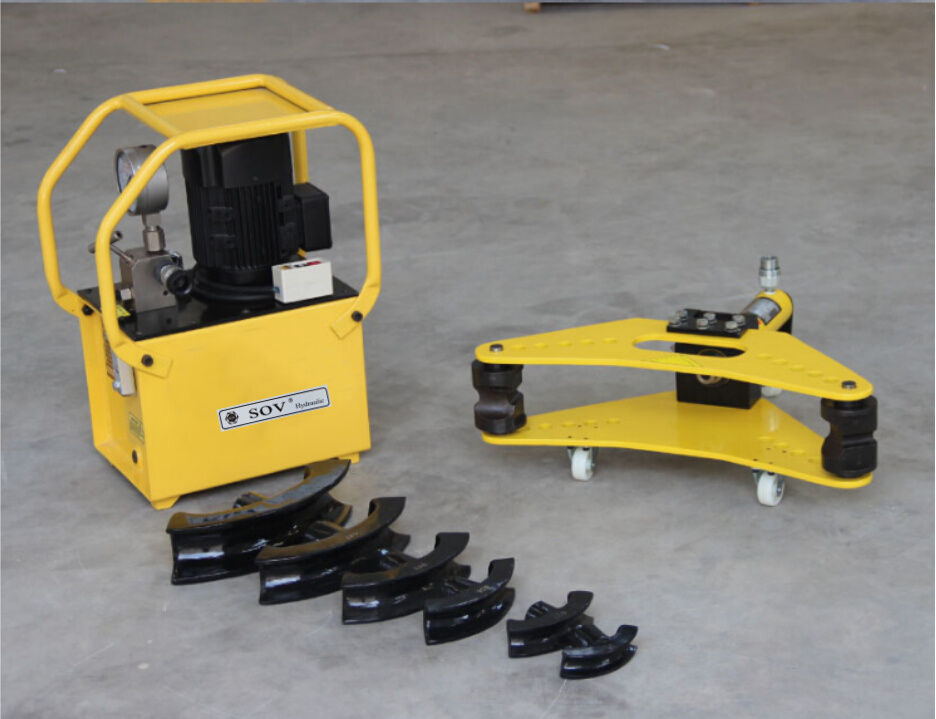

1. A whole set includes Hydraulic Pipe Bender, Electric Hydraulic Pump, Hydraulic Hose, Molds, Fixed Plug-pin;
2. Double acting Hydraulic Cylinder, quickly reset, improving the bending efficiency;
3. Piston plated hard Cr to prevent scratches and corrison, surface painted to improve the resistance and corrison;
4. Lightweight heat-treated steel molds and steel frame make bending pipe smooth wrinkle-free;
5. Size 4''- 6'' Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic Cylinder which reset quickly, works more efficiently with Electric Pump.
Technical Parameters| Model | Working Pressure
(MPa) | Bending Range
(Outsider Diameter)
(mm) | Bending Radius
(mm) | Thickness
(mm) | Motor Power
(KW) | Capacity(KN) |
| SOV-DWG-60 | 70 | 22-60 | 4x pipe diameter | <=4 | 0.75 | 100 |
| Female mold 2 pieces; pin 2 pieces; bending type: 22 27 34 42 48 60 |
| SOV-DWG-76 | 70 | 27-76 | 4x pipe diameter | <=10 | 0.75 | 300 |
| Female mold 2 pieces; pin 2 pieces; bending type: 27 34 42 48 60 76 |
SOV-DWG-
108 | 70 | 27-108 | 4x pipe diameter | <=10 | 2.2 | 300 |
| Female mold 2 pieces; pin 2 pieces; bending type: 27 42 48 60 76 89 108 |
SOV-DWG-
159 | 70 | 76-159 | 4x pipe diameter | <=10 | 2.2 | 500 |
| Female mold 2 pieces; pin 2 pieces; bending type: 76 89 108 133 159; block 2 pieces |
Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

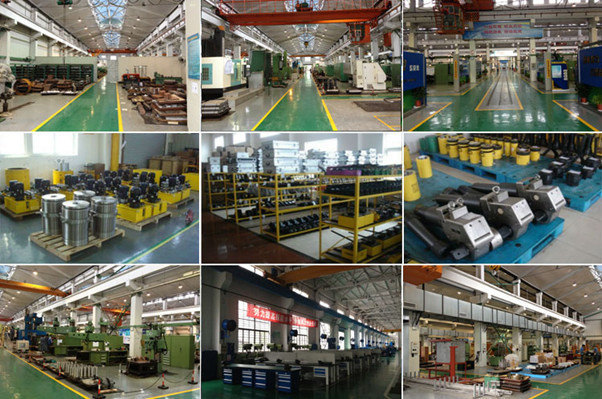

Company information
Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

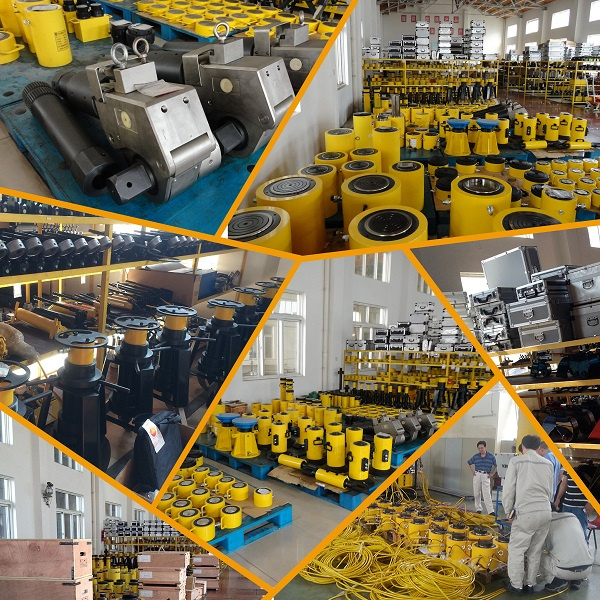

Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
