Prod Model: |
xy-4 |
Application: |
Petroleum and Natural Gas, Mine |
Product Description

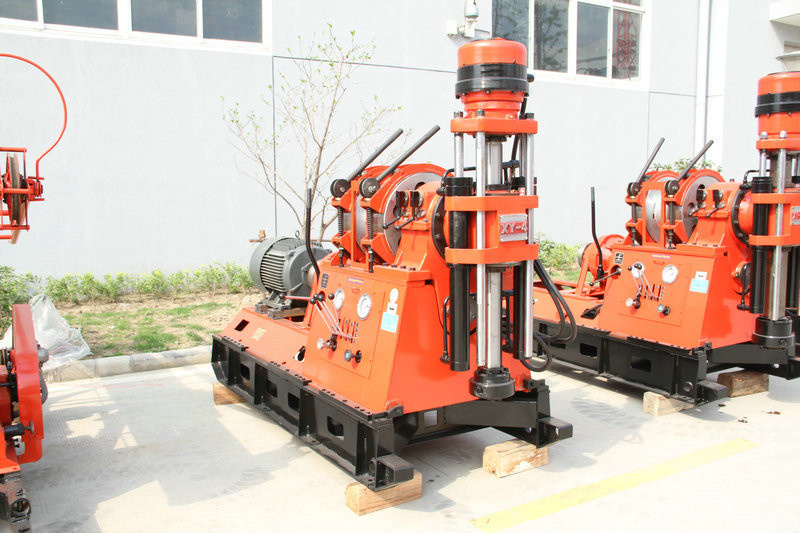

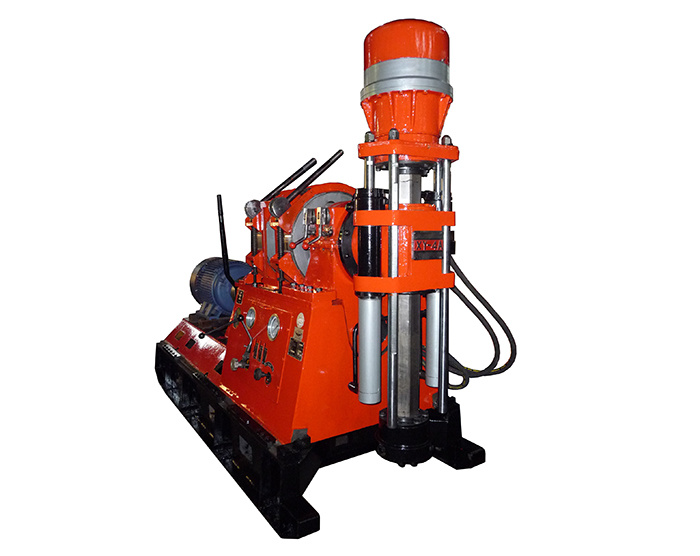

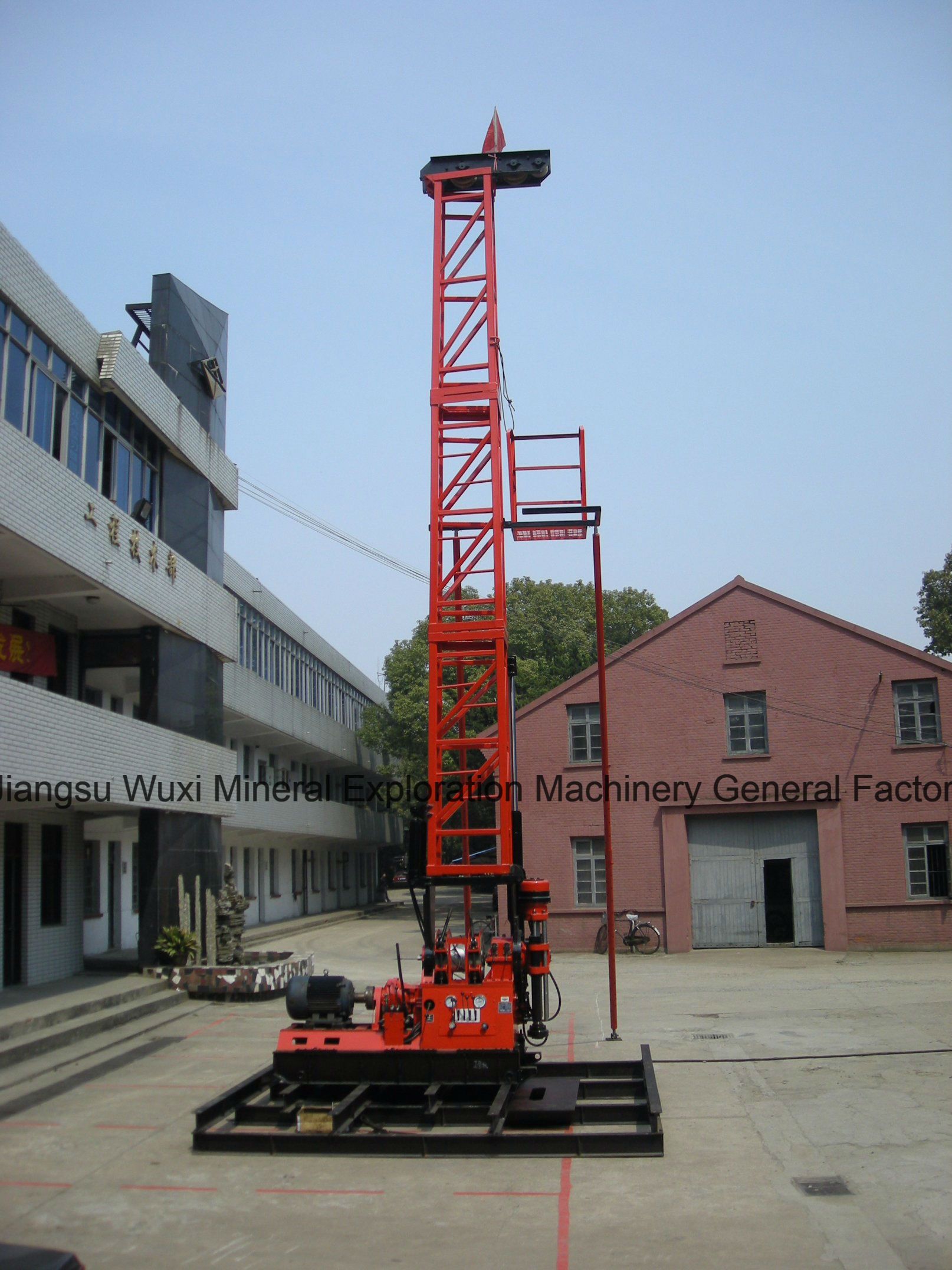

XY-4 Core Drilling Rig Quick Detail:
1,XY-4 is a mechanical driven and hydraulic fed and high rotary speed of core drill.
2,t is easy to operate and disassemble ,convenient to transport and maintain ./
3,It can be also suitable for engineering geological subterranean water explorations as well as explorations of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.
Description:
1.XY-4 core drill is developed to meet the needs of users and the development of geological works.It is easy to operate and disassemble ,convenient to transport and maintain . Its design is advanced,reasonable and compact .
2.XY-4 core drill has won the national silver medal in 1983.
3.The drill has 8 rotary speed stage, the maximum speed 1,588rpm, the minimum speed 135rpm, so it is suitable for various drilling for solid mineral deposits with diamond or carbide bit.
4.It can be also suitable for engineering geological subterranean water explorations as well as explorations of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.
Applications:
1.Exploitation of superficial-zone petroleum and natural gas .
2.Engineering geological exploration.
3.Exploitation of mine workings ventilation and water discharge tunnel drilling.
Specifications:Hole depth | 1000m | Rod dia | 43mm |
Hole depth | 700m | Rod dia | 50mm |
Hole angle(°) | 360° |
Spindle speed | Forward speed:135;250;355;517;415;765;1090;1588rpm |
Reverse speed:110;238rpm |
Stroke | 600mm |
Max .lifting capacity | 72KN |
Max .feeding capacity | 54KN |
Hoist (while driven by diesel Engine) | Max .lifting capacity (single line): | 30KN |
Lifting speed(the third layer): | 1.09;2.02;2.89;4.18m/s |
Retraction cylinder stroke | 400mm |
Distance between drill and hole | 250mm |
Power | Electric motor: | 30kw,1470rpm |
Diesel engine | 36.75kw,2000rpm |
Weight (less engine) | 1500kg |
Dimensions (L×W×H) | 2640×1100×1750mm |
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

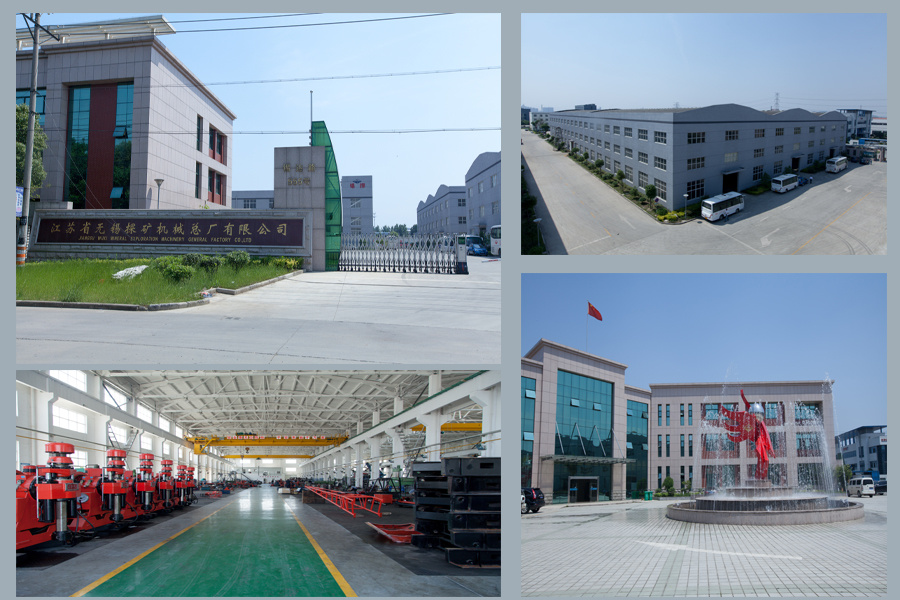

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
