| Prod Model: |
FY-ER/EP |
| Color: |
Yellow |
| Theory: |
Manual Valve Controling or Electromagnetic Pump |
| Pressure: |
High Pressure |
| Voltage: |
380V/220V |
| Structure: |
Multistage Pump |
| Motor Power: |
0.75-5.5kw |
| Tank Capacity: |
12-100L |
| Fuel: |
Gasoline |
| Weight: |
30-120kg |
| Warranty: |
1 Year |
| Pressure Medium: |
Oil |
| Type: |
Electrical |
Product Description

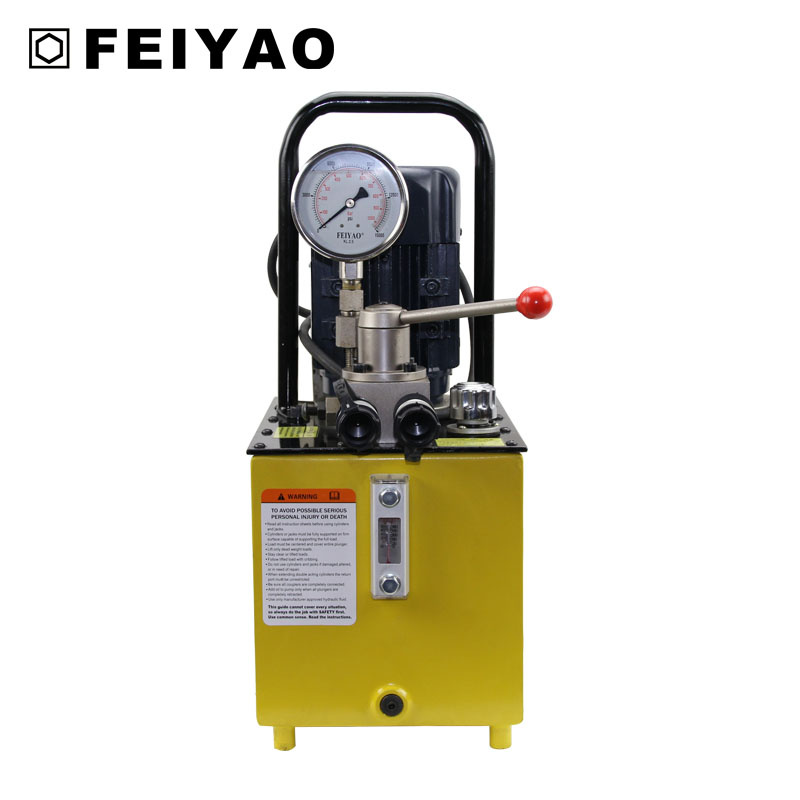

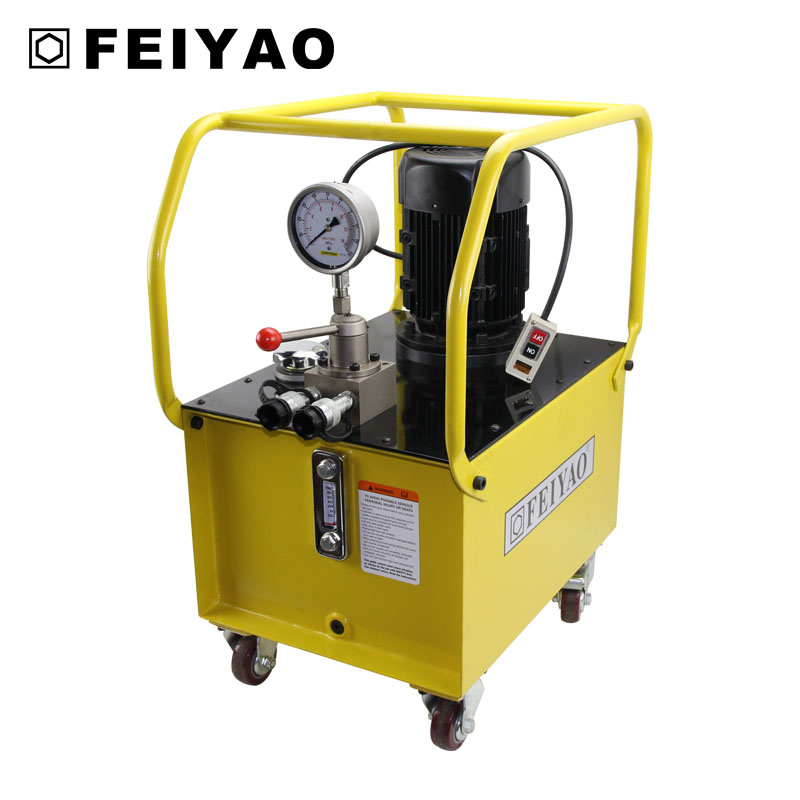

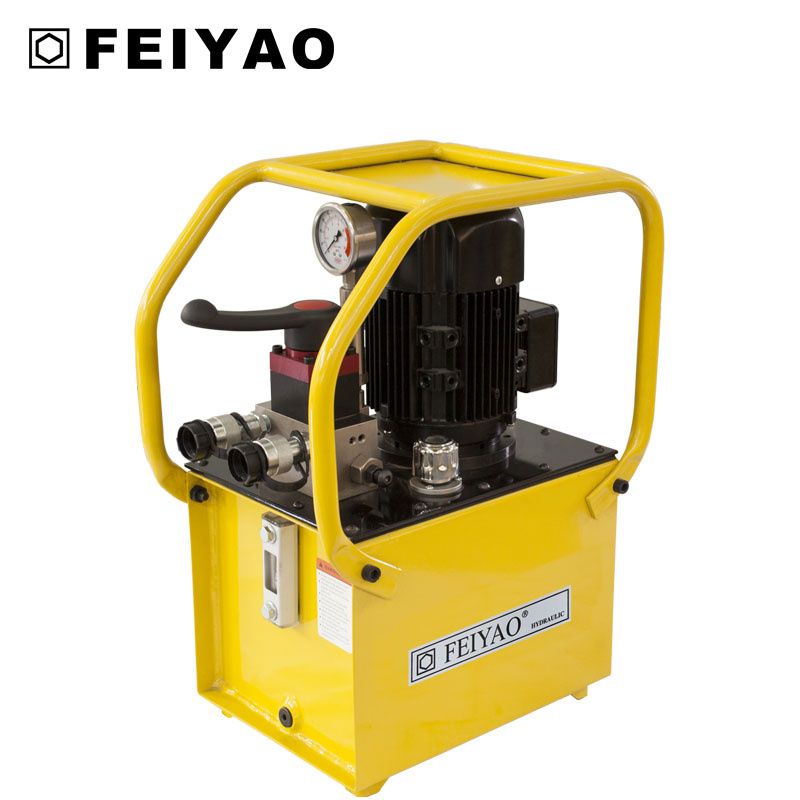

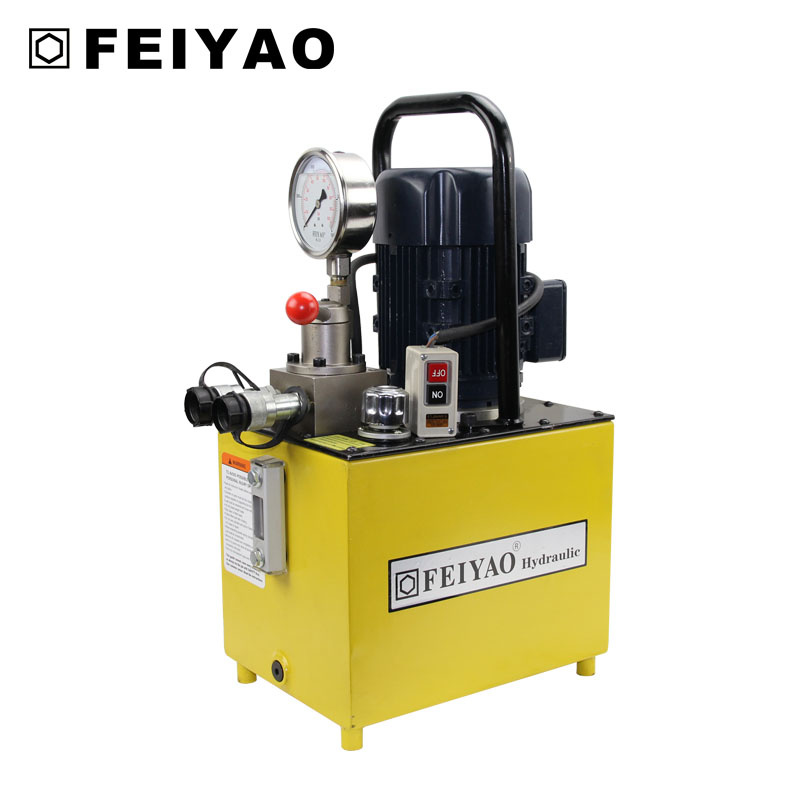

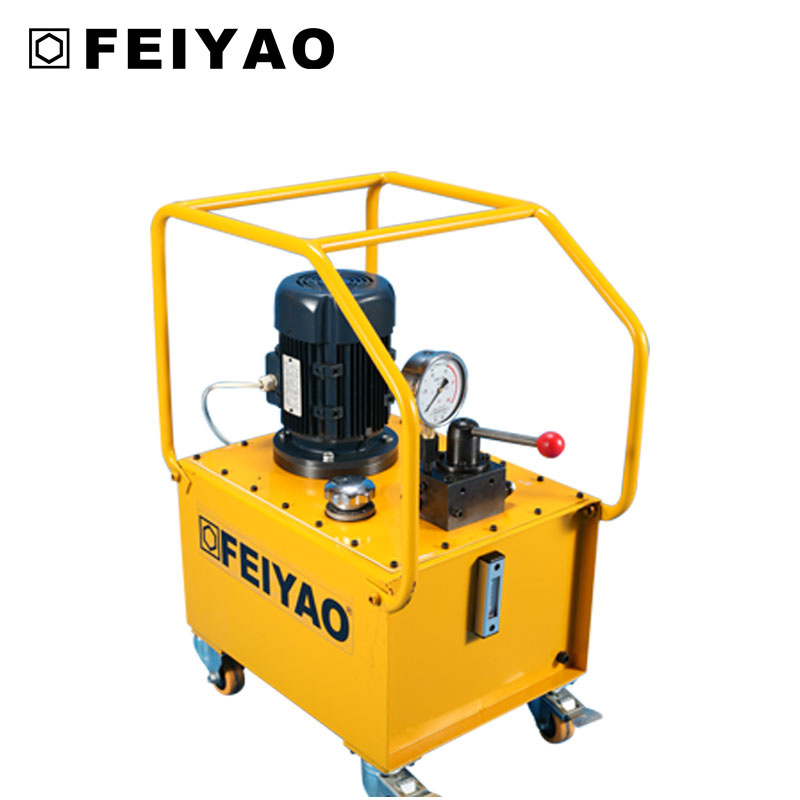

EP Series Electric Driven Hydraulic Pump
Features:
1. Hydraulic Pump special for hydraulic wrench
2. Parameter: 2-stage pump with heat exchange, 220V/380V, 50Hz, double-phase
3. The maximum operating pressure: 70 MPA
4. Flow: Low pressure 6 L/m, high pressure 0.7L/m
5. Motor: 220V, 50Hz, 800W, double-phase
6. Conformable temperature: 40-70°C
7. Operation: Suitable for single and multi-operation (2 pair ports)
8. Two stage with heat exchange
9. Remote Control Wire
Parameter Information
| Model | Working Pressure(Mpa) | Flow (L/Min) | Tank Capacity | Motor Power(kw) | Voltage(V) | Dimension(L×W×H) (mm) | Weight(kg) |
| High Pressure | Low Pressure | High Pressure | Low Pressure | (L) |
| FY-ER-75 | 70 | | 0.8 | | 12 | 0.75 | 380 | 400×260×440 | 30 |
| FY-EPR-150 | 70 | | 0.8 | | 12 | 1.5 | 220 | 400×260×440 | 30 |
| FY-EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500×350×600 | 60 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500×350×600 | 90 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610×450×860 | 90 |
| FY-EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750×540×880 | 120 |
