| Prod Model: |
S600L-M-512 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Case: |

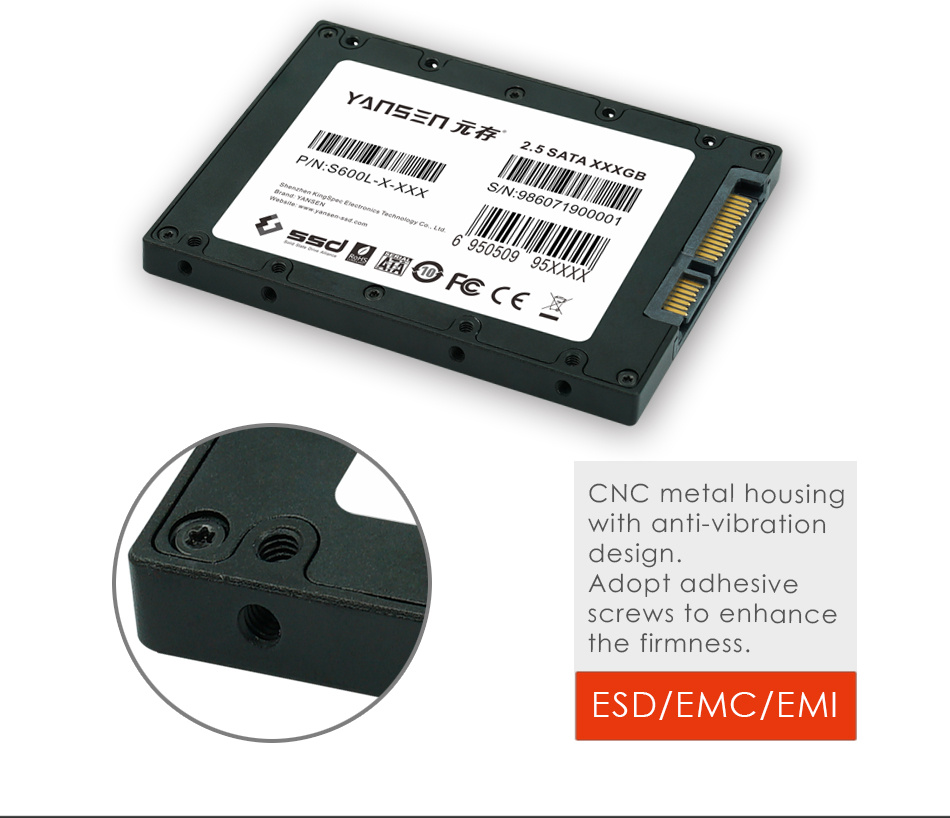

CNC Metal Case |
| Height: |
7mm |
| Interface: |
SATA3 |
| Use For: |
Industrial Use for Ipc, Motherboard, Server |
| Type: |
Solid State Disk |
| Application: |
Server |
| Installation: |
Internal |
| Size: |
2.5 |
| Interface Rate: |
300MB/s |
| SSD Cache: |
480MB |
| Cache: |
480MB |
| Interface Type: |
SATA3.0 |
| Rotationl Speed: |
N/a |
| Capacity: |
480GB |
Product Description
Extend Tempeturature Industrial Grade 2.5 Inches SATA3.0 Solid State Hard Drive Disk S600L-M-512Super Quality YANSEN Enterprise Industrial Grade 2TB MLC 2.5" SATAIII SSD Solid State Hard Drive Disk S600L-M-1T With ASM1092 IC Controller use for Industrial Environment 0°C ~ 70°C or -20°C ~ 75°C or -40°C ~ 85°C

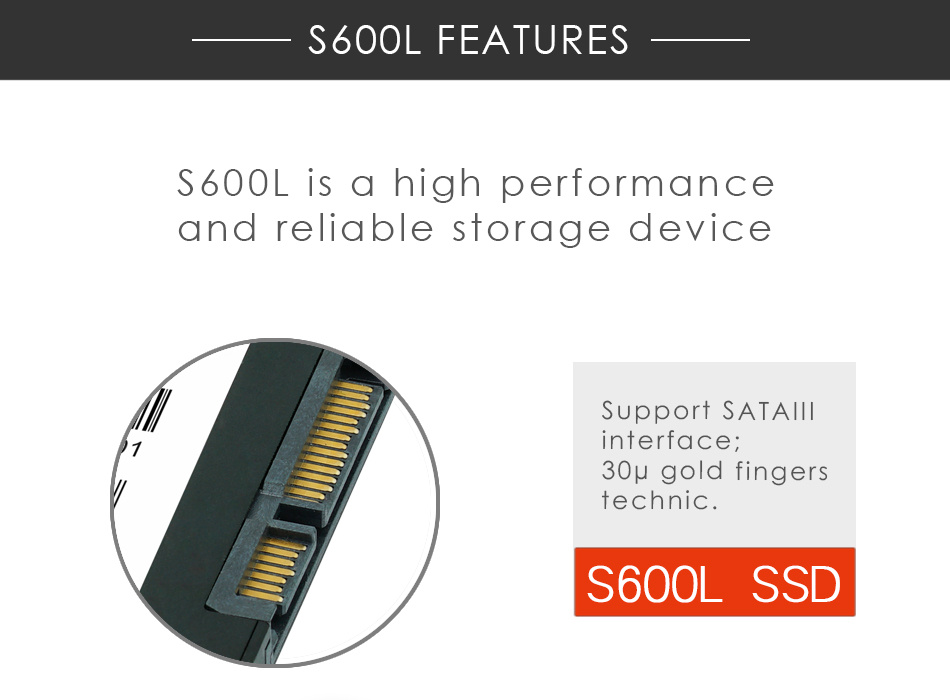

Compliant with SATA 6Gbps
SpecificationLow power consumption
Noise Free, Shock Resistant
ECC Correction Code
MTBF: More than 1, 000, 000hours

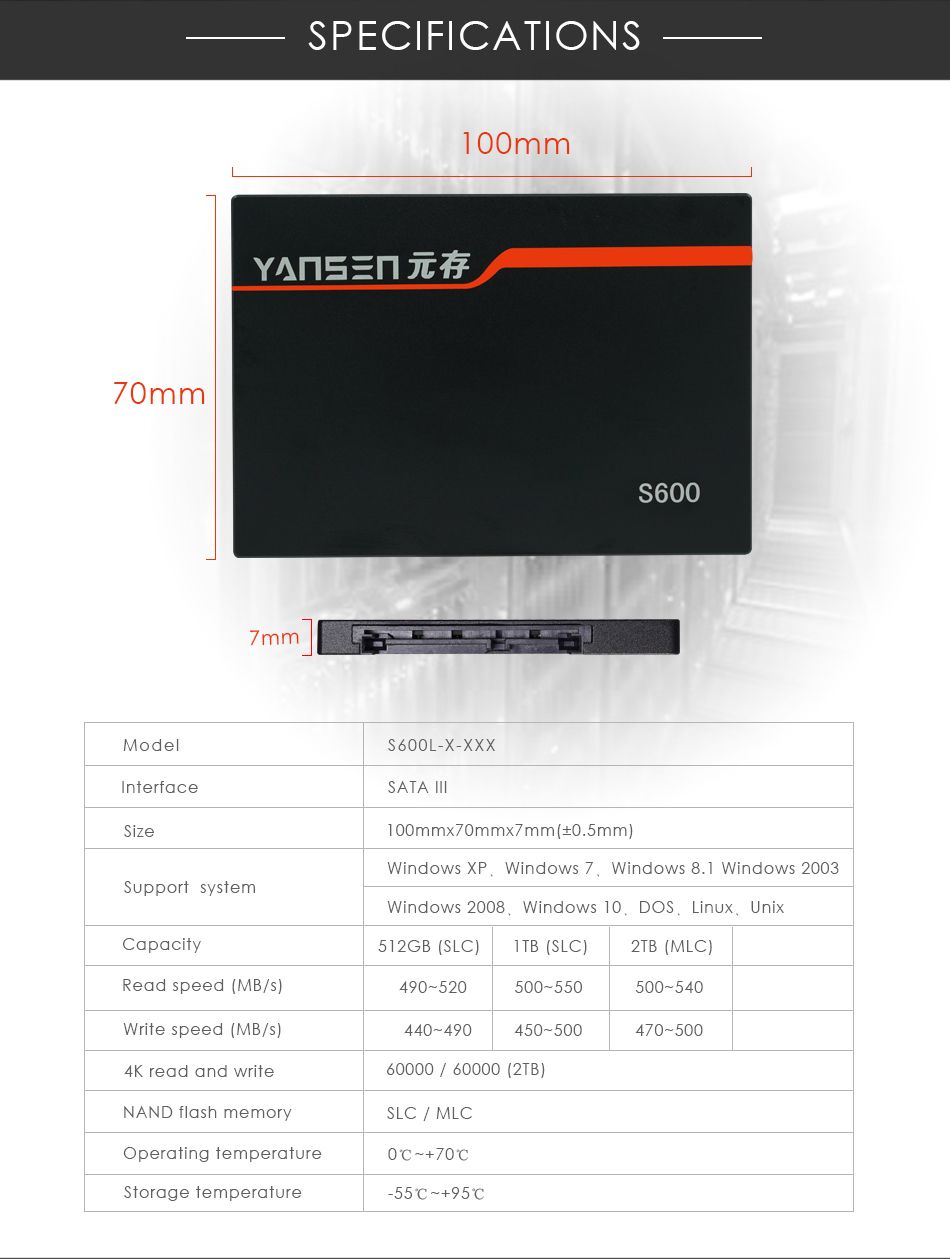

Physical Dimension: 100.2*69.8*9.5mm
CE, RoHS, FCC compliant
Max Read 500MB/s; Max Write 500MB/s;
Random Write(4k): Up to 64, 000 IOPS
Datasheet| Model | SATA III 2.5 |
| General | Form factor | 2.5 |
| Interface | SATA III |
| Performance | Capacity | 60GB | 120GB | 240GB | 480GB |
| Sustained Read | 500MB/S | 500MB/S | 500MB/S | 500MB/S |
| Sustained Write | 481MB/S | 486MB/S | 489MB/S | 488MB/S |
| Random IOPS | |
| 4KB Random Read IOPS | 50000 |
| 4KB Random Write IOPS | 20000 |
| Average Access time | 0.1ms |
| Storage Media | NAND Flash | MLC-NAND Flash |
| Power Consumption | input Voltage | 5V+/-5% |
| Idle | 0.5W |
| Active | 2.0W |
| Reliability& Endurance | Write endurance | 16years @100GBytes write and erase per day at 60GB |
| Read endurance | unlimited |
| Wear-Leveling Algorithm | Dynamic and static wear-leveling |
| Data Retention | 10years at 25ºC |
| MTBF | 2,000,000hours |
| ECC | Supports BCH ECC 8bits or 15bits in 512 bytes |
| Bad Block Management | Auto Bad Block Management in system |
| Environment | Operating Temperature | 0~75ºC |
| Non-operating Temperature | -40~85ºC |
| Shock | |
| Vibration | |
| Ambient Humidity | 5-95% |
| Warranty | 2years |
| Available unit | Available | NO EOL |
| Testing Platform | CPU: Intel® Core™ i3 Duo CPU 540 @ 3.07GHz Chipset:Intel® H55 Express Chipset Memry: KVR800D2N5/2G OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Intel® Rapid Storage Technology - Intel®ICH10R SATA AHCI Controlle v9.6 BIOS Settings:AHCI |
| Testing Software | CrystalDiskMark 3.0 |
| Physical Dimensions & Weight | Height(mm) | 9.5+/_0.25 |
| Width(mm) | 69.8+/_0.25 |
| Length(mm) | 100+/_0.25 |
| Weight(g) | 37 |
Specifications:
Our ServicesKingSpec is a professional SSD manufacturer owning a factory with an area of 1000 m² and employees of 200 people, located in Shenzhen, Guangdong Province. We have been focus on designing, developing, manufacturing and selling SSD products for 10 years since 2007, for now our products had covered PCIE2.0, PCIE3.0, SATA III, PATA, mSata, NGFF (M.2), DOM, CF card, CFast, etc. Satisfying your request and providing qualified products is our goal.
Company Information We KingSpec electronic technology company is the manufacturer which is specialized in solid state drive more than 6 years, Our factory is ISO9001: 2015 certificated We have many customers in China like Hisense\Great Wall\EVOC\TCL\ADLINK\EMERSON\NORCO\HEDY\ASUS\ZTE\Zhejiang University and so on. At present we have exported our products to Europe / USA / Russia/ India/ Singapore/Korea/Japan and so on. With the complete product line of high quality SSD, KingSpec own the highest honor in China and getting more and more popular in the international market.
FAQ Q: WHY THE CAPACITY OF HARD DISK DISPLAYED IN THE COMPUTER WILL BE LESS? IS IT NORMAL?A: It is a normal situation, capacity of storage products are usually in accordance with 1MB= 1000KB/1GB= 1000MB calculation, but the operating system using binary algorithm: 1MB= 1024KB/1GB=1024MB. which is a normal calculation range Storage device conversion formula: nominal capacity X0. 93 actual capacity. Actual capacity is not totally equal to nominal capacity. For example, 1 GB(1,000,000,000 Bytes) may display as 0.93 GB(1,000, 000,000 Bytes/1024/1024/1024=0.93 GB) in the os due to different computing method. Meanwhile, actual available capacity may show less in the OS as some capacity is reserved for firmware in SSD.
Q: HOW TO MAKE FORMAT AND 4K ALIGNMENT?A: It is recommended to use WINDOWS7 or above operating system which are with built-in disk
management formatting function, it can achieve 4K alignment (recommended NTDS disk partition format), you can also use DISKGENIUS partition tool to make partition. After you get into PE, you find the partition tool, Open- fast partition- select SSD. you can customize several partitions, and finally select 4096 to click OK.
Make sure your computer is running under AHCI mode, otherwise ssd's writelread performance and response time will be affected. Use AS SSD Benchmark to check if SSD has complied with 4K
Alignment and already been under AHCI mode.
Q: WHY CAN'T WE FIND SSD HARD DISK AND READ/WRITE DATA?A: The newly bought SSD generally needs to be formatted in Disk Management, after that you can write and read data, it is recommended to make format in the WINDOWS operating system and use NTFS format.
Q: IS THERE ANY after-sale GUARANTEE? WHERE SHOULD WE SEND SSD TO REPAIR?A: We provide 7 days no reason to return warranty, it can be returned without affecting second sale .We will bear the cost for quality problem, buyer should pay delivery fee for non-quality problem.
Q: WHT IS THE DEFECTIVE RATE OF YOURE COMPANY'S PRODUCTS? HOW MANY YEARS COULD THE SSDS BE USED FOR PERSONAL DATA STOREAGE? AND WHAT SHOULD I DO IF THE DISK BROKE AND MY PERSONAL DATA WAS LOST? A : Our defective rate is 0.1% according to the record of defective rate from KingSpec oversea department. Theoretically, the hard disk cannot be used when the disk's life is ended and it can be used for 8 years based on 100GB write and erase per day. Due to the end of the life of the SSD, NAND Flashes or firmware damage, the data generally can not be repaired. Therefore, you are strongly advised to back up your data in time!
Why Kingspec? 1.Shenzhen Kingspec Electronics Technology Co., Ltd. is a professional manufacturer focus on designing, developing, manufacturing and seddling SSD products for 11 years.
2.We have strict test on our products from income quality control to finished product inspection, make sure the high quality of our product.
3.Our factory have passed ISO9001:2015 test, all of our products have the CE, FCC, KC and RoHS certification.
4.Our company provide OEM to satisfied with your requirement.
5.We own our factory that can produce in large number and provide you a competetive price.
For more info., please kindly contact Ms. Sammy Sheng
KingSpec Electronics Technology Co., Ltd.
Our Customer
Hisense\Great Wall\EVOC\ADLINK\EMERSON\NORCO\HEDY\Zhejiang University\Xiamen University\Shenzhen University\Xi'an API\SZCEC\Blue Star\ANOVO.
Our Certification
KingSpec has membership with SSDA and SATA-IO Administration. The factory is ISO9001: 2008 certificated. And the SSD are CE, RoHS, FCC certificated.
