Prod Model: |

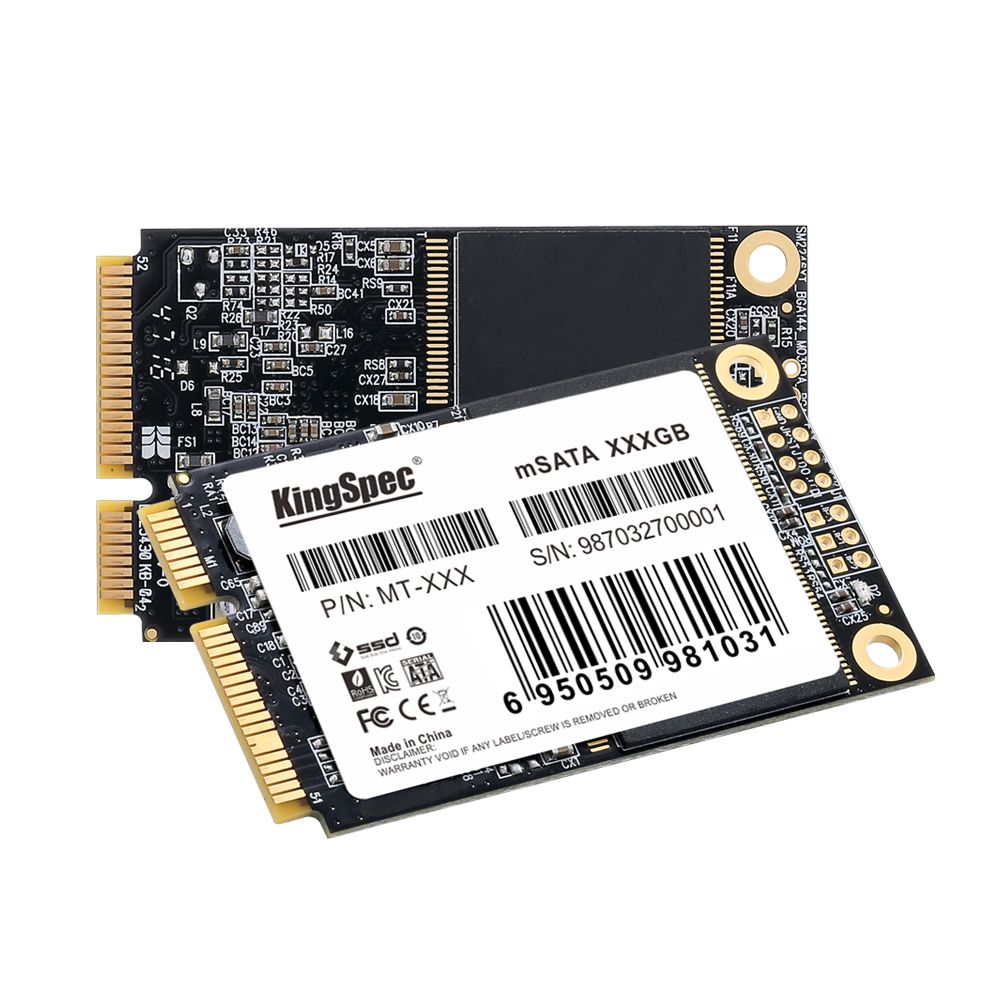

MT-256 256GB MSATA SSD |
Payment: |
T/T, Wu, or Paypal |
Shipping Ways: |
UPS, TNT, DHL, FedEx |
Port: |
Shenzhen |
Certification: |
Kc, FCC, Ce, RoHS |
Type: |
Solid State Disk |
Application: |
Motherboard, Ultrabook |
Installation: |
Internal |
Interface Type: |
SATA |
SSD Cache: |
N/a |
Cache: |
N/a |
Rotationl Speed: |
N/a |
Size: |
30*50mm |
Capacity: |
256GB |
Interface Rate: |
N/a |
Product Description
Fast Speed Factory Price 30*50mm 60GB Hard Disk SSD for laptop Mining Machine
Model | MT-128 128GB mSATA SSD |
General | Form factor | mSATA Module |
Interface | mSATA |
Performance | Capacity | 32GB | 64GB | 128GB |
Sustained Read | 370MB/S | 461MB/s | 470MB/S |
Sustained Write | 95MB/s | 195MB/S | 255MB/S |
Random IOPS | |
4KB Random Read IOPS | 24000 |
4KB Random Write IOPS | 350 |
Average Access time | 0.1ms |
Storage Media | NAND Flash | MLC/TLC |
Power Consumption | input Voltage | 3.3V±5% |
Idle | 0.5W |
Active | 2.0W |
Reliability& Endurance | Write endurance | 8years @100GBytes write and erase per day at 32GB |
Read endurance | unlimited |
Wear-Leveling Algorithm | Dynamic and static wear-leveling |
Data Retention | 10years at 25ºC |
MTBF | 1,000,000hours |
ECC | support NCQ,TRIM 16bits or 24bits in 1024 bytes |
Bad Block Management | Auto Bad Block Management in system |
Environment | Operating Temperature | 0~70°C |
Non-operating Temperature | -40~85°C |
Shock | |
Vibration | |
Ambient Humidity | 5-95% |
Warranty | |
Available unit | Available | NO EOL |
Testing Platform | CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Intel Chipset SATA AHCI Controller 10.5.1.1001 BIOS Settings: AHCI Mode |
Testing Software | ATTO Disk Benchmark,CrystalDiskMark v3.0 ,HD Tach RW 3.0.1.0,HD Tune PRO 3.50 |

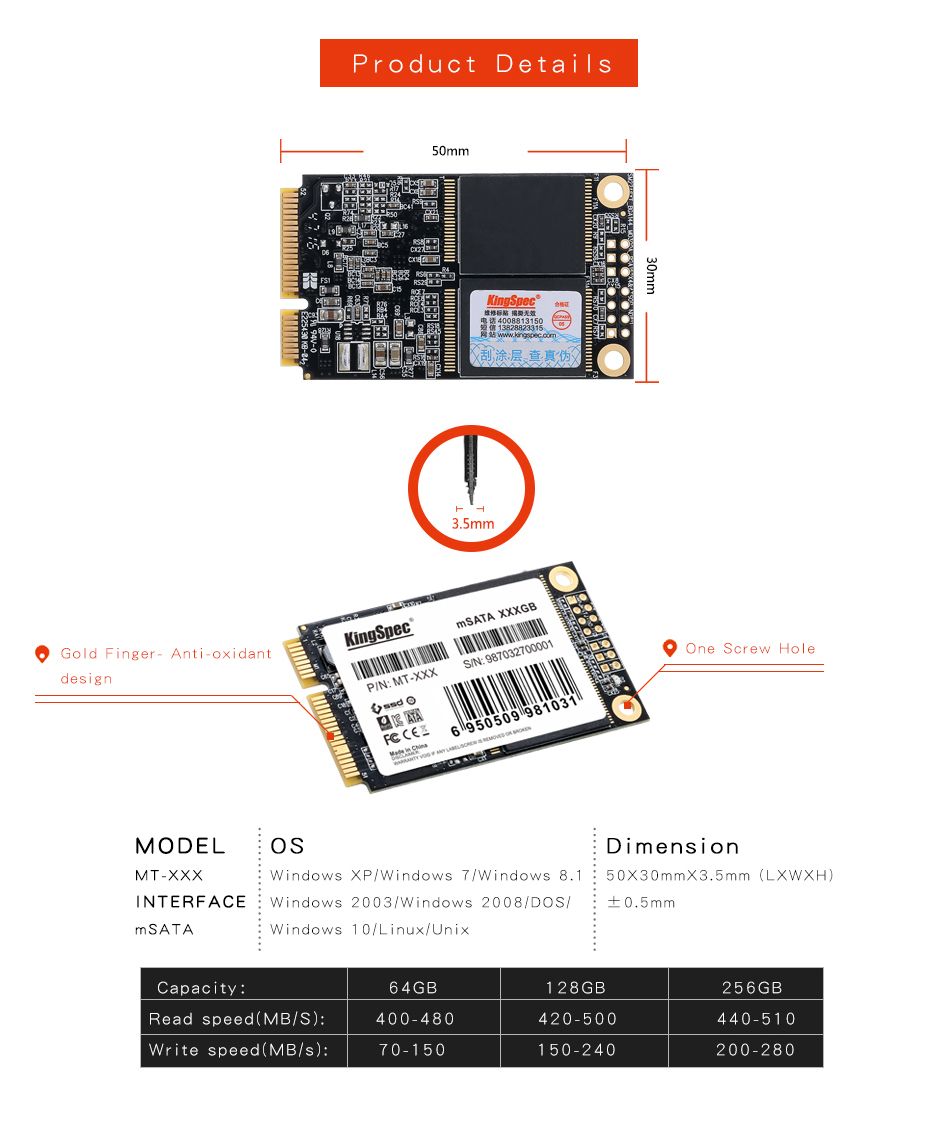

Physical Dimensions & Weight | Height(mm) | 3.5+/_0.25 |
Width(mm) | 30+/_0.25 |
Length(mm) | 50.0+/_0.25 |
Weight(g) | 3.5+/_0.5 |
The read and write speed is limited to this test platform. |
Definition of Solid State Drive
Solid State Drives, which use flash memory instead of a hard-drive platter to store date.
Old computers had a habit of spitting files and spreading the parts all over your hard drives, but modern ones don't do this as much. Not even close, a bimonthly pass with a capable Defragger can help you maintain peak performance on a heavily used hard drive.Data transfer to and from solid-state drives is much faster than electromechanical disk drives. Seek time and latency are also substantially reduced. Users typically enjoy much faster boot times as well.
In general, SSDs are also more durable and much quieter, with no moving parts to break or spin up or down. SSDs do, however, have slower write times and a set life expectancy, as there is a finite number of erase/write cycles before performance becomes erratic.
Advantages of Solid State Drive:
1. Quick response and high read/write speed
2.Silent mode
3.Low power consumption and low heat.
4.None mechanical breakdown
5.Can work under wider range tempreture, 0~70ºC
6.Lighter, smaller and more portable.
7.Shockproof and drop resistance.
Our products'Competitive Advantage:
1)Original brand NAND Flash
2)Fast read/write speed, faster application load times
3)High reliability, data stability
4)Low energy consumption
5)Anti-shock, anti-dust, noiseless, superior security
6)Shockproof, rugged design safe and high stability and reliability
We KingSpec electronic technology company is the manufacturer which is specialized in solid state drive more than 11 years, Our factory is ISO9001: 2008 certificated in 2011, We have many customers in China like Hisense\Great Wall\EVOC\TCL\ADLINK\EMERSON\NORCO\HEDY\ASUS\ZTE\Zhejiang University and so on. At present we have exported our products to Europe / USA / Russia/ India/ Singapore/Korea/Japan and so on. With the complete product line of high quality SSD, KingSpec own the highest honor in China and getting more and more popular in the international market.
1.Shenzhen Kingspec Electronics Technology Co., Ltd. is a professional manufacturer focus on designing, developing, manufacturing and seddling SSD products for 11 years.
2.We have strict test on our products from income quality control to finished product inspection, make sure the high quality of our product.
3.Our factory have passed ISO9001:2015 test, all of our products have the CE, FCC, KC and RoHS certification.
4.Our company provide OEM to satisfied with your requirement.
5.We own our factory that can produce in large number and provide you a competetive price.
If you have any question, please feel free to contact with vivian
KingSpec Electronics Technology Co., Ltd.
Our Customer
Hisense\Great Wall\EVOC\ADLINK\EMERSON\NORCO\HEDY\Zhejiang University\Xiamen University\Shenzhen University\Xi'an API\SZCEC\Blue Star\ANOVO.
Our Certification
KingSpec has membership with SSDA and SATA-IO Administration. The factory is ISO9001: 2008 certificated. And the SSD are CE, RoHS, FCC certificated.
Our History
2005: KingSpec Electronics Technology Co., Ltd is founded in Shenzhen.
2008: KingSpec become the distributor of MTRON SSD
KingSpec SSD passed CE, RoHS, FCC certification.
KingSpec build up membership with SSDA
2009: KingSpec build all SSD production-line. And we have the brand shop in
Beijing, Shanghai, Guangzhou and Shenzhen.
2010: KingSpec Motive series SSD win the HongKong PCM Honor.
2011: The factory is ISO9001: 2008 certificated;
KingSpec finish the VI System building and upgrade;
KingSpec attend the The Shanghai Expo, Shenzhen High-tech Expo and HK Fair.
2012: KingSpec attend the CES2012, CeBIT 2012, HK Fair, Computex 2012, Shanghai Expo and the Shenzhen High-tech Expo etc.
KingSpec brand shops are well built in Beijing, Shanghai, Guangzhou, Shenzhen, Zhengzhou, Hangzhou, Xi'an and Changsha.
