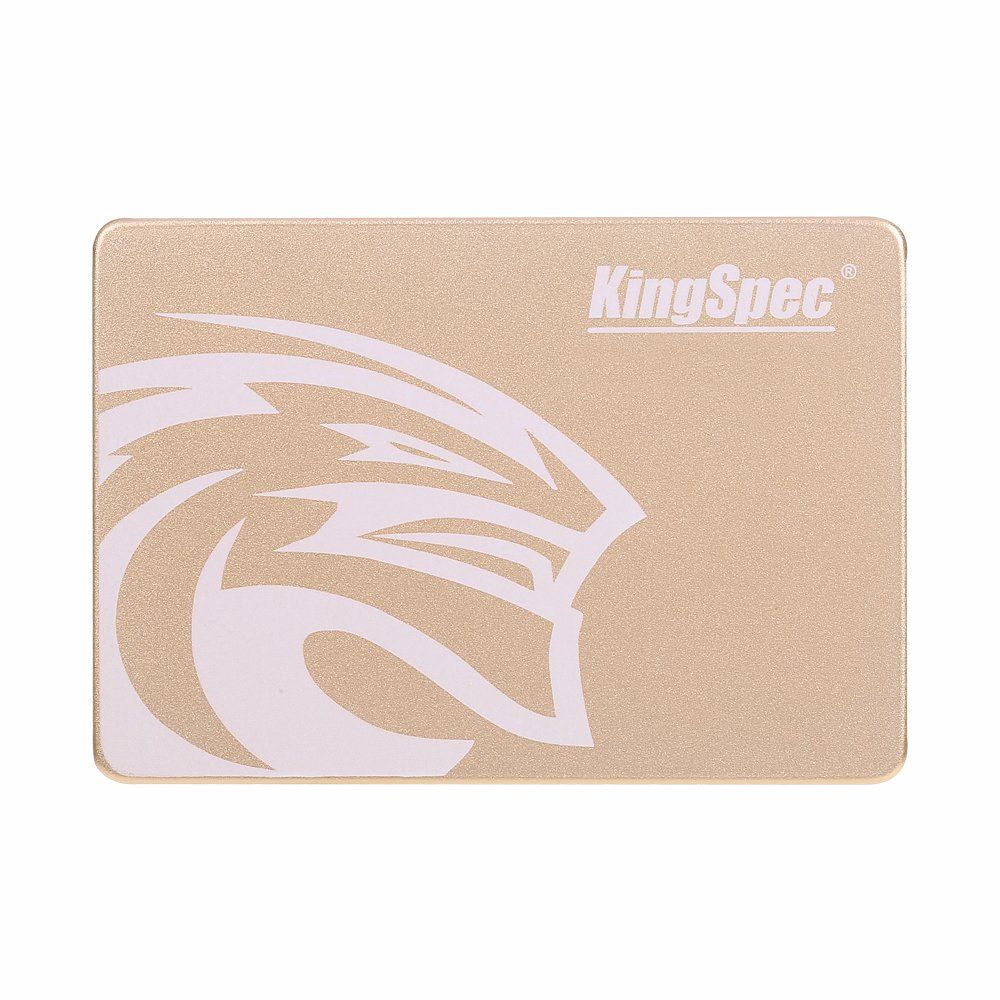

P3-1tb Kingspec 1tb 2.5" SATA3 SSD Hard Disk Drive 6gbps SSD High Speed 540/520MB/S

Prod Model:	P3-1TB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Physical Thickness:	7mm
Warranty:	MLC 3 Years, SLC 5 Years
OEM/ODM:	Support
Lead Time:	1 to 5 Working Days
Colour:	Gold Metal Case
IC Controller:	Mk8115
Nand Flash:	MLC Nand Flash
Interface:	SATA3
Shipment:	DHL/UPS/FedEx/TNT/Post Airmail
Free Sample:	Available
Capacity:	≥1TB
Type:	Solid State Disk
Application:	Gaming Machine, POS Machine, Pinball Machine
Installation:	Internal
Size:	2.5
SSD Cache:	N/a
Cache:	N/a
Interface Type:	SATA3.0
Rotationl Speed:	N/a
Interface Rate:	540/520MB/S

Product Description

P3 Series SATA III SSD is designed base on high reliability and high performance processor, with excellent sequential read and write ability and perfect random IOPS performance, it has broken the speed bottleneck of SATA III that limited by traditional HDD, make a full play of SSD. With the unique DuraWriteTM data write of the controller greatly extend the service life of flash memory, meanwhile the AES data confidentiality to ensure the security of data, the RADIO allows users to easily set up a disk array features, and achieve higher performance.

Main Features:
Compliant with SATA 6Gbps Specification
Low power consumption
Noise Free, Shock Resistant
ECC Correction Code
CE, RoHS, FCC compliant
Interface: SATA-III
Physical Thickness: 7mm
Flash: MLC NAND FLASH
Operating tenperature: 0C-70C
IOPS Random Read(4KB): 60K
IOPS Random Write(4KB): 30K
Max Read: 500MB/s
Max Write: 500MB/s
MTBF: More than 1, 000, 000hours
Capacity: 64GB, 128GB, 256GB, 512GB

For all UltraBook, desktop, laptop, server, motherboard, Gaming machine, POS machine, Pinball machine, etc., all devices with SATA-III interface.

1. Specifications:

Model	SATA III 2.5 P3-1TB
General	Form factor	2.5
	Interface	SATA III
Performance	Capacity	128GB | 256GB   |  512GB  | 1TB
	Sustained Read	500MB/S | 500MB/S | 500MB/S | 540MB/S
	Sustained Write	410MB/S | 470MB/S | 480MB/S | 520MB/S
	Random IOPS
	4KB Random Read IOPS	50000
	4KB Random Write IOPS	20000
	Average Access time	0.2ms
Storage Media	NAND Flash	MLC
Power Consumption	input Voltage	5V+/_5%
	Idle	0.5W
	Active	2.0W
Reliability& Endurance	Write endurance	16years @100GBytes write and erase per day at 60GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,300,000hours
	ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70C
	Non-operating Temperature	-40~85C
	Shock
	Vibration
	Ambient Humidity
Warranty	MLC 3 years, SLC 5 years
Available unit	Available	NO EOL
Testing Platform	CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Server Express Chipset SATA AHCI Controller BIOS Settings: AHCI Mode
Testing Software	PC Mark,CrystalDiskMark v3.0 ,AS SSD Benchmark,HD Tune PRO 3.50
Physical Dimensions & Weight	Height(mm)	7
	Width(mm)	69.8
	Length(mm)	100
	Weight(g)	TDB
*The read and write speed is limited to this test platform

2. Company Information:

KingSpec Electronic Technology company's brief introduction:
We KingSpec are a solid state disk manufacturer, specialized in designing, developing, manufacturing and selling SSD products as well as other storage devices like USB flash drives, memory card, and dom. Besides designing and producing our products, we also do the OEM and ODM. Our factory had passed ISO9001:2008 certification and had membership with SSDA, the SSDs are CE, FCC certificated. After several years of effort, our independent R&D SSD products have entered the global market successfully and won excellent public praise from our client comes from Europe, America, Southeast Asia and many other countries.


FAQ:

Q: WHY THE CAPACITY OF HARD DISK DISPLAYED IN THE COMPUTER WILL BE LESS? IS IT NORMAL?
A: It is a normal situation, capacity of storage products are usually in accordance with 1MB= 1000KB/1GB= 1000MB calculation, but the operating system using binary algorithm: 1MB= 1024KB/1GB=1024MB. which is a normal calculation range Storage device conversion formula: nominal capacity X0. 93 actual capacity. Actual capacity is not totally equal to nominal capacity. For example, 1 GB(1,000,000,000 Bytes) may display as 0.93 GB(1,000, 000,000 Bytes/1024/1024/1024=0.93 GB) in the os due to different computing method. Meanwhile, actual available capacity may show less in the OS as some capacity is reserved for firmware in SSD.

Q: HOW TO MAKE FORMAT AND 4K ALIGNMENT?
A: It is recommended to use WINDOWS7 or above operating system which are with built-in disk
management formatting function, it can achieve 4K alignment (recommended NTDS disk partition format), you can also use DISKGENIUS partition tool to make partition. After you get into PE, you find the partition tool, Open- fast partition- select SSD. you can customize several partitions, and finally select 4096 to click OK.
Make sure your computer is running under AHCI mode, otherwise ssd's writelread performance and response time will be affected. Use AS SSD Benchmark to check if SSD has complied with 4K
Alignment and already been under AHCI mode.

Q: WHY CAN'T WE FIND SSD HARD DISK AND READ/WRITE DATA?
A: The newly bought SSD generally needs to be formatted in Disk Management, after that you can write and read data, it is recommended to make format in the WINDOWS operating system and use NTFS format.

Q: IS THERE ANY after-sale GUARANTEE? WHERE SHOULD WE SEND SSD TO REPAIR?
A: We provide 7 days no reason to return warranty, it can be returned without affecting second sale .We will bear the cost for quality problem, buyer should pay delivery fee for non-quality problem.

Q: WHT IS THE DEFECTIVE RATE OF YOURE COMPANY'S PRODUCTS? HOW MANY YEARS THE SSD CAN BE USED FOR PERSONAL DATA STOREAGE? AND WHAT SHOULD I DO IF THE DISK BROKE AND MY PERSONAL DATA WAS LOST?

A : Our defective rate is 0.01% according to the record of defective rate from KingSpec oversea department. Theoretically, the hard disk cannot be used when the disk's life is ended and it can be used for 8 years based on personal data storage with 100GB data file per day. The data can not be repaired if the flash chip and firmware were damaged, therefore, we are strongly suggest you to back up you data in time!

More Information :

1. We can do OEM / DIY SSD products, for the designed logo and gift box packing
2. Free training technological operator and experienced project managers to ensure the customer can use the SSD normally.
3. Warranty time :  3 Years for MLC products, 5 Years for SLC products.
 In the warranty period, all because of the quality of products has caused the damage or failure of equipment, supplier will take the resoponsibility for the free repair and replacing spare part.
 Due to the damage casued by the customer, we only charge material costs of repair and replacement. After the receipt of customers notice, we will suggests the method to solve problem within six hours, or send specialist to the after-sales.
