| Prod Model: |
ROC-GS110P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Block Cutting Wire |
| Down Speed: |
20-100cm/Hour |
| Cutting Life: |
8-20m2/Meter |
| Reinforcement: |
Plastic |
| Certification: |
SGS Ce |
| Beads Per Meter: |
37bpm |
| Linear Speed Of Cutting: |
28-30m/S |
Product Description

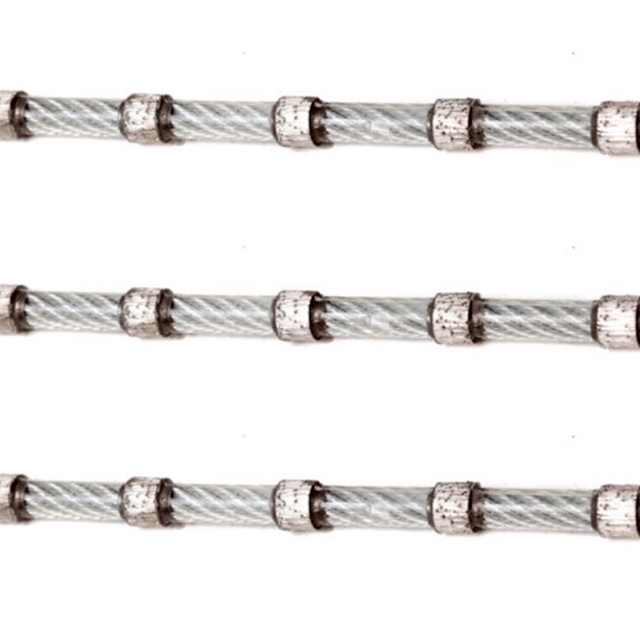

Description:Diamond Wire Saw for Granite Block Squaring and Trimming:
The plastic reinforced diamond wire has been widely introduced for the granite block cutting in factory, with advantages as below:- The diamond wire allows for cutting the large size block
- Thinner cutting slot and more precise to increase output from block;
- By virtue of its reliability, adjust the cutting techniques according to different stone material;
- Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques and less pollution
Technical Data:| APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
| To be widely used for granite block trimming in the factory | ROC-GB110P | ¢11.0×6.0 | 37 | Plastic |
| ROC-GB105P | ¢10.5×6.0 | 37 | Plastic |
| Cutting Material | Linear Speed (M/S) | Down Speed (CM/H) | Cutting Life
(M2/M) |
| Soft Granite | 24-30 | 70-100 | 15-20 |
| Medium Granite | 22-28 | 50-80 | 10-15 |
| Hard Granite | 22-28 | 30-50 | 7-10 |
| Abrasive Granite | 24-30 | 50-80 | 8-15 |

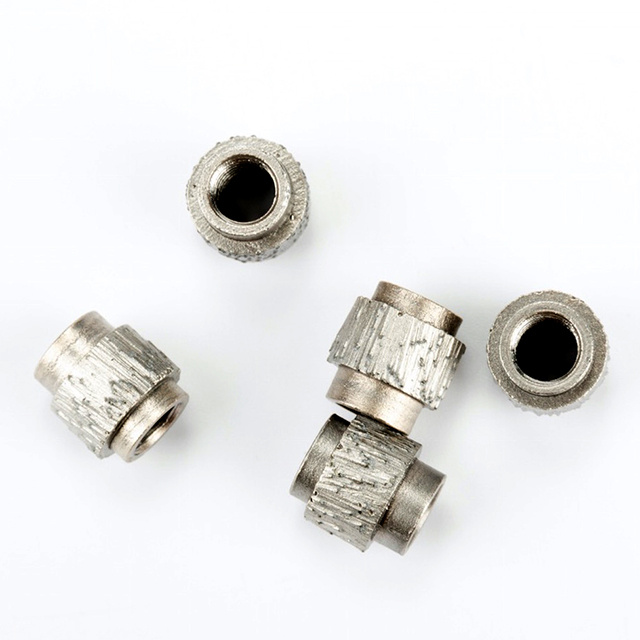

| SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
| ¢11.0 | 6.0 | 11 | Sintered |
| ¢10.5 | 6.0 | 11 | Sintered |
Keentool Diamond Wire with Features as below:- Keentool studies the granite to be cut to design the best bond, number of beads per meter;
- Keentool wires use the top quality steel cable from Germany
- KEENTOOL wires use the Bayer or BASF plastic grains from Germany, and the most advanced plastic injection equipment and system to make sure our diamond wire can work with stable performance till the end
Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: Customized, we can produce the wire with length as you required.
NW: 9-10KGS for 50 Meters
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters profiling diamond wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
