| Prod Model: |
Feather and Wedges&Wedge and Shims |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hand Splitter |
| Diameter: |
14-40mm |
| Lengh: |
125-600mm |
| Hole Size: |
34mm |
| Condition: |
New |
| Motor Type: |
Hand |
| Engine Type: |
Hand |
Product Description
1. Key words

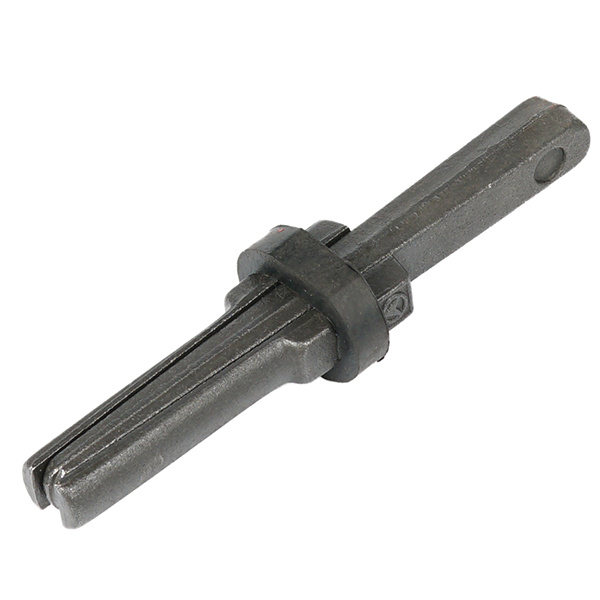

Wedges and shims also called Hand splitter, plug and feathers.
2. The Functions of Wedge and shims

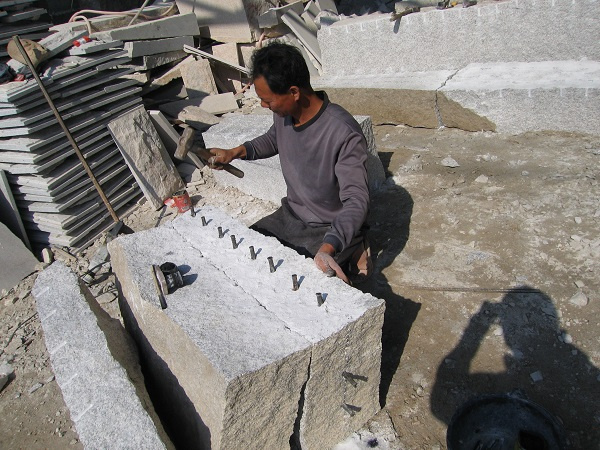

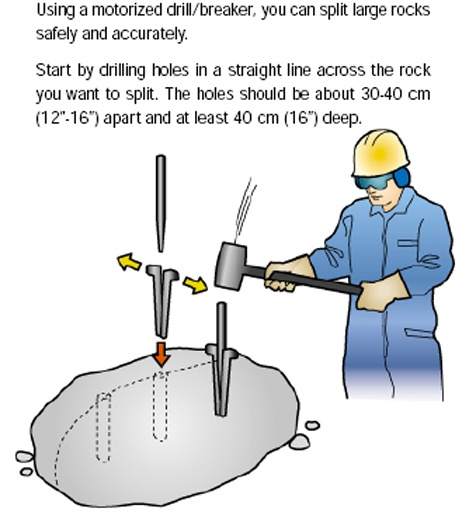

Wedge is a kind of manual tools that uses manpower to impact the metal wedge into holes on stone, thereby split stone. It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller or standard stone blocks. Wedge can also trim relative large and irregular stone blocks.
3. Wedge and Shim Set
Generally speaking, 3 sets of wedge and shim are required for per foot of length of stone.
The depth of drilled hole depends on the length of wedge.

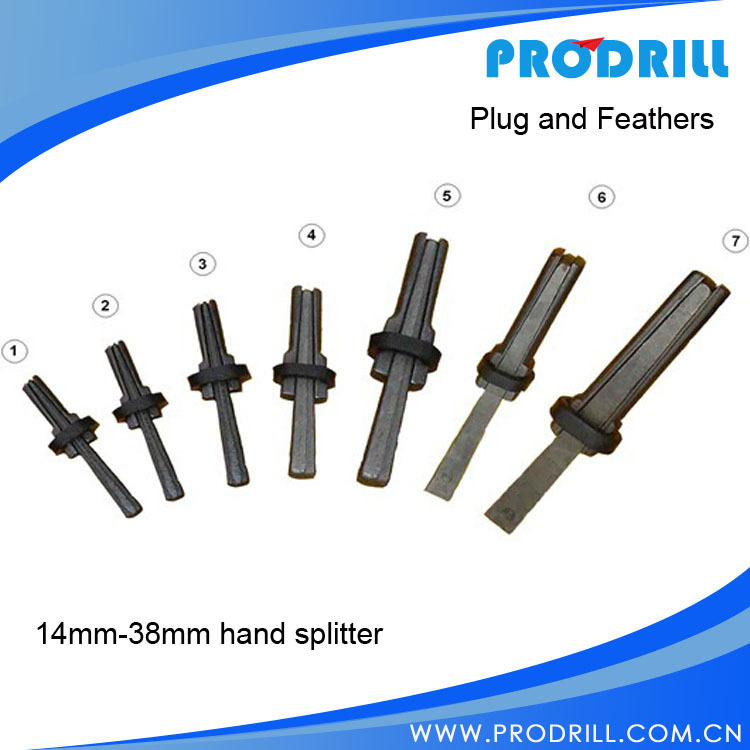

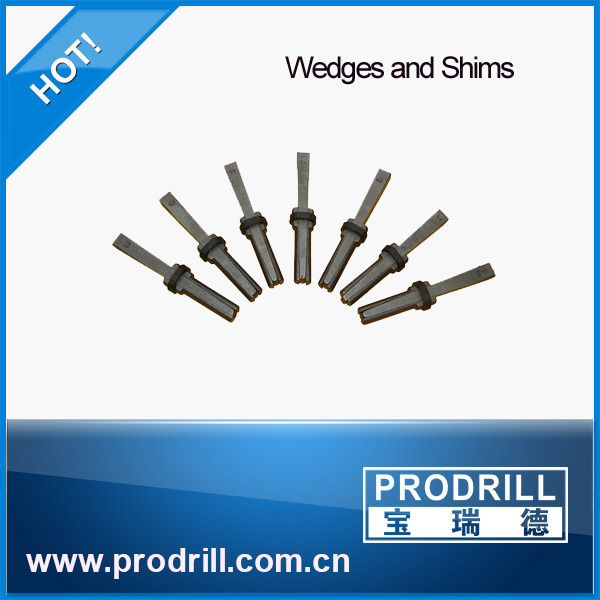

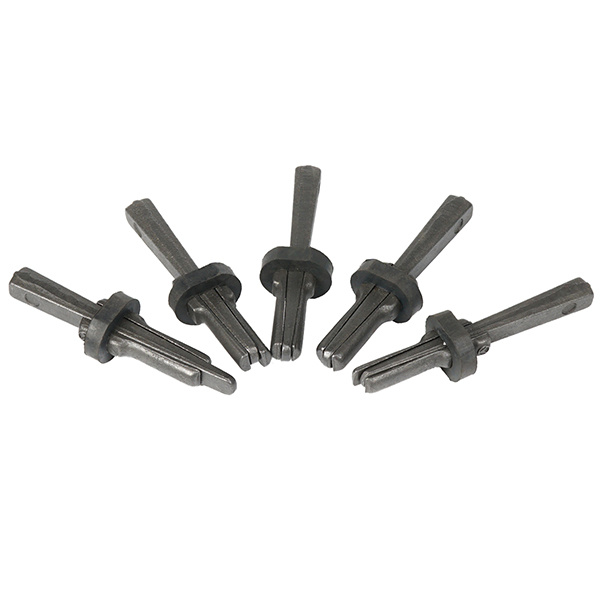

The following are types of wedge and shim sets.
Hand splitter, it's also called wedge and shims, plug and feathers.
We can design the length and hole size and shape as customers' requirement.
How to order:
We can design the length and hole size and shape as customers' requirement
Terms & Conditions of the Order
1. Payment Term:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production. Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: We suggest Courier express or by air
Bulk order: We suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
PRODRILL has a comprehensive supply of Rock tools for world leading top hammer manufacturers like Atlas Copco, Sandvik, Ingersoll-Rand etc. Such as: Taper / Percussive Bits and Rod, DTH hammer, Bit & rod, RC hammer, Bit & Rod, ODEX, Symmetric, Concentric overburden Casing System….
| Shims&wedges(feather pair&wedges) |
| Hole diameter(mm) | Length(mm) | Net weight(kg) |
| 14(1/2´´) | 125(5´´) | 0.17 |
| 16(5/8´´) | 125(5´´) | 0.19 |
| 20(3/4´´) | 190(7 1/2´´) | 0.5 |
| 24(15/16´´) | 190(7 1/2´´) | 0.6 |
| 32(1 1/4´´) | 280(11´´) | 1.5 |
| 34(1 1/4´´) | 290(11 1/2´´) | 1.8 |
| 38(1 1/2´´) | 320(12 5/8´´) | 2.1 |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
