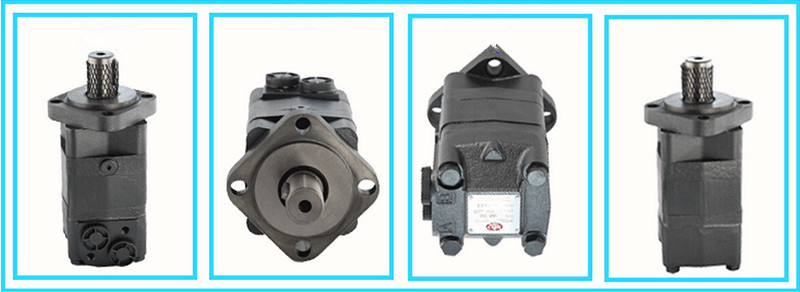

Four-Hole/Two-Hole Omsy Oms125 Orbit Hydraulic Motor for Weeding Machinery
| Price: |
US $ 160-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
OMS 80/100/125/160/200/250/315/375 |
| Markets: |
South America,Southeast Asia,Mid East,Eastern Asia |
| Structural: |
Hydraulic Cycloid Motor/Hydraulic Orbit Motor |
| Usage: |
Hydraulic Oil |
| Material: |
Cast Iron |
| Flow Distribution: |
Plane Distribution Type |
| Shaft Type: |
Parallel Key /Splined Key Shaft |
| Flange Type: |
Rhomb-Flange/Wheel-Flange /Square-Flange |
| Diameter Of Shaft: |
22mm/25mm/25.4mm/31.75mm/34.85mm/35mm |
| Rotation Direction: |
Positive & Reverse Direction |
| Application: |
Medium to Heavy Duty Tasks |
| Standard & Non-Standard: |
Standard |
Product Description
OMS series HYDRAULIC MOTOR adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic featutres:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.The case can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life,provide smooth and reliable operation.

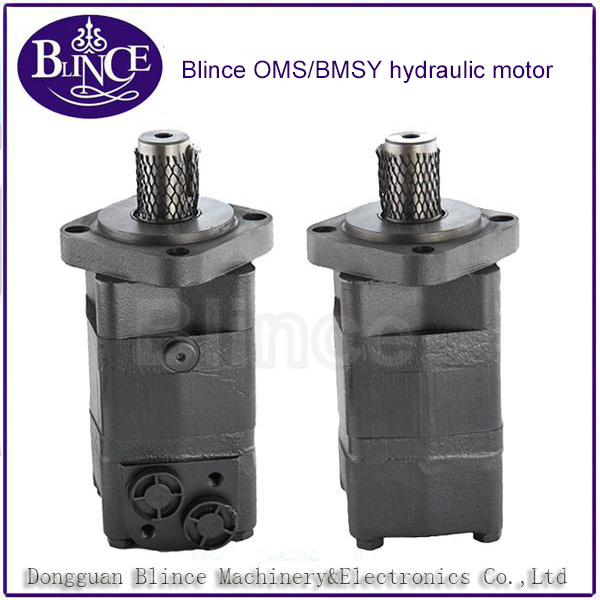

Blince OMS series high torque orbital hydraulic motors.
Flange:
E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3
Shaft:
A: Shaft Ø25 , parallel key 8×7×32
B: Shaft Ø32 , parallel key 10×8×45
D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
F: Shaft Ø31.75 ,splined tooth 14-DP12/24
FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
T1: Cone-shaft Ø35 ,parallel key B6×6×20
T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
S1: Shaft Ø25.4 ,splined tooth SAE 6B
I: Sub-shaft Ø22,splined tooth 13-DP16/32
Port:
D: G1/2 Manifold Mount 2-M10 , G1/4
M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNF
Benefis:
* High power density
* High effiency
* High constant quality
* Reliable
The Blince OMS series motors are used in the following application areas:
1) Construction equipment
2) Agricultural equipment
3) Material handling & Lifting equipment
4) Forestry equipment
5) Lawn and turf equipment
6) Special purpose
7) Machine tools and stationary equipment
8) Marine equipment
9) And more
WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
If you have any questions or other hydraulics informations what I can do for you. Please contact me directly or visit our website. The best service you will get soon! : )winnie
Skype: winnie tan.blince
Phone or whatspp: +8613527998635Blince Line: +86 4008803223/+86 769-85156586
THANKS FOR YOUR READING, AND HOPE YOU HAVE A NICE DAY. ( n. N ) **
Main Specification| Type | OMS
80 | OMS
100 | OMS
125
| OMS
160 | OMS
200 | OMS
250 | OMS
315 | OMS
375 |
Displacement
(cm3/rev.) | 80.6 | 100.8 | 125 | 157.2 | 200
| 252 | 314.5 | 370 |
| Max.speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 |
Max. Torque
(Nm) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 |
| Max.output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17.0 | 18.9 | 17 |
Max. pressure
drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 |
| Max.flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
Max. inlet
pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Net Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 |

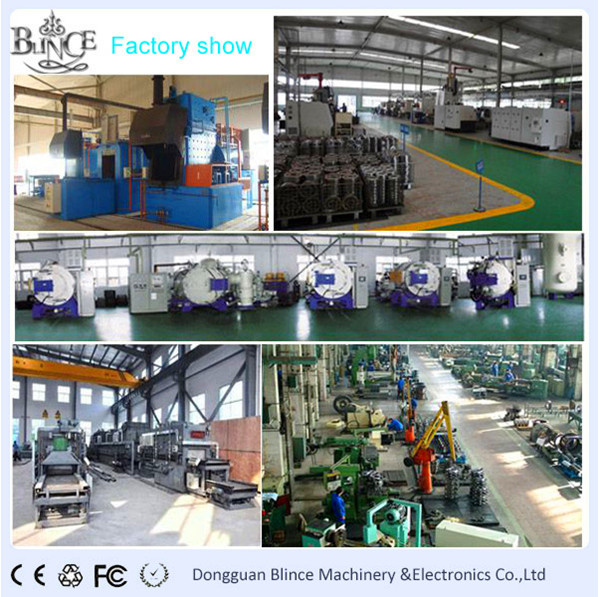

Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid m...MoreEstablished in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30, 000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Blince main product is orbit motor like (OMM/OMP/OMR/OMH/OMT/OMS/OMV), Radial Piston Motor(NHM 1/2/3/6/8/11/16/31), hydraulic pump (PV2R series, V/VQ series, SQP series) valve and a set of hydraulic system.
Our product widely application for fishing machinery, agricultural machinery, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery et
Blince hydraulic motor Can perfect replace:
Danfoss: OMM/OMP/OZ/OMR/OK/OMH/OMS/OMT/OMV orbital motor
Eaton: J (129-) series, H(101-) series, S(103-) series, T(158-)series, 2000(104-) series, 6000 series orbit motor
White: MP/RS/MR/RG/HB/CE/RE series hydraulic motor
Parker: TE and TG series hydraulic motor
