Freewheel/Backstop/One Way Bearing for Gearbox and Industrial Machine Fe463 Z
| Price: |
US $ 7-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FE463 Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fe463 |
| Seals Type: |
Non-Sealed |
| Precision: |
P6 |
| Inside Diameter: |
55mm |
| Outside Diameter: |
63mm |
| Torque (N.M): |
202 |
| Idling Speed Max (Rpm): |
1900 |
| OEM: |
Accept |
| Stock: |
Rich |
| Delivery: |
in Stocks |
| Material: |
Alloy |
| Type: |
Wheel Hub |
| Drive Wheel: |
4WD |
| Wheel Hub Diameter: |
16-20" |
| Finishing: |
Chrome |
| Wheel Accessories: |
Wheel Cover |
| Spoke Type: |
Equal Diameter Spoke |
| Certification: |
DOT |
Product Description

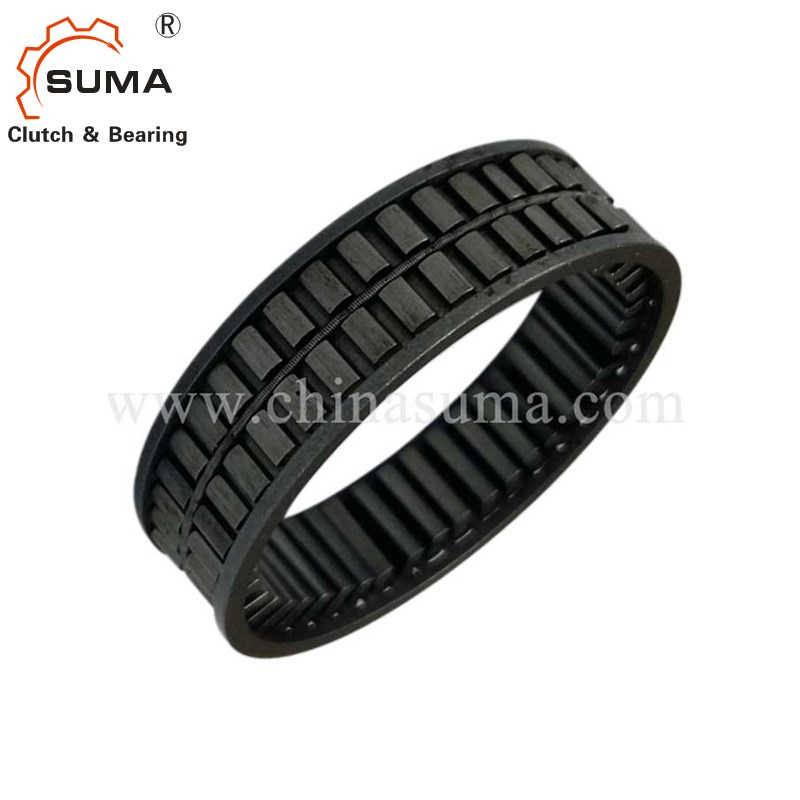

Freewheel/Backstop/One Way Bearing for Gearbox and Industrial Machine FE463 Z
Description of One Way Clutch Bearings for Gearbox and Industrial Machine FE400ZFE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.
USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of two speed operation (by independent motors) to switch to the higher speed by passing the slower.
LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper
selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated. Parameter of One Way Clutch Bearings for Gearbox and Industrial Machine FE400Z
| Designation | d | D | W | Tnom | nmax | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [kg] |
| FE 412 Z | 4 | 12 | 12 | 4 | 27,000 | 0.003 | 300393 |
| FE 416 Z | 8 | 16 | 12 | 16 | 19,200 | 0.006 | 300400 |
| FE 420 Z | 12 | 20 | 12 | 35 | 12,500 | 0.007 | 306041 |
| FE 422 Z | 14 | 22 | 12 | 53 | 10,100 | 0.008 | 300405 |
| FE 423 Z | 15 | 23 | 12 | 62 | 9,200 | 0.009 | 300411 |
| FE 425 Z | 17 | 25 | 12 | 72 | 8,100 | 0.011 | 300415 |
| FE 427 Z | 19 | 27 | 12 | 83 | 7,400 | 0.013 | 300422 |
| FE 428 Z | 20 | 28 | 12 | 93 | 7,500 | 0.013 | 300430 |
| FE 430 Z | 22 | 30 | 12 | 107 | 6,300 | 0.014 | 300435 |
| FE 432 Z | 24 | 32 | 12 | 117 | 5,900 | 0.016 | 300439 |
| FE 433 Z | 25 | 33 | 12 | 128 | 6,000 | 0.016 | 300445 |
| FE 435 Z | 27 | 35 | 12 | 143 | 5,100 | 0.017 | 300448 |
| FE 437 Z | 29 | 37 | 12 | 154 | 4,800 | 0.018 | 300455 |
| FE 438 Z | 30 | 38 | 12 | 166 | 4,900 | 0.019 | 300460 |
| FE 442 Z | 34 | 42 | 12 | 198 | 4,400 | 0.018 | 300463 |
| FE 443 Z | 35 | 43 | 12 | 207 | 4,300 | 0.022 | 300469 |
| FE 448 Z | 40 | 48 | 12 | 248 | 4,200 | 0.024 | 300478 |
| FE 453 Z | 45 | 53 | 12 | 293 | 3,400 | 0.022 | 300482 |
| FE 455 Z | 47 | 55 | 12 | 313 | 3,300 | 0.026 | 300487 |
| FE 458 Z | 50 | 58 | 12 | 344 | 3,100 | 0.029 | 300489 |
| FE 459 Z | 51 | 59 | 12 | 353 | 3,000 | 0.03 | 300494 |
| FE 463 Z | 55 | 63 | 12 | 393 | 2,900 | 0.032 | 300497 |
| FE 468 Z | 60 | 68 | 12 | 444 | 2,700 | 0.034 | 300501 |
| FE 470 Z | 62 | 70 | 12 | 465 | 2,600 | 0.035 | 300505 |
| FE 473 Z | 65 | 73 | 12 | 495 | 2,500 | 0.037 | 300508 |
| FE 478 Z | 70 | 78 | 12 | 548 | 2,600 | 0.039 | 300511 |
| FE488Z | 80 | 88 | 12 | 657 | 2,100 | 0.045 | 300514 |
| FE 508 Z | 100 | 108 | 12 | 889 | 1,700 | 0.055 | 300519 |
| FE 528 Z | 120 | 128 | 12 | 1,127 | 1,300 | 0.066 | 300522 |
| FE 648 Z | 240 | 248 | 12 | 2,673 | 800 | 0.131 | 300524 |

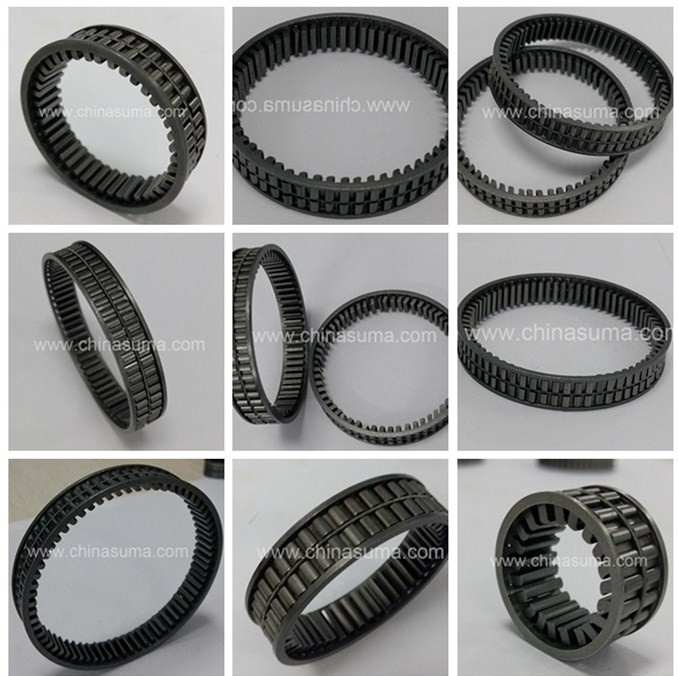

MARKSA large quantity of freewheel-clutches with varying design features and dimensions are available , depending on requirements such as: Torque, indexing frequency, idling speed and environment

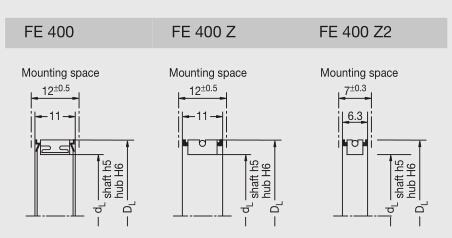

The supporting equipment around the clutch has to be built accurately and of high quality for the
clutch to operate properly .This is why we offer support units or complete assemblies of freewheel clutches.Packaging
