| Prod Model: |
LD05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ld05 |
| Stock: |
Rich |
| Bore Size (Mm): |
14 |
| Torque (N.M): |
9.8 |
| Oueside Diameter: |
52mm |
| Weight (Kg): |
0.3 |
| Lubricated: |
Grease |
| OEM: |
Accept |
| Export: |
Worldwide |
| Delivery: |
in Stocks |
Product Description

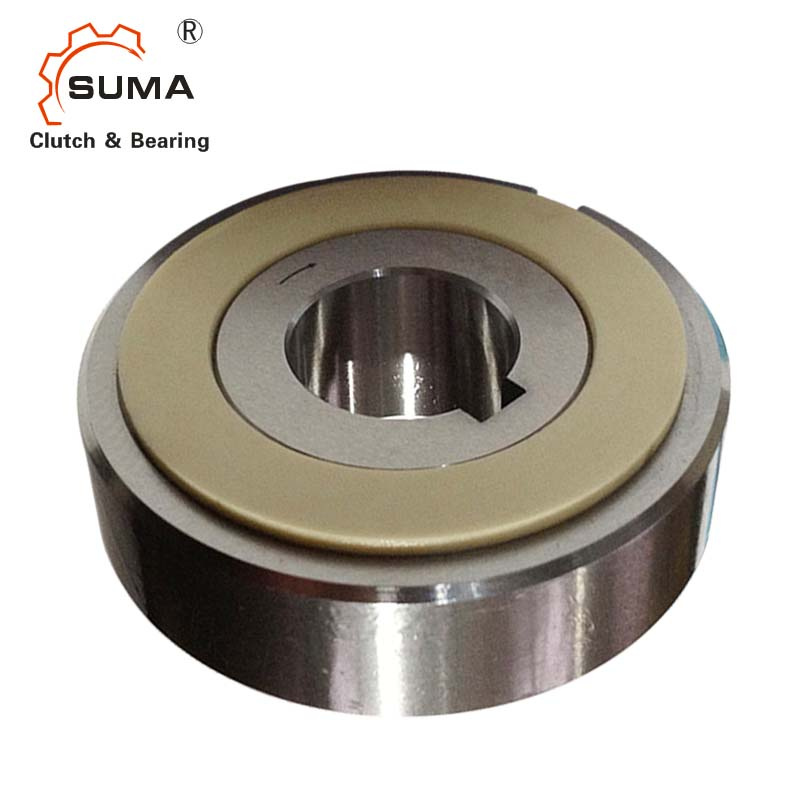

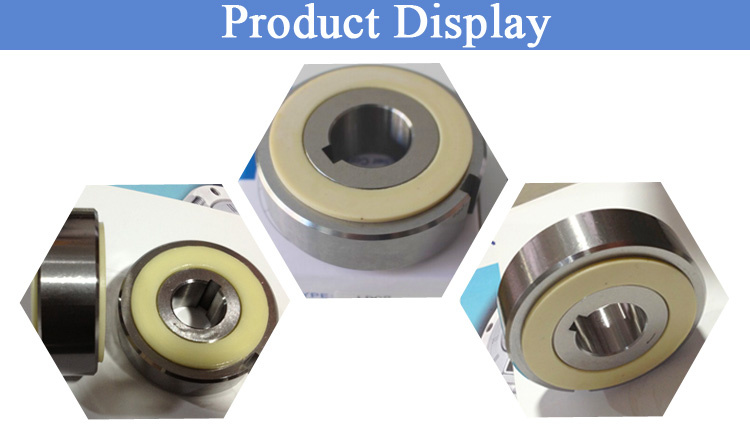

Ld05 One Way Bearing for Typer Machine
Product DescriptionMODEL : LD08 BACKSTOP CLUTCH
Installation and Usage1. LD Series Cam Clutch is prelubricated with special grease and are ready for use.
No additional lubricant is required.
2. When installing the clutch on the shaft, press the clutch inner race slightly with a soft hammer to prevent the clutch
Outer race from slipping away from the inner race.
3. Be sure to attach the plate. This prevents the outer race from slipping away from the inner race. See recommended
Dimensions of the plate listed on the right.
4. For lubrication, coat the plate and thrust metal with grease.
5. Never apply thrust loads to the clutch. Other devices should be provided to take up thrust loads applied to the clutch.
6. Key should be in accordance with JIS B1301-1959.
7. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7. Catalogue
Model | Torque Capacity (N.m) | Drag Torque (N@m) | Max. Overrunning (r/min) |
Max. indexing (cycle
/min) |
Max.Radial Load When Overrunning (kgf) | Bore Size | A | B | C | D | E |
Outer
Race Keyway |
Weight (kg) |
|
|
|
| Inner Race | Dia. (H7) | Keyway |
|
| LD04 | 5.88 | 0.2 | 300 | 100 | 20 | 10 | 4x1.5 | 19.5 | 23.9 | 24 | 47 -0.014 | 40 | 5x3 | 0.25 |
| -0.039 |
| LD05 | 9.8 | 0.29 | 300 | 100 | 30 | 14 | 5x2 | 19.5 | 23.9 | 24 | 52 -0.017 | 45 | 5x3 | 0.3 |
| -0.042 |
| LD06 | 19.6 | 0.29 | 200 | 100 | 50 | 20 | 5x2 | 19.5 | 23.9 | 24 | 62 -0.017 | 52 | 7x4 | 0.4 |
| -0.042 |
| LD07 | 29.4 | 0.39 | 200 | 100 | 70 | 25 | 7x3 | 19.5 | 23.9 | 24 | 72 -0.017 | 62 | 7x4 | 0.55 |
| -0.042 |
| LD08 | 49 | 0.49 | 200 | 100 | 80 | 30 | 7x3 | 19.5 | 23.9 | 24 | 82 -0.017 | 70 | 10x4.5 | 0.65 |
| -0.042 |
Customers
Certifictes
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
