| Prod Model: |
Q47 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
900lb |
| Body: |
Wcb |
| Ball: |
F316 |
| Stem: |
F316 |
| Seat: |
PTFE |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Industrial Usage |
Product Description

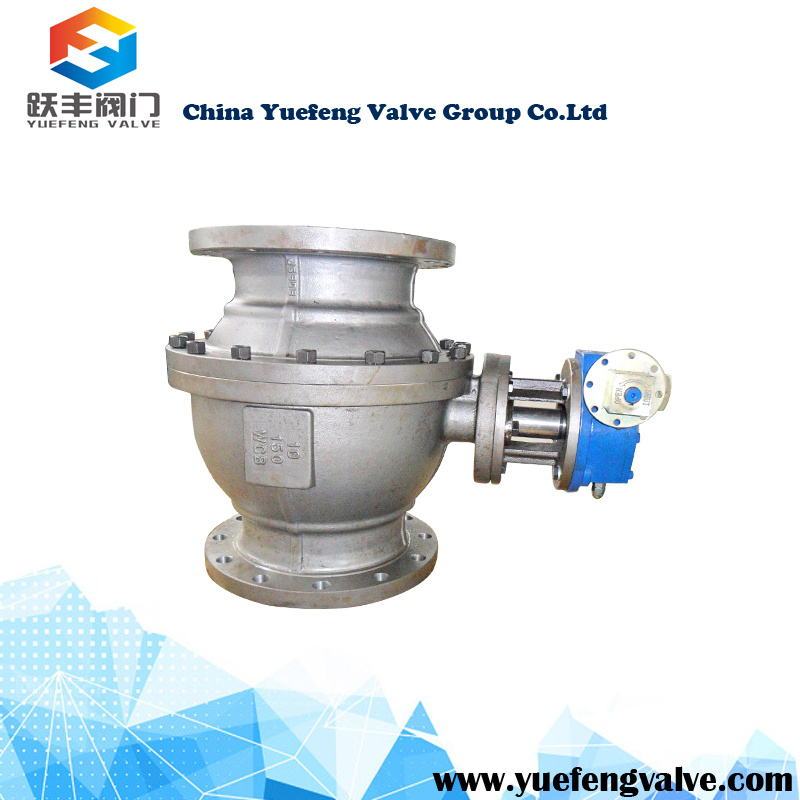

MAIN FEATURES: The side entry trunnion mounted ball valve has been designed two piece body type or three piece body type and with two floating seats, which are movable under the pressure of medium. Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball's surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable.
The trunnion ball valve is equipped with a movable seat seal ring which can generate displacement under the pressure of medium. In case that any medium pressure exists, the pressure will press the valve seat seal ring onto the ball tightly, guaranteeing the sealing performance of the ball valve.
Design FeaturesThe ball valve are designed in accordance with ISO14313,API 6D,BS 5351,GB/T 19672;
Simple structure with good sealing performance and small torque;
Full bore and reduced bore design with the minimum flow resistance (zero actually);
Emergency sealant injection;
Cavity pressure self relief;
Independent ball and stem;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Valve seat function DBB, DIB-1, DIB-2;
Optional extended bonnet.
Product RangeBody material: carbon steel, stainless steel, alloy steel
Nominal diameter:2"~60"(DN50~DN1500)
End Connection: RF, RTJ, BW
Pressure range: Class150~2500(PN16~PN420)
Working temperature:-46ºC~+200ºC
Operation: Wrench, worm gear, electric, pneumatic, gas over oil actuator and electro-hydraulic actuator
Brand: | Yuefeng |
| Applicable Media: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Certification: | CE/RoHS/ISO9001-2008 |
| Original | Lishui,Zhejiang Province |
| Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
| Payment: | T/T, L/C, D/P, Western Union. |
| Port: | Shenzhen, Customers' Request |
| Delivery Time: | Within 15days after receiving T/T deposit Payment |
| Term of Delivery: | EXW/FOB/CNF/CIF, Customers' Request |

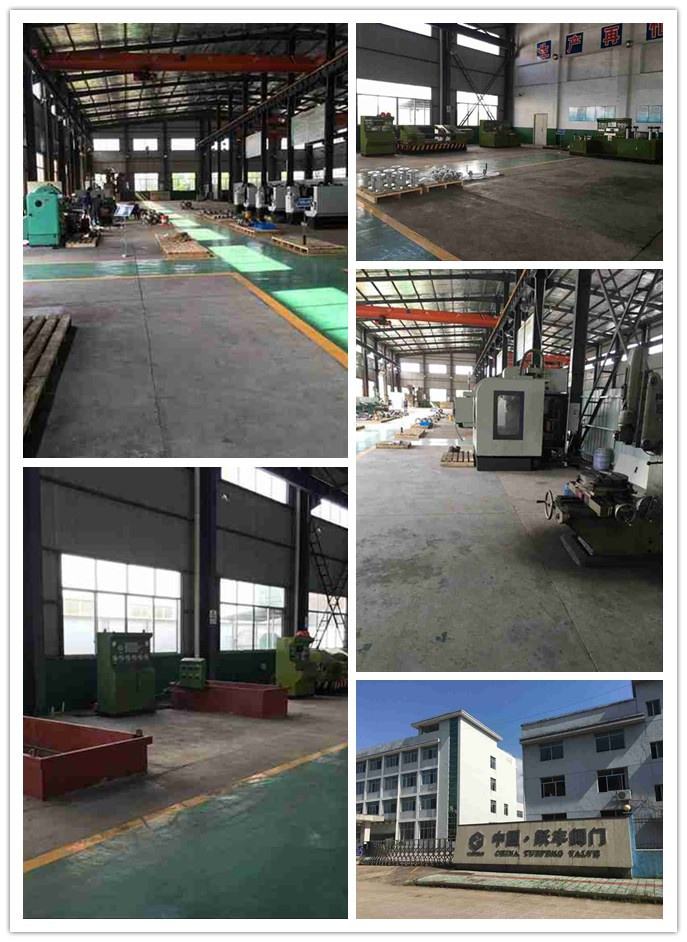

WORKSHOP

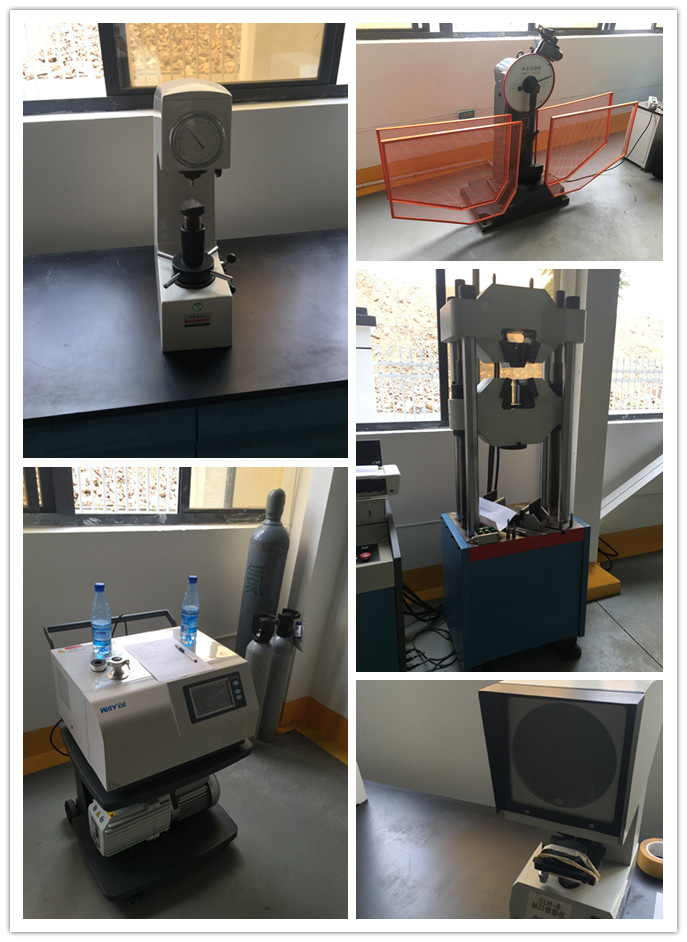

TEST EQUIPMENT

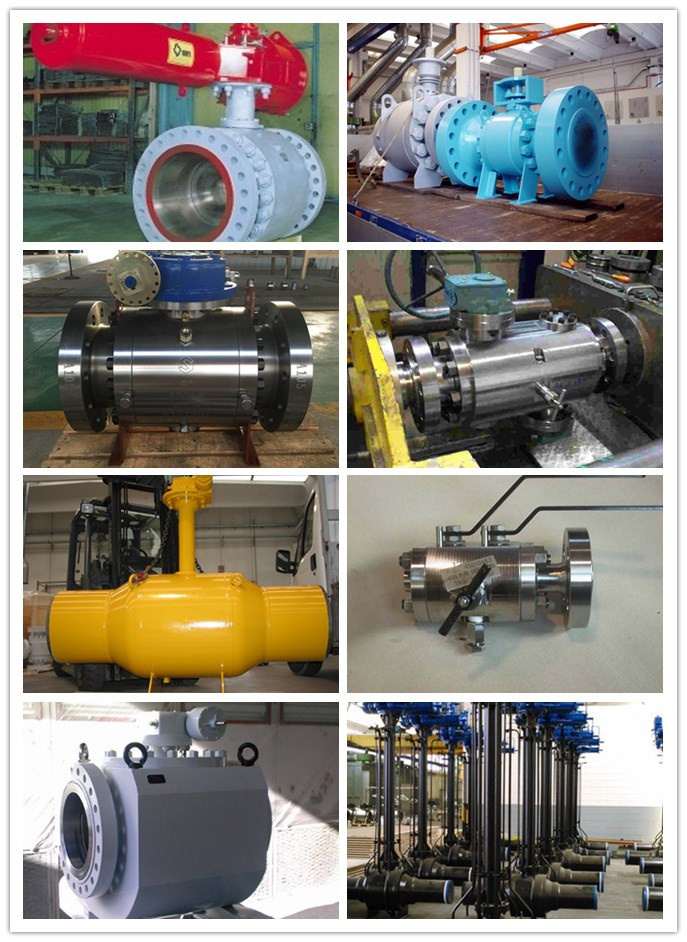

PRODUCT
China YueFeng Valve Manufacturing Co., Ltd was established in 2003, located in Yangliuhe industrial zone, yunhe town, zhejiang province. Yuefeng is a comprehensiveness non-affiliated enterprises which specialized in ball valve production and sales. In recent years, Yuefeng is mainly engaged in the development and production of welded ball valve, all-welded ball valve, directly-buried ball valve, large didameter welding ball valve, forged steel ball valve, high class ball valve, pigging valve and other valves.
Yuefeng built CAD/CAM valve disign center and Three-dimensional simulation system for manufacturing testing and designing. We have a number of practical patents. And Yuefeng has the right of import and export, with ISO9001 national quality system certification, ISO14001 environment management system certification, OHSAS18001 Occupational health and safety management system certification, national pressure piping components manufacturing license TS authentication, the United States API 6D authentication, the European Union CE certification. All of these above provide us the technical support to enter the international market.
Yuefeng covers the total area of 13, 000 square meters, with the existing staff more than 100 people within 3 senior engineers, 12 specialized engineers. We also have our machine ceters, digital controlled lathe, the physics and chemistry centers, the spectral analysis facilty and other advanced facilities for production and testing. Yuefeng products are all designed by modernized CAD, CAM, UG, PRO/E three dimensional design system and produced strictly according to the ISO9001-2015 International quality system certification. Our main products all-welded ball valve, forged steel ball valve, high pressure ball valve and pigging valve hold advantages in domestic market share for years. And our products also exported to Europe, Amercia, Southeast Aisa and Ausralia and other counties and areas. Our products share a good reputation in both domestic and abroad market. Yuefeng owns customers' belief with the high quality products, professional technical supports and impeccable customer services.
Yuefeng are willing to cooperate with customers all around the world. Our policy is to continuously improve customer satisfaction by supplying high quality products when promised at a good value. Yuefeng are looking forward to creat a glorious tomorrow.
