| Prod Model: |
LQ300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specification: |
300-4200mm |
| Item: |
Multi Blade Saw |
| Technology: |
Laser Welded and Silver Welded |
| Material: |
Steel Core and Sintered Diamond Segment |
| Application: |
for Stone Cutting |
| Type: |
Diamond Saw Blade |
| Usage: |
Multi Blade Saw |
| Manufacturing Arts: |
Welding |
| Kind: |
Multi Blade Saw |
| Saw Blade External Diameter: |
300-4200mm |
Product Description
Keen Diamond Tool Specilized in manufacturering diamond tools, especially in the field of diamond wire, diamond saw blade, diamond segments, diamond fickert abrasives and diamond core drill bits etc.
1. High quality diamond cutting discs for hard materials, such as granite, marble, sandstone, limestone, ceramic, tile, concrete, asphalt, refractory brick's wet cutting or dry cutting are available.
2. Different disigns of diamond discs such as segmented cutting blade, continuous rim diamond saw blade, turbo diamond discs, rim turbo dry cutting blade, normal saw blade, and silent core diamond saw are available.
3. The diamond cutting discs offered by Quanzhou Keentool Co with the feature of high cutting efficiency, long using life and smooth cutting without edge-broken.
4. Diamond cutting saw blade with different specification from 105mm~3000 mm can be supplied according to customers' requirements.
When place order for saw blades please inform the following:
1) Diameter (Inch or mm)
2) Inner Hole Size (Inch or mm)
3) Installation hole (If, need drawing)
4) Silent or None Silent Saw Blade
5) Segment No. (how many PCS segment per blade)
6) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
7) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
8) Quantity NO. (How many PCS, or how many sets segments)
9) Machine Powder/RPM (If possible)
10) Expected Shipping Date
11) Special Requirements (If)
Remarks:
1. Diamond segment is our production range as well.
2. Different size from 300mm~800mm can be supplied according to customers' requirements.
|

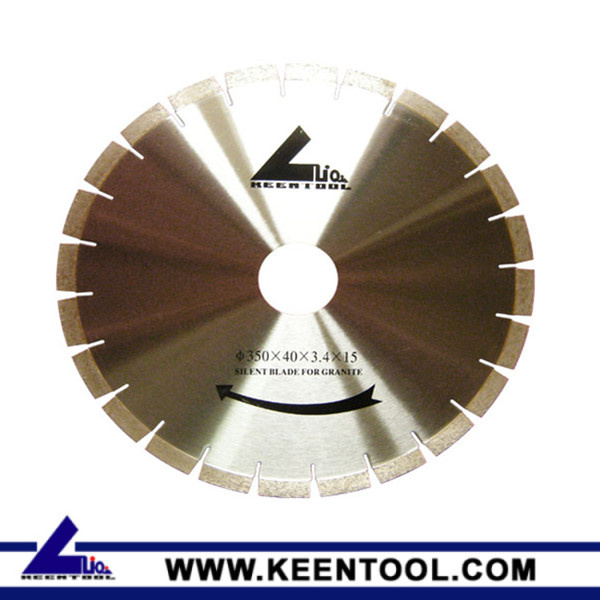

Diamond Multi Blades for stone cutting |
|
Diameter |
Length
(mm) |
Width
(mm) |
Height
(mm) |
Segment No. |
Arbor size
(mm) |
|
Inch |
Metric(mm) |
|
12" |
300 |
40 |
3.0 |
10/12/15/20 |
21 |
50/60 |
|
14" |
350 |
40 |
3.2 |
10/12/15/20 |
24 |
|
16" |
400 |
40 |
3.4 |
10/12/15/20 |
28 |
|
18" |
450 |
40 |
3.6 |
10/12/15/20 |
32 |
|
20" |
500 |
40 |
4.0 |
10/12/15/20 |
36 |
|
24" |
600 |
40 |
4.5 |
10/12/15/20 |
42 |
|
28" |
700 |
40 |
5.0 |
10/12/15/20 |
50 |
|
32" |
800 |
40 |
6.0 |
10/12/15/20 |
57 |
|
36" |
900 |
24 |
6.5/7.5 |
13/15 |
64 |
100 |
|
40" |
1000 |
24 |
6.5/7.5 |
13/15 |
70 |
|
48" |
1200 |
24 |
7.0/8.0 |
13/15 |
80 |
|
64" |
1600 |
24 |
8.2/9.2 |
13/15 |
108 |
|
72" |
1800 |
24 |
9.0/10.0 |
13/15 |
120 |
|
80" |
2000 |
24 |
9.5/10.5 |
13/15 |
128 |
|
110" |
2500 |
24 |
11/12 |
15/20 |
140 |
|
120" |
3000 |
24 |
11/12 |
15/20 |
160 |
|
135" |
3500 |
24 |
12.5/13.5 |
15/20 |
180 |
150/200 |
|
155" |
4000 |
24 |
13.5/14.5 |
15/20 |
200 |
|
165" |
4200 |
24 |
13.5/14.5 |
15/20 |
210 |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
