| Prod Model: |
OnAccess 454WR |
| Model Number: |
Onaccess 44X Series |
| Wireless: |
IEEE 802.11b/G/N |
| VoIP Ports: |
2 Rj11 FXS Pots Ports |
| RF CATV: |
Sc/APC Connector |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Home Router |
Product Description

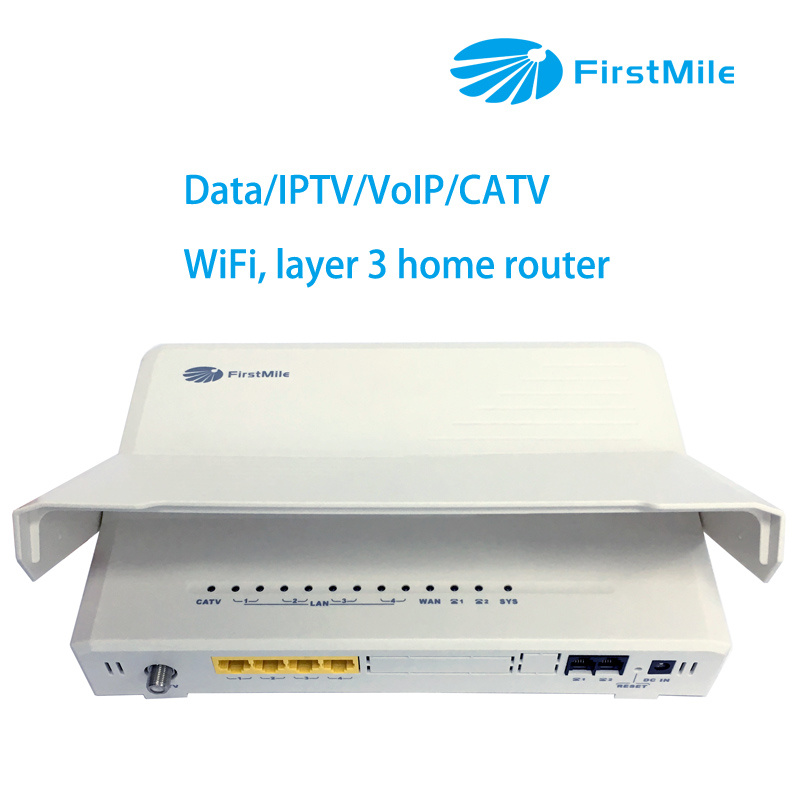

Gigabit CPE Router Home Router with IPTV/VoIP/CATV/WiFi
Overview OnAccess45x Router Series is an Optical Network Unit (ONU) designed for "triple play" services in the P2P (point to point) based FTTH (Fiber to the Home) network. It is a high-performance and cost-effective device supporting Ethernet-based data, CATV, VoIP (Voice over IP) and 802.11n WLAN services. The integrated 802.11n WLAN network offers users stable and reliable wireless connections for speed multimedia and data traffic.
OnAccess45x Router Series is also ready to serve packet television (IPTV) and VoD (Video on Demand) applications. It provides a wide transparent bandwidth to support CATV analog channels or a combination of analog and digital channels including HDTV broadcast. And it has an integrated VoIP function to support SIP-based telephony services.Contact US
Web-site:
http://www.firstmile.hk/en/index.htmlhttp://shenzhenfirstmile.en.made-in-china.com/
Features
management- Web-based user interface (HTTP)
- Quick Start Wizard
- Configuration backup and restore
- Firmware upgrade via TFTP
- Management session time out
- Three levels of user authorization (superuser, administrator and guest)
- SFP internal ID and status monitoring capability
- syslog
- Provides one reset button
Network- Provides one SFP based 100Base-FX/1000base-X single mode fiber network WAN port with CATV overlay
- Provides four 10/100/1000Mpbs auto-negotiation Ethernet LAN ports
- Supports 802.3x flow control
- Supports four LAN ports configuration
- Maximum packet lengths up to 1522 (Default) / 2048 / 10240 bytes
- Supports port aging timer configuration
- Supports 802.1p, port-base, DiffServ QoS package classification with four priority queues
- Supports SP and WRR Queue Scheduling Algorithm
- High speed Layer 3 routing
- Network Address Translation (NAT)
- Supports Multi-VLAN
- Supports DHCP Server and DHCP Option
- Dynamic DNS
- Supports NTP Client
- Supports UPnP
- IGMP Proxy V1/V2
- Static NAT
- Supports DMZ host
- VPN Pass-through(IPSec/PPTP/L2TP)
- Port Forward
- Supports LLTD
- Supports 802.1D STP
- Address/IP/Port Filter
- Web URL/Host Filter
- Content Filter
- SPI (Stateful Packet Inspection) firewall
- DoS (Denial of Service) Defense
- WAN network interface support Fixed IP, DHCP Client, PPPoE, PPTP and L2TP
- Wireless Access Point
- Compatible with wireless IEEE802.11b, IEEE802.11g and IEEE 802.11n standard product
- Provides 300Mbps transmission rates
- Wireless Client List
- Supports 64/128-bit WEP, WPA, WPA2, WPA1WPA2, WPA-PSK, WPA2PSK, WPAPSKWPA2PSK and 802.1X encryption methods
- Supports Hidden SSID and Multiple SSID
- Supports TxPower adjustment
- Supports Wireless Client Access Control
- Supports Wireless WAN.
- Supports WDS Lazy mode, Bridge Mode and Repeater Mode
- Supports WPS
- Supports WMM (Wi-Fi Multimedia)
- Supports AP Discovery
- CATV (Only for OnAccess 452WR/454WR)
- Wide 40 MHz ~ 860 MHz bandwidth supports CATV analog channels or a combination of analog and digital channels including HDTV broadcast
- Excellent RF frequency and distortion characteristics for high linearity
- Internal proprietary impedance match circuitry with one 75Ω coaxial-cable output port
- High sensitivity of 75 or 88 dBuV RF output at -3dBm optical input
- Single-mode fiber
- Wide range of optical input power of -8 ~ 0 dBm
- Digital diagnostic monitoring interface for optical input level, supply voltage, temperature and RF output level
- Telephony with VoIP (Only for OnAccess 454WR/455WR)
- Provides two RJ11 FXS POTS ports to provide VoIP telephony and services
- Supports SIP V1 (RFC2543), V2 (RFC3261)
- Carrier-grade voice quality with voice activity detection, comfortable noise generation and line echo cancellation
- Full range of Class 5 services, such as caller ID display, call hold, call waiting, call forwarding and 3-way Conference call
- Supports various voice CODECs and advanced voice features to ensure best voice quality
Technical Spec- Physical and Environmental
| Optical Port Options | One 100/1000M WAN port, SFP-based
CATV optical power: -8 to 0 dBm |
| LAN Ports | Four RJ-45s, Automatic MDI/MDIX crossover for 1000BASE-T, 100BASE-TX and 10BASE-T ports.
IEEE 802.3u Auto-Negotiation support for automatic speed and duplex selection.
10BASE-T/100BASE-TX /1000BASE-T cable length up to 100 meters |
| Telephone Ports | Two RJ11 FXS POTS ports
(Only for OnAccess454WR/OnAccess455WR) |
CATV
(Only for OnAccess452WR/OnAccess454WR) | Connector: F-type, 75Ω
Frequency: 40 ~ 860MHz
RF output > 75dBuV or 84dBuV @ -3dBm
CNR > 50dB
CSO < -65dBc
CTB < -62dBc |
| Power Supply | DC12V using external adaptor |
| Power Consumption | < 6 W |
| Operating Temperature | 0ºC~+50ºC |
| Storage Temperature | -20ºC~+85ºC |
| Humidity at 85 °C | 5%~95% |
| Size | 268mm X 213mm X 56mm with cover
263mm X 183mm X 53mm without cover |
| Weight | 1.3Kg |
| Installation | Indoor |
- Protocols and Standards
- IEEE802.3 10Base-TX Ethernet
- IEEE802.3u 100Base-TX fast Ethernet
- IEEE802.3u 100Base-FX fast optical Ethernet
- IEEE802.3ah 100Base-BX10 fast optical Ethernet(Single bi-directional fiber)
- IEEE802.3z
- IEEE802.3x flow control
- 802.1D STP
- IEEE802.11 b/g/n
- IEEE802.1x
- SIP v1 RFC2543 and SIP v2 RFC3261
- G.711, G.723, G.726, G.729, GSM
- TCP/IP, DHCP, RTP, RTCP, HTTP, NTP, IGMP, UPnP
| Safety | EN60950 |
| Emission | EN55022 1998 Class B, EN55011 |
| Immunity | EN55024 1998, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 |
| ESD | EN61000-4-2 |
Reliability:
MTBF: >50,000 Hours
