| Prod Model: |
G4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Ethernet Over Coaxial |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Fiber Switch |
Product Description

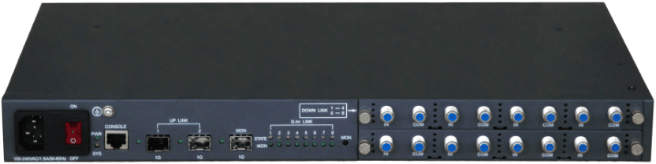

OnAccess G4000 for MDU Home Network Ethernet over Coax EOC
OnAccess G4000 Series products are based G.hn technology that enable data rates up to 1Gbit/s over existing cable infrastructure to address issues associated with FTTH(Fiber to the home) applications. FTTH is expensive to implement in brown fields because of expensive labor, scattered population, problems with home fiber wiring, and slow roll-outs. OnAccess G4000 G.hn-Based FTTDp (Fiber to the distribution point) solution has an impressive performance, is easier to deploy and provides substantial CAPEX savings when compared to traditional FTTH alternatives.
OnAccess G4000 Series products enable SP to deliver FTTH-class service to MDU apartments while avoiding the costs of replacing copper wires with fiber. These increased data rates ensure the access network is future-proof and ready to provide new services such as multi-stream 4K IPTV, cloud-based storage or 802.11ac wireless hotspots.
Egress /Ingress rate management control and broadcast storm control.
IEEE 802.1Q tagged VLAN, port based VLAN
Various QoS capability (IEEE 802.1p / port / Diffserv)
SFF 8472, Digital Diagnostic Monitor
Support port mirroring and port isolate
Support SNMP trap and SNMP client
MIB Counter
Upgrade firmware, backup configuration, restore configuration
Firmware upgrade via TFTP.
IGMP snooping for filtering multicast traffic
Perfect network management through web browser, CLI, Telnet /serial console.
Support SNMP v1/v2c/v3 for different levels of network management
Support three level user for manage
Supports 1Gbps PHY bit rate over single medium
State-of-the-Art LDPC forward error correction (FEC)
Remote configuration management integrated on-chip
Remote one-step firmware upgrade
Upload configuration files, notches management
Reliable HD IPTV and internet distribution
Unique solution for Last Mile, MDU & Campus
Up to 500m Bi-Directional solution with no need to upgrade/change the existing infrastructure
Up to 450 Mbps of actual throughput over coax
ITU-T G.hn standard functionality (G.9960 system architecture and PHY layer, G.9961 data link layer, G.9962 management plane)
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control
IEEE 802.1p for CoS (Class of Service)
IEEE 802.1Q for VLAN Tagging
Certifications: Complies with UL, CE, CUL, FCC Part 15 Class B, EMC 89/336/EEC, ICES-003
Specifications |
| Environmental Specifications |
| Operating and Storage Temperature | 0ºC to +55ºC, -25ºC to +70ºC |
| Input Voltage, Power Consumption | 110-240 Volts AC (50-60 Hz)(for G4000C and G4000T), <16W
5 VDC -2 amp ( for 4101C and 4101T), <3W |
| Humidity | 10%- 90% non-condensing |
| Dimensions, Weight | 103.4mm x 66.0mm x 27.0mm,0.19Kg (for 4101C) |
| WAN and Service Ports(OnAccess G4000C) |
| Console Port | a RS-232 connector for connection to a computer for
console control /administration. The RS-232 console port
can be used for accessing the OnAccess4000 CLI (command line interface) for out-of-band management. |
| COM Ports | 8 x G.hn ports for data signal of 5~85Mhz,each port supports P2P and P2MP connections |
| IN Ports | 8 x RF input port for CATV of 104~1000MHz |
| WAN Connectivity | 2x1GE SFP ports for uplink aggregation |
| Ethernet SFP Ports | 1 x 1GE SFP local system provision/monitoring port controlled by the multifunction control button |
| Signal Link Margin | About 70dB |
| WAN and Service Ports(OnAccess G4101C) |
| Ethernet Interface for client | 1x 10/100/1000BT Ethernet ports, Ethernet RJ-45 connection, Connect to computer or other Ethernet device. |
| OUT Ports | One RF CATV output port for CATV of 104~1000MHz |
| COM Ports | One combined RF CATV and G.HN input port supporting P2P and P2MP connections |
Available Models | Port configuration | Description |
| OnAccess G4000-4C | Data Port: 2x100FX/1000Base-X SFP slots
Monitor Port: 1x100FX/1000Base-X SFP
CATV Input Port: 4 RF ports
Output Port: 4 CATV/G.hn RF ports
Console port:RS232(RJ45) | Local device which Applied to coaxial cable |
| OnAccess G4000-8C | Data Port: 2x100FX/1000Base-X SFP slots
Monitor Port: 1x100FX/1000Base-X SFP
CATV input Port: 8 RF ports
Output Port: 8 CATV/G.hn RF ports
Console Port:RS232(RJ45) |
| OnAccess G4101C | Input Port: 1 CATV/G.hn RF port
Data Port: 1x10/100/1000BaseT
CATV Output Port: 1 RF port | Client access device which applied to coaxial cable |
Founded in January 2003, FirstMile is a technology company focused on the development, manufacturing and marketing of active equipment of Ethernet fiber access.
Taking advantage of our solid technical knowledge and skills in fiber technology, Ethernet/IP and CATV networks, FirstMile introduced its first Active Ethernet based FTTH full service platform based OnAccess in 2005, with a mission to provide open access broadband networks through fiber. We have since become a reliable partner of many FTTH network operators.
Over the years we have also gained extensive technical expertise as well as practical experience in industrial communications. We now can offer a complete portfolio of industrial networking products. Our industrial switches can deliver a full suite of carrier Ethernet features under harsh operating conditions. FirstMile's industrial products have been widely applied in multiple industrial sectors such as energy, transportation and industrial automation.
Our customers are network operators worldwide who provide open access to service providers. Up to now, FirstMile's products have been shipped to over 50 countries including USA, Germany, Australia, Albania, Venezuela, Hungary, Russia, Bulgaria, Netherlands, Finland, Demark, Ukraine, Turkey, Macedonia, Poland, Sweden, Norway, Singapore and Malaysia.
FirstMile has also offered ODM and custom design services to customers from Germany, Sweden, Poland, Turkey, Netherlands, Australia, Hong Kong and etc.
