| Prod Model: |

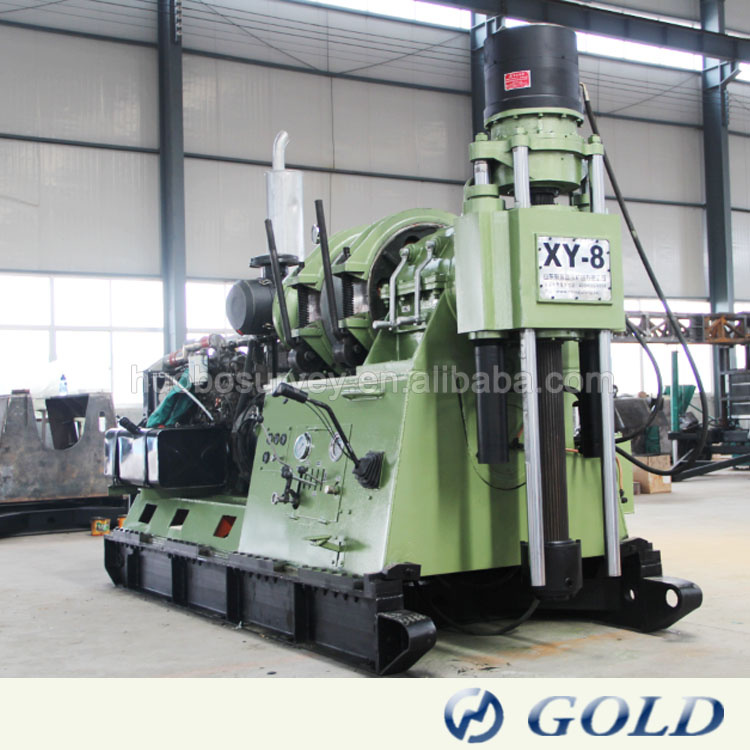

XY-8 |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Brand Name: |
Gold |
| Power: |
177kw |
| Warranty: |
12 Months |
| Dimension(L*W*H): |
4200 X 1500 X 2600 |
| Weight: |
6500kg |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Voltage: |
380V |
| Usage: |
Coal, Ore, Water Well |
| Power Type: |
Diesel |
Product Description
1. Machine adopts pneumatic shift Fastgear 8JS118 auto transmission and clutch, compact structure, smooth operation, stable performance, good wildcard.
2. Using auto-control flexible-shaft shift agency, we achieve the long-distance transmission shift. The pneumatic shift is light and agile, and has the advantage of hommization.
3. Reasonable speed range and many speed radixes (8 forward speed, 1 reverse speed), with low-speed it has big torque (Max. up to 8000N.m).
4.Using concentrated forced lubrication system, as long as the rig runs, the separate lubrication oil pump starts working and sends lubrication oil to each node that requires lubrication. When the oil lubricates drive mechanism, it will also take away the heat inside, (lubrication system with separate condenser), to prevent the components from heat caused by high-speed high-load state.
specifications
Drill deep |
1000--3000m |
spindle |
|
Drill hole angle |
90°-80° |
Bore diameteer |
φ118mm |
Max torque |
9800Nm |
Feeding stroke |
1000mm |
Max lifting force |
300kN |
Max pressure |
142kN |
Drill pipe diameter |
φ50;60;71;89;114mm |
spindle peed |
|
Clockwise |
79;137;213;260;366;384;604;1000r/min |
Converse |
51;144r/min |
Winch |
|
Steel wire diameter |
φ21.5mm |
Steel wire length |
160m |
Max lifting capacity of single rope |
130Kn |
Lifting speed of single rope |
0.57,0. 98,1.557,1.635,2.673,2.8,4.38,7.58m/s |
Power |
|
Electromotor |
Y2280M-4 90Kw/1480r/min |
diesel |
6BTA5.9-C180 132Kw/2200r/min |
Others |
|
clutch |
|
Oli pump |
G5-25-16-IE |
Water brake |
SC450 |
Body |
|
back stroke |
690mm |
Dimension |
4049 X 2593 X 1754mm |
weight |
7960kg(without power) |
Packaging & Shipping
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Our Services
Engineers available for overseas service of the machinery
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester, electric tester, laboratory instrument, road building instrument and geophysical equipment.
Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with various standards of ISO, ASTM D, IP, GB etc. We have developed sales channels in many countries and regions such as Thailand, Philippine, Iran, Indonesia, Spain, Iceland, Chile, Regions of Southeast Asia, Middle East, Europe, North and South America etc, and have gained strong advantage and high reputation in international market.
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
