| Prod Model: |
XZQQ625A |
| Max. Length Of Cutting (Table Size): |
3200*2000mm |
| Max. Cut Thick: |
170mm |
| Max. Blade Size: |
625mm |
| Tilting Table: |
0-85 Degree Easy for Materials Loading |
| Rotation Table: |
0-360 Degree Stopped Any Postion |
| Tilting Blade: |
0-45 Degree for Miter Cut |
| Power Of Spindle Mortor: |
15kw 20HP |
| Repeat Cutting: |
99 Repeat Cutting by Program |
| Type: |
Laser Cutting Machine |
| Usage: |
Quartz Sandstone Limestone Other Engineered Stones |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

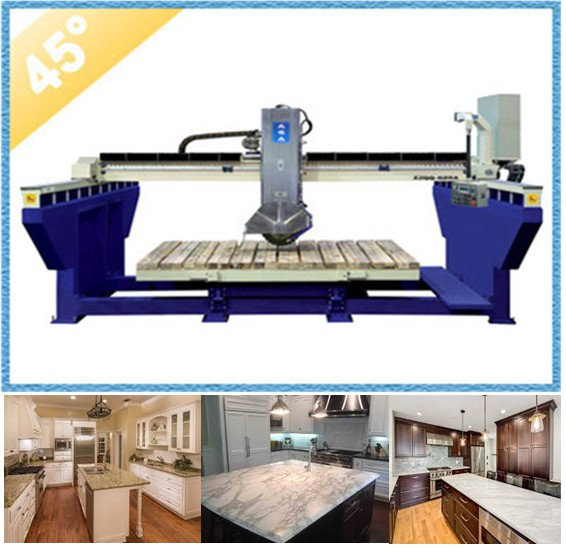

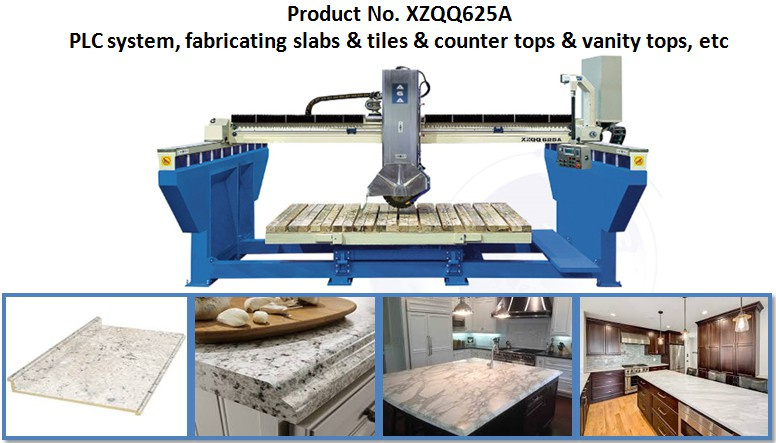

Granite Bridge Saw with 45 Angle for Miter Cut (XZQQ625A)

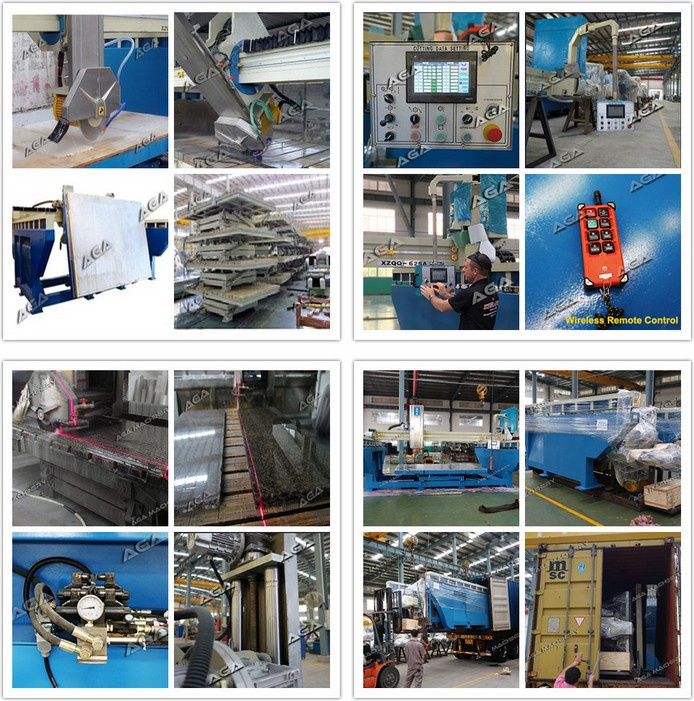

The XZQQ625A Bridge Saw is monoblock made with full functions, including strong steel frame, pendant control panel, color touch screen, wireless remote, laser guide, tilting blade, tilting and rotation table, hydraulic pump, etc. It is controlled by microcomputer for cutting and fabricating counter tops of granite, marble, quartz and other engineered stones.
-- 0°-45° head tilting for miter cut
-- 0°-85° table tilting for easy load of materials
-- 0°-360° table rotation can be locked in any degree for changing cutting position
-- Linear guides in oil bath for "X,Y,Z" axis to assure extreme precision and rigidity
-- Color touch screen control panel for easy operation
-- Computerized cut optimization and sizes management
-- Laser guide shows precision cutting position in +/-0.2mm
-- Wireless remote provides easy control of the machine
-- Maximum cutting in 3200mm length, 2000mm width and 170mm thick ( 126''×78''×67'' L× W × H)
-- A powered motor with 20 HP 15KW
Machine Technical Parameters:
Steel frame: no need to build concrete frame
Main motor: Direct Drive - 20 HP / 15 kW
Power: 220V 60 Hz 3 phase (choosed based on your power supply)
Over all dimensions: (L x W x H) (6 x 5 x 3 m)
Table Turn/Tilt: Powered tilting 85° & Power rotating 0° - 360° (Stopping at 45° & 90° Automatic)
Blade, Head Tilt:0-45° (Hydraulic) miter cut
Blade Size: 400 - 625 mm 16" - 25"
Cut Length: 3200 mm 126"
Cut width: 2000 mm 78.7"
Cutting Thickness: 170mm 6.7" auto cut computerizedGuarantee & After Sale Service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving. FAQ:
1) Payment:
The first payment of deposit for order, we start to produce the machine→the second payment, we start the container load and effect the shipment→ the last payment of balance, we send you the scan copy of B/L by email.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 days ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.Contact Information:
