| Prod Model: |
LQ-WSB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Granite Stone Cutter |
| Diameters: |
300-800 Mm |
| No. Of Segment: |
21-57PCS |
| Segment: |
Sintered Segments |
| Making Materials: |
Diamond and Metal Powder |
| Making Method: |
High Frequency Welding |
| Applications: |
Granite Saw for Stone Cutting |
| Certification: |
SGS |
| Remarks: |
Other Specifications Can Be Made |
| Graininess: |
300# |
| Thickness: |
5mm |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting |
| Brand: |
Keen |
| Saw Blade External Diameter: |
350mm |
| Specification: |
14 Inch |
| Customized: |
Customized |

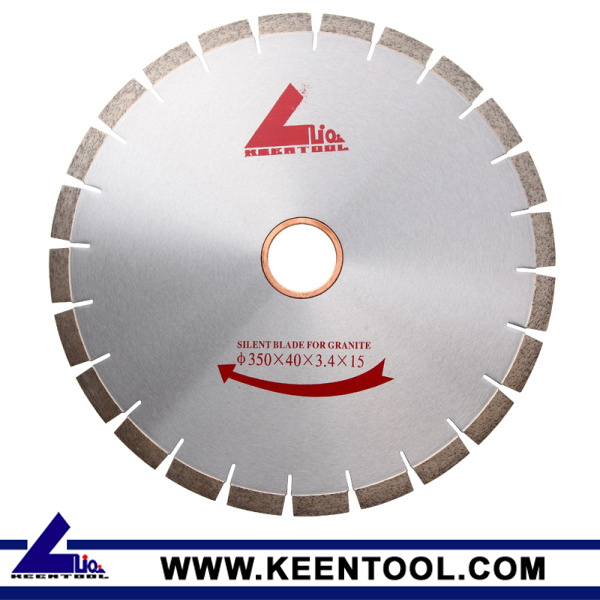

Product Description
Quanzhou Keen Diamond Tool Co., Ltd is a professinal and competitive manufacturer of kinds of diamond tools, especially in the field of diamond wire, Granite stone cutter, diamond segments, diamond fickert abrasives and diamond core drill bits etc.
High quality granite stone cutter for hard materials, such as granite, marble, sandstone, limestone, ceramic, tile, concrete, asphalt, refractory brick's wet cutting or dry cutting are available in Quanzhou Keentool Co.
Different disigns of granite stone cutter such as segmented cutting discs, continuous rim, turbo, rim turbo and so on are available.
The granite stone cutter offered by Quanzhou Keentool Co with the feature of high cutting efficiency, long using life and smooth cutting without edge-broken.
Our granite stone cutter with different size from 105mm~800mm can be supplied according to customers' requirements.
When place order for granite stone cutter, please inform the following:
1) Diameter (Inch or mm)
2) Inner Hole Size (Inch or mm)
3) Installation hole (If, need drawing)
4) Silent or None Silent Saw Blade
5) Segment No. (how many PCS segment per blade)
6) Segment Size (L x W x H, if possible please inform Steel Core Thickness)
7) Use of saw blade (For Granite, or marble, or limestone, or Sandstone. Or other material)
8) Quantity NO. (How many PCS, or how many sets segments)
9) Machine Powder/RPM (If possible)
10) Expected Shipping Date
11) Special Requirements (If)
|
Outer diameter (mm) |
Bore |
Segment length |
Segment thickness |
Segment height |
Segment No. |
Application |
|
250 |
50/60 |
40 |
2.8/3.0 |
10/12/15/20 |
17 |
For trimming and slab cutting of stone |
|
300 |
50/60 |
40 |
3.0/3.2 |
10/12/15/20 |
21 |
|
350 |
50/60 |
40/20 |
3.0/3.2 |
10/12/15/20 |
24 |
|
400 |
50/60 |
40/20 |
3.4/3.6 |
10/12/15/20 |
28 |
|
450 |
50/60 |
40/20 |
3.8/4.0 |
10/12/15/20 |
32 |
|
500 |
50/60 |
40/20 |
3.8/4.0 |
10/12/15/20 |
30/36 |
|
550 |
50/60 |
40/20 |
4.0/4.6 |
10/12/15/20 |
32/40 |
|
600 |
50/60 |
40/20 |
4.6/4.8 |
10/12/15/20 |
36/42 |
|
650 |
50/60 |
40/20 |
5.0/5.2 |
10/12/15/20 |
40/46 |
|
700 |
50/60 |
40/20 |
5.0/5.2 |
10/12/15/20 |
42/50 |
|
800 |
50/60 |
40/20 |
5.5 |
10/12/15/20 |
46/57 |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
