| Prod Model: |
ISO4427 hdpe pipe and fittings |
| Loading Port: |
Shanghai & Ningbo Port |
| Place Of Origin: |
Shanghai China (Mainland) |
| Delivery Date: |
15 Days |
| OEM: |
Ok |
| Material: |
PE |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
| Color: |
Black |
Product Description
+8618516221648

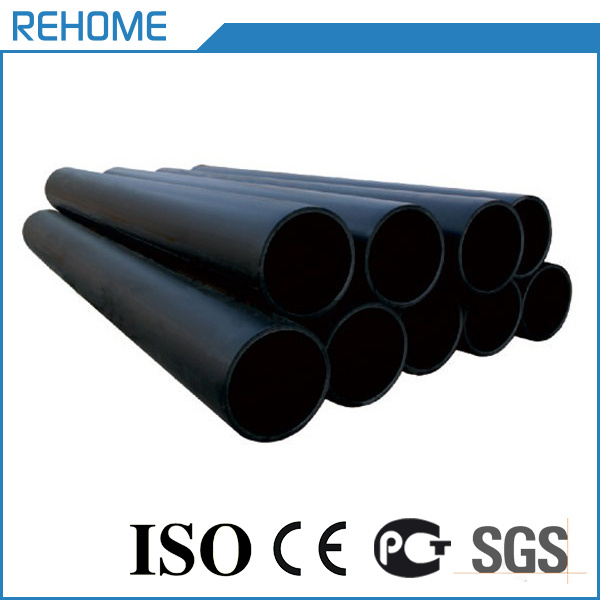

| Items | hdpe pipe |
| material | Polythylene |
| size | 16 ~ 1200 mm |
| color | black |
| connection | welding |
| pressure | PN5,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25 |
| standard | ISO4427,AS/NZS4130 |
| Certification | ISO14001,OHSAS18001,ISO9001,CE,GOST |
HDPE Pipe Features:
1. Long working life. Minimum 50 years life under normal conditions.
2. Hygiene. PE pipe are nontoxic, without the composition of heavy metal additives. No scale, not breeding germ, no second pollution to the potable water.
3. High resistance to attack from various types of chemicals. No electrochemical corrosion.
4. Smooth internal surface. Extremely low friction coefficient. Improved capability for media to pass through. Excellent abrasive resistance.
5. Good flexibility, high resistance to impact. Resistance to earthquake and twisting.
6. Light weight, easy to transport, convenient installation.
7. Unique electro fusion welding and butt welding make the joints stronger than the material, to guarantee a safe and reliable joint.
8. Simple welding technique, convenient installation. Total cost is low for the installation.
9. Polyethylene water pipes are produced in black, black with blue stripes and blue etc
HDPE Pipe Connection:
Socket fusion, butt fusion joint, electro fusion joint, flanged joint
HDPE Pipe Application:
Water supply, industrial liquids transportation, sewage treatment. Mariculture, and agricultural irrigation, etc.
HDPE Pipe specifications:
| Nominal outside diameter dn(mm) | Nominal wall thickness
en(mm) |
| PN0.4 | PN0.6 | PN0.8 | PN1.0 | PN1.25 |
| SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| 25 | - | - | - | - | 2.3 |
| 32 | - | - | - | - | 3.0 |
| 40 | - | - | - | - | 3.7 |
| 50 | - | - | - | - | 4.6 |
| 63 | - | - | - | 4.7 | 5.8 |
| 75 | - | - | 4.5 | 5.6 | 6.8 |
| 90 | - | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | - | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | - | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 9.7 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 19.3 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 21.8 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 24.5 | 38.1 | 47.4 | 58.8 | 72.7 |
| 900 | 27.6 | 42.9 | 53.3 | 66.2 | 81.8 |
| 1000 | 30.6 | 47.7 | 59.3 | 73.5 | - |
| 1200 | 36.4 | 57.1 | 70.6 | - | - |
Specifications
1.Material:PE100
2.Standard:GB,ISO,EN,AS,ASTM
3.CE,ISO9001,ISO14001 Certification
4.Prompt delivery
Features:
1.Non-toxic.PE pipe material non-toxic, tasteless, through the strict health monitoring ,it belongs to green building materials, never scaling, which can effectively improve the water quality.
2.Low flow resistance. The Smooth inner wall is easy for pipeline transportation .Under the same condition, delivery capacity can be increased by 30% ,because roughness is much less than that of steel pipe and glass reinforced pipe.
3.No Leakage. PE pipe is connected in the ways of butt fusion, socket fusion and electro fusion and the strength of joint point is higher than tube itself .
4.Excellent Flexibility. The pipes could be bended and the rubber flexible connectors will be reduced if they are used as dredging pipes.
5.Good resistance ability for scratch. PE pipe is 4 times the wear resistance of steel pipe, which means PE pipe has longer service life and better economical efficiency.
6.Convenient for construction. PE pipe could be installed in a variety of trenchless ways, so it is very convenient for construction and installation.
7.Long life-span.50 years under pressure use.
8.Lower system and maintenance costs. PE pipe is not only convenient to transport and install, but also greatly reduce the worker's labor intensity and improve work efficiency.
Applications:
1.Urban area water-supply work system. Large diameter PE pipe is healthy and non-toxic and more suitable for urban water supply main conduit and buried tube.
2.Replace cement tube, iron pipe and steel tube. Applicable for renovation project and does not need large area excavation, PE pipe can be widely used in old town of pipe network reconstruction.
3.Industrial materials transmission pipe. Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network. As landscaping project needs lots of water supply pipes, PE pipe is the best choice for its toughness and low costs.
5.Sewage discharge pipes. PE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe, low costs and maintenance costs .
6.Ore, mud transfers. PE pipe has high resistance to stress and wear resistance, can be widely applied in conveying ore, coal ash and river bait-casting mud.
7. Agricultural irrigation pipe. PE pipe has the merits of great flow and good impact resistance, it is the ideal tool for agricultural irrigation.
