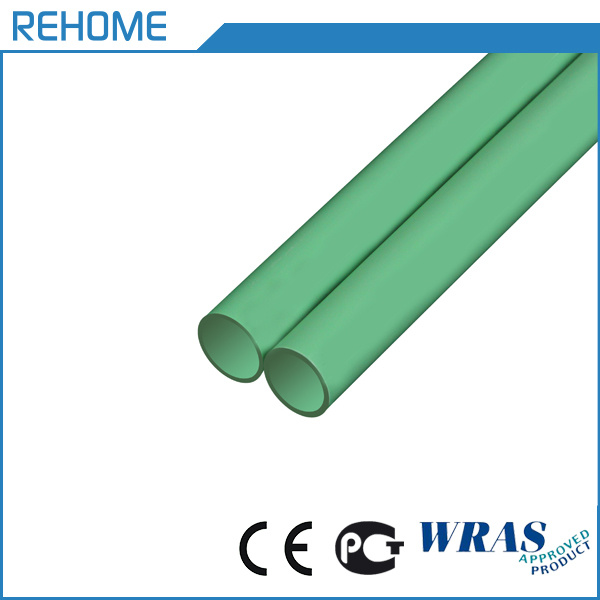

High Building Water Supply Pn10 PPR Pipe
| Price: |
US $ 2.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ppr pipe |
| Loading Port: |
Shanghai & Ningbo Port |
| Place Of Origin: |
Shanghai China (Mainland) |
| Thickness: |
2.3-57.3mm |
| Delivery Date: |
15-30 Days |
| Size: |
20-160mm |
| Connection: |
Hot Melting |
| Pressure: |
1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| Standard: |
DIN8077, DIN8078 ,ISO15874 |
| Certification: |
ISO14001,Ohsas18001,ISO9001,Ce,GOST |
| Material: |
PPR |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Color: |
Color |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
Product Description
Details:
| Items | ppr pipe |
| material | polypropylene random |
| size | 20 - 160 mm |
| color | white,green,gray |
| connection | hot melting |
| pressure | 1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| standard | DIN8077, DIN8078 ,ISO15874 |
| Certification | ISO14001,OHSAS18001,ISO9001,CE,GOST |
Advantages:
(1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
(3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
(4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
(5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
(6) Long Life: more than 50 years under normal conditions.
(7) Recycled and Environment-friendly.
Specifications:
| Spec(mm) | Thickness(mm) | Package(m/bale) |
| S5 1.25mpa | S4 1.6mpa | S3.2 2.0mps | S2.5 2.5mpa |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 | 120 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 | 120 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 | 80 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 | 60 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 | 40 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 | 24 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 | 16 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 | 8 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 | 8 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 | 4 |
