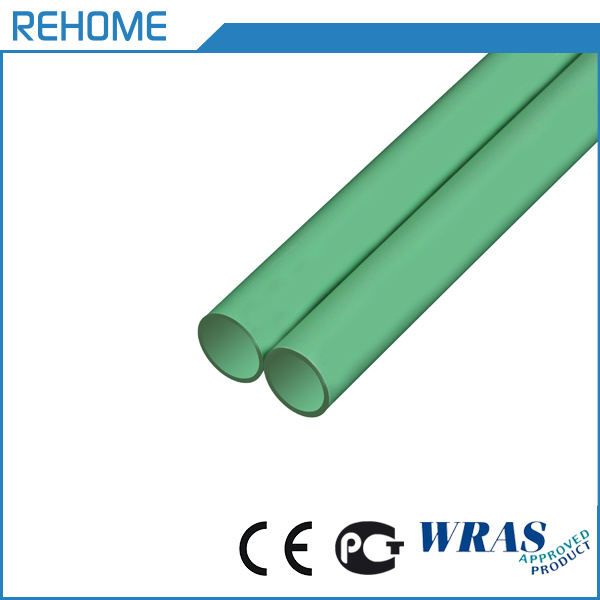

High Building Water Supply Pn25 PPR Pipe
| Price: |
US $ 2.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PPR PIPE |
| Loading Port: |
Shanghai & Ningbo Port |
| Place Of Origin: |
Shanghai China (Mainland) |
| Thickness: |
2.3-57.3mm |
| Delivery Date: |
15-30 Days |
| Size: |
20-160mm |
| Connection: |
Hot Melting |
| Pressure: |
1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| Standard: |
DIN8077, DIN8078 ,ISO15874 |
| Certification: |
ISO14001,Ohsas18001,ISO9001,Ce,GOST |
| Material: |
PPR |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Color: |
Color |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
Product Description
Details:
| Items | ppr pipe |
| material | polypropylene random |
| size | 20 - 160 mm |
| color | white,green,gray |
| connection | hot melting |
| pressure | 1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| standard | DIN8077, DIN8078 ,ISO15874 |
| Certification | ISO14001,OHSAS18001,ISO9001,CE,GOST |
Advantages:
(1) High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
(2) Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
(3) Corrosion Resistant: resist chemical matters or electron chemical corrosion.
(4) Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
(5) Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
(6) Long Life: more than 50 years under normal conditions.
(7) Recycled and Environment-friendly.
Specifications:
| Spec(mm) | Thickness(mm) | Package(m/bale) |
| S5 1.25mpa | S4 1.6mpa | S3.2 2.0mps | S2.5 2.5mpa |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 | 120 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 | 120 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 | 80 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 | 60 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 | 40 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 | 24 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 | 16 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 | 8 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 | 8 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 | 4 |
Shanghai Ruihe Enterprise Group Co., Ltd is a leading manufacturer for plastic pipe and fittings since its foundation in 2002. We are specialized in manufacturing PPR, PVC, PE pipes and fittings for more than 15 years. Ruihe is a modern high-tech enterprise who is able to do scientific research, product development, production, sales and after-sales service with the certificates of WaterMark, CE, ISO 9001, ISO 14001, OHSAS 18001, WRAS, GOST-R and third party inspection test reports ( such as SGS, BV, National Test Report and etc ).
The affiliated holding companies of Ruihe are: Shanghai Ruihe Electric Technology Co., Ltd., Shanghai Ruihe Waterproof Technology Co., Ltd., Shanghai Yitong Electronic Equipment Co., Ltd.
Currently, Our annual sales turnover has reached more than USD 60, 000, 000. Our factory covers 80, 000 square meters with more than 300 employees. 218 offices have been set at home and abroad. Ruihe products have been exported to Oceanian countries such as Australia, New Zealand, Papua New Guinea, Republic of Vanuatu; Asian countries such as Thailand, Philippines, Sri Lanka, the UAE, Malaysia, Pakistan, Iraq; African countries such as Kenya, Guinea, Togo, the Niger; American countries such as America, Cuba, Brazil; European countries such as Russia, Germany, Ireland, Italy, England etc.
REHOME is the brand for international market for Shanghai Ruihe Enterprise Group Co., Ltd.
With a clear international market strategy, the leaders of Ruihe encourage all of the staffs to work harder and more efficiently, showing a young and active organization to all of you.
