| Prod Model: |
standard type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Performance Ksd Throw Aways High Speed Power |
| Usage: |
CNC |
| Raw Material: |
Solid Carbide |
| HRC: |
45/55/60/65 |
| Type: |
Ksd Throw-Away High Speed Power Drill Bits |
| Brand: |
Preda |
| Stock: |
Rich |
| OEM: |
Accept |
| Precision: |
Under 0.005mm |
| Package: |
Box |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

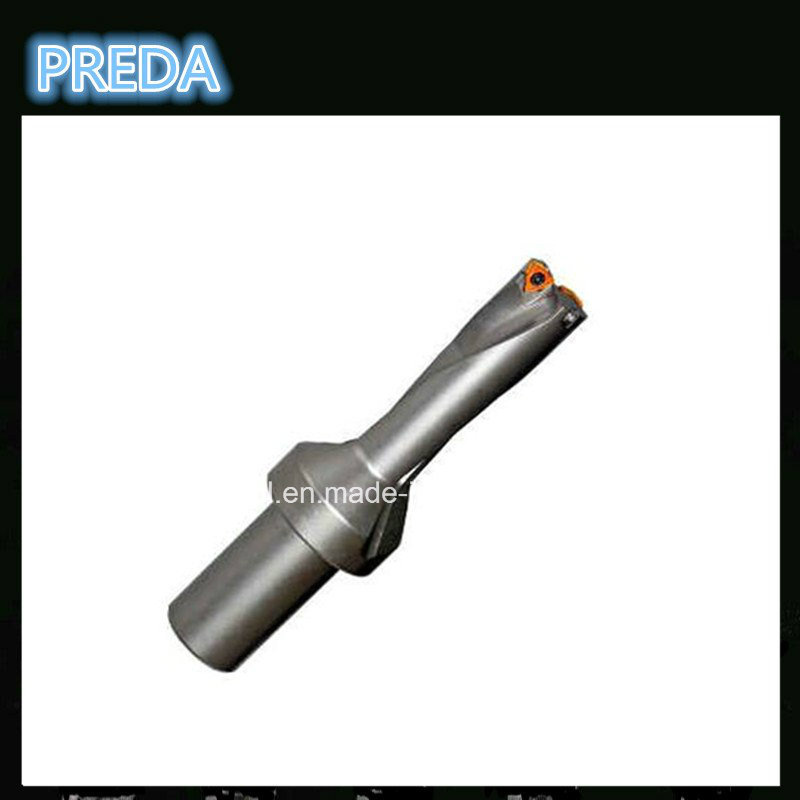

High performance KSD throw aways high speed power drill tools
Features:
1. Using seismic tool steel.
2. overall pre-hardened, re-finishing avoid secondary processing strained.
3. blades with four cutting edges, which can effectively reduce costs.
4. The special surface treatment to reduce wear and extend tool life.
Products specification
KSD Throw-away High speed power drill bits 3XD
3xd 4xd and 5xd
DIN standard
1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.
Notice:
1. Drill a high-pressure center of the water, in order to increase blade life and drain well.
2. When CNC lathe machine tool center point and parallel to the spindle center right amount.
3.CNC lathe used to be boring, such as blade outer edge must be balanced turret movement angle.
| TYPE | SIZE | Inserts | Screw | Wrench |
| D | d | L1 | L2 | L3 | L |
| C25-15-127 | 15 | 25 | 71 | 50 | 45 | 127 | WCMT030208 | M2.5 | T8 |
| C25-15.5-127 | 15.5 |
| C25-16-130 | 16 | 74 | 53 | 48 | 130 |
| C25-16.5-130 | 16.5 |
| C25-17-133 | 17 | 77 | 56 | 51 | 133 |
| C25-17.5-133 | 17.5 |
| C25-18-137 | 18 | 81 | 59 | 54 | 137 |
| C25-18.5-137 | 18.5 |
| C25-19-140 | 19 | 84 | 62 | 57 | 140 |
| C25-19.5-140 | 19.5 |
| C32-20-145 | 20 | 32 | 89 | 66 | 60 | 145 | WCMT040208 | M2.5 | T8 |
| C32-20.5-145 | 20.5 |
| C32-21-148 | 21 | 92 | 67 | 63 | 148 |
| C32-21.5-148 | 21.5 |
| C32-22-151 | 22 | 95 | 71 | 66 | 151 |
| C32-22.5-151 | 22.5 |
| C32-23-155 | 23 | 99 | 74 | 69 | 155 |
| C32-23.5-155 | 23.5 |
| C32-24-159 | 24 | 103 | 78 | 72 | 159 |
| C32-24.5-159 | 24.5 |
| C32-25-163 | 25 | 32 | 107 | 81 | 75 | 163 | WCMT050308 | M3 | T8 |
| C32-25.5-163 | 25.5 |
| C32-26-170 | 26 | 110 | 83 | 78 | 170 |
| C32-26.5-170 | 26.5 | 111 | 84 |
| C32-27-173 | 27 | 113 | 86 | 81 | 173 |
| C32-28-177 | 28 | 117 | 89 | 84 | 177 |
| C32-29-180 | 29 | 120 | 92 | 87 | 180 |
| C32-30-185 | 30 | 125 | 96 | 90 | 185 |
| C32-31-189 | 31 | 32 | 139 | 99 | 93 | 189 | WCMT06T308 | M3.5 | T15 |
| C32-32-192 | 32 | 132 | 102 | 96 | 192 |
| C32-33-196 | 33 | 136 | 105 | 99 | 196 |
| C32-34-199 | 34 | 139 | 108 | 102 | 199 |
| C32-35-203 | 35 | 143 | 111 | 105 | 203 |
| C32-36-203 | 36 | 143 | 111 | 108 | 203 |
| C32-37-210 | 37 | 150 | 117 | 111 | 210 |
| C32-38-214 | 38 | 154 | 120 | 114 | 214 |
| C32-39-217 | 39 | 157 | 123 | 117 | 217 |
