| Prod Model: |
CA6250 |
| High Precision Horizontal Metal Lathe: |
Swing Dia. Over Bed 500,660,800mm ,Lengh 1500,2000 |
| Max. Swing Over Bed: |
500mm |
| Max. Swing Over Carriage: |
300mm |
| Max. Swing In Gap: |
720mm |
| Effective Gap Length: |
210mm |
| Max. Length Of Work Piece: |
1500mmmm |
| Width Of Bed: |
400mm |
| Section Of Turning Tool: |
25X25mm |
| Spindle Speed: |
10-1400rpm/16-1400rpm(24steps) |
| Main Motor: |
7.5kw(10HP) |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Tool Holder: |
4-Position Tool Post |
Product Description

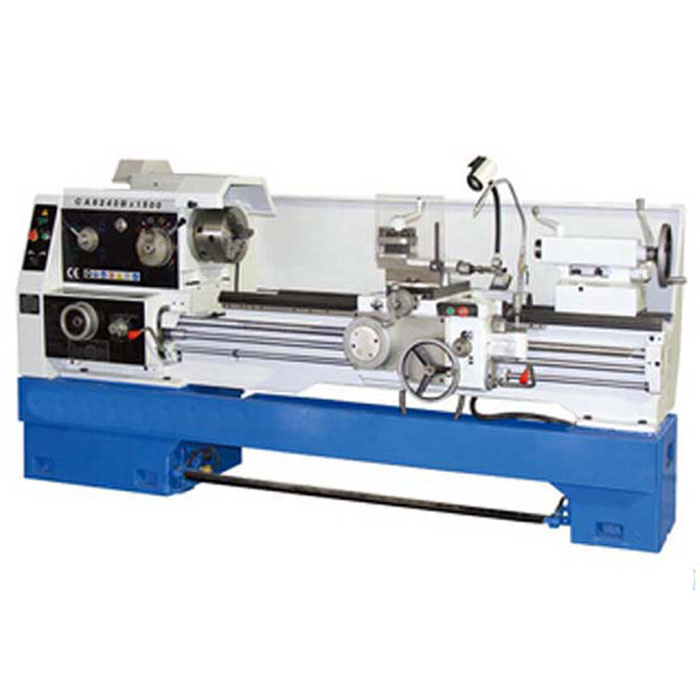

High precision horizontal metal lathe machine(CA6250)
This series machine is suitable for turning inside and outside the cylinder, cone and other surface of revolution. Cutting all kinds of the metric system, the inch thread, the modulus and the, and and can perform drilling, etc.
Structure features:
1. CA series products, with "A" type as the base type, derive several deformation products. B: spindle diameter 80 mm, type C: spindle diameter 104 mm. F: hydraulic copying. M type: precise.
2. The lathe bed width in the general lathe, has high rigidity, guide surface after medium frequency quenching, durability.
3. The machine tool operation spirit concentration and skateboard has fast moving mechanism. Using single handle visualization operation, should be good human nature.
4. The machine tool structure stiffness and transmission stiffness were higher than the general lathe, high power efficiency, suitable for high speed cutting. Main shaft aperture is large, can choose accessories complete.
standard accessories:
250mm 3-jaw chuck with reverse jaws
320mm 4-jaw chuck
Steady rest
following rest
face plate
chip tray
tool box including wrenches
english operation manual
lubircating
Travelling steady with roller bearings
Dead centres
Thread chasing dial
Foot brake
Coolant system
Work light
Rear splash guard
Spindle reducing bush
Optional accoessories:
1.quick change tool post
2.SINO brand digital readout
3.toolpost protection
4.chuck protection
5.leadscrew guard
4-jaw chuck with 400mm
3-jaw chuck with 320mm
Technical specification:
| Model | CA6140 CA6140B | CA6240 CA6240B | CA6150 CA6150B | CA6250 CA6250B | CA6161 CA6161B | CA6261 CA6261B | CA6166 CA6166B | CA6266 CA6266B | CA6180 CA6180B | CA6280 CA6280B |
| Max. Swing over bed | 400mm | 500mm | 610mm | 610mm | 610mm |
| Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. Swing in gap | - | 630mm | - | 720mm | - | 830mm | - | 880mm | - | 1020mm |
| Effective gap length | - | 210mm | - | 210mm | - | 210mm | - | 210mm | - | 210mm |
| Max. Length of workpiece | 750mmor 1000mm or 1500mm or 2000mm or 3000mm |
| Width of bed | 400mm |
| Section of turning tool | 25X25mm |
| Spindle | Spindle speeds | 11_1600 r/min (24 steps) |
| Hole though spindle | 52mm(80mm) |
| Spindle taper | Morse No.6 |
| Feed | No. of feeds | 64(kinds)(for each) |
| Range of metric threads (kinds) | (1-192mm) (44kinds) |
| Range of inch threads(kinds) | (1-24tpi) (21kinds) |
| Rage of module threads(kinds) | 0.25-48 (Module 39 kinds) |
| Rage of Diametral pitc threads (kinds) | 1-96DP(37)(37 kinds) |
| Tailstock | Max tailstock spindle travel | 150mm |
| Tailstock spindle diameter | 75mm |
| | Morse No.5 |
| Main motor | 7.5KW(10HP) |
Packing dimensions
(L×M×H mm) | Overall dimensions for 750 | 2440X1150X1170 | 2440X1150X1700 | 2440X1190X1700 | 2440X1150X1900 | 2440X1150X1950 |
| Overall dimensions for 1000 | 2650X1150X1700 | 2650X1150X1700 | 2650X1190X1700 | 2650X1150X1900 | 2650X1150X1950 |
| Overall dimensions for 1500 | 3150X1150X1700 | 3150X1150X1700 | 3150X1190X1700 | 3150X1150X1900 | 3150X1150X1950 |
| Overall dimensions for 2000 | 3610X1150X1700 | 3610X1150X1700 | 3610X1190X1700 | 3650X1150X1900 | 3650X1150X1950 |
| Overall dimensions for 3000 | 4610X1150X1700 | 4610X1150X1700 | 4610X1190X1700 | 4650X1150X1900 | 4650X1150X1950 |
Weight
(Kg) | Length | G.W. N.W. |
| Overall dimensions for 750 | 2700 2000 | 2700 2000 | 2860 2260 | 2900 2300 | 3000 2400 |
| Overall dimensions for 1000 | 2800 2100 | 2700 2000 | 3050 2450 | 3060 2460 | 3200 2600 |
| Overall dimensions for 1500 | 3050 2250 | 2700 2000 | 3240 2640 | 3250 2650 | 3400 2800 |
| Overall dimensions for 2000 | 3300 2600 | 2700 2000 | 3480 2880 | 3480 2880 | 3500 3000 |
| Overall dimensions for 3000 | 4000 3450 | 2700 2000 | 4287 3687 | 4300 3700 | 4500 3900 |
