High Precision Modern Professional Sintered Turbo Wave Saw Blade

Name: High Precision Modern Professional Sintered Turbo Wave Saw Blade
Brand: tool-buy.com
SKU: 832710155
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 10-50/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

HENKOOLEE TRADING LIMITED

Showroom Product Company Profile

Prod Model:	HKL1417
Working Conditions:	Water Cooling
Machine:	Bridge Automatic Cutting Machine or Manual Machine
Process:	High-Frequency Welding
Feature:	Good Sharpness,Long Working Life
Blade Material:	Diamond Segment ,65mn Steel Body &30CrMo
Usage:	Dry and Wet
Advantage:	Imporved Efficiency,Cutting Lifetime

Product Description

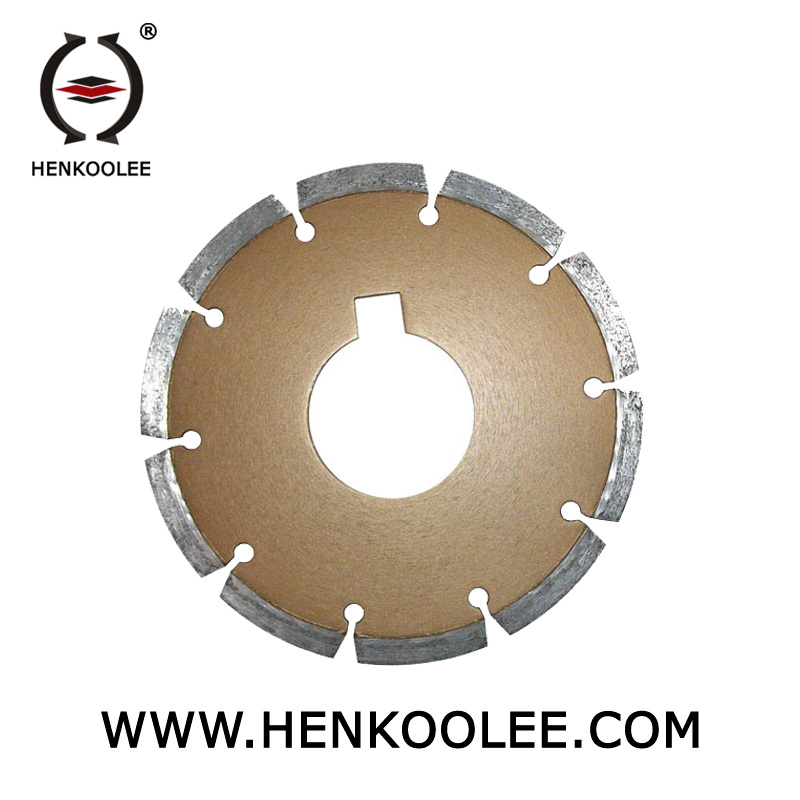

DIAMOND CUTTING DISC

This product is used to make cutting and grooving on ceramic tiles on automatic and manual cutting machines. There are four normal working modes; manual single-blade full cutting, automatic single- blade full cutting, automatic two-blade full cutting and pre-cutting, chamfering and full cutting Our diamond cutting disc are approved for their high working speed, fine and precise cutting effect, low tiles edge-breaking ratio and long working lifetime.

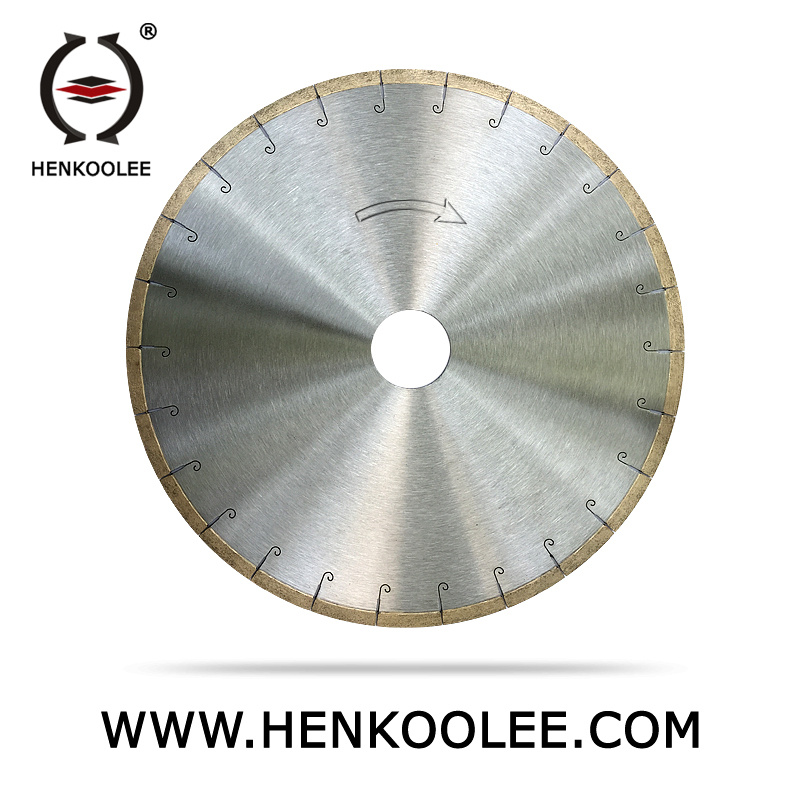

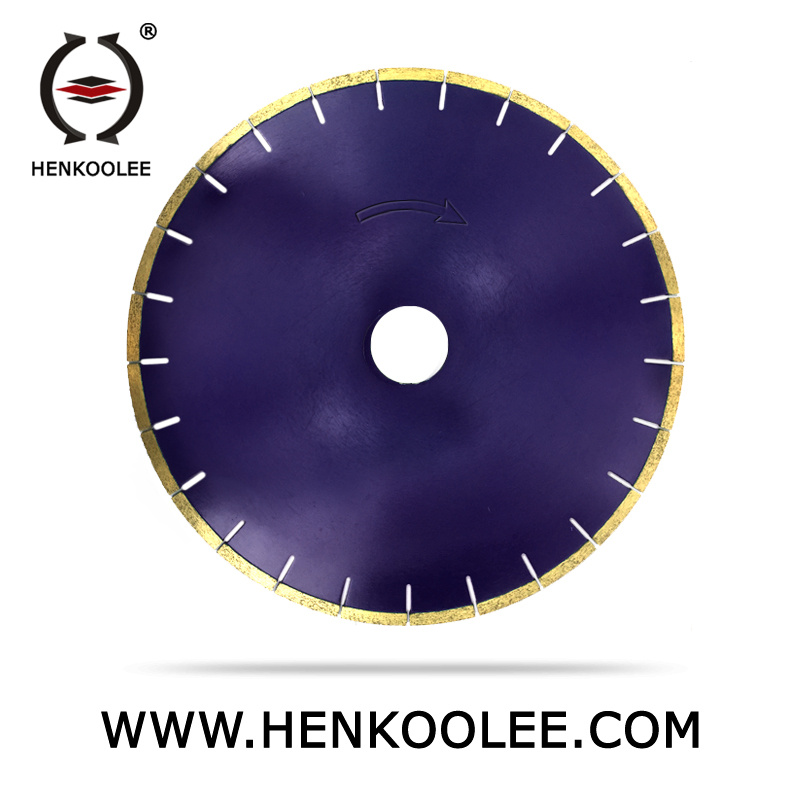

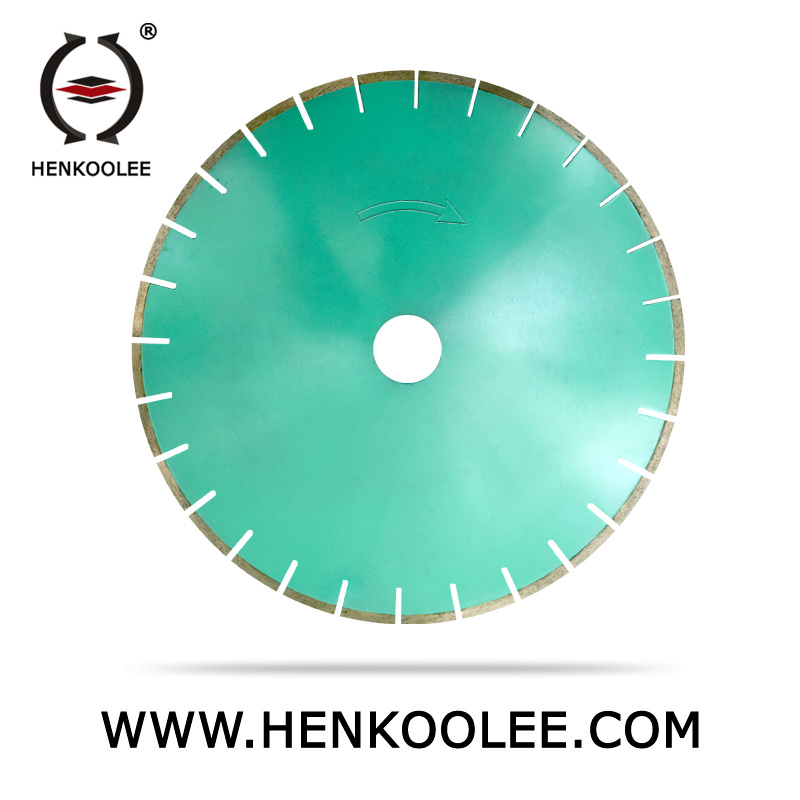

DIAMOND SAW BLADE FOR GRANITE
Diamond saw blade for granite are mainly used on cutting the slabs of granite, sandstone, slate, and quartz stone, it is suitable for bridge automatic cutting machine and manual machine and has the characteristic of stable cutting, long working lifetime, smooth and flat cutting, good cutting effect and high efficiency etc. Silent diamond saw blade for granite is available upon customer's requirements.

FEATURE
1.Adopt high quality steel blank,long working life

2.self-produced diamond powder as raw material to produce diamond segments

3.Good sharpness,high efficiency and stable performance

4.Mature production process

5.Strict product quality inspection process

Above specification is only for Reference, other or special specification can be ordered by clients

APPLICATION

SPEC AND PARAMETER

DIAMETER (MM)	BORE DIAMETER (MM)	SEGMENT WIDTH (MM)	SEGMENT HEIGHT	APPLICATION
∅105	20	1.8	7/10	For trimming and slabbing granite & hard stone etc.
∅110	22.23	1.8	7/10
∅115	22.23	1.8	7/10
∅125	22.23	2.0	7/10
∅150	22.23	2.0	7/10
∅180	22.23	2.2	7/10
∅200	22.23	2.4	7/10
∅230	22.23	2.4	7/10
∅250	25.4	2.6	7/10
∅300	25.4	2.8	7/10
∅350	25.4	3.0	7/10

OTHER SPESC ARE AVAILABLE UPON REQUEST.

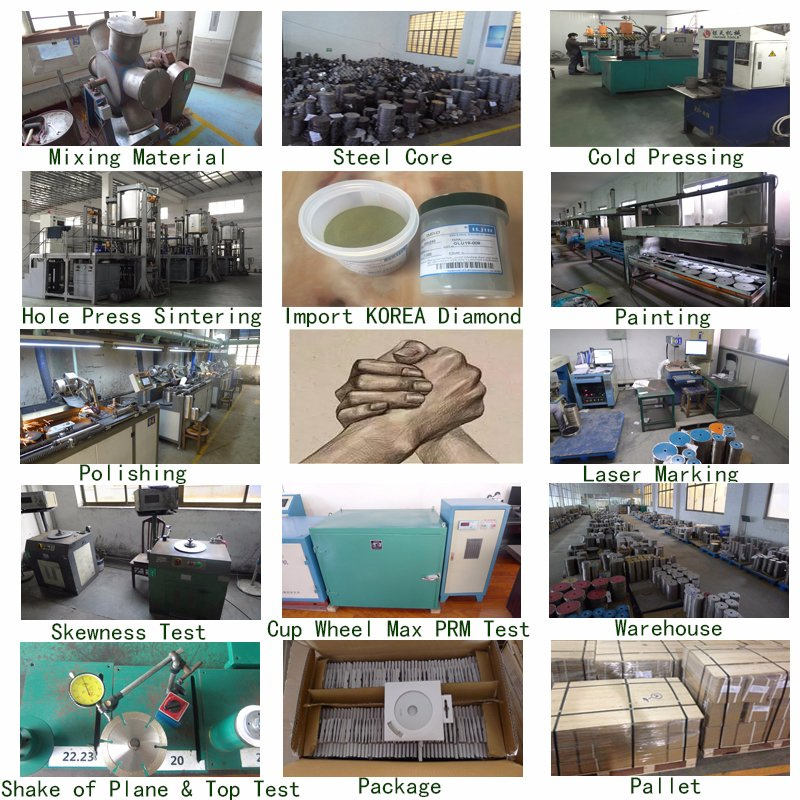

Procedure

FAQ

1. Can we use our brand?
Sure, we provide OEM service ,just send us your packing design and company logo .

2.Can you supply sample for test and your samples are free?
Yes, we will make sample specially according to clients' request,sample cost and freight charge will be paid by clients, but sample cost will be return back to client after order confirmed in future.

3: What are your payment terms?
For small order, pay 100% in advance. Air Cargo or air express, the payment should be 100% T/T before shipment. For the big order, pay 30% or 50% in advance, pay the balance after complete the production of order. We can also accept other payment terms, for example L/C to support our clients.

4: What should we do if your tools can not work well?
Give us detailed report about the usage and we should analyze the reason. If the problem is not caused by unproper operation or different stone type and you can prove our tools problem, we will make another batch of tools to replace the bad one. Besides, we will try to find a way to solve the problem.

5: How can I get the best suitable diamond saw blades and diamond segment for my work?
Provide more details about your stone and saw machine parameters:
1. tell us your target output/performance, such as lifespan and sharpness,
2. Stone Hardness, Abrasiveness and Grit Size of diamond, pictures or samples if possible.
3. Machine type to be used for example Diamond saw blades, Bridge Saw, Table Saw, Brick Saw, etc.
4. Main Motor of Machine, Spindle RPM, Feeding Speed and Cutting Depth.
5. Thickness of blade core blank (blade without diamond segments) for suitable diamond segment width.
Please provide more details as possible as you can.

HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.

Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.

Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
