| Prod Model: |
J61Y-1500LB-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-50" |
| Trim: |
5 |
| Disc: |
Wc9+Stellited 6 |
| Design And Manufacture: |
2"-50" |
| Temperature Of Media: |
High Temperature |
| Logo: |
Can Be Customize |
| Color: |
Can Be Customize |
| Certification: |
API6d |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Application: |
Self Sealing Globe Valve |
| Standard: |
GOST |
| Material: |
Wc9 |
Product Description

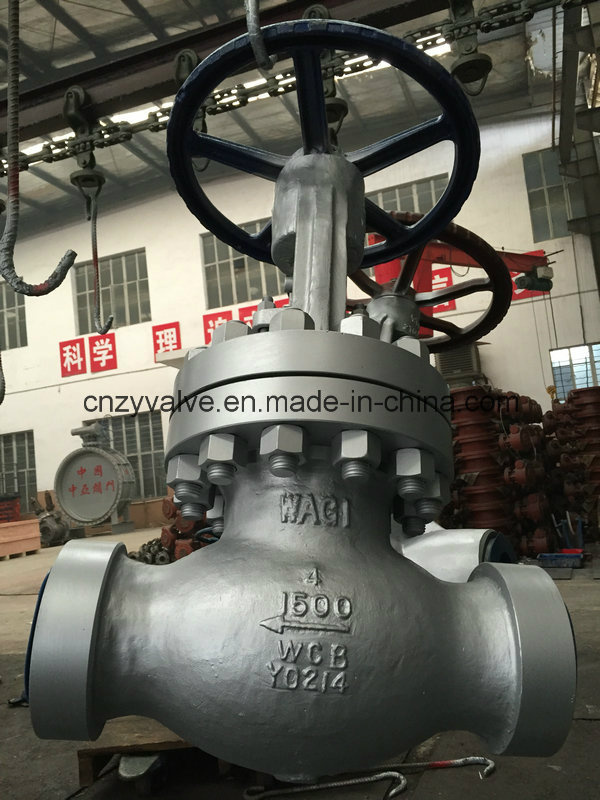

High Pressure 4" Class1500 SW Globe Valve(J61Y-1500LB-4)
Sizes: 1/2 -24"
Pressure class: 150-2500Lb
Suitable temperature: -28~650Cº C
Connection: FNPT, Inside Screw, BSP
Globe Valve Specifications:
1) Sizes: 1/2 - 24"
2) Pressure class: 150Lb-2500Lb
3) Suitable temperature: -28 ~ 650º C
4) Suitable medium: Water, air, oil products, corrosive liquids
5) Body material: Carbon Steel, cast steel, cast iron, forged steel, SS304, SS316, brass, ductile iron
6) Connection: FNPT, Inside Screw, BSP
Design Standard:
Design & Manufacture Std.: ASME B16.34, BS1873, JIS B2071, B2081
Inspection and Test: API598
Face to Face Dimension: ASME B16.34, BS5352 MSS SP-118
End Flange Dimension: ASME B16.5
Butt-welding End Dimensions to: ASME B 16.25
Threaded End: NPT ANSI B1.20.1, BSP, BSPT,
Socket-weld End: ASME B16.11
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) |
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Seat Ring | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Wedge | A276 410 & 430 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Gasket | Corrugated SS + graphite | SS + PTFE |
| 6 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 8 | Pin | A276 420 | A276 304 |
| 9 | Gland | A276 410 | A182 F304(L) | A182 F316(L) |
| 10 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 12 | Gland Nut | A193 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 410 |
| 14 | H.W.Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Nameplate | SS |
| 16 | Handwheel | A197 |
| 17 | Bearing Gasket | A473 431 |
| 18 | Stem Packing | Flexible Graphite | PTFE |
| Suitable Medium | W.O.G.etc | W.O.G.etc | HNO3CH3OOH etc |
| Suitable Temperature | -29 425 | -29 550 | -29 180 |
Dimensions (mm) and Weights (Kg)
| NPS | 1/2 | 3/4 | 1 | 1/4 | 1-1/2 | 2 |
| L(RF)L1(BW) | 150 | 108 | 117 | 127 | 140 | 165 | 203 |
| 300 | 140 | 152 | 165 | 178 | 190 | 216 |
| 600 | 165 | 190 | 216 | 229 | 241 | 292 |
| H(OPEN) | 150,300 | 158 | 169 | 197 | 236 | 246 | 283 |
| 600 | 169 | 197 | 236 | 246 | 283 | 320 |
| W | 100 | 100 | 125 | 160 | 160 | 180 |
| Weights | 150 | RF | 4.5 | 5.2 | 8.2 | 11.5 | 12.5 | 20.3 |
| BW | 2.8 | 3.3 | 5.4 | 7.1 | 8.2 | 12.5 |
| 300 | RF | 4.8 | 6.2 | 9.3 | 14 | 15.5 | 23.4 |
| BW | 3.5 | 4.4 | 6.8 | 8.1 | 9.2 | 15.4 |
| 600 | RF | 5.9 | 7.4 | 10.4 | 16.2 | 17.5 | 28.3 |
| BW | 4.5 | 5.1 | 8.2 | 10.5 | 12.4 | 20.1 |
Dimensions (mm) and Weights (Kg)
| NPS | 1/2 | 3/4 | 1 | 1/4 | 1-1/2 | 2 |
| L(RTJ) | 900,1500 | 216 | 229 | 254 | 279 | 305 | 371 |
| L1(BW) | 900,1500 | 216 | 229 | 254 | 279 | 305 | 368 |
| H(OPEN) | 197 | 197 | 236 | 246 | 283 | 330 |
| W | 125 | 125 | 160 | 160 | 180 | 200 |
| Weights | RTJ | 7.2 | 11.5 | 15.6 | 16.2 | 22.6 | 32.8 |
| BW | 5.2 | 9.3 | 12.4 | 13.8 | 18.9 | 27.5 |

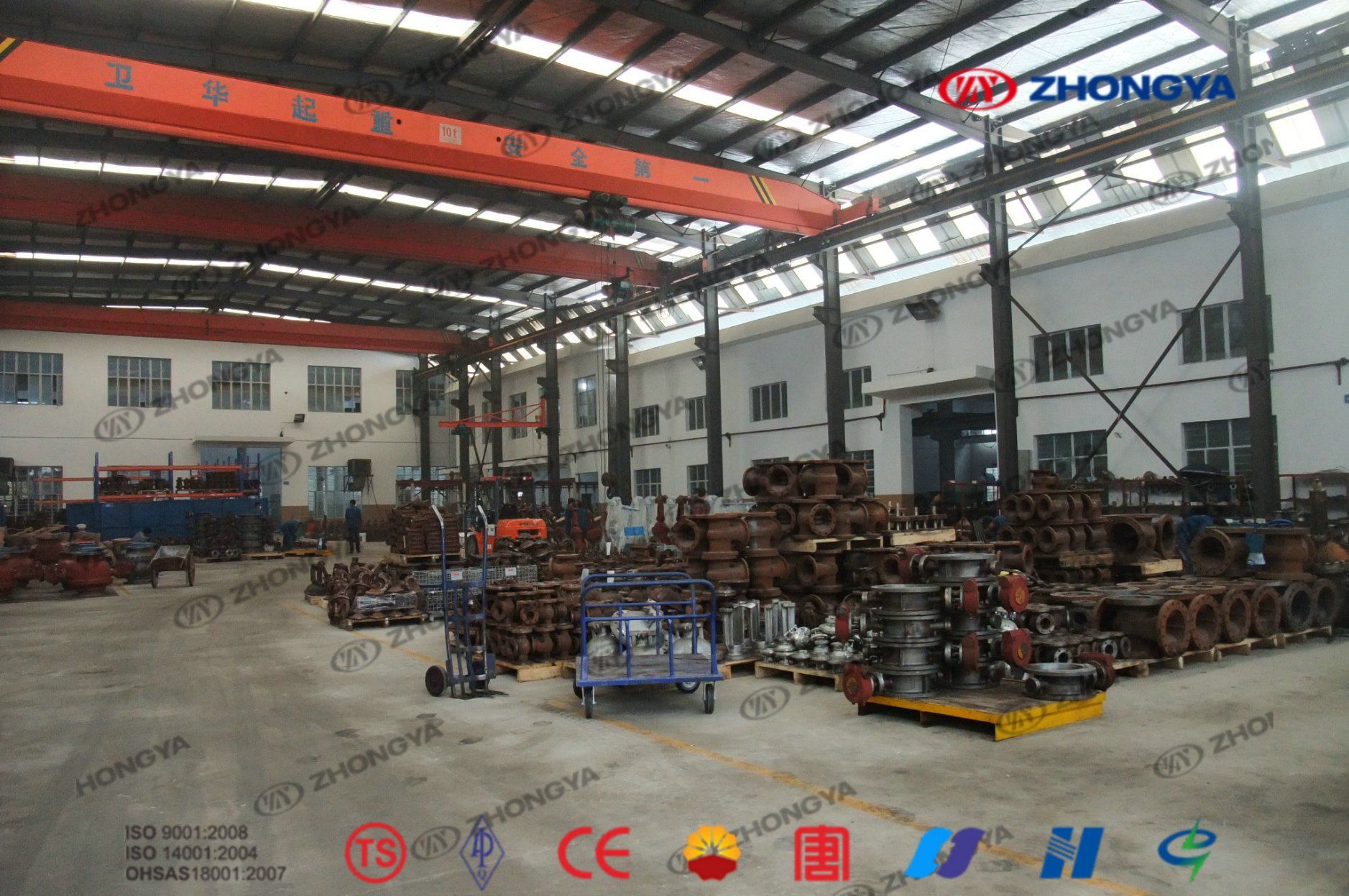

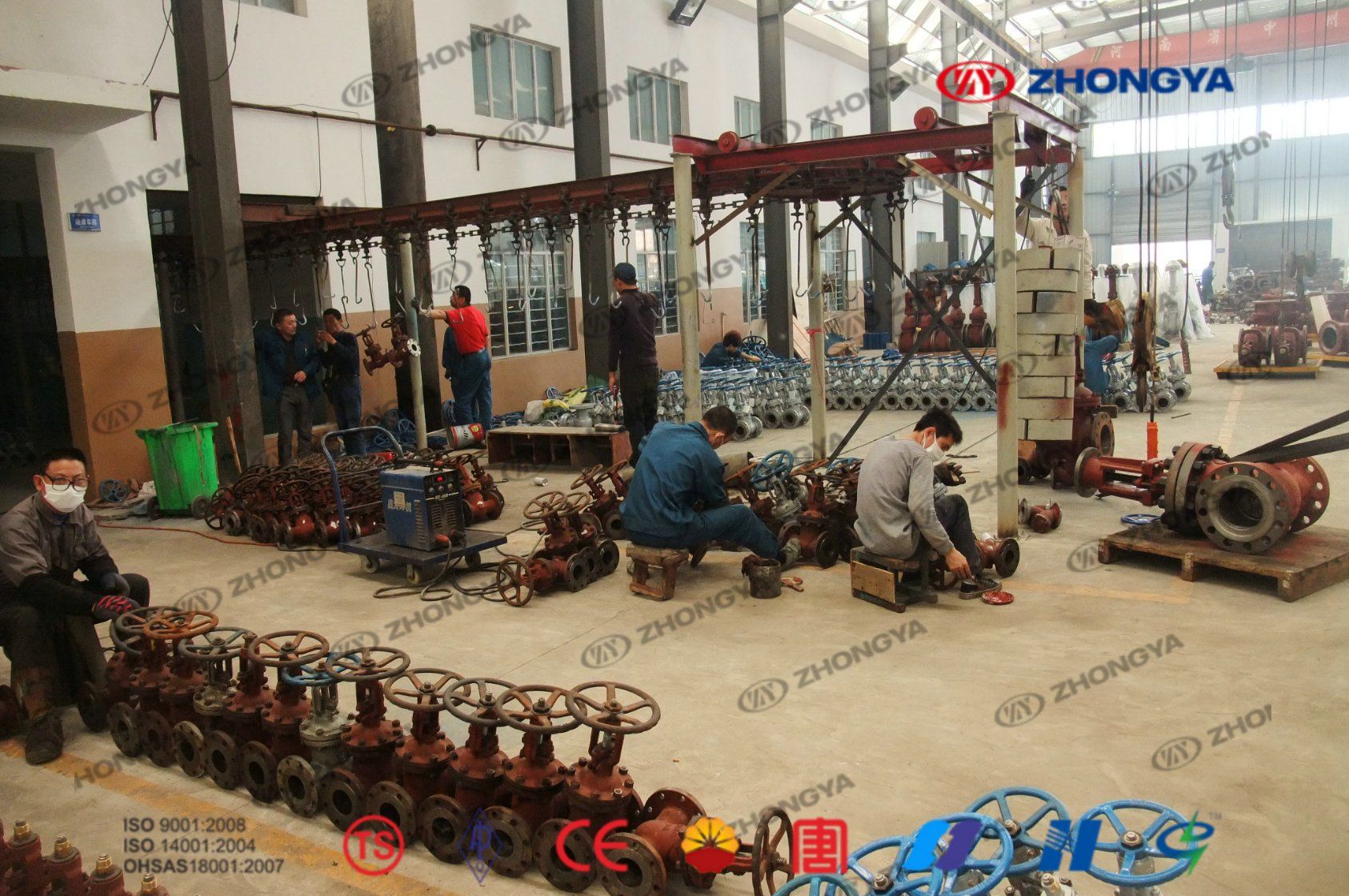

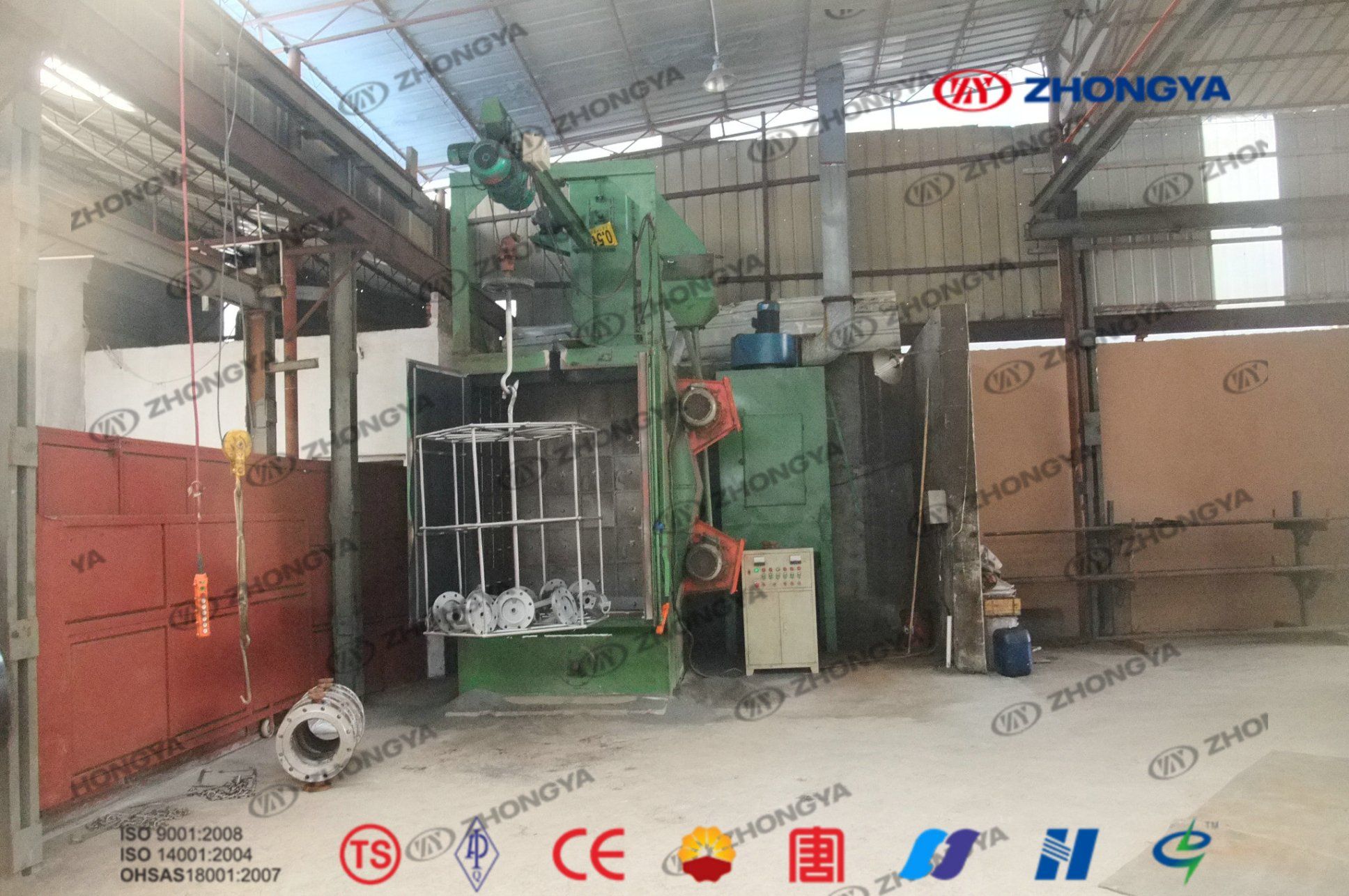

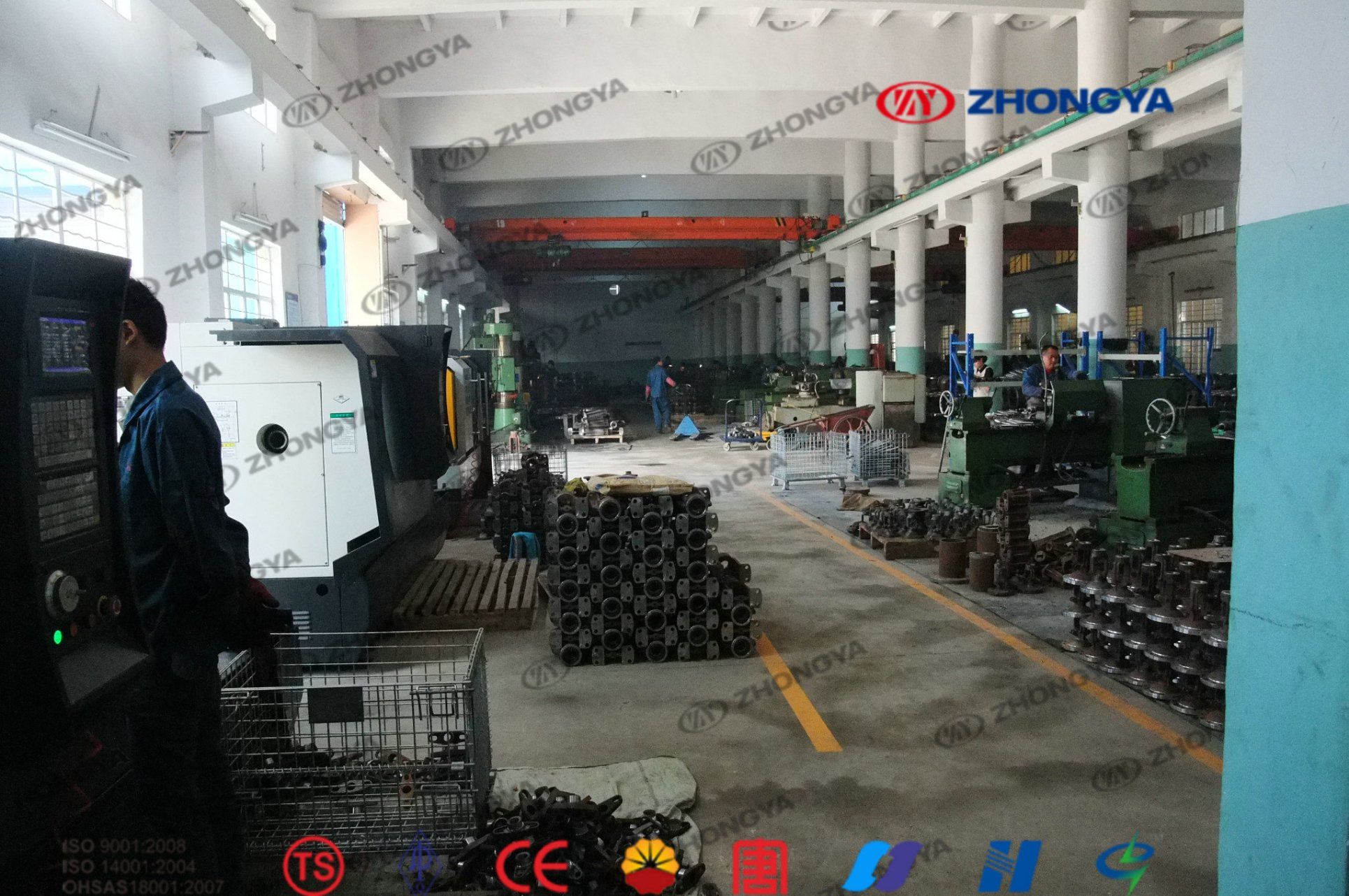

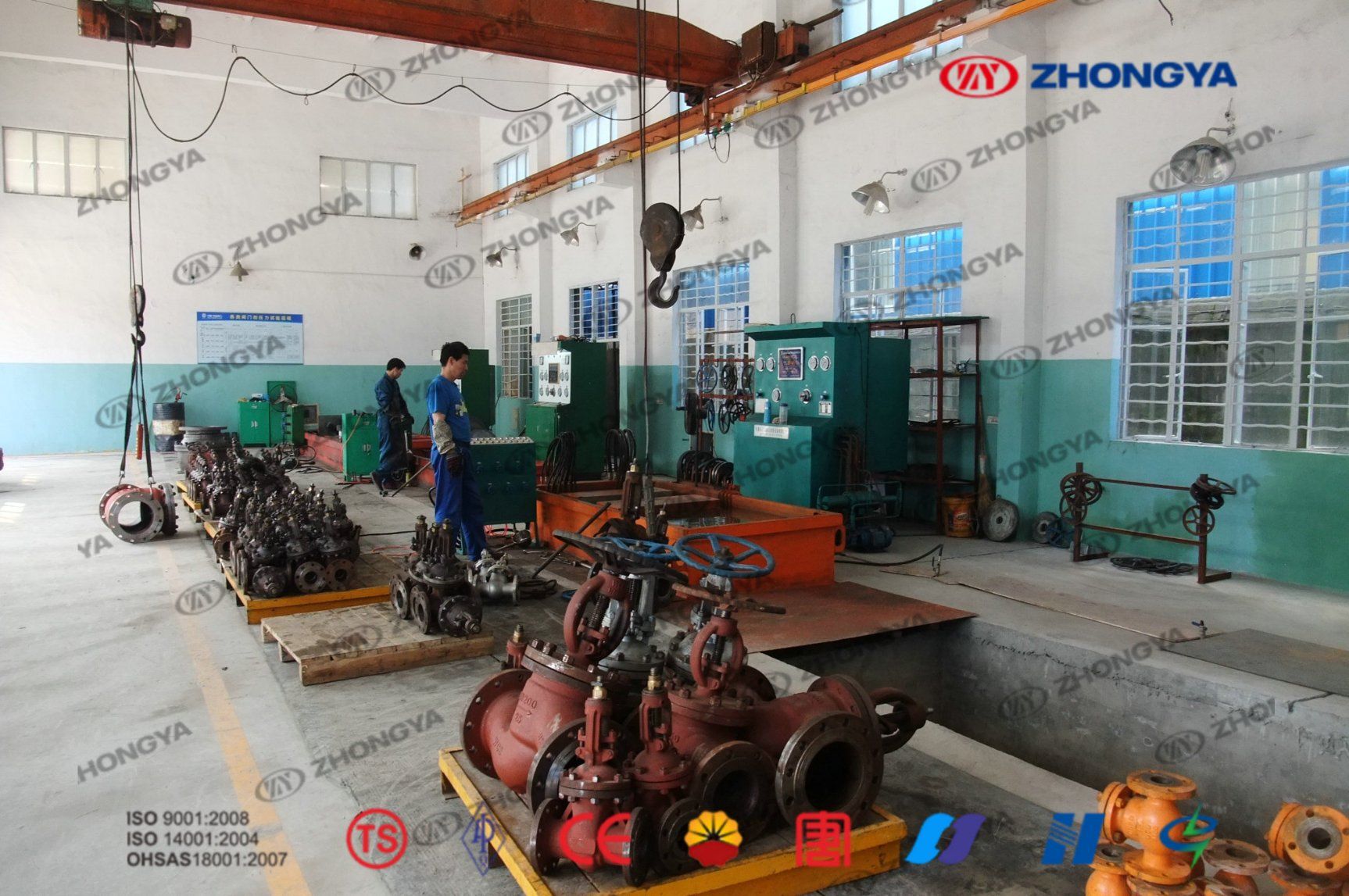

China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in No. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
