| Prod Model: |
J41H-150LB-1.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body: |
A216 Wcb |
| Trim: |
Stellited |
| Connection: |
Flanged |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
JIS |
| Application: |
Oilfield Globe Valve |
Product Description

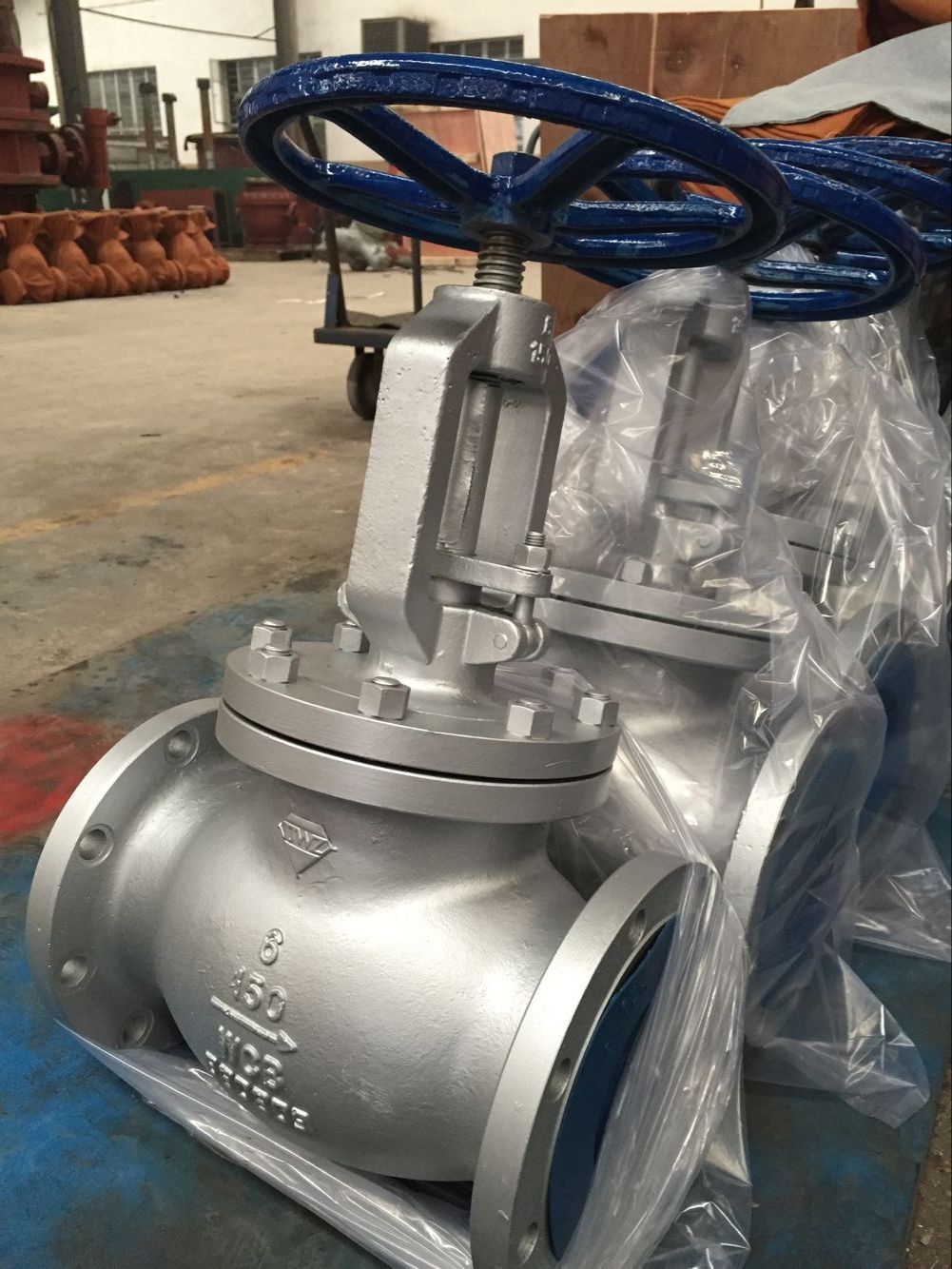

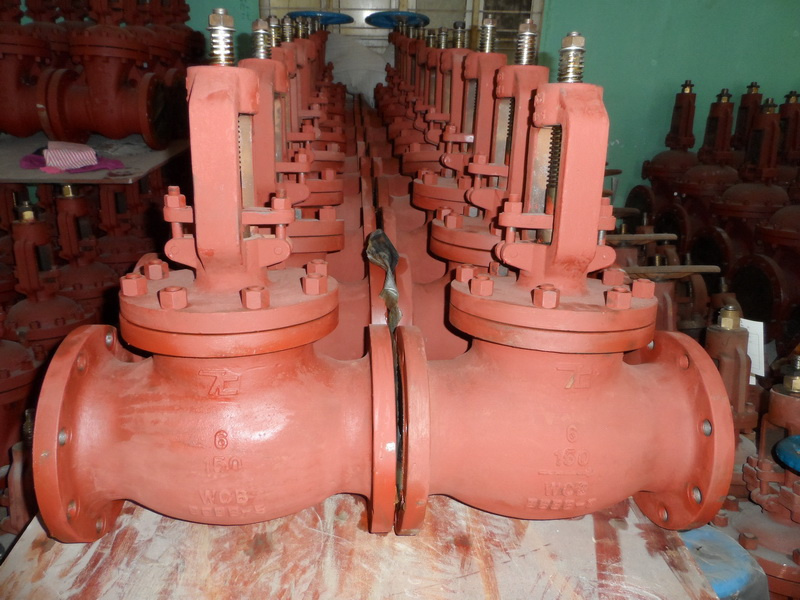

API/ANSI 11/2" 150LB Globe Valve (J41H-150LB-2.5)
Size: 1/2"-40''
Material: Carbon steel stainless steel
Pressure: 150LB-2500LB
Certification: ISO9001, API600, CE0036
Guarantee: 18months; OEM offer
Pressure rating: 150LB -2500LB
Suitable medium: Water, oil, gas...
STANDARDS:Design and Manufacture: API600, ASME B 16.34, BS 1873
Inspection and Test: API598
End flange dimension: ASME B16.5 (for NPS≤ 24); AMSE B16.47 series B
End flange dimension: ASME B 16.25
Socket-weld dimension: ASME B16.11
Face to face and end to end: ASME B 16.10
Pressure-temperature rating: ASME B16.34
Wall thickness dimension: API600 and BS1868
Packing: Wooden case, plywood case
Part Name
| CF8 SERIES
| CF3 SERIES
| CF8M SERIES
| CF3M SERIES
| WCB SERIES
|
BODY
| CF8
| CF3
| CF8M
| CF3M
| WCB
|
DISC
| F304
| F304L
| F316
| F316L
| 1CR13
|
Stem
| F304
| F304L
| F316
| F316L
| 1Cr13
|
PACKING
| PRFE
| PTFE
| PTFE
| PTFE
| GRAPHITE
|
GASKET
| PTEF+304
| PTEF+304L
| PTEF+316
| PTEF +316L
| GRAPHITE 304
|
GLAND
| CF8
| CF3
| CF8M
| CF3M
| WCB
|
BOLT
| A193-B8
| A193-B8
| A193-B8M
| A193-B8M
| 35CrMoA
|
NUT
| A194-8M
| A194-8M
| A194-8M
| A194-8M
| 45
|
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in No. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
