| Prod Model: |
1-20 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

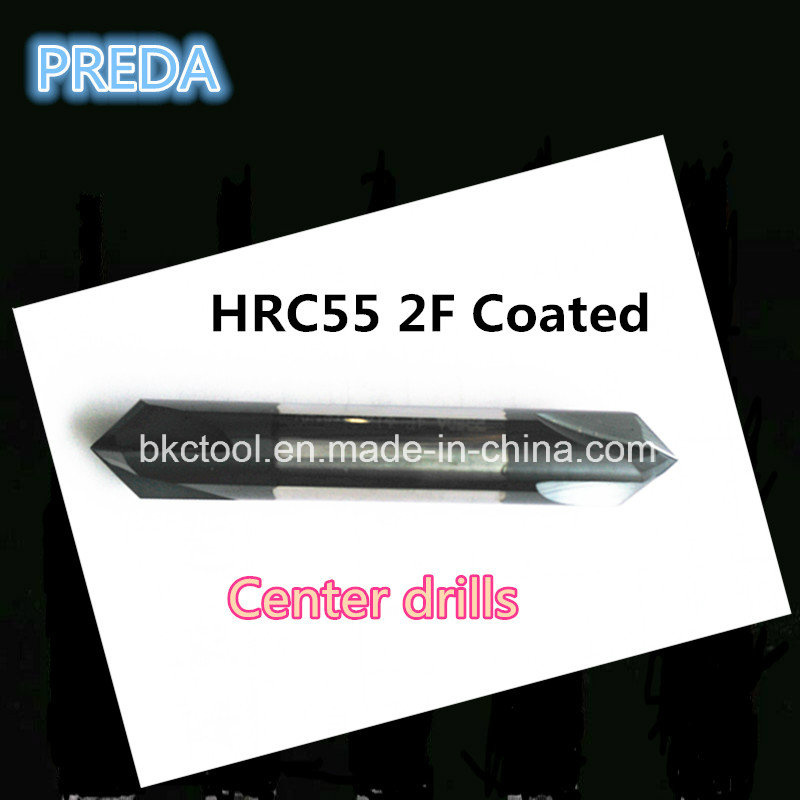

High Quality HRC55 2f Solid Center Drill Tools |
| Model No: |
2f Center Drills |
| Brand: |
Preda |
| Material: |
Carbide |
| Precision: |
High Precision |
| Machine Type: |
CNC Machine |
| Suitable For: |
Wood, Plastic, Aluminum |
| Usage: |
Metal Machining |
| Flutes: |
2 Flutes |
| OEM: |
Accept |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description
Product Description
Products Description
1 High Quality HRC55 2f Solid Center Drill tools
2 Work piece for wood, steel and stainless steel
3 Good price
4 wirh TIALN coating
5 High quality for CNC Metal working
Products specification
Drilling point for 90 degree and 118degree
3xd and 5xd
DIN standard
1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.
Order No. | Flute dia d | Flute length ( l ) | Shank dia (D) | Total length(L) |
| 3.0×16×3D×48L | 3.0 | 16 | 3 | 48 |
| 3.5×20×4D×52L | 3.5 | 20 | 4 | 52 |
| 4.0×22×4D×54L | 4.0 | 22 | 4 | 54 |
| 4.5×24×6D×68L | 4.5 | 24 | 6 | 68 |
| 5.0×26×6D×70L | 5.0 | 26 | 6 | 70 |
| 5.5×28×6D×72L | 5.5 | 28 | 6 | 72 |
| 6.0×28×6D×72L | 6.0 | 28 | 6 | 72 |
| 6.5×31×8D×75L | 6.5 | 31 | 8 | 75 |
| 7.0×34×8D×78L | 7.0 | 34 | 8 | 78 |
| 7.5×34×8D×78L | 7.5 | 34 | 8 | 78 |
| 8.0×37×8D×81L | 8.0 | 37 | 8 | 81 |
| 8.5×37×10D×87L | 8.5 | 37 | 10 | 87 |
| 9.0×40×10D×90L | 9.0 | 40 | 10 | 90 |
| 9.5×40×10D×90L | 9.5 | 40 | 10 | 90 |
| 10.0×43×10D×93L | 10.0 | 43 | 10 | 93 |
| 11.0×47×12D×104L | 11.0 | 47 | 12 | 104 |
| 12.0×51×12D×108L | 12.0 | 51 | 12 | 108 |
| 13.0×51×14D×110L | 13.0 | 51 | 14 | 110 |
| 15.0×76×16D×136L | 15.0 | 76 | 16 | 136 |
| 17.0×84×18D×150L | 17.0 | 84 | 18 | 150 |
| 20.0×94×20D×160L | 20.0 | 94 | 20 | 160
|
We are a professional manufacturer of good quality carbide cutting tools, with an experienced design team. Our company was founded in 2001.
At present, we use the best six-axis CNC grinding equipment from Germany to produce high-speed carbide end mills, which is suitable for cutting highly hard and soft metal.
It is our business policy to strive for the development and innovation of carbide end mills, provide high-quality products, and offer custom designs for meeting your various needs. We have gotten customer' S support and affirmation since we were established.
In order to allow more customers to know us, we are moving toward internationalization. With the combination of sophisticated technology and modern network marketing, we provide more and better service.
Welcome to our company. We will do our best to be professional in the precision cutting tool production, and create the best results for you.
We willstrive to provide you with high quality products and quality service, We can also accept any kinds of payment terms, such as T/T, Western Union, L/C, OA, D/P, Escrow etc.
"Quality first, Customer first" is our orientation, we sincerely invite you to our company for the bright future. You are welcome to contact us for future friendly business relationships so as to achieve mutual benefit.
Do not be hesitate to contact us if you have interest in our goods, because of different countries in different time difference, you may met businessmen are not online or out, making your enquiry in our mails would be highly appreciated and we will respond you soon.
