Ytn-60 Most Popular Shock - Resistant Vibration-Proof Pressure Gauge

Name: Ytn-60 Most Popular Shock - Resistant Vibration-Proof Pressure Gauge
Brand: tool-buy.com
SKU: 730672962
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 2/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Qingdao Hakin Auto-Meters Co., Ltd.

Showroom Product Company Profile

Prod Model:	YTN-60
Connection:	Bsp ; NPT ; PF
Model Number:	Ytn-60h; Ytn-100h; Ytn-150h
Pressure Range:	1-0-100MPa
Material:	Stainless Steel Case
Size:	40mm/60mm/100mm/150mm
Measuring Range:	Medium-pressure Gauge
Accuracy:	1
Display:	Pointer
Application:	Civil
Structure:	Spring Pressure Gauge
Connection Type:	Radial Direction
Function:	Electric Signal-controlled
Indicating Pressure Reference:	General Pressure Gauge

Product Description

Most Popular vibration-proof pressure gauge

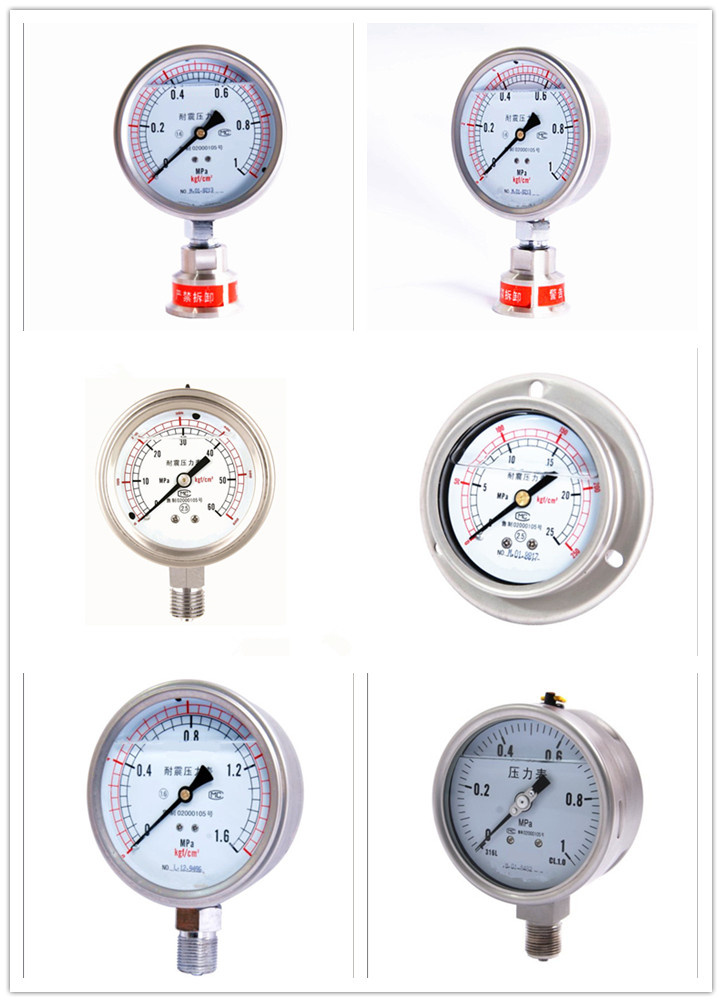

1. Product Photos

2. Product Parameters

Dia:		φ60mmφ100mmφ150mm
Accuracy grade:		1.60%
Working pressure:		Steady: 3/4 x full scale value Fluctuating: 2 /3 x full scale value Short time: Full scale value
Connection Thread:		M14 X 1.5.M20 X 1.5/PF(PT,NPT)1/4/PF(PT.NPT)1/2
Damping Liquid:		methylsilicone
Bourdon tube:		phosphor bronze
Connection material:		copper alloy or copper alloy chromeplate

Movement:		copper alloy
	Casing:	SUS304
	Glass:	PC,stalinite

	Heat-ResistantPressure Gauge
Name

Model	YTW-100YTW-150



Pressure Range(Mpa)	0~(0.1/0.16/0.25/04/0.6/1/1.6/2.5/4/6/10/16/25/40/60)-0.1~(0/015/0.3/0.5/0.9/1.5/2.4)



Accuracy Grade (%)		0.25/0.4/0.5/1/1.5/1.6/2

Connection Thread	M20×1.5		or customed

3. Application
The diaphragm pressure gauge is widely used in petroleum, chemical, alkali and chemical fiber.
Pharmaceutical, food, light textile and other technological processes;It can be used to measure strong corrosion.
High temperature, high viscosity, easy to crystallize, easy to solidify and solid float medium.
Force, as well as to certain measurement media can not directly into the universal instrument and the.
It must be used in the case of pressure testing to prevent accumulation of precipitates.
  The diaphragm isolator and the universal pressure gauge form a system of diaphragm tables.

The principle of
  When the pressure P of the measuring medium ACTS on the diaphragm, the diaphragm produces deformation.
Compression pressure gauge pressure system's sealing fluid to form P.Force.
  When the diaphragm is rigid enough for an hour, the P is also very small and the pressure gauge is measured.
The pressure of the pressure system is close to the pressure of the measuring medium.

Use guide

When installing or disassembling, do not use the hand to pull the meter case, should use the special wrench to install.

Pressure gauges should be installed horizontally or vertically.

When selecting type, pay attention to whether the medium and instrument material match.

Normal working environment temperature is to 40 ° C to 70 ° C, relative humidity is not more than 85%.

4. Company Profile

  A manufacturer specialized for devising varies of pressure gauges, thermometers and other hardware appliances.
One of China's main bases of operations for exporting pressure gauges and thermometers.
Developing all stainless steel pressure gauges, shock-proof pressure gauges, etc.
Supplying different kinds of products with high quality and favorable price.
Sticking to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" and " Zero defect, zero complaints".
Enjoying a high reputation as regular supplier to European, Middle East, South America, Africa and Southest of Asia.
Won the certificate of EN3, EN671, EN1869, KS and CE approval.
We are sincere in looking for partners to develop and cooperate together in new business opportunities.

5. Our Advantages

_{5.1 Quality Control:}
_{* 100% pre-inspection before shipment with "PASSED" ticket;}
_{* ISO 9001, CE,}_{KS, GS, UL, FCC, ACS certificates passed;}
_5.2_Delivery:
_{* Sample order within 7 days;}
_{* Bulk order 15 days upon order confirmation;}
_5.3_{After-Sale Service:}
_{* Twelve months quality guarantee;}
_{* Provide technical solutions within 24 hours;}
_5.4 _{Abundant Export Experience:}
_{*Nearly ten years export experience;}
_{*One-stop sales service for purchase and delivery;}
_5.5 _Others:
_{* Professional recommendation & personalized specification;}
_{* OEM/ODM order welcomed;}
_*No MOQ, 1 piece for test acceptable.

6. Why Choose Us

_6.1 Specialized in pressure gauges for 30 more years;

_6.2 Strict quality controlling and inspecting system;

_6.3 Reasonable and competitive price;

_6.4 Fast delivery and time service;

_6.5Small quantity order is welcome.

7. FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
If you have legally registered patent,we can pack the goods in your branded
boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: Insight L/C, TT, Western Union, Money Gram, paypal, etc.
Q3. What is your trade terms?
A:FOB, CFR, CIF.
Q4. How about your delivery time?
A: Small orders finished within 5 working days;
     Bulk orders finished within 15 working days;
     Urgent order,  expedited production could be arranged after negotiation.
     The specific delivery time depends on the items and the quantity of your
order.
Q5. Can you produce according to the samples?
A: Yes, free samples could be provided.
