High Quality Spherical Roller Bearing for Machine Tools 23224 Cck/W33

Name: High Quality Spherical Roller Bearing for Machine Tools 23224 Cck/W33
Brand: tool-buy.com
SKU: 831298695
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	US $ 2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Wuxi Giggs Power Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	23224 CCK/W33
Certificate:	Ios9001
Clearence:	C3
Tolerence:	P4
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

23224 CCK/W33

Dimensions
d		120	mm
D		215	mm
B		76	mm
d2	≈	141	mm
D1	≈	182	mm
b		8.3	mm
K		4.5	mm
r1,2	min.	2.1	mm
Tapered bore, taper 1:12
Abutment dimensions
Da	max.	203	mm
ra	max.	2	mm
Calculation data
Basic dynamic load rating	C	732	kN
Basic static load rating	C0	930	kN
Fatigue load limit	Pu	93	kN
Reference speed		2000	r/min
Limiting speed		2800	r/min
Calculation factor	e	0.35
Calculation factor	Y1	1.9
Calculation factor	Y2	2.9
Calculation factor	Y0	1.8
Mass
Mass bearing		11.5	kg

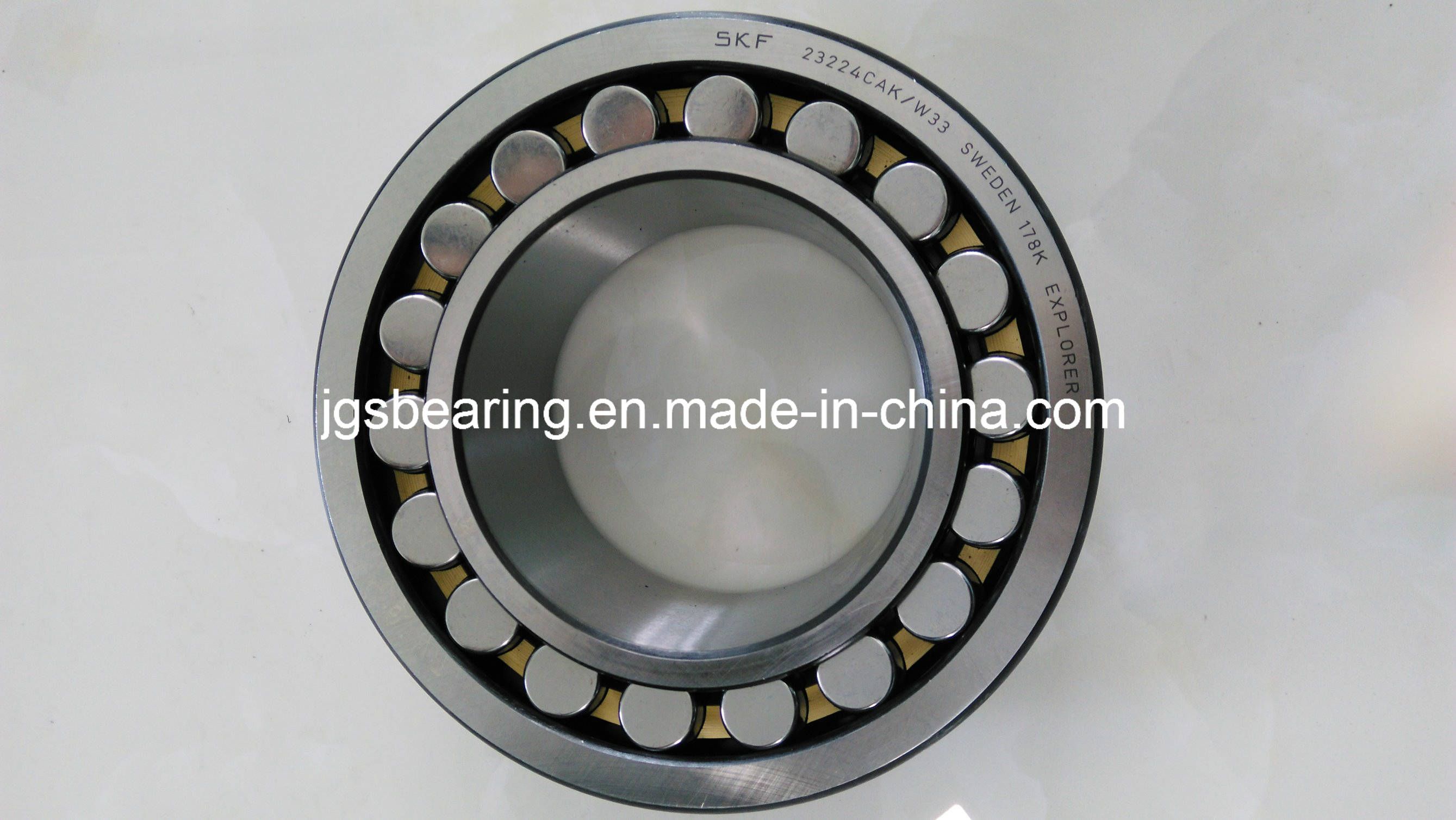

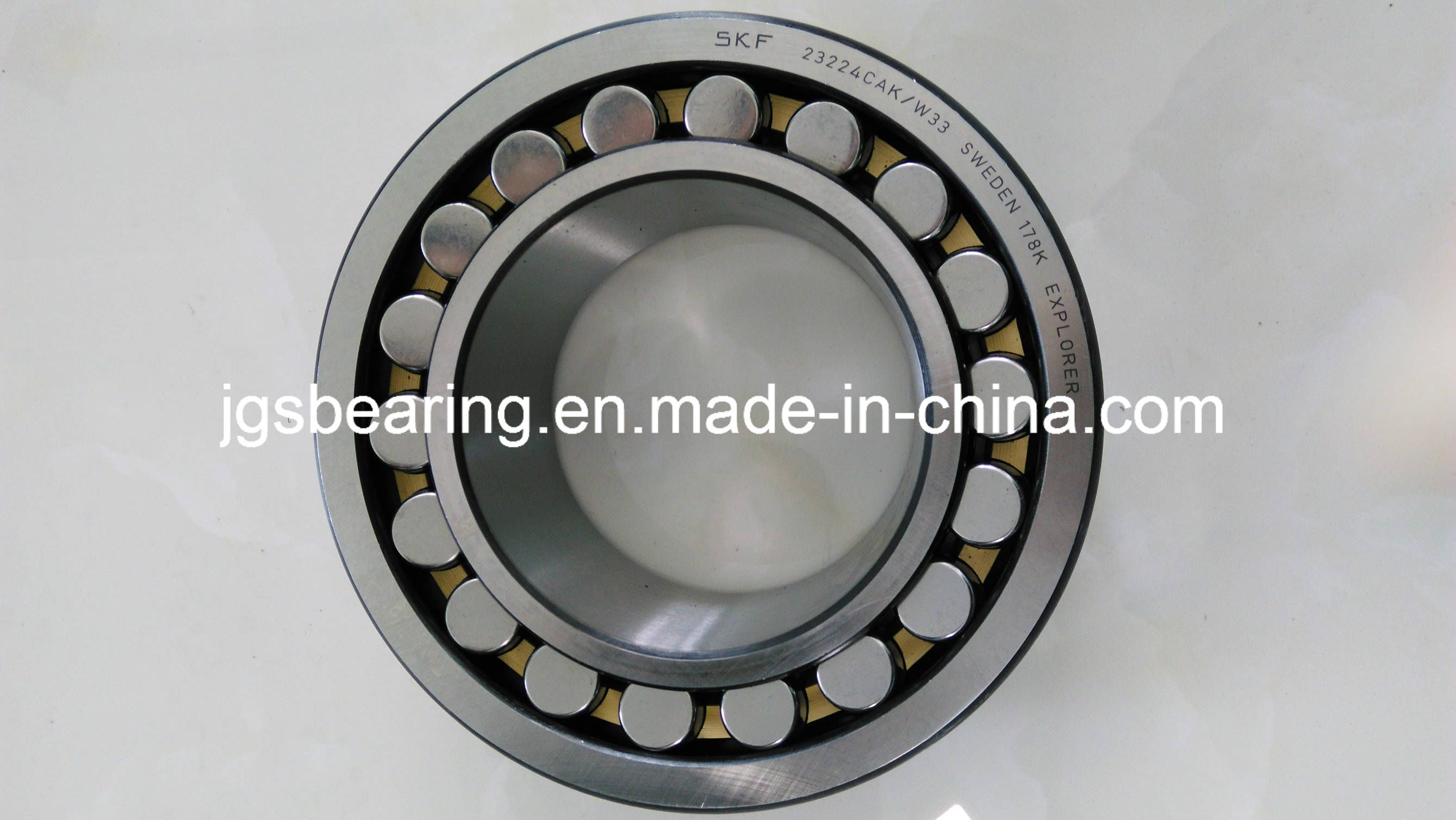

Product Picture:

Packing and Delivery:

1. Original packing: Box-Carton-Wooden Case
2. Delivery date: 3-7 days for stock order and 10-25 days for production
3. Delivery ways: Small weight by TNT/DHL/FEDEX and other competitive air express;
Big quantities by sea shipment

Reference Specification

Bearing No.	Boundary dimensions				Basic load ratings(kN)		Limiting speeds		Mass
	mm				Dynamic	Static	rpm		Kg
	d	D	B	r_{s min}	Cr	Cor	Grease	Oil	≈
23022KW33C3	110	170	45	2	282	455	1,800	2,800	3.58
23022W33C3	110	170	45	2	282	455	1,800	2,800	3.71
23024	120	180	46	2	296	495	1,700	2,600	4.05
23024K	120	180	46	2	296	495	1,700	2,600	3.9
23024KW33C3	120	180	46	2	296	495	1,700	2,600	3.9
23024W33C3	120	180	46	2	296	495	1,700	2,600	4.05
23026	130	200	52	2	375	620	1,500	2,300	5.9
23026K	130	200	52	2	375	620	1,500	2,300	5.69
23026KW33C3	130	200	52	2	375	620	1,500	2,300	5.69
23026W33C3	130	200	52	2	375	620	1,500	2,300	5.9
23028	140	210	53	2	405	690	1,400	2,200	6.35
23028K	140	210	53	2	405	690	1,400	2,200	6.12
23028KW33C3	140	210	53	2	405	690	1,400	2,200	6.12
23028W33C3	140	210	53	2	405	690	1,400	2,200	6.35
23030	150	225	56	2.1	445	775	1,300	2,000	7.73
23030K	150	225	56	2.1	445	775	1,300	2,000	7.45
23030KW33C3	150	225	56	2.1	445	775	1,300	2,000	7.45
23030W33C3	150	225	56	2.1	445	775	1,300	2,000	7.73
23032	160	240	60	2.1	505	885	1,200	1,900	9.42
23032K	160	240	60	2.1	505	885	1,200	1,900	9.09
23032KW33C3	160	240	60	2.1	505	885	1,200	1,900	9.09
23032W33C3	160	240	60	2.1	505	885	1,200	1,900	9.42
23034	170	260	67	2.1	630	1,080	1,100	1,800	12.7
23034K	170	260	67	2.1	630	1,080	1,100	1,800	12.3
23034KW33C3	170	260	67	2.1	630	1,080	1,100	1,800	12.3
23034W33C3	170	260	67	2.1	630	1,080	1,100	1,800	12.7
23036	180	280	74	2.1	740	1,290	1,100	1,700	16.7
23036K	180	280	74	2.1	740	1,290	1,100	1,700	16.1
23036KW33C3	180	280	74	2.1	740	1,290	1,100	1,700	16.1
23036W33C3	180	280	74	2.1	740	1,290	1,100	1,700	16.7
23038	190	290	75	2.1	755	1,350	1,000	1,600	17.7
23038K	190	290	75	2.1	755	1,350	1,000	1,600	17.1
23038KW33C3	190	290	75	2.1	755	1,350	1,000	1,600	17.1
23038W33C3	190	290	75	2.1	755	1,350	1,000	1,600	17.7
23040	200	310	82	2.1	915	1,620	960	1,500	22.7
23040K	200	310	82	2.1	915	1,620	960	1,500	21.9
23040KW33C3	200	310	82	2.1	915	1,620	960	1,500	21.9
23040W33C3	200	310	82	2.1	915	1,620	960	1,500	22.7
23044	220	340	90	3	1,060	1,920	870	1,300	29.9
23044K	220	340	90	3	1,060	1,920	870	1,300	28.8
23044KW33C3	220	340	90	3	1,060	1,920	870	1,300	28.8
23044W33C3	220	340	90	3	1,060	1,920	870	1,300	29.9
23048	240	360	92	3	1,130	2,140	790	1,200	33.4
23048K	240	360	92	3	1,130	2,140	790	1,200	32.2
23048KW33C3	240	360	92	3	1,130	2,140	790	1,200	32.2
23048W33C3	240	360	92	3	1,130	2,140	790	1,200	33.4
23052	260	400	104	4	1,420	2,620	720	1,100	48.5
23052K	260	400	104	4	1,420	2,620	720	1,100	46.8
23052KW33C3	260	400	104	4	1,420	2,620	720	1,100	46.8
23052W33C3	260	400	104	4	1,420	2,620	720	1,100	48.5
23056	280	420	106	4	1,510	2,920	660	1,000	52.4
23056K	280	420	106	4	1,510	2,920	660	1,000	50.6
23056KW33C3	280	420	106	4	1,510	2,920	660	1,000	50.6
23056W33C3	280	420	106	4	1,510	2,920	660	1,000	52.4
23060	300	460	118	4	1,890	3,550	610	940	72.4
23060K	300	460	118	4	1,890	3,550	610	940	70.2
23060KW33C3	300	460	118	4	1,890	3,550	610	940	70.2
23060W33C3	300	460	118	4	1,890	3,550	610	940	72.4

23120	100	165	52	2	310	470	1,700	2,600	4.3
23120K	100	165	52	2	310	470	1,700	2,600	4.16
23120KW33C3	100	165	52	2	310	470	1,700	2,600	4.16
23120W33C3	100	165	52	2	310	470	1,700	2,600	4.3
23122	110	180	56	2	370	580	1,500	2,400	5.4
23122K	110	180	56	2	370	580	1,500	2,400	5.22
23122KW33C3	110	180	56	2	370	580	1,500	2,400	5.22
23122W33C3	110	180	56	2	370	580	1,500	2,400	5.4
23124	120	200	62	2	455	705	1,400	2,100	7.7
23124K	120	200	62	2	455	705	1,400	2,100	7.46
23124KW33C3	120	200	62	2	455	705	1,400	2,100	7.46
23124W33C3	120	200	62	2	455	705	1,400	2,100	7.7
23126	130	210	64	2	495	795	1,300	2,000	8.47
23126K	130	210	64	2	495	795	1,300	2,000	8.2
23126KW33C3	130	210	64	2	495	795	1,300	2,000	8.2
23126W33C3	130	210	64	2	495	795	1,300	2,000	8.47
23128	140	225	68	2.1	540	895	1,200	1,800	10.2
23128K	140	225	68	2.1	540	895	1,200	1,800	9.86
23128KW33C3	140	225	68	2.1	540	895	1,200	1,800	9.86
23128W33C3	140	225	68	2.1	540	895	1,200	1,800	10.2
23130	150	250	80	2.1	730	1,190	1,100	1,700	15.6
23130K	150	250	80	2.1	730	1,190	1,100	1,700	15.1
23130KW33C3	150	250	80	2.1	730	1,190	1,100	1,700	15.1
23130W33C3	150	250	80	2.1	730	1,190	1,100	1,700	15.6
23132	160	270	86	2.1	840	1,370	1,000	1,600	19.8
23132K	160	270	86	2.1	840	1,370	1,000	1,600	19.2
23132KW33C3	160	270	86	2.1	840	1,370	1,000	1,600	19.2
23132W33C3	160	270	86	2.1	840	1,370	1,000	1,600	19.8
23134	170	280	88	2.1	885	1,490	960	1,500	21.5
23134K	170	280	88	2.1	885	1,490	960	1,500	20.8
23134KW33C3	170	280	88	2.1	885	1,490	960	1,500	20.8
23134W33C3	170	280	88	2.1	885	1,490	960	1,500	21.5
23136	180	300	96	3	1,030	1,730	900	1,400	25.1
23136K	180	300	96	3	1,030	1,730	900	1,400	24.2
23136KW33C3	180	300	96	3	1,030	1,730	900	1,400	24.2
23136W33C3	180	300	96	3	1,030	1,730	900	1,400	25.1
23138	190	320	104	3	1,190	2,020	850	1,300	35.3
23138K	190	320	104	3	1,190	2,020	850	1,300	34.2
23138KW33C3	190	320	104	3	1,190	2,020	850	1,300	34.2
23138W33C3	190	320	104	3	1,190	2,020	850	1,300	35.3
23140	200	340	112	3	1,350	2,270	800	1,200	43.3
23140K	200	340	112	3	1,350	2,270	800	1,200	42
23140KW33C3	200	340	112	3	1,350	2,270	800	1,200	42
23140W33C3	200	340	112	3	1,350	2,270	800	1,200	43.3
23144	220	370	120	4	1,540	2,670	720	1,100	53.3
23144K	220	370	120	4	1,540	2,670	720	1,100	51.6
23144KW33C3	220	370	120	4	1,540	2,670	720	1,100	51.6
23144W33C3	220	370	120	4	1,540	2,670	720	1,100	53.3
23148	240	400	128	4	1,730	3,050	650	1,000	65.8
23148K	240	400	128	4	1,730	3,050	650	1,000	63.8
23148KW33C3	240	400	128	4	1,730	3,050	650	1,000	63.8
23148W33C3	240	400	128	4	1,730	3,050	650	1,000	65.8
23152	260	440	144	4	2,140	3,850	600	920	91.4
23152K	260	440	144	4	2,140	3,850	600	920	88.6
23152KW33C3	260	440	144	4	2,140	3,850	600	920	88.6
23152W33C3	260	440	144	4	2,140	3,850	600	920	91.4
23156	280	460	146	5	2,300	4,250	550	850	97.7
23156K	280	460	146	5	2,300	4,250	550	850	94.6
23156KW33C3	280	460	146	5	2,300	4,250	550	850	94.6
23156W33C3	280	460	146	5	2,300	4,250	550	850	97.7
23160	300	500	160	5	2,750	5,000	510	780	131
23160K	300	500	160	5	2,750	5,000	510	780	127
23160KW33C3	300	500	160	5	2,750	5,000	510	780	127
23160W33C3	300	500	160	5	2,750	5,000	510	780	131

23218	90	160	52.4	2	315	455	1,800	2,800	4.45
23218K	90	160	52.4	2	315	455	1,800	2,800	4.32
23218KW33C3	90	160	52.4	2	315	455	1,800	2,800	4.32
23218W33C3	90	160	52.4	2	315	455	1,800	2,800	4.45
23220	100	180	60.3	2.1	405	580	1,600	2,500	6.47
23220K	100	180	60.3	2.1	405	580	1,600	2,500	6.28
23220KW33C3	100	180	60.3	2.1	405	580	1,600	2,500	6.28
23220W33C3	100	180	60.3	2.1	405	580	1,600	2,500	6.47
23222	110	200	69.8	2.1	515	760	1,400	2,200	9.71
23222K	110	200	69.8	2.1	515	760	1,400	2,200	9.43
23222KW33C3	110	200	69.8	2.1	515	760	1,400	2,200	9.43
23222W33C3	110	200	69.8	2.1	515	760	1,400	2,200	9.71
23224	120	215	76	2.1	585	880	1,300	2,000	12.1
23224K	120	215	76	2.1	585	880	1,300	2,000	11.7
23224KW33C3	120	215	76	2.1	585	880	1,300	2,000	11.7
23224W33C3	120	215	76	2.1	585	880	1,300	2,000	12.1
23226	130	230	80	3	685	1,060	1,200	1,900	14.3
23226K	130	230	80	3	685	1,060	1,200	1,900	13.9
23226KW33C3	130	230	80	3	685	1,060	1,200	1,900	13.9
23226W33C3	130	230	80	3	685	1,060	1,200	1,900	14.3
23228	140	250	88	3	805	1,270	1,100	1,700	18.8
23228K	140	250	88	3	805	1,270	1,100	1,700	18.2
23228KW33C3	140	250	88	3	805	1,270	1,100	1,700	18.2
23228W33C3	140	250	88	3	805	1,270	1,100	1,700	18.8
23230	150	270	96	3	935	1,460	1,000	1,600	24.1
23230K	150	270	96	3	935	1,460	1,000	1,600	23.4
23230KW33C3	150	270	96	3	935	1,460	1,000	1,600	23.4
23230W33C3	150	270	96	3	935	1,460	1,000	1,600	24.1
23232	160	290	104	3	1,050	1,660	960	1,500	30
23232K	160	290	104	3	1,050	1,660	960	1,500	29.1
23232KW33C3	160	290	104	3	1,050	1,660	960	1,500	29.1
23232W33C3	160	290	104	3	1,050	1,660	960	1,500	30
23234	170	310	110	4	1,180	1,960	910	1,400	36.8
23234K	170	310	110	4	1,180	1,960	910	1,400	35.7
23234KW33C3	170	310	110	4	1,180	1,960	910	1,400	35.7
23234W33C3	170	310	110	4	1,180	1,960	910	1,400	36.8
23236	180	320	112	4	1,230	2,000	850	1,300	39
23236K	180	320	112	4	1,230	2,000	850	1,300	37.8
23236KW33C3	180	320	112	4	1,230	2,000	850	1,300	37.8
23236W33C3	180	320	112	4	1,230	2,000	850	1,300	39
23238	190	340	120	4	1,400	2,330	790	1,200	47.6
23238K	190	340	120	4	1,400	2,330	790	1,200	46.2
23238KW33C3	190	340	120	4	1,400	2,330	790	1,200	46.2
23238W33C3	190	340	120	4	1,400	2,330	790	1,200	47.6
23240	200	360	128	4	1,610	2,640	750	1,200	57.2
23240K	200	360	128	4	1,610	2,640	750	1,200	55.5
23240KW33C3	200	360	128	4	1,610	2,640	750	1,200	55.5
23240W33C3	200	360	128	4	1,610	2,640	750	1,200	57.2
23244	220	400	144	4	2,010	3,350	670	1,000	80
23244K	220	400	144	4	2,010	3,350	670	1,000	77.6
23244KW33C3	220	400	144	4	2,010	3,350	670	1,000	77.6
23244W33C3	220	400	144	4	2,010	3,350	670	1,000	80
23248	240	440	160	4	2,430	4,100	610	940	108
23248K	240	440	160	4	2,430	4,100	610	940	105
23248KW33C3	240	440	160	4	2,430	4,100	610	940	105
23248W33C3	240	440	160	4	2,430	4,100	610	940	108
23252	260	480	174	5	2,760	4,700	560	860	141
23252K	260	480	174	5	2,760	4,700	560	860	137
23252KW33C3	260	480	174	5	2,760	4,700	560	860	137
23252W33C3	260	480	174	5	2,760	4,700	560	860	141
23256	280	500	176	5	2,930	5,150	510	790	150
23256K	280	500	176	5	2,930	5,150	510	790	145
23256KW33C3	280	500	176	5	2,930	5,150	510	790	145
23256W33C3	280	500	176	5	2,930	5,150	510	790	150
23260	300	540	192	5	3,450	6,000	470	730	193
23260K	300	540	192	5	3,450	6,000	470	730	187
23260KW33C3	300	540	192	5	3,450	6,000	470	730	187
23260W33C3	300	540	192	5	3,450	6,000	470	730	193

23936	180	250	52	2	440	835	1,200	1,800	8.21
23936K	180	250	52	2	440	835	1,200	1,800	7.95
23936KW33C3	180	250	52	2	440	835	1,200	1,800	7.95
23936W33C3	180	250	52	2	440	835	1,200	1,800	8.21
23938	190	260	52	2	460	890	1,100	1,700	8.6
23938K	190	260	52	2	460	890	1,100	1,700	8.34
23938KW33C3	190	260	52	2	460	890	1,100	1,700	8.34
23938W33C3	190	260	52	2	460	890	1,100	1,700	8.6
23940	200	280	60	2.1	545	1,100	1,000	1,600	12.1
23940K	200	280	60	2.1	545	1,100	1,000	1,600	11.7
23940KW33C3	200	280	60	2.1	545	1,100	1,000	1,600	11.7
23940W33C3	200	280	60	2.1	545	1,100	1,000	1,600	12.1
23944	220	300	60	2.1	565	1,170	930	1,400	13.1
23944K	220	300	60	2.1	565	1,170	930	1,400	12.7
23944KW33C3	220	300	60	2.1	565	1,170	930	1,400	12.7
23944W33C3	220	300	60	2.1	565	1,170	930	1,400	13.1
23948	240	320	60	2.1	565	1,190	840	1,300	14
23948K	240	320	60	2.1	565	1,190	840	1,300	13.6
23948KW33C3	240	320	60	2.1	565	1,190	840	1,300	13.6
23948W33C3	240	320	60	2.1	565	1,190	840	1,300	14
23952	260	360	75	2.1	760	1,580	770	1,200	24
23952K	260	360	75	2.1	760	1,580	770	1,200	23.3
23952KW33C3	260	360	75	2.1	760	1,580	770	1,200	23.3
23952W33C3	260	360	75	2.1	760	1,580	770	1,200	24
23956	280	380	75	2.1	830	1,750	710	1,100	26.4
23956K	280	380	75	2.1	830	1,750	710	1,100	25.6
23956KW33C3	280	380	75	2.1	830	1,750	710	1,100	25.6
23956W33C3	280	380	75	2.1	830	1,750	710	1,100	26.4
23960	300	420	90	3	1,110	2,320	650	1,000	40
23960K	300	420	90	3	1,110	2,320	650	1,000	38.7
23960KW33C3	300	420	90	3	1,110	2,320	650	1,000	38.7
23960W33C3	300	420	90	3	1,110	2,320	650	1,000	40

Company Information

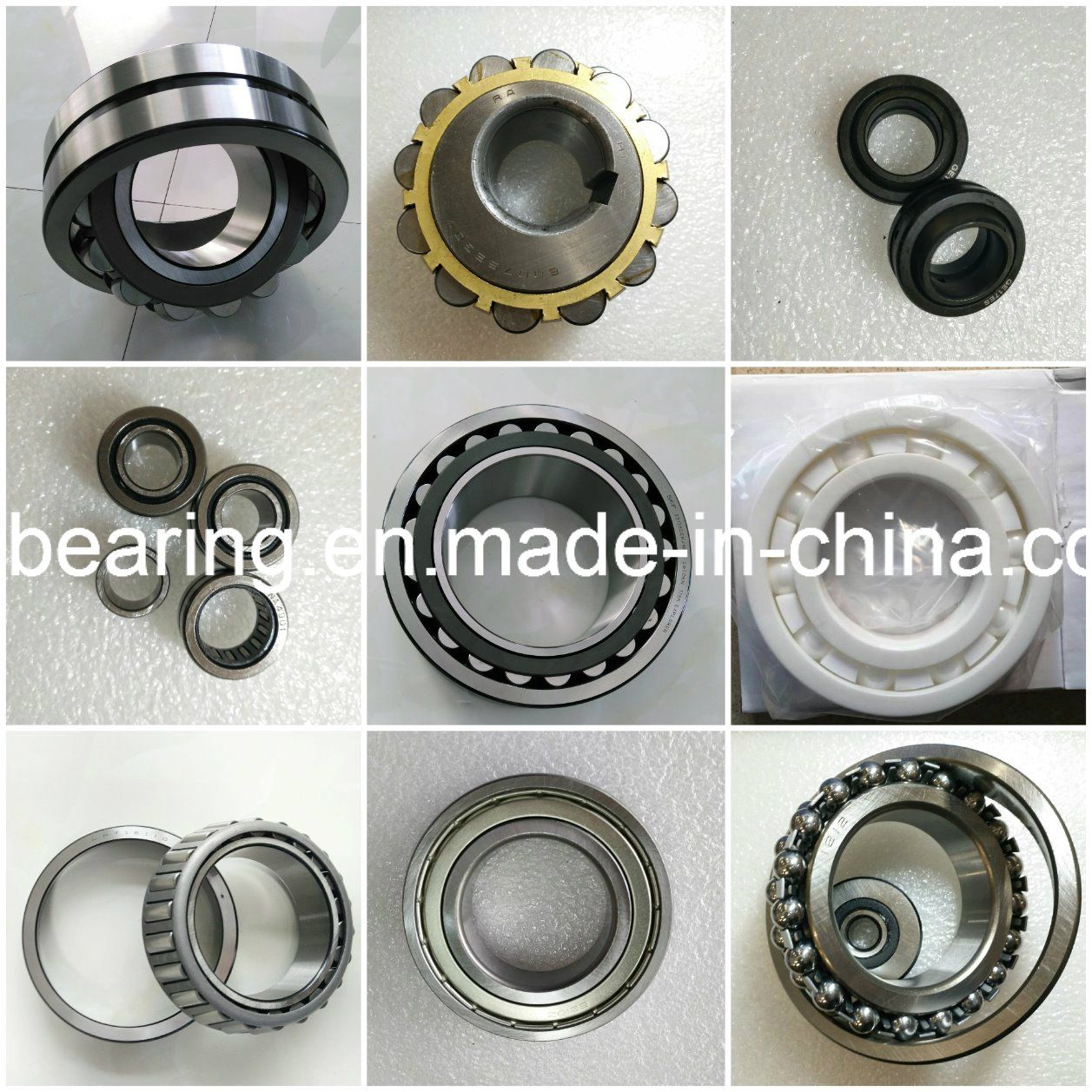

We are a professional manufacturer and trade of ball bearings and roller bearings, including deep groove ball bearing, self-aligning bearing, cylindrical roller bearing, tapered roller bearings etc, with our good team work and hard working of skillful staffs and our professional engineers, we got very good reputation in the world market, especially in African American and European countries.  We are able to produce and supply bearings at mush competitive prices as well satisfied quality.
Awaiting your inquiry!!!

Contact Information

Tel:+86 18861856886

Website:www.inpro-industrial.com
              http://inpro-bearing.en.made-in-china.com/
              http://jgsbearing.en.made-in-china.com/

We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
