Prod Model: |
chain link fence |
Model Name: |
Chain Link Fence |
Wire Diameter: |
2.0mm~4.8mm |
Mesh Size: |
40mm~75mm |
Finish 1: |
Galvanized + PVC Coated |
Finish 2: |
Hot DIP Galvanized |
Line Post: |
60mm, 76mm |
Straining Post: |
60mm, 76mm |
Rail: |
48mm |
Thickness Of Post: |
1.5mm~5.2mm |
Extension Crank: |
Single, Double |
Material: |
PVC Coated Steel Wire |
Application: |
Construction Wire Mesh |
Hole Shape: |
Diamond |
Weave Technique: |
Plain Weave |
Surface Treatment: |
PVC Coated |
Product Description

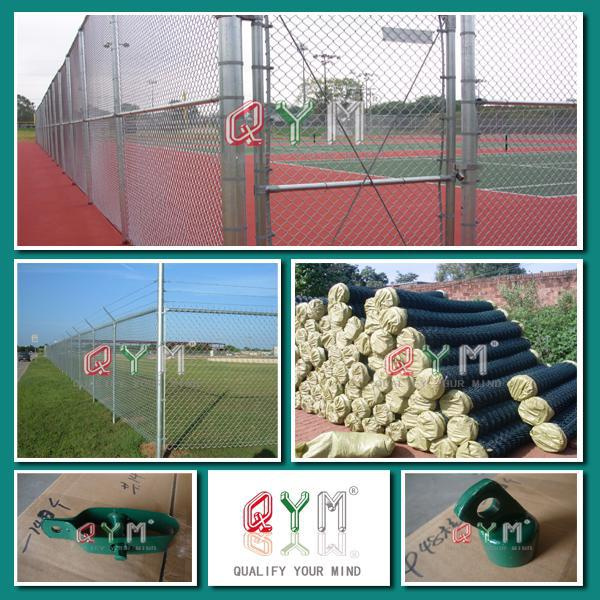

Home garden hot dipped galvanized chain link fence/ pvc coated chain link fence
galvanized chain link fence:GBW or GAW: galvanized before weaving (GBW) or galvanized after weaving (GAW). The vast majority on the market today is galvanized after weaving.
pvc coated chain link fence:In this process, iron wire is first coated with zinc and then covered with a vinyl polymer coating that helps prevent rust and adds color.
chain link fencing packing:
the rolls ended with jute or plastic bags 2,pallet 3 ,as you required
hole size:25mm*25mm___to__100mm*100mm
wire diameter :1.2mm to 5.0mm

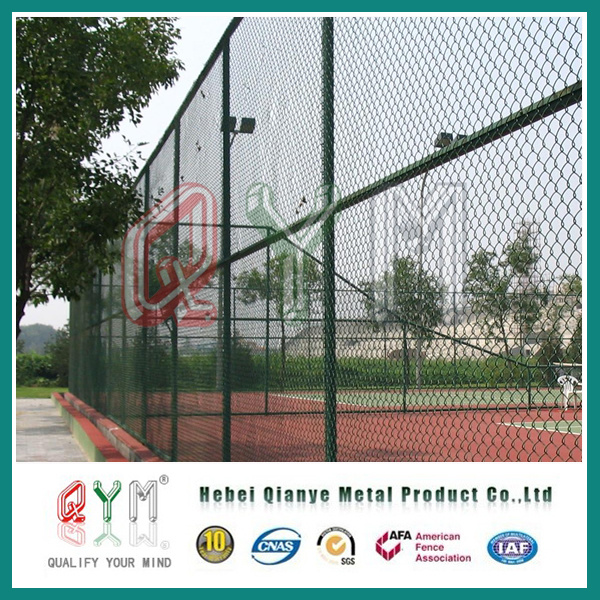

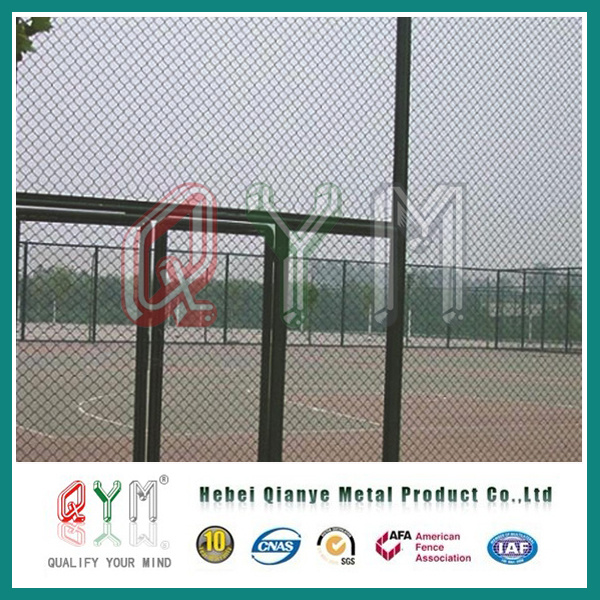

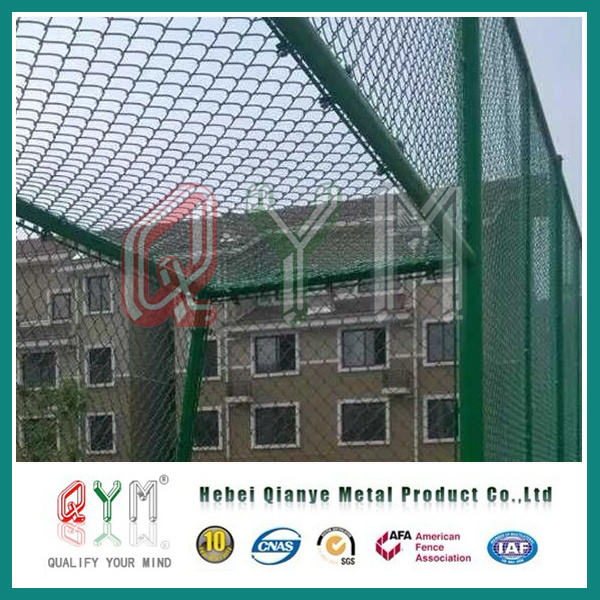

uses:mainly used in leisure sportsfield,basketball field,park ,garden,green field ,parking field ,waterways,residence safeguard ect.
specification of diamond chain link wire :
opening | 1″ | 1.5″ | 2″ | 2-1/4″ | 2-3/8″ | 2-1/2″ | 2-5/8″ | 3″ | 4″ |
25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm |
wire diameter | 18# -13# | 16# -8# | 18# -7# |
1.2mm-2.4mm | 1.6mm-4.2mm | 2.0mm-5.0mm |
length of the roll | 0.50m-100m |
width of the roll | 0.5m-5.0m |
material and specification can be customized |
Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products. Its registered capital is RMB50, 100, 000(about USD7, 400, 000), covering a land area of 30, 000 square meters.
Since its foundation in 2002, this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things. We making our own Brand QYM and has been exporting the QYM-Welded Mesh Fence, QYM-Airport Fence, QYM-High Security Fence, QYM-Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe, America, Africa, Middle East and Australia. In 2008, our export of 120 km metal fence to America made us an apparent leader in the local fence industry; In 2009, we successfully took and completed the orders from UN which perfectly proved our good reputation and our strong production capability.
Through years of production experience, we deeply understand that the qualified product is the factory basis for survival and development. In order to ensure consistency of product quality, our company introduced a fully automatic panel fence welding equipment, automatic electrostatic spraying production line, as well as advanced welding machines, cutting machines, punching machines and bending machines. We have first-class product design department responsible for new product reserch, first-class quality control department responsible for timely monitoring of product at each production process and first-class one-to-one sales staff to provide you with efficient services.
