| Prod Model: |
wire mesh |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technique: |
Welded Mesh |
| Finish Of Surface: |
Hot Dipped Galvanized, Electro Galvanized, PVC |
| Shipment: |
Fast |
| Wire Diamete: |
1.65-2.5mm |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Mesh Size: |
3/4 Inch |
| Surface Treatment: |
Galvanized |
| Weave Technique: |
Satin Weave |
| Application: |
Filter |
| Type: |
Welded Mesh |
| Certification: |
BV |
| Condition: |
New |
| Color: |
Bright,Green,Black,Grey.. |
Product Description

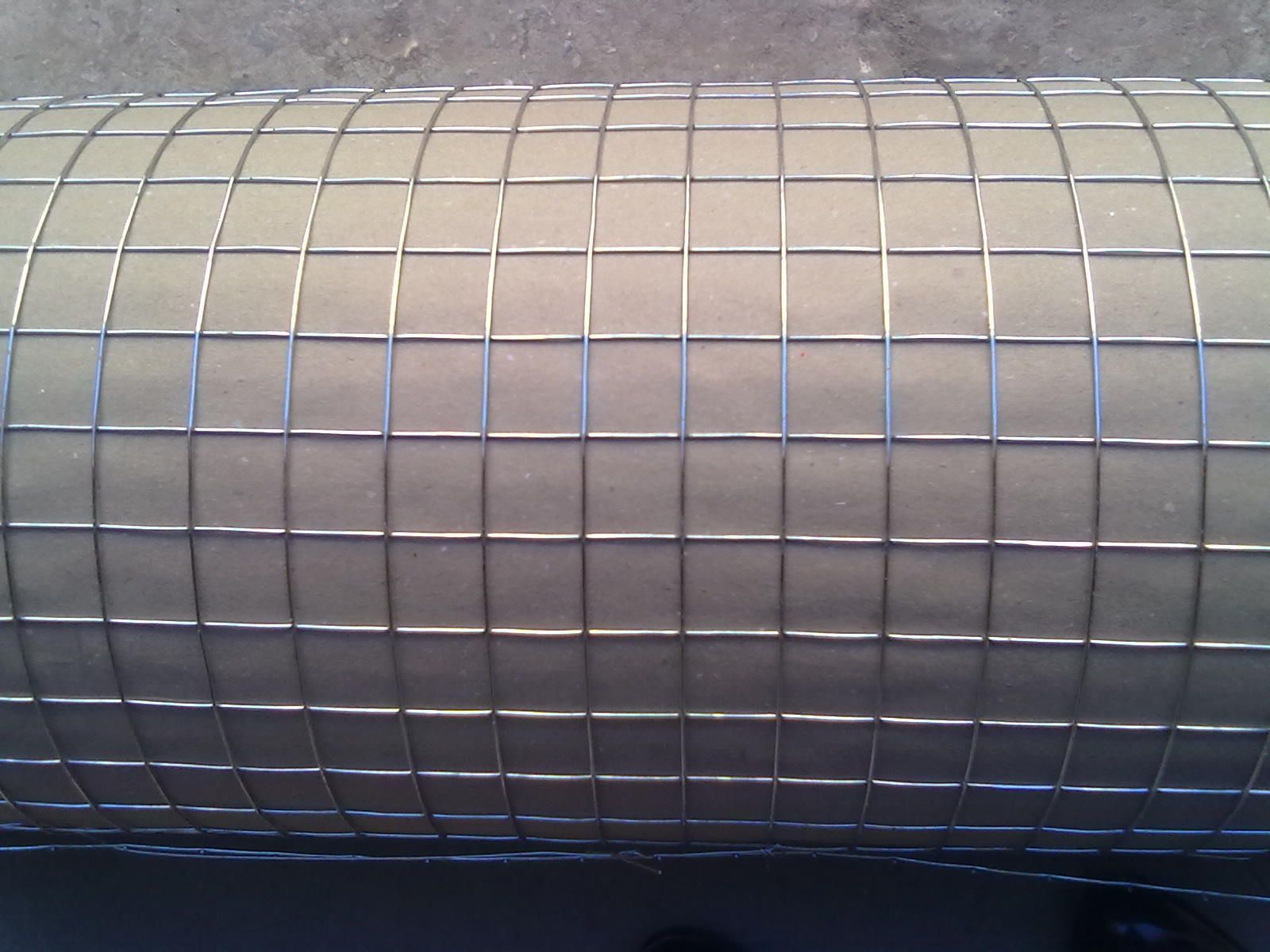

Welded after galvanized wire mesh
Welded wire mesh
1.10 years factory
2. Can customized
3. ISO certificate
4. Deliver on time
Welded wire mesh. Galvanized welded wire mesh
Product Description
1. Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
2. Use:
Welded wire mesh is used in industry and agriculture building, transportation and
Mining for all such purposes as poultry houses, egg baskets, runway enclosures,
Draining rack, fruit drying screen, fence
3. Features of welded wire mesh:
A> made of high quality iron wire.
B> various configurations and sizes.
C> used for the loose strata to avoid falling rocks.
D> suitable for shotcrete applications.
E> range of sizes to suit roadway width and bolting patterns.
F> easy installation
G> available in black or hot dip galvanized
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request |
| Galvanized Welded Wire Mesh Fence |
| Opening | Wire Diameter(BWG) |
| In inch | In metric unit(mm) |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
