| Prod Model: |
SL72 SL82 SL92 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Certification: |
BV |
| Application: |
Construction Wire Mesh |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Condition: |
New |
| Color: |
Silver |
| Type: |
Reinforcing Mesh |
| Mesh Size: |
200mm*200mm |
| Weave Technique: |
Welding |
Product Description
Anping County Puersen Hardware Wire Mesh Products Co.,Ltd, the high quality reinforcing mesh productions manufacturer. And one of the most professional supplier in China.

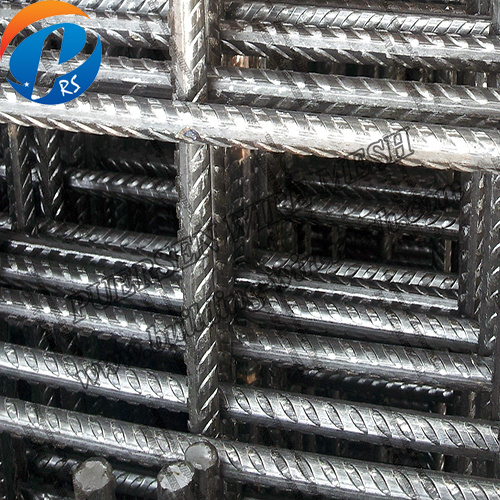

Concrete Reinforcing Mesh also known as steel reinforcing mesh,welded wire fabric,ribbed steel bars welded mesh and so on. Be made from cold reduced Wire or cold rolled ribbed bars(CRB550) , It is in the same or different diameters of the vertical and horizontal steel bars , and has a rectangular or square apertures and is produced in flat sheets.
It is used to provide tensile strength and crack control to structural concrete elements.
advantages:
(1)to save more than 33% of steel, reducing costs 10% -30%;
(2) increase the speed of construction can shorten the duration of about 80%;
(3)to improve the quality of engineering structures, and concrete bonding anchoring reliable, smooth reinforcement bond strength equal to three times more, and the overall good, deviation is small, anti - cracking performance above 75%.
application:
Retaining and shear walls
Beams and columns
Concrete paving overlays
Precast concrete elements
Suspended floor slabs
Swimming pool and gunite construction
Square Mesh AS/NZS 4671- Class L
| Product Code | Std Unit | Longitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) |
| SL52 | sheet | 10×4.77@200+4×4@100 | 30×4.77@200 | 21 | 6×2.4 |
| SL62 | sheet | 10×6@200+4×4.77@100 | 30×6@200 | 33 | 6×2.4 |
| SL72 | sheet | 10×6.75@200+4×4@100 | 30×6.75@200 | 41 | 6×2.4 |
| SL81 | sheet | 25×7.6@100 | 60×7.6@200 | 105 | 6×2.4 |
| SL82 | sheet | 10×7.6@200+4×5.37@100 | 30×7.6@200 | 52 | 6×2.4 |
| SL92 | sheet | 10×8.6@200+4×6@100 | 30×8.6@200 | 66 | 6×2.4 |
| SL102 | sheet | 10×9.5@200+4×6.75@100 | 30×9.5@200 | 80 | 6×2.4 |
| ×Diameter (mm) × Spacing (mm) |
Rectangular Mesh AS/NZS 4671 - Class L
| Product Code | Std Unit | Longitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) |
| RL718 | sheet | 25×6.75@100 | 30×7.6@200 | 67 | 6×2.4 |
| RL818 | sheet | 25×7.6@100 | 30×7.6@200 | 79 | 6×2.4 |
| RL918 | sheet | 25×8.6@100 | 30×7.6@200 | 93 | 6×2.4 |
| RL1018 | sheet | 25×9.5@100 | 30×7.6@200 | 109 | 6×2.4 |
| RL1118 | sheet | 25×10.7@100 | 30×7.6@200 | 130 | 6×2.4 |
| RL1218 | sheet | 25×11.9@100 | 30×7.6@200 | 157 | 6×2.4
|
| wire diameter | Longitudinal wire pitch | Cross wire potch | Mesh length | Mesh width |
| ø 4 - ø 12mm | 75-300mm | 40-300mm | 2m--12m | 1m--3.3m |
Anping County Puersen Hardware Wire Mesh Products Co., Ltd. Which located in the native land of wire mesh, wire mesh market of great wire mesh world, Anping County, Hebei, China, is an exporter and manufacturer of all kinds of wire mesh. Through years of development, the company has grown into an all-round enterprise, integrating scientific research, production and management together.
Our main products are Cold Rolled Steel Bar, Reinforcing Mesh, Hard-drawn, Twisted steel, Stainless steel wire mesh, welded wire mesh, Chain link Fence, Perforated sheet, Galvanized wire, Razor wire, Barbed Iron wire, PVC coated wire, wire mesh fence and so on.
We adhere to the devepopment conceptions of "Profession, Honest and Survival depend on the quality", and insist on constant innovation, and innovation with the time. In order to return the support and help of new and old customers, we' Ll adhere to our words, and sincerely cooperate with all walks life friends depend on good service and mutual benefit so as to create a better tomorrow.
