| Width: |
0.5m-2.5m |
| Technique: |
Wire Mesh |
| Material: |
Iron Wire |
| Hole Shape: |
Square |
| Mesh Size: |
1 Inch |
| Surface Treatment: |
Galvanized |
| Weave Technique: |
Plain Weave |
| Application: |
Filter |
| Color: |
White |
| Type: |
Wire Mesh |
| Certification: |
SGS |
| Condition: |
Used |
Product Description
Hot dipped galvanized bird& pigs Welded Wire Mesh
Specifications
electro welded mesh
1>Wire dia:0.6-4mm
2>Mesh:1/4"-4"
3>Free for sample
4>Factory In Anping
electro welded mesh
Materials: Gal. iron wire, stainless steel wire, PVC coated wire
Patterns: Welded before weaving, after weaving, galvanized before weaving and after weaving
Characters: strong welded points and bright luster .The mesh doesn't come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anti-corrosive and anti-rust .
Usage: They are widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage, egg basket, foodstuffs basket, etc.
Specification List of Welded Wire Mesh |
Opening |
Wire Diameter |
In inch |
In metric unit(mm) |
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
|

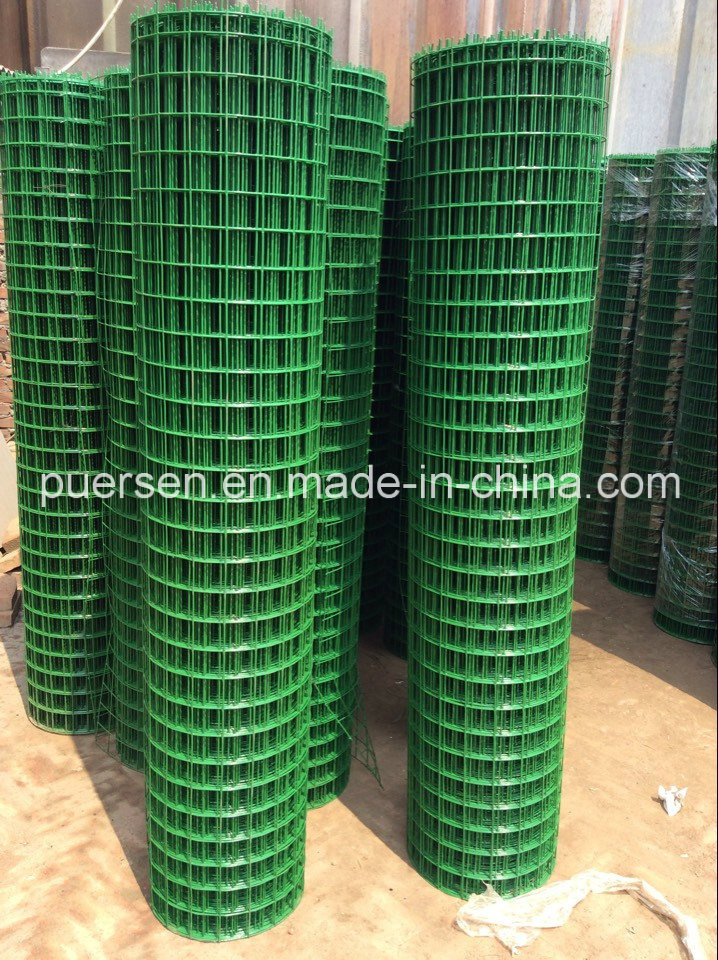

PVC Coated Welded Mesh |
Opening |
Wire Diameter |
In inch |
In metric unit(mm) |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
|
Anping County Puersen Hardware Wire Mesh Products Co., Ltd. Which located in the native land of wire mesh, wire mesh market of great wire mesh world, Anping County, Hebei, China, is an exporter and manufacturer of all kinds of wire mesh. Through years of development, the company has grown into an all-round enterprise, integrating scientific research, production and management together.
Our main products are Cold Rolled Steel Bar, Reinforcing Mesh, Hard-drawn, Twisted steel, Stainless steel wire mesh, welded wire mesh, Chain link Fence, Perforated sheet, Galvanized wire, Razor wire, Barbed Iron wire, PVC coated wire, wire mesh fence and so on.
We adhere to the devepopment conceptions of "Profession, Honest and Survival depend on the quality", and insist on constant innovation, and innovation with the time. In order to return the support and help of new and old customers, we' Ll adhere to our words, and sincerely cooperate with all walks life friends depend on good service and mutual benefit so as to create a better tomorrow.
