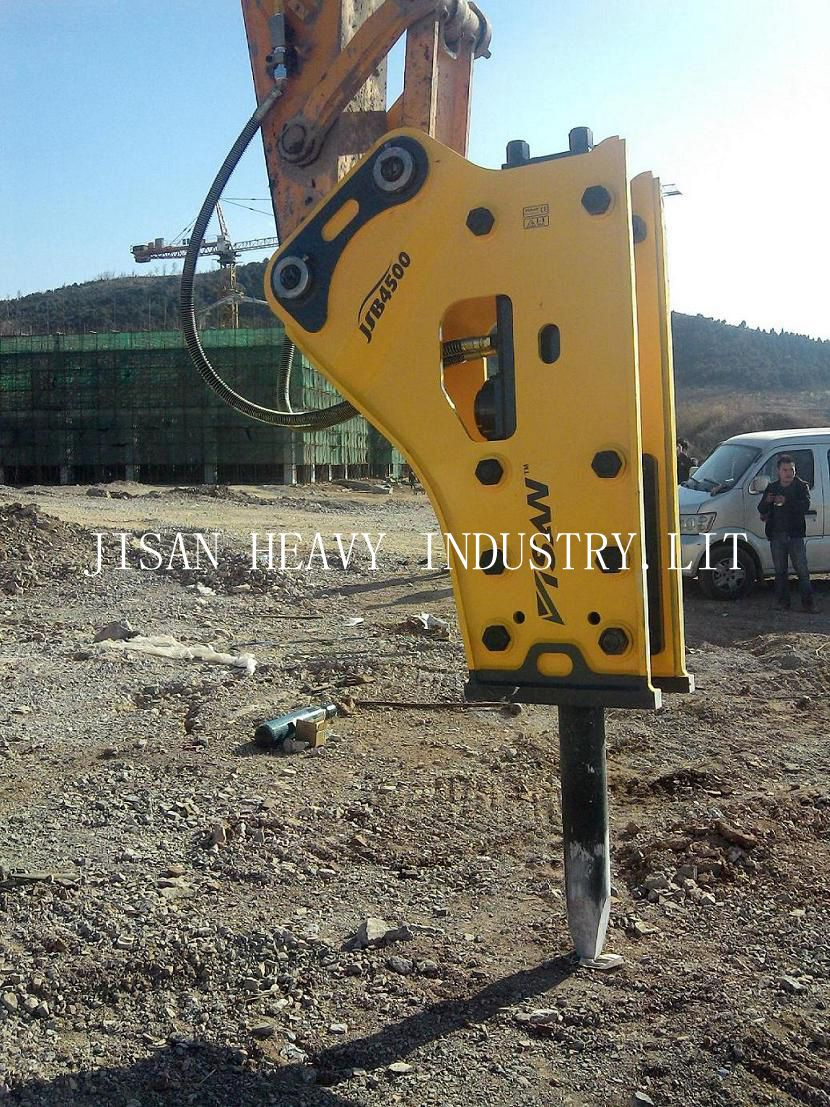

Hydraulic Breaker, Jack Hammer Suit for Excavator 40t with Two Chisel
| Price: |
US $ 6000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JSB4500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Jack Hammer for Excavator |
| Color: |
Yellow Red Optional |
| Suitable Excavator: |
Excavator in 40 Tons |
| Chisel Diameter: |
165mm |
| OEM: |
Available in Hydraulic Breaker |
| Impact Rate: |
500-800 Bpm |
| Fit: |
Bobcat |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
JSB4500 hydraulic breaker fits every excavator made today : DOOSAN,VOLVO,CAT,SNAY ,HYUNDAI R ,PC270, BOBCAT,CAT PALLET ,VOLVO ,KOBELCO ,KATO ,KUBOTA ,JCB,CASE ,GEHL ,ZOOMLION,YUCHAI,LG etc.
We have side type breaker ,top type breaker and box type breaker for your selection
The key parameters of hydraulic breaker| THE SPECIFICATIONS OF SIDE TYPE BREAKER |
| Item\Model | Unit | JSB100S | JSB200S | JSB300S | JSB400S | JSB600S | JSB800S | JSB900S |
| Suitable Excavator | ton | 0.8-2.0 | 1.2-3.0 | 2.0-4.0 | 3.0-5.5 | 4.0-7.0 | 7.0-14.0 | 11.0-16.0 |
| Chisel Diameter | mm | 40 | 45 | 53 | 68/70 | 75 | 85 | 100 |
| Total Weight | kg | 70 | 80 | 165 | 254 | 264 | 486 | 853 |
| Overall Length | mm | 920 | 1100 | 1190 | 1347 | 1528 | 1920 | 2260 |
| Operating Pressure | kg/cm2 | 90-120 | 90-120 | 90-120 | 110-140 | 110-160 | 120-170 | 150-170 |
| Required Oil Flow | L/min | 15-25 | 15-25 | 25-50 | 25-45 | 30-45 | 45-85 | 80-120 |
| Impact rate | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-800 | 400-700 | 400-700 |
| Hose Diameter | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 |
| THE SPECIFICATIONS OF SIDE TYPE BREAKER |
| Item\Model | Unit | JSB1200S | JSB1600S | JSB1900S | JSB2800S | JSB3500S | JSB4500S | JSB5000S |
| Suitable Excavator | ton | 15-18 | 19-26 | 19-26 | 27-38 | 28-40 | 36-45 | 40-55 |
| Chisel Diameter | mm | 120 | 1350 | 140 | 150 | 155 | 165 | 175 |
| Total Weight | kg | 1300 | 1679 | 1898 | 2455 | 2650 | 3753 | 3910 |
| Overall Length | mm | 2530 | 2695 | 2810 | 2895 | 3152 | 3310 | 3400 |
| Operating Pressure | kg/cm2 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 |
| Required Oil Flow | L/min | 90-120 | 120-160 | 130-170 | 150-190 | 170-220 | 200-300 | 210-290 |
| Impact rate | bpm | 400-700 | 400-700 | 400-600 | 350-500 | 250-400 | 250-350 | 200-350 |
| Hose Diameter | inch | 1 | 1 | 1 | 1 | 1.25 | 1.25 | 1.25 |
The advantage of JSB4500 hydraulic breaker :- Incorporate much leading edge technology in hydraulic rock breaker. (Lower oil consumption,leading heat treatment technical,lower noise,long lifespan etc)
- Suitable with a wide range of excavators.
- Versatile application including rock broken,paving road,building demolition etc.
-Top type breaker is applied to special operation that in large elevation angle.
- Box type breaker namely silent breaker, which is sued in special project that noise is limited.
- One-stop service.
- Easy use and easy maintenance.
- Accumulator is added to all breaker models, for less hydraulic vibration in
system.Application:Quarrying, road repair/paving, building demolition, mining and many more
The packaging and shipping
-the JSB4500 hydraulic breaker will be packed by plywood pallet or case
-will be dispatched within 5 working days after placing an order for rock breakerOur service-limited one year warranty of rock breaker
-one-stop serviceWelcome to our website: (http://jisanbr.net)JISAN HEAVY INDUSTARY
JISAN is modernized excavator attachment manufacturer. We are specialized in R&D, production and sale a wide range of excavator front-end attachments such as hydraulic grapple, hydraulic hammer,quick hitch, hydraulic grab bucket, hydraulic compactor, ripper,hydraulic breaker etc. As an original manufacturer, we are able to offer you an attractive price and high quality products.
Our products are widely used for earthmoving ,building demolition,mining,paving road,landscape planting,scrap,dispose waste,sub grade compaction etc.
JISAN HEAVY INDUSTARY is striding toward the world first-class enterprise. We are looking forward to establish closed business relation with you on the multiple benefits basic.
Why us?
-professional sales force
-intelligent technical team
-dealing direct with the owners
-competitive price
Hydraulic breaker, jack hammer suit for excavator 40T with two Chisel
Jisan Heavy Industry Ltd. Is a modernized manufacture enterprise specializing in independent R & D, manufacturing of all the excavators matching equipments. The company is equipped with Plasma Cutting Machine, Edge Milling Machine, Welding Machine, CNC Machine, Sand and Spraying Equipment, Flaw Detector those processing and testing equipment, to lay a solid foundation for ensuring the advancing production capacity.
The company mainly produces all kinds of excavator front-end equipments: Quick Coupler, Ripper, Hydraulic Compactor, Hydraulic Breaker, Hydraulic Wood Grapple, Stone Grapple and Hydraulic Shears. The company has JISAN and DLK two series brand, which can suit all domestic and foreign excavators, Komatsu, Hitachi, CAT, Kobelco, Doosan, Sany, Liugong, XCMG, etc. Meanwhile tailor special devices under different working conditions according to customer's operating environment.
The company has independent import and export rights. Products are sold all over the world. The company provides supporting and processing services for the domestic and foreign many excavator manufacturers to maximize meet customers' requirements.
The company has high-quality technical team, perfect quality control system and service network; Quality is the life of enterprise. Grasp the quality source, in terms of production, strictly control of the homemade quality and production process. The company implemented 6S management, and continually improve the quality awareness of staff, combined with the assessment mechanism to supervise and inspect, and carry out quality one-vote veto to ensure product durability, reliability, fundamentally set up the concepts of Quality First.
In the future, JISAN Company will make full use of rich experience accumulated and the core competitive advantage formed in the past few years. Through the implementation of Elaboration- Diversity-Globalization the three strategic goals, promote enterprise development; Make a professional excavator front-end equipment manufacturers to stride forward the world first-class enterprise.
