| Prod Model: |
SV19Yseries |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

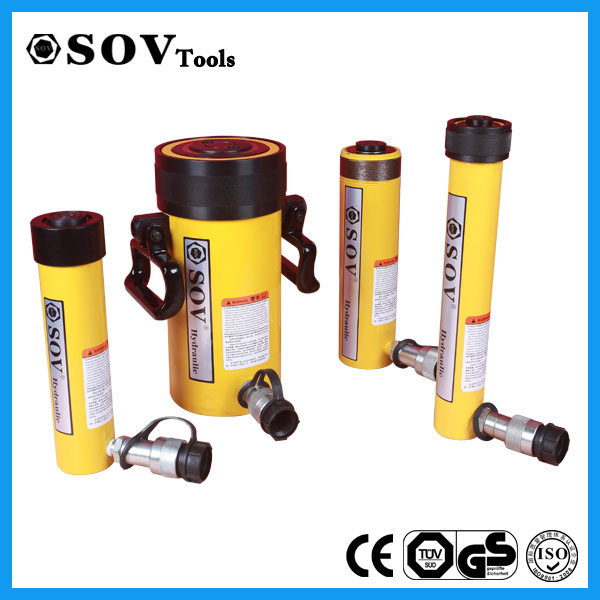

Hydraulic Cylinder at Hydraulic Tools Widely Used |
| Capacity: |
5-100ton |
| Stroke: |
26-260mm |
| Colsed Height: |
110-445mm |
| Cylinder O.D: |
38-177mm |
| Piston Diameter: |
25-105mm |
| Weight: |
1-72kg |
| Color: |
Black |
| Working Pressure: |
700 Bar |
| OEM: |
Yes |
| Type: |
Hydraulic Jack |
| Structure: |
Hydraulic Jack |
| Power Source: |
Hydraulic |
| Capacity (',Load): |
100ton |
Product Description
Features1. Collar threads, plunger threads and base mounting holes enable easy fixturing.
2. Single acting, spring return
3. NPT3/8 coupler for convenient use
4. Dust cap is installed to extend the life of the cylinder.
5. Special surface treatment for high corrosion resistance
6. The Guide Ring design absorbs eccentric loading without galling cylinder parts.
7. A cylinder of over 50T is equipped with a handle for convenient carrying.
Specification| Model | Capacity
(ton) | Stroke
(mm) | Closed Height
(mm) | Cylinder
O.D
(mm) | Piston
Diameter
(mm) | Working
Pressure
(Bar) | Weight
(kg) |
| SV19Y526 | 5 | 26 | 110 | 38 | 25 | 700 | 1 |
| SV19Y575 | 5 | 75 | 165 | 38 | 25 | 1.4 |
| SV19Y5128 | 5 | 128 | 210 | 38 | 25 | 1.8 |
| SV19Y5178 | 5 | 178 | 270 | 38 | 25 | 2.3 |
| SV19Y5235 | 5 | 235 | 320 | 38 | 25 | 2.6 |
| SV19Y1028 | 10 | 28 | 88 | 55 | 37 | 1.7 |
| SV19Y1054 | 10 | 54 | 129 | 55 | 37 | 2.3 |
| SV19Y10105 | 10 | 105 | 179 | 55 | 37 | 3 |
| SV19Y10155 | 10 | 155 | 250 | 55 | 37 | 4 |
| SV19Y10205 | 10 | 205 | 298 | 55 | 37 | 5.2 |
| SV19Y10255 | 10 | 255 | 350 | 55 | 37 | 5.6 |
| SV19Y10305 | 10 | 305 | 400 | 55 | 37 | 6.6 |
| SV19Y10355 | 10 | 355 | 450 | 55 | 37 | 8 |
| SV19Y1525 | 15 | 25 | 125 | 68 | 42 | 3.2 |
| SV19Y1550 | 15 | 50 | 148 | 68 | 42 | 4 |
| SV19Y15105 | 15 | 105 | 200 | 68 | 42 | 5 |
| SV19Y15155 | 15 | 155 | 270 | 68 | 42 | 6.7 |
| SV19Y15205 | 15 | 205 | 320 | 68 | 42 | 8 |
| SV19Y15255 | 15 | 255 | 370 | 68 | 42 | 9.5 |
| SV19Y15305 | 15 | 305 | 420 | 68 | 42 | 10.5 |
| SV19Y15358 | 15 | 358 | 474 | 68 | 42 | 11.8 |
| SV19Y2527 | 25 | 27 | 138 | 85 | 58 | 5.8 |
| SV19Y2555 | 25 | 55 | 165 | 85 | 58 | 6.5 |
| SV1Y25105 | 25 | 105 | 215 | 85 | 58 | 8 |
| SV19Y25158 | 25 | 158 | 270 | 85 | 58 | 10 |
| SV19Y25211 | 25 | 211 | 322 | 85 | 58 | 12 |
| SV19Y25260 | 25 | 260 | 375 | 85 | 58 | 14 |
| SV19Y25315 | 25 | 315 | 425 | 85 | 58 | 16.5 |
| SV19Y25365 | 25 | 365 | 475 | 85 | 58 | 17.5 |
| SV19Y5055 | 50 | 55 | 175 | 127 | 95 | 15.5 |
| SV19Y50105 | 50 | 105 | 225 | 127 | 95 | 19 |
| SV19Y50159 | 50 | 159 | 280 | 127 | 95 | 23 |
| SV19Y50338 | 50 | 338 | 460 | 127 | 95 | 37 |
| SV19Y75158 | 75 | 158 | 285 | 146 | 95 | 29 |
| SV19Y75335 | 75 | 335 | 490 | 146 | 95 | 58 |
| SV19Y100170 | 100 | 170 | 358 | 177 | 105 | 59 |
| SV19Y100260 | 100 | 260 | 445 | 177 | 105 | 72 |

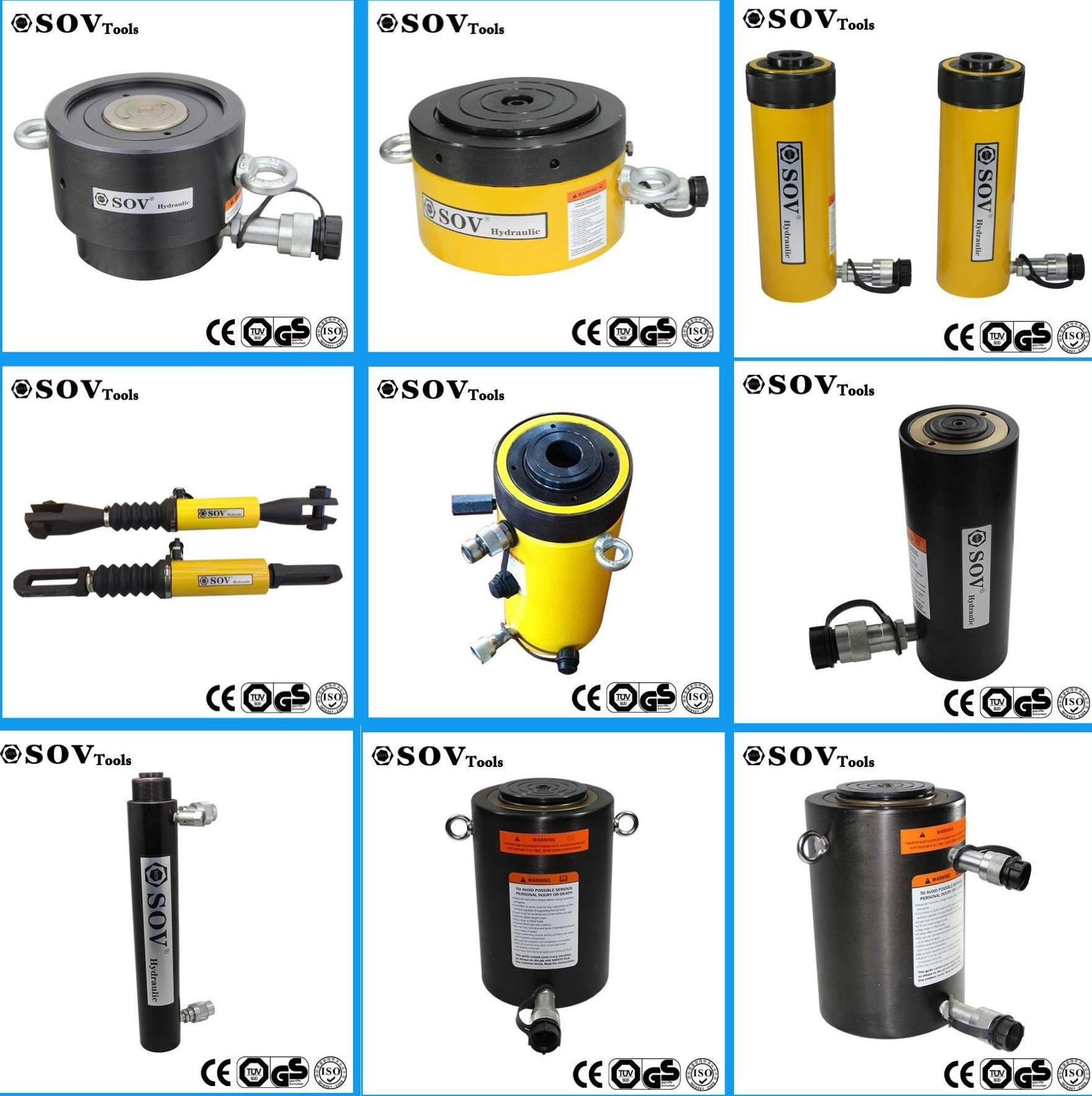

SOV offers the following types of hydraulic cylinder:RC-Series, Single-Acting Cylinders
CLP-Series, Pancake Lock Nut Cylinders
RSM, RCS-Series, Low Height Cylinders
BRC, BRP-Series, Pull Cylinders
RCH-Series, Hollow Plunger Cylinders
RRH-Series, Hollow Plunger Cylinders
RC-Series, Cylinder Accessories
SC-Series, Cylinder-Pump Sets
Package and Delivery1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt deliveryShipping Methods1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Our service1. 24 hours online service;2. One year warranty, repair and service for the whole life.3. Question report will be replied in 48 hours.4. Quality guaranteed. Company informationShanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components. CertificateSince the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
ClientsOur customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

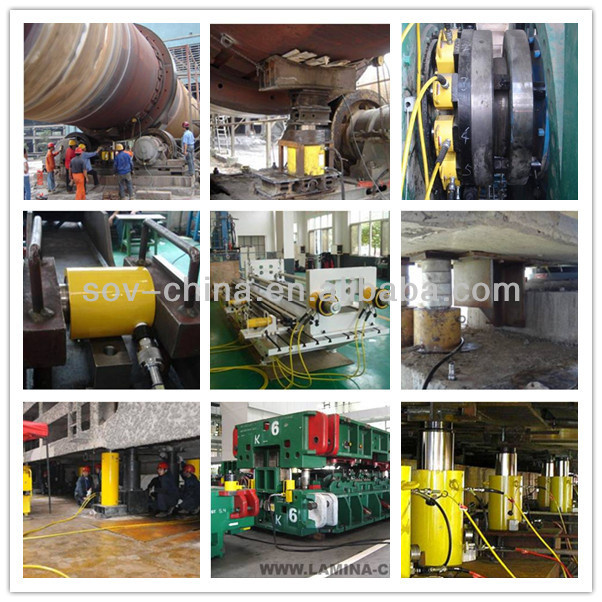

Main ProductsWe are a manufacturer in tools, such as:•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;•Hydraulic pumps, manual and electric type (max up to 4000bar);•Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hoseOur products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Competitive Advantages1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc. WHY DO YOU NEED SOV? Q1: What's the brand name of your products?A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required. Q2: Hydraulic cylinder internal leakage?A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands. Q3: Does your piston rod get ruptured easily?A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.Q4: Is your design reasonable? What about your product safe coefficient?A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.Q5: How about the delivery time?A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.Q6: What's the after-service?A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem. ContactContact Person: Sidney Zheng
